Toyota Hilux TGN16 ENGINE OIL PUMP

TGN16L-PRPDKV (2011)

Toyota Hilux

Production Jul 2011 - Apr 2015

Engine 2TRFE

Transmission

Displacement 2500cc

Power 168 HP (125 kW)

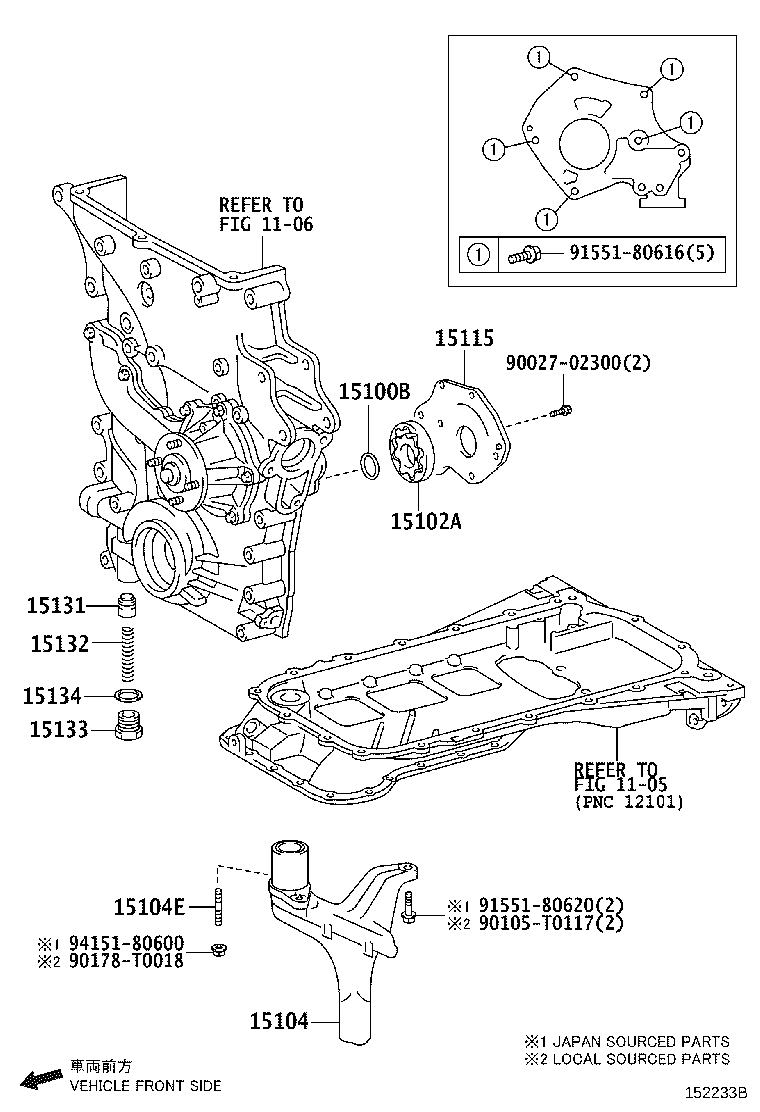

Click highlighted areas on diagram

Part #	Description	Period	Qty
15100B - RING, O(FOR OIL PUMP)
90301-T0020	1TRFE,2TRFE..TGN1#,26,36	07/2011 - 08/2018	1
15102A - ROTOR, OIL PUMP
15103-0C020	2TRFE..TGN11,16,26,36	07/2011 - 12/2999	1
15104 - STRAINER SUB-ASSY, OIL
15104-0C020	1TRFE,2TRFE..TGN1#,26,36..ARL,GCC,GEN,IDN,TH	07/2011 - 02/2015	1
15104-0C050	1TRFE,2TRFE..TGN1#,26,36..ARL,GCC,GEN,IDN,TH	02/2015 - 12/2999	1
15104E - BOLT, STUD(FOR OIL STRAINER)
90126-08037	1TRFE,2TRFE..TGN1#,26,36..ARL,GCC,GEN,IDN,TH	07/2011 - 02/2015	2
90126-06029	1TRFE,2TRFE..TGN1#,26,36..ARL,GCC,GEN,IDN,TH (J)	02/2015 - 12/2999	1
90126-T0012	1TRFE,2TRFE..TGN1#,26,36..ARL,GCC,GEN,IDN,TH (L)	02/2015 - 12/2999	1
15115 - COVER, OIL PUMP
15115-0C010	1TRFE,2TRFE..TGN1#,26,36..ARL,GCC,GEN,IDN,TH	07/2011 - 02/2015	1
15115-0C011	1TRFE,2TRFE..TGN1#,26,36..ARL,GCC,GEN,IDN,TH	02/2015 - 12/2999	1
15131 - VALVE, OIL PUMP RELIEF
15131-46040	1TRFE,2TRFE..TGN1#,26,36	07/2011 - 12/2999	1
15132 - SPRING, OIL PUMP RELIEF VALVE
15132-0C010	1TRFE,2TRFE..TGN1#,26,36	07/2011 - 12/2999	1
15133 - PLUG, OIL PUMP RELIEF VALVE
15133-0C010	1TRFE,2TRFE..TGN1#,26,36	07/2011 - 12/2999	1
15134 - GASKET, OIL PUMP RELIEF VALVE
15134-67020	1TRFE,2TRFE..TGN1#,26,36	07/2011 - 12/2999	1
15147 - GASKET, OIL STRAINER
15147-0C010	1TRFE,2TRFE..TGN1#,26,36..ARL,GCC,GEN,IDN,TH	07/2011 - 02/2015	1
15147-0C020	1TRFE,2TRFE..TGN1#,26,36..ARL,GCC,GEN,IDN,TH	02/2015 - 12/2999	1
Common parts
90027-02300
90119-T0237
90178-T0030
91551-80616
91641-K0816
