TGN16L-PRPDKV (2011)
Toyota Hilux

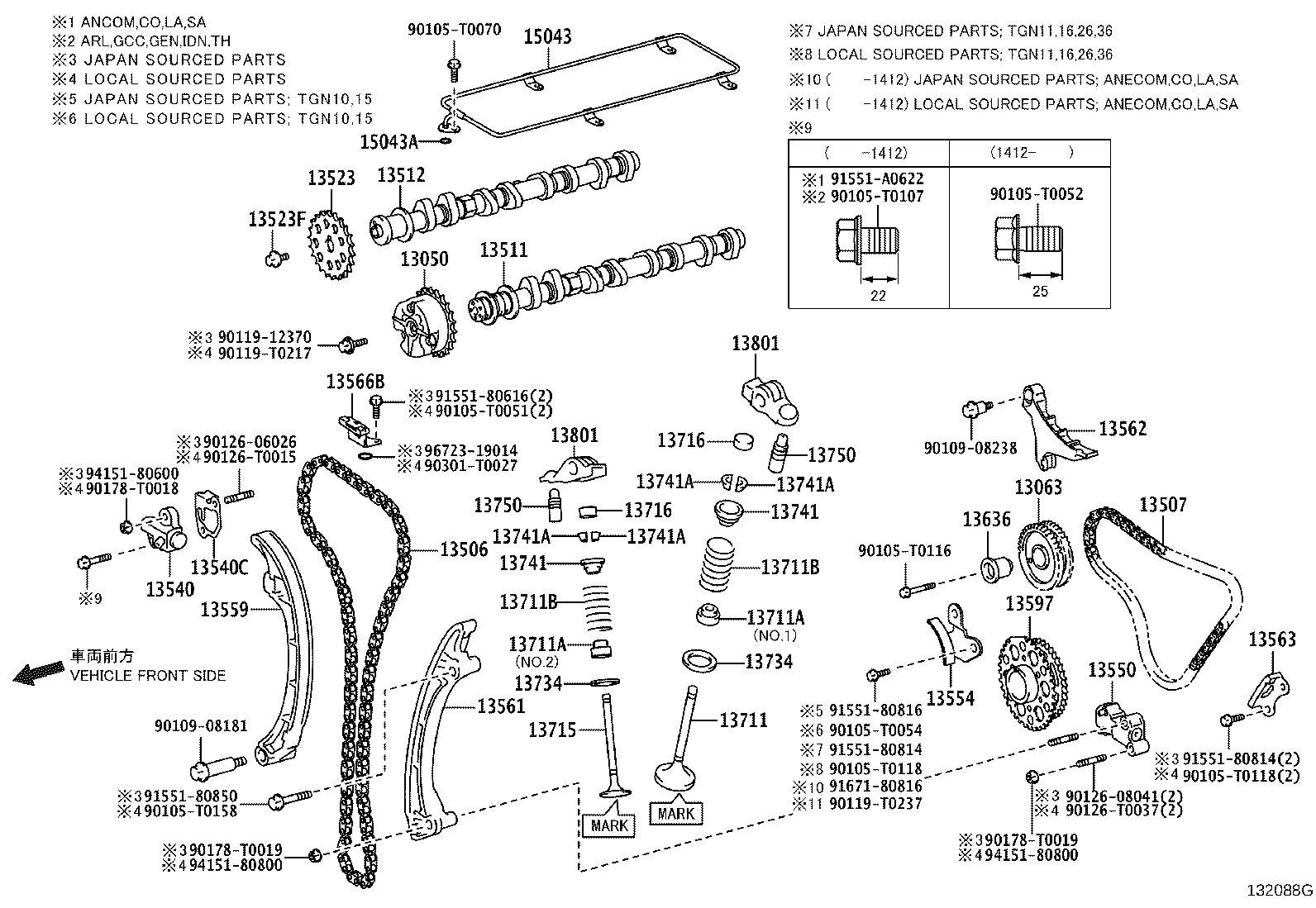

(1107-1407)2TRFE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 13050 - GEAR ASSY, CAMSHAFT TIMING | ||||
| 13050-75030 |
1TRFE,2TRFE..TGN1#,26,36 |
1 | ||
| 13050-75010 |
1TRFE,2TRFE..TGN1#,26,36 |
1 | ||
| 13063 - GEAR SUB-ASSY, BALANCESHAFT DRIVE | ||||
| 13063-0C010 |
2TRFE..TGN11,16,26,36 (L) |
1 | ||
| 13063-0C010 |
2TRFE..TGN11,16,26,36 |
1 | ||
| 13063-75011 |
2TRFE..TGN11,16,26,36 (J) |
1 | ||
| 13506 - CHAIN SUB-ASSY | ||||
| 13506-0C020 |
2TRFE..TGN11,16,26,36..ARL,GCC,GEN,TH |
1 | ||
| 13506-0C040 |
2TRFE..TGN11,16,26,36..ARL,GCC,GEN,TH (L) |
1 | ||
| 13506-75070 |
2TRFE..TGN11,16,26,36..ARL,GCC,GEN,TH (J) |
1 | ||
| 13507 - CHAIN SUB-ASSY, NO.2 | ||||
| 13507-0C010 |
2TRFE..TGN11,16,26,36 |
1 | ||
| 13507-0C010 |
2TRFE..TGN11,16,26,36 (L) |
1 | ||
| 13507-75030 |
2TRFE..TGN11,16,26,36 (J) |
1 | ||
| 13511 - CAMSHAFT | ||||
| 13501-0C010 |
2TRFE..TGN11,16,26,36..ARL,GCC,GEN,TH (L) |
1 | ||
| 13501-75070 |
2TRFE..TGN11,16,26,36..ARL,GCC,GEN,TH (J) |
1 | ||
| 13501-75071 |
2TRFE..TGN11,16,26,36..ARL,GCC,GEN,TH (J) |
1 | ||
| 13501-0C011 |
2TRFE..TGN11,16,26,36..ARL,GCC,GEN,TH (L) |
1 | ||
| 13512 - CAMSHAFT, NO.2 | ||||
| 13502-75060 |
2TRFE..TGN11,16,26,36..ARL,GCC,GEN,TH (J) |
1 | ||
| 13502-0C010 |
2TRFE..TGN11,16,26,36..ARL,GCC,GEN,TH (L) |
1 | ||
| 13523 - GEAR OR SPROCKET, CAMSHAFT TIMING | ||||
| 13523-0C020 |
1TRFE,2TRFE..TGN1#,26,36 |
1 | ||
| 13523F - BOLT(FOR CAMSHAFT TIMING GEAR) | ||||
| 90105-12149 |
1TRFE,2TRFE..TGN1#,26,36 |
1 | ||
| 13540 - TENSIONER ASSY, CHAIN, NO.1 | ||||
| 13540-0C010 |
1TRFE,2TRFE..TGN1#,26,36 |
1 | ||
| 13540-0C011 |
1TRFE,2TRFE..TGN1#,26,36 (L) |
1 | ||
| 13540C - GASKET(FOR CHAIN TENSIONER) | ||||
| 13552-0C010 |
1TRFE,2TRFE..TGN1#,26,36 |
1 | ||
| 13552-0C010 |
1TRFE,2TRFE..TGN1#,26,36 (L) |
1 | ||
| 13552-75020 |
1TRFE,2TRFE..TGN1#,26,36 (J) |
1 | ||
| 13552-75030 |
1TRFE,2TRFE..TGN1#,26,36 (J) |
1 | ||
| 13550 - TENSIONER ASSY, CHAIN, NO.2 | ||||
| 13550-0C020 |
2TRFE..TGN11,16,26,36..ARL,GCC,GEN,TH |
1 | ||
| 13550-0C020 |
2TRFE..TGN11,16,26,36 (L) |
1 | ||
| 13550-75010 |
2TRFE..TGN11,16,26,36 (J) |
1 | ||
| 13554 - DAMPER, CHAIN VIBRATION, NO.4 | ||||
| 13554-0C010 |
2TRFE..TGN11,16,26,36 |
1 | ||
| 13559 - SLIPPER, CHAIN TENSIONER | ||||
| 13559-0C040 |
2TRFE..TGN11,16,26,36..ARL,GCC,GEN,TH (L) |
1 | ||
| 13559-75060 |
2TRFE..TGN11,16,26,36..ARL,GCC,GEN,TH (J) |
1 | ||
| 13559-0C020 |
2TRFE..TGN11,16,26,36..ARL,GCC,GEN,TH |
1 | ||
| 13561 - DAMPER, CHAIN VIBRATION, NO.1 | ||||
| 13561-0C020 |
2TRFE..TGN11,16,26,36..ARL,GCC,GEN,TH |
1 | ||
| 13561-75060 |
2TRFE..TGN11,16,26,36..ARL,GCC,GEN,TH (J) |
1 | ||
| 13561-0C040 |
2TRFE..TGN11,16,26,36..ARL,GCC,GEN,TH (L) |
1 | ||
| 13562 - DAMPER, CHAIN VIBRATION, NO.2 | ||||
| 13562-0C010 |
2TRFE..TGN11,16,26,36 |
1 | ||
| 13562-75010 |
2TRFE..TGN11,16,26,36 (J) |
1 | ||
| 13562-0C010 |
2TRFE..TGN11,16,26,36 (L) |
1 | ||
| 13563 - DAMPER, CHAIN VIBRATION, NO.3 | ||||
| 13563-0C011 |
2TRFE..TGN11,16,26,36 (L) |
1 | ||
| 13563-75021 |
2TRFE..TGN11,16,26,36 (J) |
1 | ||
| 13563-0C010 |
2TRFE..TGN11,16,26,36..ARL,GCC,GEN,TH |
1 | ||
| 13566B - GUIDE, TIMING CHAIN | ||||
| 13566-0C010 |
1TRFE,2TRFE..TGN1#,26,36..ARL,GCC,GEN,IDN,TH |
1 | ||
| 13566-75020 |
1TRFE,2TRFE..TGN1#,26,36..ARL,GCC,GEN,IDN,TH (J) |
1 | ||
| 13566-0C020 |
1TRFE,2TRFE..TGN1#,26,36..ARL,GCC,GEN,IDN,TH (L) |
1 | ||
| 13597 - SPROCKET, CRANKSHAFT TIMING, NO.2 | ||||
| 13597-0C010 |
2TRFE..TGN11,16,26,36 |
1 | ||
| 13597-0C010 |
2TRFE..TGN11,16,26,36 (L) |
1 | ||
| 13597-75020 |
2TRFE..TGN11,16,26,36 (J) |
1 | ||
| 13636 - SHAFT, BALANCESHAFT DRIVE GEAR | ||||
| 13636-0C010 |
2TRFE..TGN11,16,26,36 |
1 | ||
| 13636-0C010 |
2TRFE..TGN11,16,26,36 (L) |
1 | ||
| 13636-75010 |
2TRFE..TGN11,16,26,36 (J) |
1 | ||
| 13711 - VALVE, INTAKE | ||||
| 13711-0C051 |
2TRFE..TGN26..GCC;2TRFE..TGN26..4FC..GEN;2TRFE..TGN26..(SCB,THDCB)..GEN;2TRFE..TGN11,16,36..(DCB,SCB,SMT,THDCB)..HTWC..(ARL,GCC,GEN,TH) |
8 | ||
| 13711-0C051 |
2TRFE..TGN26..GCC;2TRFE..TGN26..4FC..GEN;2TRFE..TGN26..(SCB,THDCB)..GEN;2TRFE..TGN11,16,36..(DCB,SCB,SMT,THDCB)..HTWC..(ARL,GCC,GEN,TH) MARK=2T,T |
8 | ||
| 13711-75110 |
2TRFE..TGN26..GCC;2TRFE..TGN26..4FC..GEN;2TRFE..TGN26..(SCB,THDCB)..GEN;2TRFE..TGN11,16,36..(DCB,SCB,SMT,THDCB)..HTWC..(ARL,GCC,GEN,TH) MARK=2T |
8 | ||
| 13711A - SEAL OR RING, O(FOR VALVE STEM OIL) | ||||
| 90080-31084 |
1TRFE,2TRFE..TGN1#,26,36 NO.2 |
8 | ||
| 90080-31085 |
1TRFE,2TRFE..TGN1#,26,36 NO.1 |
8 | ||
| 13711A - SEAL OR RING, O(FOR VALVE STEM OIL) | ||||
| 90080-31084 |
1TRFE,2TRFE..TGN1#,26,36 NO.2 |
8 | ||
| 90080-31085 |
1TRFE,2TRFE..TGN1#,26,36 NO.1 |
8 | ||
| 13711B - SPRING, COMPRESSION(FOR INNER) | ||||
| 90501-T0017 |
1TRFE,2TRFE..TGN1#,26,36..ARL,GCC,GEN,IDN,TH |
16 | ||
| 90501-T0037 |
1TRFE,2TRFE..TGN1#,26,36..ARL,GCC,GEN,IDN,TH (L) |
16 | ||
| 13711B - SPRING, COMPRESSION(FOR INNER) | ||||
| 90501-T0017 |
1TRFE,2TRFE..TGN1#,26,36..ARL,GCC,GEN,IDN,TH |
16 | ||
| 90501-T0037 |
1TRFE,2TRFE..TGN1#,26,36..ARL,GCC,GEN,IDN,TH (L) |
16 | ||
| 13715 - VALVE, EXHAUST | ||||
| 13715-0C051 |
2TRFE..TGN26..GCC;2TRFE..TGN26..4FC..GEN;2TRFE..TGN26..(SCB,THDCB)..GEN;2TRFE..TGN11,16,36..(DCB,SCB,SMT,THDCB)..HTWC..(ARL,GCC,GEN,TH) |
8 | ||
| 13715-0C051 |
2TRFE..TGN26..GCC;2TRFE..TGN26..4FC..GEN;2TRFE..TGN26..(SCB,THDCB)..GEN;2TRFE..TGN11,16,36..(DCB,SCB,SMT,THDCB)..HTWC..(ARL,GCC,GEN,TH) MARK=2T,T |
8 | ||
| 13715-75140 |
2TRFE..TGN26..GCC;2TRFE..TGN26..4FC..GEN;2TRFE..TGN26..(SCB,THDCB)..GEN;2TRFE..TGN11,16,36..(DCB,SCB,SMT,THDCB)..HTWC..(ARL,GCC,GEN,TH) MARK=8 |
8 | ||
| 13716 - CAP, VALVE STEM | ||||
| 13716-75020 |
1TRFE,2TRFE..TGN1#,26,36..ARL,GCC,GEN,IDN,TH |
16 | ||
| 13716-75020 |
1TRFE,2TRFE..TGN1#,26,36..ARL,GCC,GEN,IDN,TH (J) |
16 | ||
| 13716-0C010 |
1TRFE,2TRFE..TGN1#,26,36..ARL,GCC,GEN,IDN,TH (L) |
16 | ||
| 13716 - CAP, VALVE STEM | ||||
| 13716-75020 |
1TRFE,2TRFE..TGN1#,26,36..ARL,GCC,GEN,IDN,TH |
16 | ||
| 13716-75020 |
1TRFE,2TRFE..TGN1#,26,36..ARL,GCC,GEN,IDN,TH (J) |
16 | ||
| 13716-0C010 |
1TRFE,2TRFE..TGN1#,26,36..ARL,GCC,GEN,IDN,TH (L) |
16 | ||
| 13734 - SEAT, VALVE SPRING | ||||
| 13734-0C010 |
1TRFE,2TRFE..TGN1#,26,36 |
16 | ||
| 13734-62020 |
1TRFE,2TRFE..TGN1#,26,36 (J) |
16 | ||
| 13734-0C010 |
1TRFE,2TRFE..TGN1#,26,36 (L) |
16 | ||
| 13734 - SEAT, VALVE SPRING | ||||
| 13734-0C010 |
1TRFE,2TRFE..TGN1#,26,36 |
16 | ||
| 13734-62020 |
1TRFE,2TRFE..TGN1#,26,36 (J) |
16 | ||
| 13734-0C010 |
1TRFE,2TRFE..TGN1#,26,36 (L) |
16 | ||
| 13741 - RETAINER, VALVE SPRING | ||||
| 13741-0C020 |
1TRFE,2TRFE..TGN1#,26,36..ARL,GCC,GEN,IDN,TH |
16 | ||
| 13741-36010 |
1TRFE,2TRFE..TGN1#,26,36..ARL,GCC,GEN,IDN,TH (J) |
16 | ||
| 13741-0C030 |
1TRFE,2TRFE..TGN1#,26,36..ARL,GCC,GEN,IDN,TH (L) |
16 | ||
| 13741 - RETAINER, VALVE SPRING | ||||
| 13741-0C020 |
1TRFE,2TRFE..TGN1#,26,36..ARL,GCC,GEN,IDN,TH |
16 | ||
| 13741-36010 |
1TRFE,2TRFE..TGN1#,26,36..ARL,GCC,GEN,IDN,TH (J) |
16 | ||
| 13741-0C030 |
1TRFE,2TRFE..TGN1#,26,36..ARL,GCC,GEN,IDN,TH (L) |
16 | ||
| 13741A - LOCK, VALVE SPRING RETAINER | ||||
| 90913-03028 |
1TRFE,2TRFE..TGN1#,26,36 |
32 | ||
| 13741A - LOCK, VALVE SPRING RETAINER | ||||
| 90913-03028 |
1TRFE,2TRFE..TGN1#,26,36 |
32 | ||
| 13741A - LOCK, VALVE SPRING RETAINER | ||||
| 90913-03028 |
1TRFE,2TRFE..TGN1#,26,36 |
32 | ||
| 13741A - LOCK, VALVE SPRING RETAINER | ||||
| 90913-03028 |
1TRFE,2TRFE..TGN1#,26,36 |
32 | ||
| 13750 - ADJUSTER ASSY, VALVE LASH | ||||
| 13750-75020 |
1TRFE,2TRFE..TGN1#,26,36 |
16 | ||
| 13750-0C020 |
1TRFE,2TRFE..TGN1#,26,36 |
16 | ||
| 13750-21010 |
1TRFE,2TRFE..TGN1#,26,36 (J) |
16 | ||
| 13750-0C030 |
1TRFE,2TRFE..TGN1#,26,36..ARL,GCC,GEN,IDN,TH (L) |
16 | ||
| 13750 - ADJUSTER ASSY, VALVE LASH | ||||
| 13750-75020 |
1TRFE,2TRFE..TGN1#,26,36 |
16 | ||
| 13750-0C020 |
1TRFE,2TRFE..TGN1#,26,36 |
16 | ||
| 13750-21010 |
1TRFE,2TRFE..TGN1#,26,36 (J) |
16 | ||
| 13750-0C030 |
1TRFE,2TRFE..TGN1#,26,36..ARL,GCC,GEN,IDN,TH (L) |
16 | ||
| 13801 - ARM SUB-ASSY, VALVE ROCKER, NO.1 | ||||
| 13801-0C020 |
1TRFE,2TRFE..TGN1#,26,36..ARL,GCC,GEN,IDN,TH (L) |
16 | ||
| 13801-0C010 |
1TRFE,2TRFE..TGN1#,26,36 |
16 | ||
| 13801-36020 |
1TRFE,2TRFE..TGN1#,26,36 (J) |
16 | ||
| 13801 - ARM SUB-ASSY, VALVE ROCKER, NO.1 | ||||
| 13801-0C020 |
1TRFE,2TRFE..TGN1#,26,36..ARL,GCC,GEN,IDN,TH (L) |
16 | ||
| 13801-0C010 |
1TRFE,2TRFE..TGN1#,26,36 |
16 | ||
| 13801-36020 |
1TRFE,2TRFE..TGN1#,26,36 (J) |
16 | ||
| 15043 - PIPE SUB-ASSY, CAMSHAFT OIL DELIVERY | ||||
| 15043-0C020 |
1TRFE,2TRFE..TGN1#,26,36..ARL,GCC,GEN,IDN,TH |
1 | ||
| 15043A - RING, O(FOR CAMSHAFT OIL DELIVERY PIPE) | ||||
| 90301-T0026 |
1TRFE,2TRFE..TGN1#,26,36 |
1 | ||
| Common parts | ||||
| 90105-08143 | ||||
| 90105-T0051 | ||||
| 90105-T0070 | ||||
| 90105-T0107 | ||||
| 90105-T0116 | ||||
| 90105-T0158 | ||||
| 90109-08181 | ||||
| 90109-08238 | ||||
| 90119-12370 | ||||
| 90119-T0217 | ||||
| 90119-T0237 | ||||
| 90126-06026 | ||||
| 90126-08041 | ||||
| 90126-T0037 | ||||
| 90178-T0018 | ||||
| 90178-T0019 | ||||
| 90301-T0027 | ||||
| 91551-A0622 | ||||
| 91671-80816 | ||||
(1407- )2TRFE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 13050 - GEAR ASSY, CAMSHAFT TIMING | ||||
| 13050-75030 |
1TRFE,2TRFE..TGN1#,26,36 |
1 | ||
| 13050-75010 |
1TRFE,2TRFE..TGN1#,26,36 |
1 | ||
| 13063 - GEAR SUB-ASSY, BALANCESHAFT DRIVE | ||||
| 13063-0C010 |
2TRFE..TGN11,16,26,36 (L) |
1 | ||
| 13063-0C010 |
2TRFE..TGN11,16,26,36 |
1 | ||
| 13063-75011 |
2TRFE..TGN11,16,26,36 (J) |
1 | ||
| 13506 - CHAIN SUB-ASSY | ||||
| 13506-0C020 |
2TRFE..TGN11,16,26,36..ARL,GCC,GEN,TH |
1 | ||
| 13506-0C040 |
2TRFE..TGN11,16,26,36..ARL,GCC,GEN,TH (L) |
1 | ||
| 13506-75070 |
2TRFE..TGN11,16,26,36..ARL,GCC,GEN,TH (J) |
1 | ||
| 13507 - CHAIN SUB-ASSY, NO.2 | ||||
| 13507-0C010 |
2TRFE..TGN11,16,26,36 |
1 | ||
| 13507-0C010 |
2TRFE..TGN11,16,26,36 (L) |
1 | ||
| 13507-75030 |
2TRFE..TGN11,16,26,36 (J) |
1 | ||
| 13511 - CAMSHAFT | ||||
| 13501-0C010 |
2TRFE..TGN11,16,26,36..ARL,GCC,GEN,TH (L) |
1 | ||
| 13501-75070 |
2TRFE..TGN11,16,26,36..ARL,GCC,GEN,TH (J) |
1 | ||
| 13501-75071 |
2TRFE..TGN11,16,26,36..ARL,GCC,GEN,TH (J) |
1 | ||
| 13501-0C011 |
2TRFE..TGN11,16,26,36..ARL,GCC,GEN,TH (L) |
1 | ||
| 13512 - CAMSHAFT, NO.2 | ||||
| 13502-75060 |
2TRFE..TGN11,16,26,36..ARL,GCC,GEN,TH (J) |
1 | ||
| 13502-0C010 |
2TRFE..TGN11,16,26,36..ARL,GCC,GEN,TH (L) |
1 | ||
| 13523 - GEAR OR SPROCKET, CAMSHAFT TIMING | ||||
| 13523-0C020 |
1TRFE,2TRFE..TGN1#,26,36 |
1 | ||
| 13523F - BOLT(FOR CAMSHAFT TIMING GEAR) | ||||
| 90105-12149 |
1TRFE,2TRFE..TGN1#,26,36 |
1 | ||
| 13540 - TENSIONER ASSY, CHAIN, NO.1 | ||||
| 13540-0C010 |
1TRFE,2TRFE..TGN1#,26,36 |
1 | ||
| 13540-0C011 |
1TRFE,2TRFE..TGN1#,26,36 (L) |
1 | ||
| 13540C - GASKET(FOR CHAIN TENSIONER) | ||||
| 13552-0C010 |
1TRFE,2TRFE..TGN1#,26,36 |
1 | ||
| 13552-0C010 |
1TRFE,2TRFE..TGN1#,26,36 (L) |
1 | ||
| 13552-75020 |
1TRFE,2TRFE..TGN1#,26,36 (J) |
1 | ||
| 13552-75030 |
1TRFE,2TRFE..TGN1#,26,36 (J) |
1 | ||
| 13550 - TENSIONER ASSY, CHAIN, NO.2 | ||||
| 13550-0C020 |
2TRFE..TGN11,16,26,36..ARL,GCC,GEN,TH |
1 | ||
| 13550-0C020 |
2TRFE..TGN11,16,26,36 (L) |
1 | ||
| 13550-75010 |
2TRFE..TGN11,16,26,36 (J) |
1 | ||
| 13554 - DAMPER, CHAIN VIBRATION, NO.4 | ||||
| 13554-0C010 |
2TRFE..TGN11,16,26,36 |
1 | ||
| 13559 - SLIPPER, CHAIN TENSIONER | ||||
| 13559-0C040 |
2TRFE..TGN11,16,26,36..ARL,GCC,GEN,TH (L) |
1 | ||
| 13559-75060 |
2TRFE..TGN11,16,26,36..ARL,GCC,GEN,TH (J) |
1 | ||
| 13559-0C020 |
2TRFE..TGN11,16,26,36..ARL,GCC,GEN,TH |
1 | ||
| 13561 - DAMPER, CHAIN VIBRATION, NO.1 | ||||
| 13561-0C020 |
2TRFE..TGN11,16,26,36..ARL,GCC,GEN,TH |
1 | ||
| 13561-75060 |
2TRFE..TGN11,16,26,36..ARL,GCC,GEN,TH (J) |
1 | ||
| 13561-0C040 |
2TRFE..TGN11,16,26,36..ARL,GCC,GEN,TH (L) |
1 | ||
| 13562 - DAMPER, CHAIN VIBRATION, NO.2 | ||||
| 13562-0C010 |
2TRFE..TGN11,16,26,36 |
1 | ||
| 13562-75010 |
2TRFE..TGN11,16,26,36 (J) |
1 | ||
| 13562-0C010 |
2TRFE..TGN11,16,26,36 (L) |
1 | ||
| 13563 - DAMPER, CHAIN VIBRATION, NO.3 | ||||
| 13563-0C011 |
2TRFE..TGN11,16,26,36 (L) |
1 | ||
| 13563-75021 |
2TRFE..TGN11,16,26,36 (J) |
1 | ||
| 13563-0C010 |
2TRFE..TGN11,16,26,36..ARL,GCC,GEN,TH |
1 | ||
| 13566B - GUIDE, TIMING CHAIN | ||||
| 13566-0C010 |
1TRFE,2TRFE..TGN1#,26,36..ARL,GCC,GEN,IDN,TH |
1 | ||
| 13566-75020 |
1TRFE,2TRFE..TGN1#,26,36..ARL,GCC,GEN,IDN,TH (J) |
1 | ||
| 13566-0C020 |
1TRFE,2TRFE..TGN1#,26,36..ARL,GCC,GEN,IDN,TH (L) |
1 | ||
| 13597 - SPROCKET, CRANKSHAFT TIMING, NO.2 | ||||
| 13597-0C010 |
2TRFE..TGN11,16,26,36 |
1 | ||
| 13597-0C010 |
2TRFE..TGN11,16,26,36 (L) |
1 | ||
| 13597-75020 |
2TRFE..TGN11,16,26,36 (J) |
1 | ||
| 13636 - SHAFT, BALANCESHAFT DRIVE GEAR | ||||
| 13636-0C010 |
2TRFE..TGN11,16,26,36 |
1 | ||
| 13636-0C010 |
2TRFE..TGN11,16,26,36 (L) |
1 | ||
| 13636-75010 |
2TRFE..TGN11,16,26,36 (J) |
1 | ||
| 13711 - VALVE, INTAKE | ||||
| 13711-0C051 |
2TRFE..TGN26..GCC;2TRFE..TGN26..4FC..GEN;2TRFE..TGN26..(SCB,THDCB)..GEN;2TRFE..TGN11,16,36..(DCB,SCB,SMT,THDCB)..HTWC..(ARL,GCC,GEN,TH) |
8 | ||
| 13711-0C051 |
2TRFE..TGN26..GCC;2TRFE..TGN26..4FC..GEN;2TRFE..TGN26..(SCB,THDCB)..GEN;2TRFE..TGN11,16,36..(DCB,SCB,SMT,THDCB)..HTWC..(ARL,GCC,GEN,TH) MARK=2T,T |
8 | ||
| 13711-75110 |
2TRFE..TGN26..GCC;2TRFE..TGN26..4FC..GEN;2TRFE..TGN26..(SCB,THDCB)..GEN;2TRFE..TGN11,16,36..(DCB,SCB,SMT,THDCB)..HTWC..(ARL,GCC,GEN,TH) MARK=2T |
8 | ||
| 13711A - SEAL OR RING, O(FOR VALVE STEM OIL) | ||||
| 90080-31084 |
1TRFE,2TRFE..TGN1#,26,36 NO.2 |
8 | ||
| 90080-31085 |
1TRFE,2TRFE..TGN1#,26,36 NO.1 |
8 | ||
| 13711A - SEAL OR RING, O(FOR VALVE STEM OIL) | ||||
| 90080-31084 |
1TRFE,2TRFE..TGN1#,26,36 NO.2 |
8 | ||
| 90080-31085 |
1TRFE,2TRFE..TGN1#,26,36 NO.1 |
8 | ||
| 13711B - SPRING, COMPRESSION(FOR INNER) | ||||
| 90501-T0017 |
1TRFE,2TRFE..TGN1#,26,36..ARL,GCC,GEN,IDN,TH |
16 | ||
| 90501-T0037 |
1TRFE,2TRFE..TGN1#,26,36..ARL,GCC,GEN,IDN,TH (L) |
16 | ||
| 13711B - SPRING, COMPRESSION(FOR INNER) | ||||
| 90501-T0017 |
1TRFE,2TRFE..TGN1#,26,36..ARL,GCC,GEN,IDN,TH |
16 | ||
| 90501-T0037 |
1TRFE,2TRFE..TGN1#,26,36..ARL,GCC,GEN,IDN,TH (L) |
16 | ||
| 13715 - VALVE, EXHAUST | ||||
| 13715-0C051 |
2TRFE..TGN26..GCC;2TRFE..TGN26..4FC..GEN;2TRFE..TGN26..(SCB,THDCB)..GEN;2TRFE..TGN11,16,36..(DCB,SCB,SMT,THDCB)..HTWC..(ARL,GCC,GEN,TH) |
8 | ||
| 13715-0C051 |
2TRFE..TGN26..GCC;2TRFE..TGN26..4FC..GEN;2TRFE..TGN26..(SCB,THDCB)..GEN;2TRFE..TGN11,16,36..(DCB,SCB,SMT,THDCB)..HTWC..(ARL,GCC,GEN,TH) MARK=2T,T |
8 | ||
| 13715-75140 |
2TRFE..TGN26..GCC;2TRFE..TGN26..4FC..GEN;2TRFE..TGN26..(SCB,THDCB)..GEN;2TRFE..TGN11,16,36..(DCB,SCB,SMT,THDCB)..HTWC..(ARL,GCC,GEN,TH) MARK=8 |
8 | ||
| 13716 - CAP, VALVE STEM | ||||
| 13716-75020 |
1TRFE,2TRFE..TGN1#,26,36..ARL,GCC,GEN,IDN,TH |
16 | ||
| 13716-75020 |
1TRFE,2TRFE..TGN1#,26,36..ARL,GCC,GEN,IDN,TH (J) |
16 | ||
| 13716-0C010 |
1TRFE,2TRFE..TGN1#,26,36..ARL,GCC,GEN,IDN,TH (L) |
16 | ||
| 13716 - CAP, VALVE STEM | ||||
| 13716-75020 |
1TRFE,2TRFE..TGN1#,26,36..ARL,GCC,GEN,IDN,TH |
16 | ||
| 13716-75020 |
1TRFE,2TRFE..TGN1#,26,36..ARL,GCC,GEN,IDN,TH (J) |
16 | ||
| 13716-0C010 |
1TRFE,2TRFE..TGN1#,26,36..ARL,GCC,GEN,IDN,TH (L) |
16 | ||
| 13734 - SEAT, VALVE SPRING | ||||
| 13734-0C010 |
1TRFE,2TRFE..TGN1#,26,36 |
16 | ||
| 13734-62020 |
1TRFE,2TRFE..TGN1#,26,36 (J) |
16 | ||
| 13734-0C010 |
1TRFE,2TRFE..TGN1#,26,36 (L) |
16 | ||
| 13734 - SEAT, VALVE SPRING | ||||
| 13734-0C010 |
1TRFE,2TRFE..TGN1#,26,36 |
16 | ||
| 13734-62020 |
1TRFE,2TRFE..TGN1#,26,36 (J) |
16 | ||
| 13734-0C010 |
1TRFE,2TRFE..TGN1#,26,36 (L) |
16 | ||
| 13741 - RETAINER, VALVE SPRING | ||||
| 13741-0C020 |
1TRFE,2TRFE..TGN1#,26,36..ARL,GCC,GEN,IDN,TH |
16 | ||
| 13741-36010 |
1TRFE,2TRFE..TGN1#,26,36..ARL,GCC,GEN,IDN,TH (J) |
16 | ||
| 13741-0C030 |
1TRFE,2TRFE..TGN1#,26,36..ARL,GCC,GEN,IDN,TH (L) |
16 | ||
| 13741 - RETAINER, VALVE SPRING | ||||
| 13741-0C020 |
1TRFE,2TRFE..TGN1#,26,36..ARL,GCC,GEN,IDN,TH |
16 | ||
| 13741-36010 |
1TRFE,2TRFE..TGN1#,26,36..ARL,GCC,GEN,IDN,TH (J) |
16 | ||
| 13741-0C030 |
1TRFE,2TRFE..TGN1#,26,36..ARL,GCC,GEN,IDN,TH (L) |
16 | ||
| 13741A - LOCK, VALVE SPRING RETAINER | ||||
| 90913-03028 |
1TRFE,2TRFE..TGN1#,26,36 |
32 | ||
| 13741A - LOCK, VALVE SPRING RETAINER | ||||
| 90913-03028 |
1TRFE,2TRFE..TGN1#,26,36 |
32 | ||
| 13741A - LOCK, VALVE SPRING RETAINER | ||||
| 90913-03028 |
1TRFE,2TRFE..TGN1#,26,36 |
32 | ||
| 13741A - LOCK, VALVE SPRING RETAINER | ||||
| 90913-03028 |
1TRFE,2TRFE..TGN1#,26,36 |
32 | ||
| 13750 - ADJUSTER ASSY, VALVE LASH | ||||
| 13750-75020 |
1TRFE,2TRFE..TGN1#,26,36 |
16 | ||
| 13750-0C020 |
1TRFE,2TRFE..TGN1#,26,36 |
16 | ||
| 13750-21010 |
1TRFE,2TRFE..TGN1#,26,36 (J) |
16 | ||
| 13750-0C030 |
1TRFE,2TRFE..TGN1#,26,36..ARL,GCC,GEN,IDN,TH (L) |
16 | ||
| 13750 - ADJUSTER ASSY, VALVE LASH | ||||
| 13750-75020 |
1TRFE,2TRFE..TGN1#,26,36 |
16 | ||
| 13750-0C020 |
1TRFE,2TRFE..TGN1#,26,36 |
16 | ||
| 13750-21010 |
1TRFE,2TRFE..TGN1#,26,36 (J) |
16 | ||
| 13750-0C030 |
1TRFE,2TRFE..TGN1#,26,36..ARL,GCC,GEN,IDN,TH (L) |
16 | ||
| 13801 - ARM SUB-ASSY, VALVE ROCKER, NO.1 | ||||
| 13801-0C020 |
1TRFE,2TRFE..TGN1#,26,36..ARL,GCC,GEN,IDN,TH (L) |
16 | ||
| 13801-0C010 |
1TRFE,2TRFE..TGN1#,26,36 |
16 | ||
| 13801-36020 |
1TRFE,2TRFE..TGN1#,26,36 (J) |
16 | ||
| 13801 - ARM SUB-ASSY, VALVE ROCKER, NO.1 | ||||
| 13801-0C020 |
1TRFE,2TRFE..TGN1#,26,36..ARL,GCC,GEN,IDN,TH (L) |
16 | ||
| 13801-0C010 |
1TRFE,2TRFE..TGN1#,26,36 |
16 | ||
| 13801-36020 |
1TRFE,2TRFE..TGN1#,26,36 (J) |
16 | ||
| 15043 - PIPE SUB-ASSY, CAMSHAFT OIL DELIVERY | ||||
| 15043-0C020 |
1TRFE,2TRFE..TGN1#,26,36..ARL,GCC,GEN,IDN,TH |
1 | ||
| 15043A - RING, O(FOR CAMSHAFT OIL DELIVERY PIPE) | ||||
| 90301-T0026 |
1TRFE,2TRFE..TGN1#,26,36 |
1 | ||
| Common parts | ||||
| 90105-T0051 | ||||
| 90105-T0052 | ||||
| 90105-T0054 | ||||
| 90105-T0070 | ||||
| 90105-T0107 | ||||
| 90105-T0116 | ||||
| 90105-T0118 | ||||
| 90105-T0158 | ||||
| 90109-08181 | ||||
| 90109-08238 | ||||
| 90119-12370 | ||||
| 90119-T0217 | ||||
| 90119-T0237 | ||||
| 90126-06026 | ||||
| 90126-08041 | ||||
| 90126-T0015 | ||||
| 90126-T0037 | ||||
| 90178-T0018 | ||||
| 90178-T0019 | ||||
| 90301-T0027 | ||||
| 91551-80616 | ||||
| 91551-80814 | ||||
| 91551-80816 | ||||
| 91551-80850 | ||||
| 91551-A0622 | ||||
| 91671-80816 | ||||
| 94151-80600 | ||||
| 94151-80800 | ||||
| 96723-19014 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
