TGN16L-PRPDKV (2011)
Toyota Hilux
(1107-1408)2TRFE..ARL,GCC,GEN,TH ; (1107- )2TRFE..TGN16,26,36..ANCOM,CO,LA,SA
| Part # | Description | Qty | Price | |
|---|---|---|---|---|

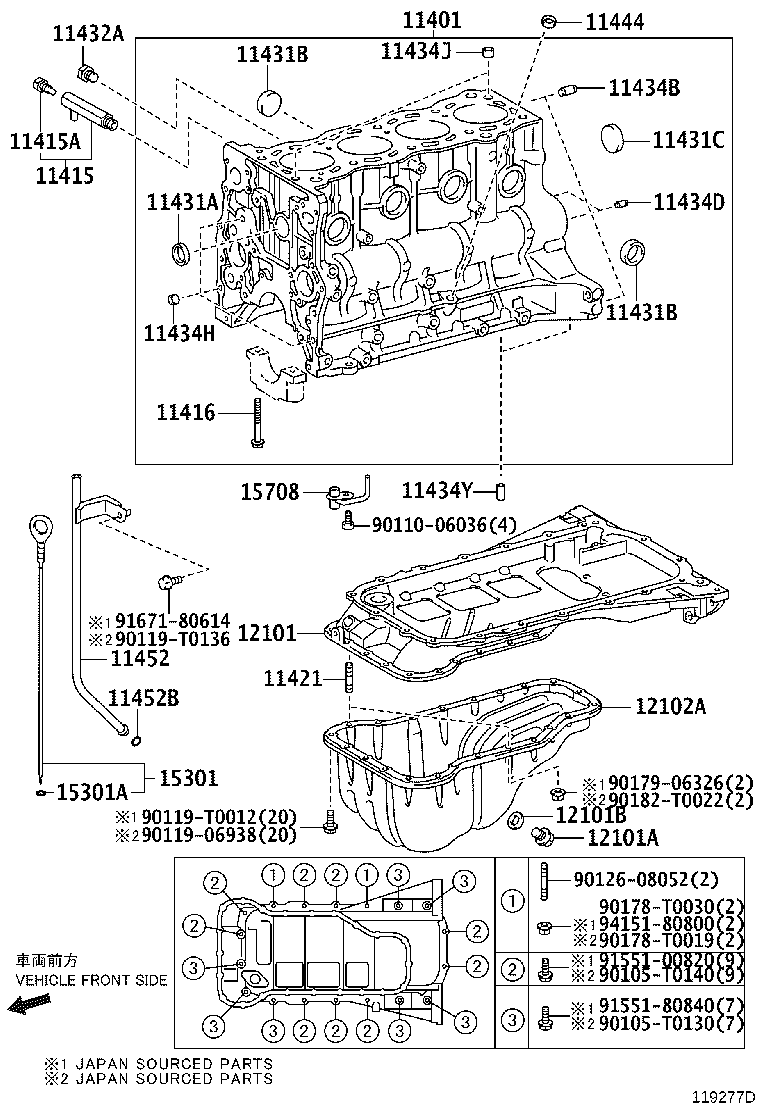

| 11401 - BLOCK SUB-ASSY, CYLINDER | ||||
| 11401-09410 |
2TRFE..TGN11,16,26,36 |
1 | ||
| 11401-09411 |
2TRFE..TGN11,16,26,36 |
1 | ||
| 11401-09412 |
2TRFE..TGN11,16,26,36 |
1 | ||
| 11415 - COCK SUB-ASSY, WATER DRAIN(FOR CYLINDER BLOCK) | ||||
| 90910-T9002 |
2TRFE..TGN11,16,26,36 |
1 | ||
| 90910-T9002 |
2TRFE..TGN11,16,26,36 (L) |
1 | ||
| 90910-09118 |
2TRFE..TGN11,16,26,36 (J) |
1 | ||
| 11415A - PLUG, WATER DRAIN COCK(FOR CYLINDER BLOCK) | ||||
| 90910-09087 |
2TRFE..TGN11,16,26,36 (J) |
1 | ||
| 90910-T9001 |
2TRFE..TGN11,16,26,36 (L) |
1 | ||
| 11416 - BOLT(FOR CRANKSHAFT BEARING CAP SET) | ||||
| 90910-T2002 |
1TRFE,2TRFE..TGN1#,26,36 (L) |
10 | ||
| 11421 - BOLT, STUD(FOR OIL PAN) | ||||
| 90126-06015 |
1TRFE,2TRFE..TGN1#,26,36..ARL,GCC,GEN,IDN,TH |
2 | ||
| 90126-06028 |
1TRFE,2TRFE..TGN1#,26,36..ARL,GCC,GEN,IDN,TH |
2 | ||
| 11431A - PLUG, TIGHT, NO.1(FOR CYLINDER BLOCK) | ||||
| 90331-T0004 |
1TRFE,2TRFE..TGN1#,26,36 (L) |
1 | ||
| 11431B - PLUG, TIGHT, NO.2(FOR CYLINDER BLOCK) | ||||
| 90331-T0005 |
1TRFE,2TRFE..TGN1#,26,36 (L) |
8 | ||
| 11431B - PLUG, TIGHT, NO.2(FOR CYLINDER BLOCK) | ||||
| 90331-T0005 |
1TRFE,2TRFE..TGN1#,26,36 (L) |
8 | ||
| 11431C - PLUG, TIGHT, NO.3(FOR CYLINDER BLOCK) | ||||
| 90331-T0007 |
2TRFE..TGN11,16,26,36 (L) |
3 | ||
| 11432A - PLUG, W/HEAD TAPER SCREW, NO.1 | ||||
| 90345-53009 |
2TRFE..TGN11,16,26,36 |
1 | ||
| 11434B - PIN, STRAIGHT(FOR CLUTCH HOUSING SET) | ||||
| 90250-T0018 |
1TRFE,2TRFE..TGN1#,26,36 L=22,OD=10 |
2 | ||
| 11434D - PIN, STRAIGHT(FOR ENGINE REAR OIL SEAL) | ||||
| 90250-T0017 |
1TRFE,2TRFE..TGN1#,26,36 L=14,OD=6 |
2 | ||
| 11434H - PIN, RING (FOR TIMING BELT COVER SET) | ||||
| 90253-T0005 |
2TRFE..TGN11,16,26,36 |
3 | ||
| 11434J - PIN, RING (FOR CYLINDER HEAD SET) | ||||
| 90253-T0007 |
1TRFE,2TRFE..TGN1#,26,36 |
2 | ||
| 11434Y - PIN, STRAIGHT(FOR OIL PAN) | ||||
| 90253-T0006 |
1TRFE,2TRFE..TGN1#,26,36 |
2 | ||
| 11444 - PLUG, HOLE | ||||
| 11444-75020 |
1TRFE,2TRFE..TGN1#,26,36 |
1 | ||
| 11452 - GUIDE, OIL LEVEL GAGE | ||||
| 11409-0C021 |
1TRFE,2TRFE..TGN1#,26,36..ARL,GCC,GEN,IDN,TH |
1 | ||
| 11452B - RING, O(FOR OIL LEVEL GAGE GUIDE) | ||||
| 90301-T0025 |
1TRFE,2TRFE..TGN1#,26,36 |
1 | ||
| 12101 - PAN SUB-ASSY, OIL | ||||
| 12101-75150 |
1TRFE,2TRFE..TGN1#,26,36 *300 |
1 | ||
| 12101-0C020 |
1TRFE,2TRFE..TGN1#,26,36..ARL,GCC,GEN,IDN,TH *299 |
1 | ||
| 12101-0C020 |
1TRFE,2TRFE..TGN1#,26,36..ARL,GCC,GEN,IDN,TH |
1 | ||
| 12101-0C040 |
1TRFE,2TRFE..TGN1#,26,36..ARL,GCC,GEN,IDN,TH |
1 | ||
| 12101A - PLUG(FOR OIL PAN DRAIN) | ||||
| 90341-T0004 |
1TRFE,2TRFE..TGN1#,26,36..ARL,GCC,GEN,IDN,TH |
1 | ||
| 90341-12012 |
1TRFE,2TRFE..TGN1#,26,36..ARL,GCC,GEN,IDN,TH |
1 | ||
| 12101B - GASKET(FOR OIL PAN DRAIN PLUG) | ||||
| 90430-12031 |
1TRFE,2TRFE..TGN1#,26,36 |
1 | ||
| 12102A - PAN SUB-ASSY, OIL, NO.2 | ||||
| 12102-0C020 |
1TRFE,2TRFE..TGN1#,26,36..ARL,GCC,GEN,IDN,TH |
1 | ||
| 15301 - GAGE SUB-ASSY, OIL LEVEL | ||||
| 15301-0C010 |
1TRFE,2TRFE..TGN1#,26,36..ARL,GCC,GEN,IDN,TH |
1 | ||
| 15301A - RING, O(FOR OIL LEVEL GAGE) | ||||
| 90301-T0018 |
1TRFE,2TRFE..TGN1#,26,36 |
1 | ||
| 15708 - NOZZLE SUB-ASSY, OIL, NO.1 | ||||
| 15708-75010 |
1TRFE,2TRFE..TGN1#,26,36 |
4 | ||
| 15708-75020 |
1TRFE,2TRFE..TGN1#,26,36..ARL,GCC,GEN,IDN,TH |
4 | ||
| Common parts | ||||
| 90105-T0130 | ||||
| 90105-T0140 | ||||
| 90105-T0232 | ||||
| 90110-06036 | ||||
| 90119-06938 | ||||
| 90119-T0012 | ||||
| 90119-T0136 | ||||
| 90119-T0464 | ||||
| 90126-08052 | ||||
| 90126-T0016 | ||||
| 90178-T0019 | ||||
| 90178-T0030 | ||||
| 90179-06326 | ||||
| 90182-T0022 | ||||
| 91551-00820 | ||||
| 91551-80840 | ||||
| 91671-80614 | ||||
| 94151-80800 | ||||
(1408- )2TRFE..ARL,GCC,GEN,TH
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 11401 - BLOCK SUB-ASSY, CYLINDER | ||||
| 11401-09410 |
2TRFE..TGN11,16,26,36 |
1 | ||
| 11401-09411 |
2TRFE..TGN11,16,26,36 |
1 | ||
| 11401-09412 |
2TRFE..TGN11,16,26,36 |
1 | ||
| 11415 - COCK SUB-ASSY, WATER DRAIN(FOR CYLINDER BLOCK) | ||||
| 90910-T9002 |
2TRFE..TGN11,16,26,36 |
1 | ||
| 90910-T9002 |
2TRFE..TGN11,16,26,36 (L) |
1 | ||
| 90910-09118 |
2TRFE..TGN11,16,26,36 (J) |
1 | ||
| 11415A - PLUG, WATER DRAIN COCK(FOR CYLINDER BLOCK) | ||||
| 90910-09087 |
2TRFE..TGN11,16,26,36 (J) |
1 | ||
| 90910-T9001 |
2TRFE..TGN11,16,26,36 (L) |
1 | ||
| 11416 - BOLT(FOR CRANKSHAFT BEARING CAP SET) | ||||
| 90910-T2002 |
1TRFE,2TRFE..TGN1#,26,36 (L) |
10 | ||
| 11421 - BOLT, STUD(FOR OIL PAN) | ||||
| 90126-06015 |
1TRFE,2TRFE..TGN1#,26,36..ARL,GCC,GEN,IDN,TH |
2 | ||
| 90126-06028 |
1TRFE,2TRFE..TGN1#,26,36..ARL,GCC,GEN,IDN,TH |
2 | ||
| 11431A - PLUG, TIGHT, NO.1(FOR CYLINDER BLOCK) | ||||
| 90331-T0004 |
1TRFE,2TRFE..TGN1#,26,36 (L) |
1 | ||
| 11431B - PLUG, TIGHT, NO.2(FOR CYLINDER BLOCK) | ||||
| 90331-T0005 |
1TRFE,2TRFE..TGN1#,26,36 (L) |
8 | ||
| 11431B - PLUG, TIGHT, NO.2(FOR CYLINDER BLOCK) | ||||
| 90331-T0005 |
1TRFE,2TRFE..TGN1#,26,36 (L) |
8 | ||
| 11431C - PLUG, TIGHT, NO.3(FOR CYLINDER BLOCK) | ||||
| 90331-T0007 |
2TRFE..TGN11,16,26,36 (L) |
3 | ||
| 11432A - PLUG, W/HEAD TAPER SCREW, NO.1 | ||||
| 90345-53009 |
2TRFE..TGN11,16,26,36 |
1 | ||
| 11434B - PIN, STRAIGHT(FOR CLUTCH HOUSING SET) | ||||
| 90250-T0018 |
1TRFE,2TRFE..TGN1#,26,36 L=22,OD=10 |
2 | ||
| 11434D - PIN, STRAIGHT(FOR ENGINE REAR OIL SEAL) | ||||
| 90250-T0017 |
1TRFE,2TRFE..TGN1#,26,36 L=14,OD=6 |
2 | ||
| 11434H - PIN, RING (FOR TIMING BELT COVER SET) | ||||
| 90253-T0005 |
2TRFE..TGN11,16,26,36 |
3 | ||
| 11434J - PIN, RING (FOR CYLINDER HEAD SET) | ||||
| 90253-T0007 |
1TRFE,2TRFE..TGN1#,26,36 |
2 | ||
| 11434Y - PIN, STRAIGHT(FOR OIL PAN) | ||||
| 90253-T0006 |
1TRFE,2TRFE..TGN1#,26,36 |
2 | ||
| 11444 - PLUG, HOLE | ||||
| 11444-75020 |
1TRFE,2TRFE..TGN1#,26,36 |
1 | ||
| 11452 - GUIDE, OIL LEVEL GAGE | ||||
| 11409-0C021 |
1TRFE,2TRFE..TGN1#,26,36..ARL,GCC,GEN,IDN,TH |
1 | ||
| 11452B - RING, O(FOR OIL LEVEL GAGE GUIDE) | ||||
| 90301-T0025 |
1TRFE,2TRFE..TGN1#,26,36 |
1 | ||
| 12101 - PAN SUB-ASSY, OIL | ||||
| 12101-75150 |
1TRFE,2TRFE..TGN1#,26,36 *300 |
1 | ||
| 12101-0C020 |
1TRFE,2TRFE..TGN1#,26,36..ARL,GCC,GEN,IDN,TH *299 |
1 | ||
| 12101-0C020 |
1TRFE,2TRFE..TGN1#,26,36..ARL,GCC,GEN,IDN,TH |
1 | ||
| 12101-0C040 |
1TRFE,2TRFE..TGN1#,26,36..ARL,GCC,GEN,IDN,TH |
1 | ||
| 12101A - PLUG(FOR OIL PAN DRAIN) | ||||
| 90341-T0004 |
1TRFE,2TRFE..TGN1#,26,36..ARL,GCC,GEN,IDN,TH |
1 | ||
| 90341-12012 |
1TRFE,2TRFE..TGN1#,26,36..ARL,GCC,GEN,IDN,TH |
1 | ||
| 12101B - GASKET(FOR OIL PAN DRAIN PLUG) | ||||
| 90430-12031 |
1TRFE,2TRFE..TGN1#,26,36 |
1 | ||
| 12102A - PAN SUB-ASSY, OIL, NO.2 | ||||
| 12102-0C020 |
1TRFE,2TRFE..TGN1#,26,36..ARL,GCC,GEN,IDN,TH |
1 | ||
| 15301 - GAGE SUB-ASSY, OIL LEVEL | ||||
| 15301-0C010 |
1TRFE,2TRFE..TGN1#,26,36..ARL,GCC,GEN,IDN,TH |
1 | ||
| 15301A - RING, O(FOR OIL LEVEL GAGE) | ||||
| 90301-T0018 |
1TRFE,2TRFE..TGN1#,26,36 |
1 | ||
| 15708 - NOZZLE SUB-ASSY, OIL, NO.1 | ||||
| 15708-75010 |
1TRFE,2TRFE..TGN1#,26,36 |
4 | ||
| 15708-75020 |
1TRFE,2TRFE..TGN1#,26,36..ARL,GCC,GEN,IDN,TH |
4 | ||
| Common parts | ||||
| 90105-T0130 | ||||
| 90105-T0140 | ||||
| 90110-06036 | ||||
| 90119-06938 | ||||
| 90119-T0012 | ||||
| 90119-T0136 | ||||
| 90126-08052 | ||||
| 90178-T0019 | ||||
| 90178-T0030 | ||||
| 90179-06326 | ||||
| 90182-T0022 | ||||
| 91551-00820 | ||||
| 91551-80840 | ||||
| 91671-80614 | ||||
| 94151-80800 | ||||
