TGN16L-PRMDK (2012)

Toyota Hilux

Production Aug 2012 - Apr 2015
Engine 2TRFE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(1107-1212)2TRFE..TGN16,26,36..ARL,GEN,TH

Click highlighted areas on diagram

12V 1.6KW

diagram 28021 28100 28110 28113 28120 28130 28132A 28160 28177 28226B 28255 9009902228 9009904561 9009904572 9009905178 9009907068 90105T0233 90178T0019
Part # Description Qty Price
28021 - CLUTCH SUB-ASSY, STARTER CENTER BEARING
28021-75210

2TRFE..TGN16,26,36..ARL,GEN,TH

 1
28021-73020

2TRFE..TGN16,26,36..ARL,GEN,TH

 1
28100 - STARTER ASSY
28100-75191

2TRFE..TGN16,26,36..ARL,GEN,TH

12V 1.6KW

 1
28100-75210

2TRFE..TGN16,26,36..ARL,GEN,TH

12V 1.6KW

 1
28110 - HOUSING ASSY, STARTER DRIVE
28110-75190

2TRFE..TGN16,26,36..ARL,GEN,TH

 1
28113 - LEVER, STARTER PINION DRIVE
28114-21060

2TRFE..TGN16,26,36..ARL,GEN,TH

 1
28120 - YOKE ASSY, STARTER
28120-75210

2TRFE..TGN16,26,36..ARL,GEN,TH

 1
28120-28060

2TRFE..TGN16,26,36..ARL,GEN,TH

 1
28130 - FRAME ASSY, STARTER COMMUTATOR END
28130-75190

2TRFE..TGN16,26,36..ARL,GEN,TH

 1
28132A - COVER, STARTER COMMUTATOR END FRAME
28132-28040

2TRFE..TGN16,26,36..ARL,GEN,TH

 1
28160 - ARMATURE ASSY, STARTER
28160-21060

2TRFE..TGN16,26,36..ARL,GEN,TH

 1
28160-37050

2TRFE..TGN16,26,36..ARL,GEN,TH

 1
28177 - PLATE(FOR STARTER ARMATURE)
28177-28040

2TRFE..TGN16,26,36..ARL,GEN,TH

 1
28226B - STARTER KIT, REPAIR SERVICE
28226-28051

2TRFE..TGN16,26,36..ARL,GEN,TH

 1
28255 - GEAR, PLANET
28255-28040

2TRFE..TGN16,26,36..ARL,GEN,TH

 3
Common parts
90099-02228
90099-04561
90099-04572
90099-05178
90099-07068
90105-T0233
90178-T0019

(1212- )2TRFE..TGN16,26,36..ARL,GEN,TH

Click highlighted areas on diagram

12V 1.6KW

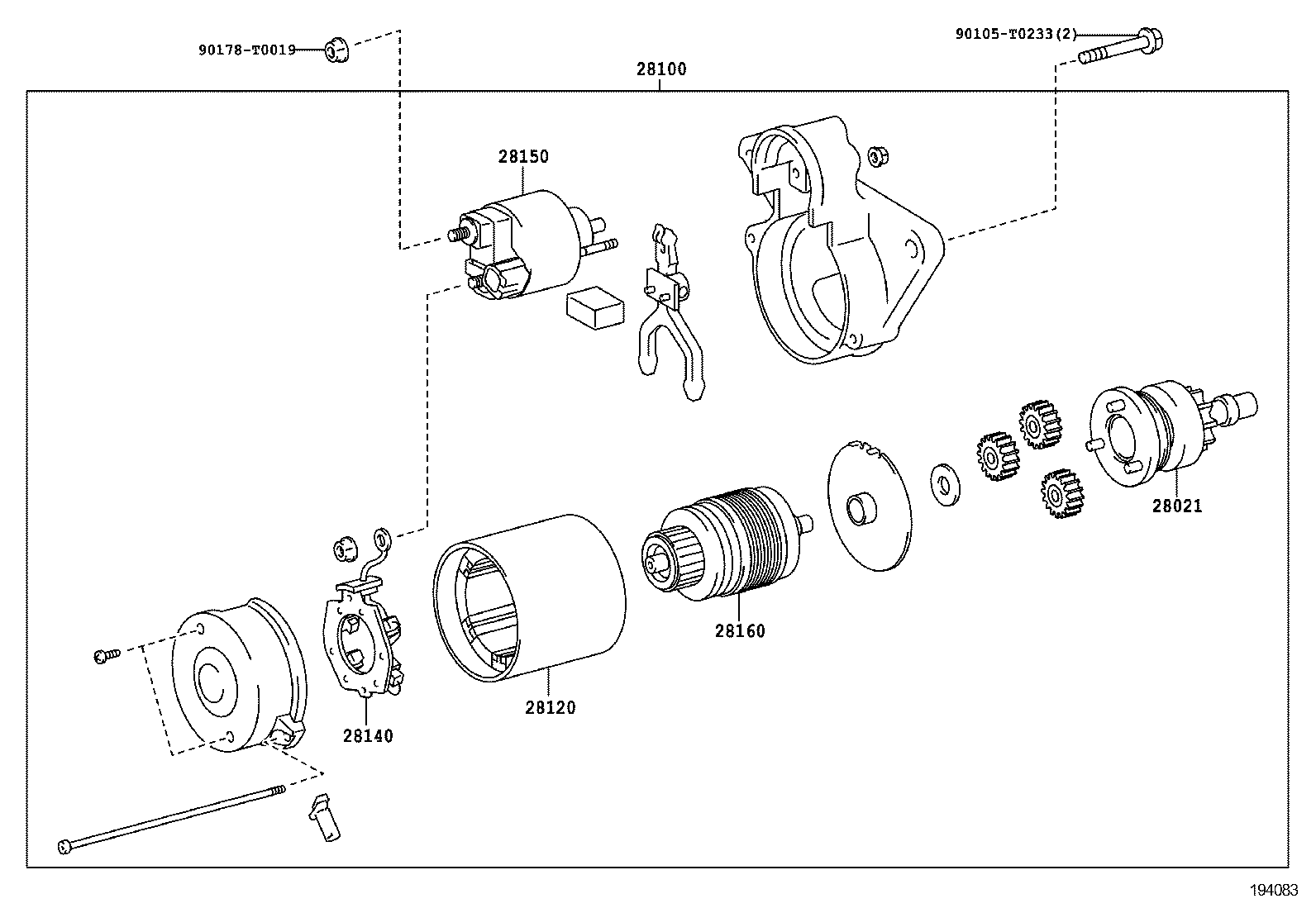

diagram 28021 28100 28120 28140 28150 28160 90105T0233 90178T0019
Part # Description Qty Price
28021 - CLUTCH SUB-ASSY, STARTER CENTER BEARING
28021-75210

2TRFE..TGN16,26,36..ARL,GEN,TH

 1
28021-73020

2TRFE..TGN16,26,36..ARL,GEN,TH

 1
28100 - STARTER ASSY
28100-75191

2TRFE..TGN16,26,36..ARL,GEN,TH

12V 1.6KW

 1
28100-75210

2TRFE..TGN16,26,36..ARL,GEN,TH

12V 1.6KW

 1
28120 - YOKE ASSY, STARTER
28120-75210

2TRFE..TGN16,26,36..ARL,GEN,TH

 1
28120-28060

2TRFE..TGN16,26,36..ARL,GEN,TH

 1
28140 - HOLDER ASSY, STARTER BRUSH
28140-37050

2TRFE..TGN16,26,36..ARL,GEN,TH

 1
28150 - SWITCH ASSY, MAGNET STARTER
28150-40130

2TRFE..TGN16,26,36..ARL,GEN,TH

 1
28160 - ARMATURE ASSY, STARTER
28160-21060

2TRFE..TGN16,26,36..ARL,GEN,TH

 1
28160-37050

2TRFE..TGN16,26,36..ARL,GEN,TH

 1
Common parts
90105-T0233
90178-T0019
