TGN16L-CRMDK (2008)
Toyota Hilux

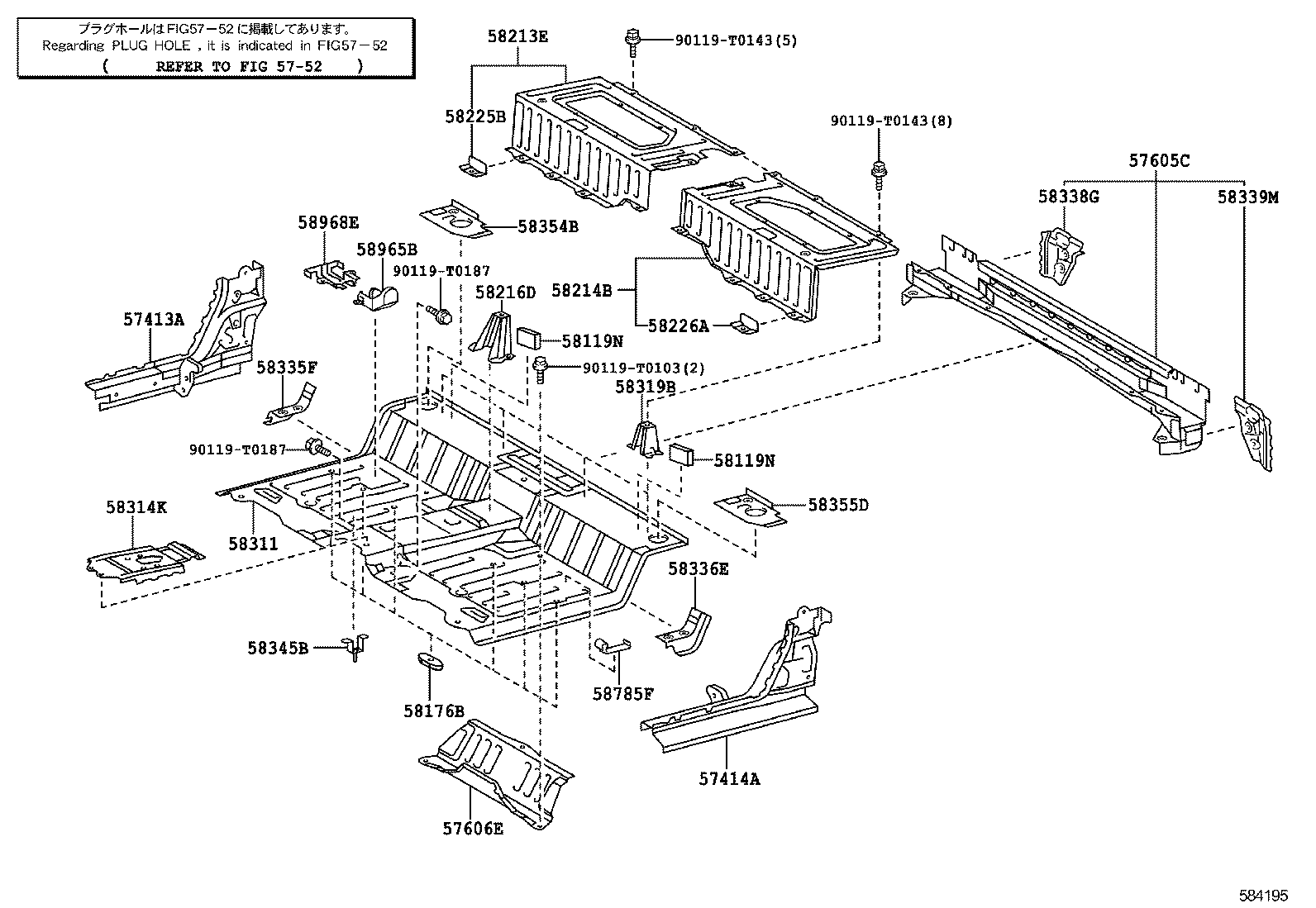

(0408- )SMT,XTR
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 57413A - MEMBER, FLOOR SIDE, INNER REAR RH | ||||
| 57403-0K020 |
GGN15,25,KUN15,16,2#,36,TGN16,26..XTR |
1 | ||
| 57414A - MEMBER, FLOOR SIDE, INNER REAR LH | ||||
| 57404-0K020 |
GGN15,25,KUN15,16,2#,36,TGN16,26..XTR |
1 | ||
| 57605C - MEMBER SUB-ASSY, REAR FLOOR CROSS | ||||
| 57605-0K030 |
KUN15..XTR..DLX;KUN15..XTR..HDCR;GGN15,25,KUN16,2#,36,TGN16,26..XTR |
1 | ||
| 57606E - MEMBER SUB-ASSY, REAR FLOOR CROSS, NO.2 | ||||
| 57606-0K010 |
KUN15..XTR..DLX;KUN15..XTR..HDCR;GGN15,25,KUN16,2#,36,TGN16,26..XTR |
1 | ||
| 58119N - CUSHION, REAR FLOOR | ||||
| 58119-0K010 |
KUN15..XTR..DLX;KUN15..XTR..HDCR;GGN15,25,KUN16,2#,36,TGN16,26..XTR |
2 | ||
| 58119N - CUSHION, REAR FLOOR | ||||
| 58119-0K010 |
KUN15..XTR..DLX;KUN15..XTR..HDCR;GGN15,25,KUN16,2#,36,TGN16,26..XTR |
2 | ||
| 58176B - PLATE, RR SEAT SETTING NUT | ||||
| 58176-0K010 |
KUN15..XTR..DLX;KUN15..XTR..HDCR;GGN15,25,KUN16,2#,36,TGN16,26..XTR |
6 | ||
| 58213E - PANEL, SEAT FLOOR SIDE, RH | ||||
| 58201-0K020 |
KUN15..XTR..DLX;KUN15..XTR..HDCR;GGN15,25,KUN16,2#,36,TGN16,26..XTR |
1 | ||
| 58214B - PANEL, SEAT FLOOR SIDE, LH | ||||
| 58202-0K020 |
KUN15..XTR..DLX;KUN15..XTR..HDCR;GGN15,25,KUN16,2#,36,TGN16,26..XTR |
1 | ||
| 58216D - BRACKET, REAR SEAT MOUNTING, LH | ||||
| 58216-0K020 |
KUN15..XTR..DLX;KUN15..XTR..HDCR;GGN15,25,KUN16,2#,36,TGN16,26..XTR |
1 | ||
| 58225B - PLATE, FRONT FLOOR SIDE, LOWER RH | ||||
| 58225-35020 |
KUN15..XTR..DLX;KUN15..XTR..HDCR;GGN15,25,KUN16,2#,36,TGN16,26..XTR |
1 | ||
| 58226A - PLATE, FRONT FLOOR SIDE, LOWER LH | ||||
| 58225-35020 |
KUN15..XTR..DLX;KUN15..XTR..HDCR;GGN15,25,KUN16,2#,36,TGN16,26..XTR |
1 | ||
| 58311 - PAN, REAR FLOOR | ||||
| 58311-0K100 |
GGN15,25,KUN16,26,TGN16..XTR..(ARL,GEN) |
1 | ||
| 58311-0K090 |
TGN16..XTR REAR SEAT-WITHOUT |
1 | ||
| 58314K - PANEL, REAR FLOOR, CENTER | ||||
| 58314-0K010 |
GGN15,25,KUN15,16,2#,36,TGN16,26..XTR |
1 | ||
| 58314-0K010 |
KUN15..(SMT,XTR)..TH;KUN25..RHD..DCB..(GEN,PKN);GGN15,KUN16,2#,3#,TGN16..SMT,XTR;KUN15,35,LAN25,35..RHD..DCB..DLX..(GEN,SA) |
1 | ||
| 58319B - BRACKET, REAR FLOOR SIDE PANEL | ||||
| 58319-0K010 |
KUN15..XTR..DLX;KUN15..XTR..HDCR;GGN15,25,KUN16,2#,36,TGN16,26..XTR |
4 | ||
| 58335F - PLATE, FLOOR SIDE, FRONT RH | ||||
| 58335-0K020 |
KUN15..XTR..DLX;KUN15..XTR..HDCR;GGN15,25,KUN16,2#,36,TGN16,26..XTR |
1 | ||
| 58336E - PLATE, FLOOR SIDE, FRONT LH | ||||
| 58336-0K020 |
KUN15..XTR..DLX;KUN15..XTR..HDCR;GGN15,25,KUN16,2#,36,TGN16,26..XTR |
1 | ||
| 58338G - GUSSET, CAB REAR MOUNTING, RR RH | ||||
| 58338-0K010 |
KUN15..XTR..DLX;KUN15..XTR..HDCR;KUN15..DCB..(GCC,GEN,PHL,TH);GGN15,25,KUN16,2#,3#,TGN15,16,26,36..(DCB,THDCB,XTR)..(ARL,GCC,GEN,PHL,TH) |
1 | ||
| 58338-0K010 |
GGN25..5FC..SA;KUN15..DCB,SMT;KUN16..SMT,XTR;KUN15,TGN16..XTR..DLX;GGN15,KUN16..DCB..5F..DLX;GGN25..DCB..(ANCOM,ARL,LA);GGN15,KUN16..(DCB,XTR)..(4FC,5FC);TGN16..(DCB,SMT)..(ARL,GCC,SA,TH);GGN35,KUN2#,3#,LAN15,25,35,TGN15,26,36..(DCB,SMT,THDCB,XTR)..(ANCOM,ARL,GCC,GEN,LA,MA,PHL,PKN,SA,TH) |
1 | ||
| 58339M - GUSSET, CAB REAR MOUNTING, REAR LH | ||||
| 58339-0K010 |
KUN15..XTR..DLX;KUN15..XTR..HDCR;KUN15..DCB..(GCC,GEN,PHL,TH);GGN15,25,KUN16,2#,3#,TGN15,16,26,36..(DCB,THDCB,XTR)..(ARL,GCC,GEN,PHL,TH) |
1 | ||
| 58339-0K010 |
GGN25..5FC..SA;KUN15..DCB,SMT;KUN16..SMT,XTR;KUN15,TGN16..XTR..DLX;GGN15,KUN16..DCB..5F..DLX;GGN25..DCB..(ANCOM,ARL,LA);GGN15,KUN16..(DCB,XTR)..(4FC,5FC);TGN16..(DCB,SMT)..(ARL,GCC,SA,TH);GGN35,KUN2#,3#,LAN15,25,35,TGN15,26,36..(DCB,SMT,THDCB,XTR)..(ANCOM,ARL,GCC,GEN,LA,MA,PHL,PKN,SA,TH) |
1 | ||
| 58345B - BRACKET, REAR FLOOR HEAT INSULATOR, NO.1 | ||||
| 58345-0K010 |
KUN15..XTR..DLX;KUN15..XTR..HDCR;GGN15,25,KUN16,2#,36,TGN16,26..XTR |
1 | ||
| 58354B - REINFORCEMENT, REAR FLOOR PANEL, NO.4 | ||||
| 58354-0K020 |
GGN15,25,KUN15,16,2#,36,TGN16,26..XTR |
1 | ||
| 58355D - REINFORCEMENT, REAR FLOOR PANEL, NO.5 | ||||
| 58355-0K020 |
KUN15..XTR..DLX;KUN15..XTR..HDCR;GGN15,25,KUN16,2#,36,TGN16,26..XTR |
1 | ||
| 58785F - BRACKET, TOOL BAG BAND | ||||
| 58785-89106 |
KUN15..XTR..DLX;KUN15..XTR..HDCR;GGN15,25,KUN16,2#,36,TGN16,26..XTR |
1 | ||
| 58965B - HOLDER, JACK | ||||
| 58965-35010 |
GGN15,25,KUN1#,2#,TGN16,26..XTR |
1 | ||
| 58968E - BRACKET, JACK SUPPORT, NO.2 | ||||
| 58968-0K010 |
KUN15..XTR..DLX;KUN15..XTR..HDCR;GGN15,25,KUN16,2#,36,TGN16,26..XTR |
1 | ||
| Common parts | ||||
| 90119-T0103 | ||||
| 90119-T0143 | ||||
| 90119-T0187 | ||||
| Linked diagrams | ||||
| 5752 | ||||

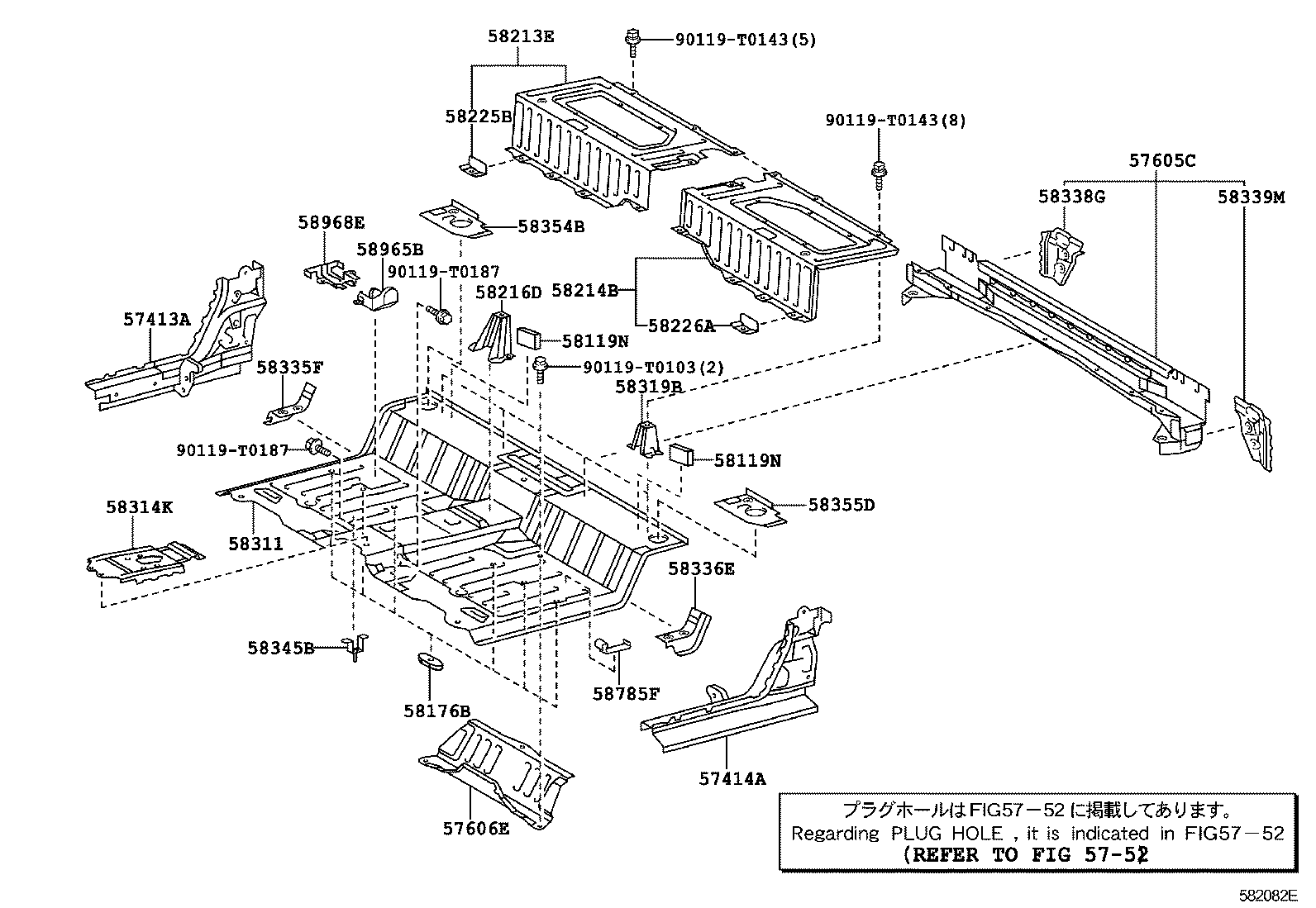

(1107- )SMT,XTR
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90119-T0103 | ||||
| 90119-T0143 | ||||
| 90119-T0187 | ||||
| Linked diagrams | ||||
| 5752 | ||||
