TGN15R-TRMDKN (2011)

Toyota Hilux

Production Aug 2011 - Dec 2015
Engine 1TRFE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(1107- )RHD

Click highlighted areas on diagram

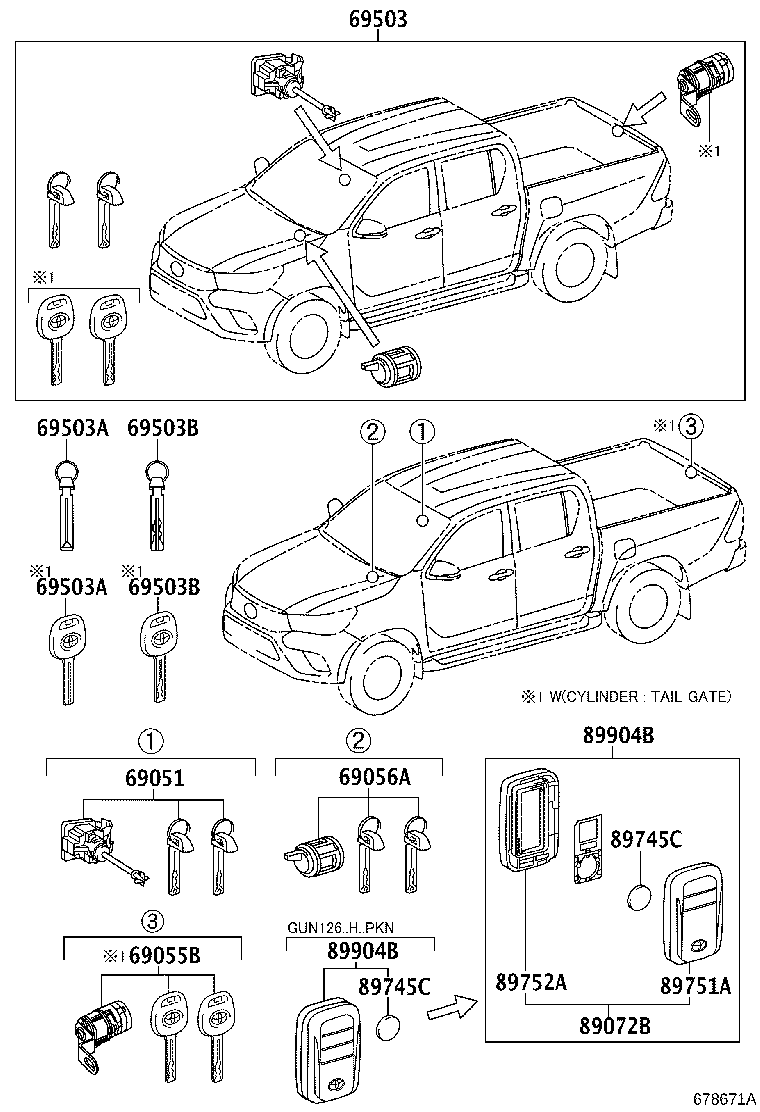

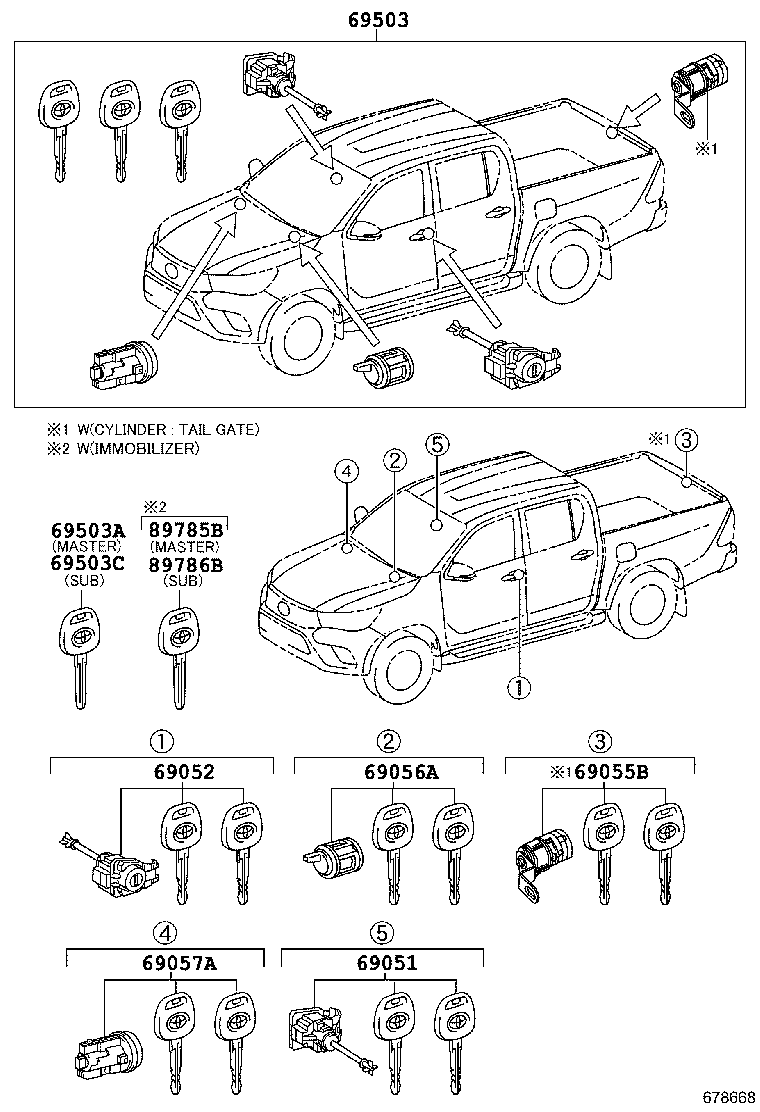

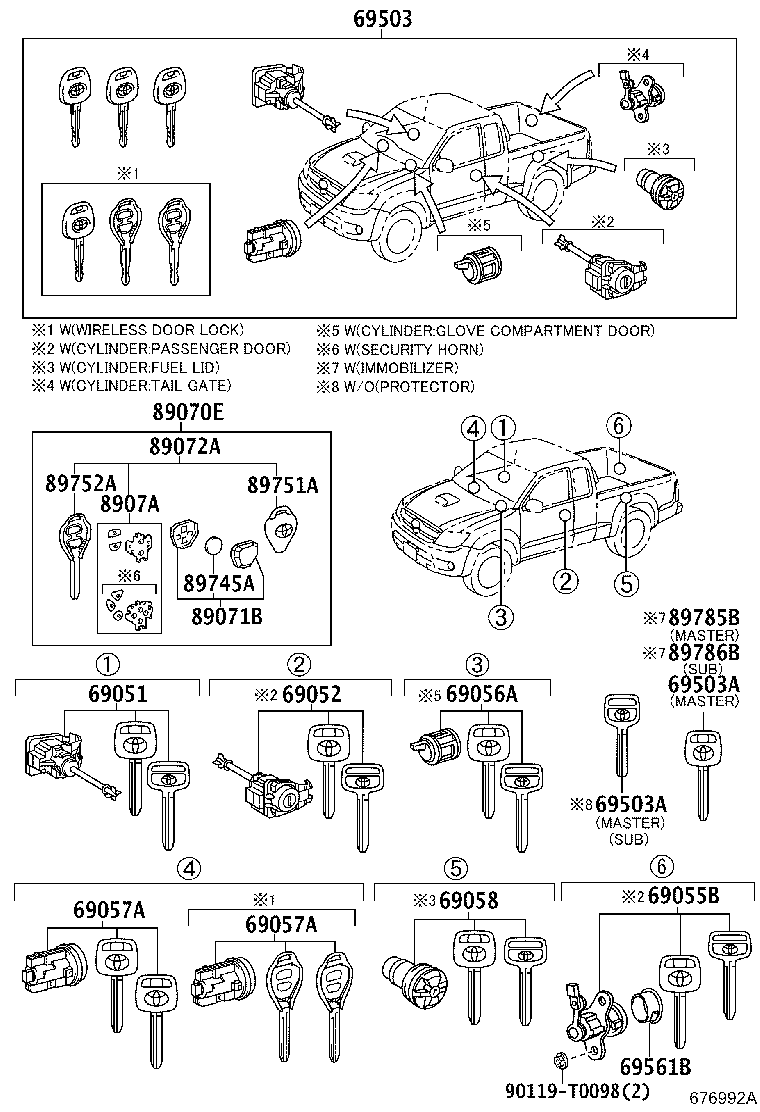

diagram 69051 69052 69055B 69056A 69057A 69057A 69058 69503 69503A 69503A 69561B 89070E 89071B 89072A 8907A 89745A 89751A 89752A 89785B 89786B 90119T0098
Part # Description Qty Price
69051 - CYLINDER & KEY SET, DOOR LOCK, RH
69051-0K011

KUN25..SCB..MA;KUN26..5FC..DLX..ARL;KUN26..5FC..(CO,GEN,LA,TH);KUN26..(4FC,5F)..(ARL,CO,GEN,LA,PHL,SA,TH);GGN15,25,35,KUN1#,25,3#,LAN15,25,35,TGN1#,26,36..ANCOM,ARL,CO,GCC,GEN,IDN,LA,PHL,PKN,SA,TH

 1
69052 - CYLINDER & KEY SET, DOOR LOCK, LH
69052-0K010

KUN25..SCB..MA;KUN26..5FC..DLX..ARL;KUN26..5FC..(CO,GEN,LA,TH);KUN26..(4FC,5F)..(ARL,CO,GEN,LA,PHL,SA,TH);GGN15,25,35,KUN1#,25,3#,LAN15,25,35,TGN1#,26,36..ANCOM,ARL,CO,GCC,GEN,IDN,LA,PHL,PKN,SA,TH

 1
69056A - CYLINDER & KEY SET, GLOVE COMPARTMENT LOCK
69056-0K010

KUN25..SCB..MA;KUN15..PHL..CBU;KUN26..5FC..DLX..ARL;KUN15..GCC,GEN,PKN,SA,TH;KUN26..5FC..(CO,GEN,LA,TH);KUN2#,TGN10..(4FC,5F)..(DLX,SR)..(ARL,CO,GCC,GEN,IDN,LA,PHL,PKN,SA,TH);GGN15,25,35,KUN10,16,3#,LAN15,25,35,TGN11,15,16,26,36..ANCOM,ARL,CO,GCC,GEN,LA,PHL,SA,TH

 1
69057A - CYLINDER & KEY SET, IGNITION SWITCH LOCK
69057-0K082

KUN15..RHD..DCR..SA;KUN25,35,TGN15..RHD..SA;TGN26,36..DCB..DLX..HTWCF;TGN26,36..DCB..DLX..ANCOM;KUN15..(DCB,XTR)..SR..(SA,TH);KUN26..5FC..SR..(CO,GEN,LA,TH);KUN2#,36..(4FC,5F)..SR..(CO,LA,SA);KUN26..(SADCB,THDCB)..(4FC,5F)..SR;GGN25,35,KUN16,TGN26,36..(DCB,SCB,THDCB)..SR..(ANCOM,CO,GEN,LA,SA,TH)

 1
69057A - CYLINDER & KEY SET, IGNITION SWITCH LOCK
69057-0K082

KUN15..RHD..DCR..SA;KUN25,35,TGN15..RHD..SA;TGN26,36..DCB..DLX..HTWCF;TGN26,36..DCB..DLX..ANCOM;KUN15..(DCB,XTR)..SR..(SA,TH);KUN26..5FC..SR..(CO,GEN,LA,TH);KUN2#,36..(4FC,5F)..SR..(CO,LA,SA);KUN26..(SADCB,THDCB)..(4FC,5F)..SR;GGN25,35,KUN16,TGN26,36..(DCB,SCB,THDCB)..SR..(ANCOM,CO,GEN,LA,SA,TH)

 1
69503 - CYLINDER SET, LOCK
69005-0K420

KUN15,TGN15..RHD..DLX..SA

POWER DOOR LOCK-WITH & WITHOUT(AUTO LOCK(SPEED))&WIRELESS DOOR LOCK-WITH(WITH/SETIN SECURITY SYSTEM)

 1
69005-0K183

KUN15,TGN15..RHD..DLX..SA

 1
69005-0K420

KUN15,TGN15..RHD..DLX..SA

WIRELESS DOOR LOCK-WITH(WITH/SET IN SECURITY SYSTEM)

 1
89070E - TRANSMITTER ASSY, DOOR CONTROL
89070-0K490

KUN15,25..DCB..SR..SA;GGN25,35,KUN15,2#,3#,TGN15,36..RHD..SA

 1
89071B - MODULE SET, TRANSMITTER SUB-ASSY, DOOR CONTROL
89071-71041

KUN35..LHD..SR;KUN15..(SMT,XTR)..SR;KUN26..LHD..SADCB..SR;KUN25,35..RHD..(SA,TH);TGN26..DCB..DLX..ANCOM;KUN15,TGN15..RHD..DLX..SA;KUN26..5F..SR..(CO,LA,PHL,SA,TH);KUN15,TGN26,36..DCB..DLX..(HDCR,HTWCF);KUN2#..LHD..(DCB,THDCB)..5F..SR..(GEN,SA);KUN16,TGN16,36..(DCB,SMT)..(4FC,5F)..(ANCOM,TH);KUN26..(DCB,THDCB)..(4FC,5FC)..SR..(CO,GEN,LA,PHL,SA);GGN25,35,KUN15,36,TGN26,36..SR..(DCR,HTWC,HTWCF)..(ANCOM,CO,GEN,LA,PHL,SA,TH)

 1
89072A - HOUSING SET, DOOR CONTROL TRANSMITTER
89072-0K220

KUN15,25..DCB..SR..SA;GGN25,35,KUN15,2#,3#,TGN15,36..RHD..SA

 1
8907A - SWITCH SET, TRANSMITTER
8907A-71020

KUN35..LHD..SR;KUN15..(SMT,XTR)..SR;KUN26..LHD..SADCB..SR;KUN25,35..RHD..(SA,TH);TGN26..DCB..DLX..ANCOM;KUN15,TGN15..RHD..DLX..SA;KUN26..5F..SR..(CO,LA,PHL,SA,TH);KUN15,TGN26,36..DCB..DLX..(HDCR,HTWCF);KUN2#..LHD..(DCB,THDCB)..5F..SR..(GEN,SA);KUN16,TGN16,36..(DCB,SMT)..(4FC,5F)..(ANCOM,TH);KUN26..(DCB,THDCB)..(4FC,5FC)..SR..(CO,GEN,LA,PHL,SA);GGN25,35,KUN15,36,TGN26,36..SR..(DCR,HTWC,HTWCF)..(ANCOM,CO,GEN,LA,PHL,SA,TH)

 1
89745A - BATTERY, TRANSMITTER
89745-71010

KUN15..RHD..DCR..SA;KUN25..RHD..(SA,TH);KUN25..SR..(IDN,SA);KUN26..DCB..5F..IV3;KUN15..(SMT,XTR)..SR;TGN16..(DCB,SMT)..TH;TGN26..DCB..DLX..ANCOM;TGN36..DCB..DLX..HTWCF;KUN26..LHD..DCB..5F..GEN;KUN26..(SADCB,THDCB)..SR;KUN15,36,TGN26,36..SR..(DCR,HTWC,HTWCF);KUN16,TGN36..(DCB,SMT)..(ANCOM,ARL,GEN,TH);KUN26..(5F,5FC)..SR..(ARL,CO,LA,PHL,SA,TH);KUN26..DCB..4FC..SR..(ARL,CO,GEN,LA,PHL,SA);KUN15,TGN26..DCB..5F..(DCR,HDCR,HTWCF)..(LA,TH);GGN15,25,35,KUN35,TGN15..(DCB,SCB,SMT,XTR)..(ANCOM,ARL,GEN,PHL,SA,TH)

 1
89751A - COVER, TRANSMITTER HOUSING
89751-0K030

KUN15,25..DCB..SR..SA;GGN25,35,KUN15,2#,3#,TGN15,36..RHD..SA

 1
89752A - CASE, TRANSMITTER HOUSING
89752-0K080

KUN15..RHD..DCR..SA;KUN25,35,TGN15..RHD..SA;TGN26,36..DCB..DLX..HTWCF;TGN26,36..DCB..DLX..ANCOM;KUN15..(DCB,XTR)..SR..(SA,TH);KUN26..5FC..SR..(CO,GEN,LA,TH);KUN2#,36..(4FC,5F)..SR..(CO,LA,SA);KUN26..(SADCB,THDCB)..(4FC,5F)..SR;GGN25,35,KUN16,TGN26,36..(DCB,SCB,THDCB)..SR..(ANCOM,CO,GEN,LA,SA,TH)

 1
89786B - TRANSMITTER, TRANSPONDER KEY SUB
89786-08040

TGN26..SR;TGN26..DLX..ANCOM;TGN36..DCB..HTWCF;KUN36..SR..(LA,SA);KUN26..ARL,CO,MA,SA;KUN35..RHD..(GEN,SA);KUN26..(SADCB,THDCB)..SR;KUN26..(4FC,5FC)..(LA,TH);KUN15,16..(DCB,XTR)..SR..(SA,TH);KUN26,TGN26..DCB..5F..(HTWCF,IART);KUN15,25,TGN16..RHD..(DCB,SCB)..(ARL,MA,SA);KUN15,35..LHD..(DCB,SCB)..DLX..HDCR..(CO,GEN);KUN2#,TGN36..LHD..5F..SR..(DCR,HDCR,HTWC)..(LA,SA);GGN15,25,35,KUN16,TGN15,36..(DCB,SCB,XTR)..(ANCOM,ARL,GEN,SA)

BLANK KEY

 1
Common parts
90119-T0098

(1505- )RHD

Click highlighted areas on diagram

WITH(SMART ENTRY)

diagram 69051 69055B 69056A 69503 69503A 69503A 69503B 69503B 89072B 89745C 89745C 89751A 89752A 89904B 89904B
Part # Description Qty Price

(1505- )RHD

Click highlighted areas on diagram

WITH(WIRELESS DOOR LOCK)

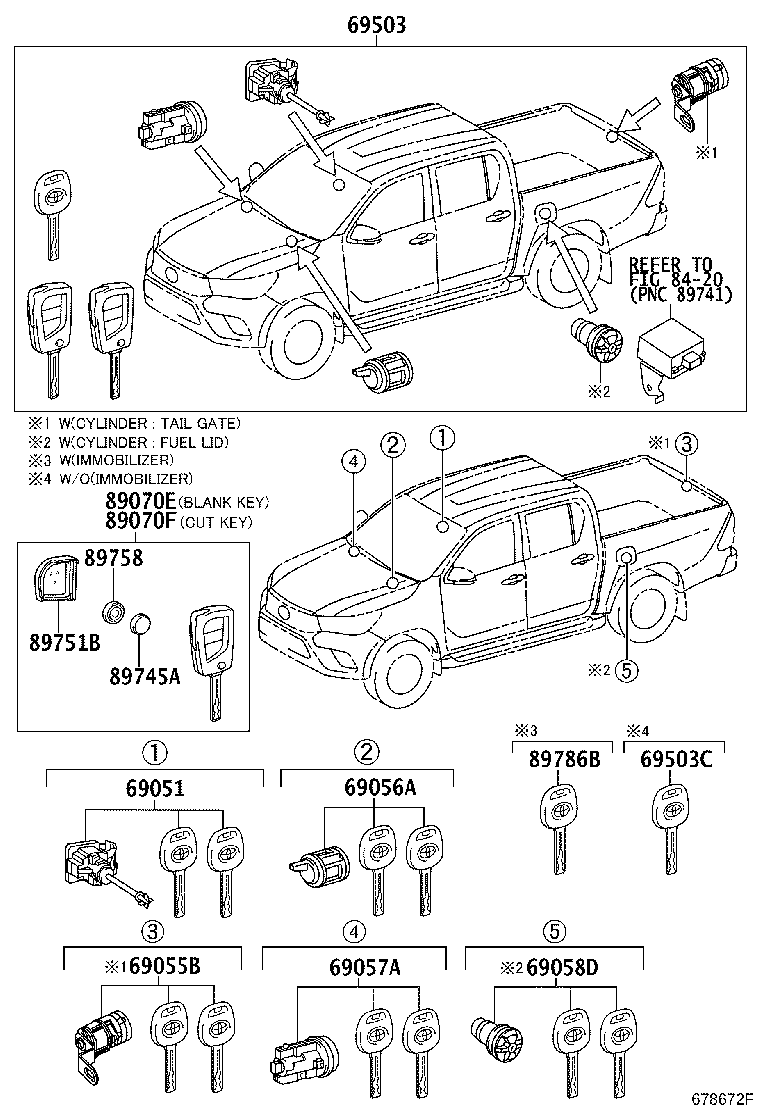

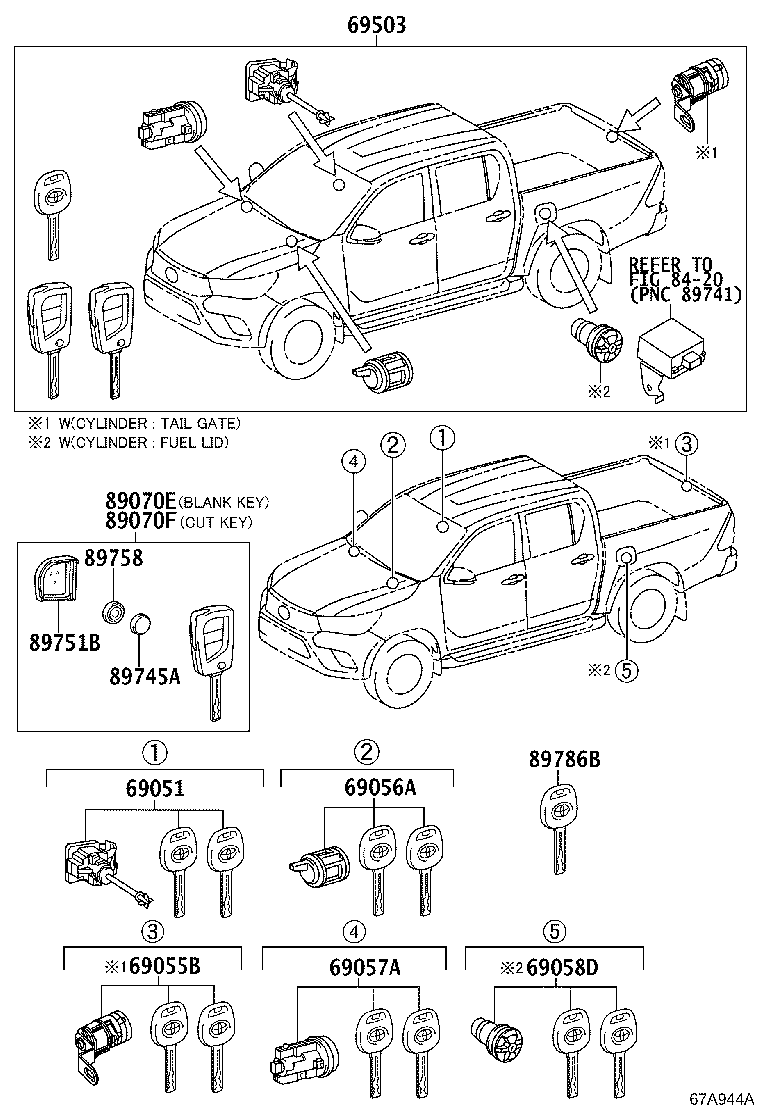

diagram 69051 69055B 69056A 69057A 69058D 69503 69503C 8420 89070E 89070F 89745A 89751B 89758 89786B
Part # Description Qty Price
Linked diagrams
8420

(1505- )RHD

Click highlighted areas on diagram

WITHOUT(WIRELESS OR SMART ENTRY)

diagram 69051 69052 69055B 69056A 69057A 69503 69503A 69503C 89785B 89786B
Part # Description Qty Price

(2006- )RHD

Click highlighted areas on diagram

WITH(SMART ENTRY)

diagram 69051 69055B 69056A 69058D 69503 69503A 69503A 69503A 69503B 69503B 89072B 89745C 89751A 89752A 89904B
Part # Description Qty Price

(2006- )RHD

Click highlighted areas on diagram

WITH(WIRELESS DOOR LOCK)

diagram 69051 69055B 69056A 69057A 69058D 69503 8420 89070E 89070F 89745A 89751B 89758 89786B
Part # Description Qty Price
Linked diagrams
8420

(2006- )RHD

Click highlighted areas on diagram

WITHOUT(WIRELESS OR SMART ENTRY)

diagram 69051 69052 69055B 69056A 69057A 69503 89785B 89786B
Part # Description Qty Price
