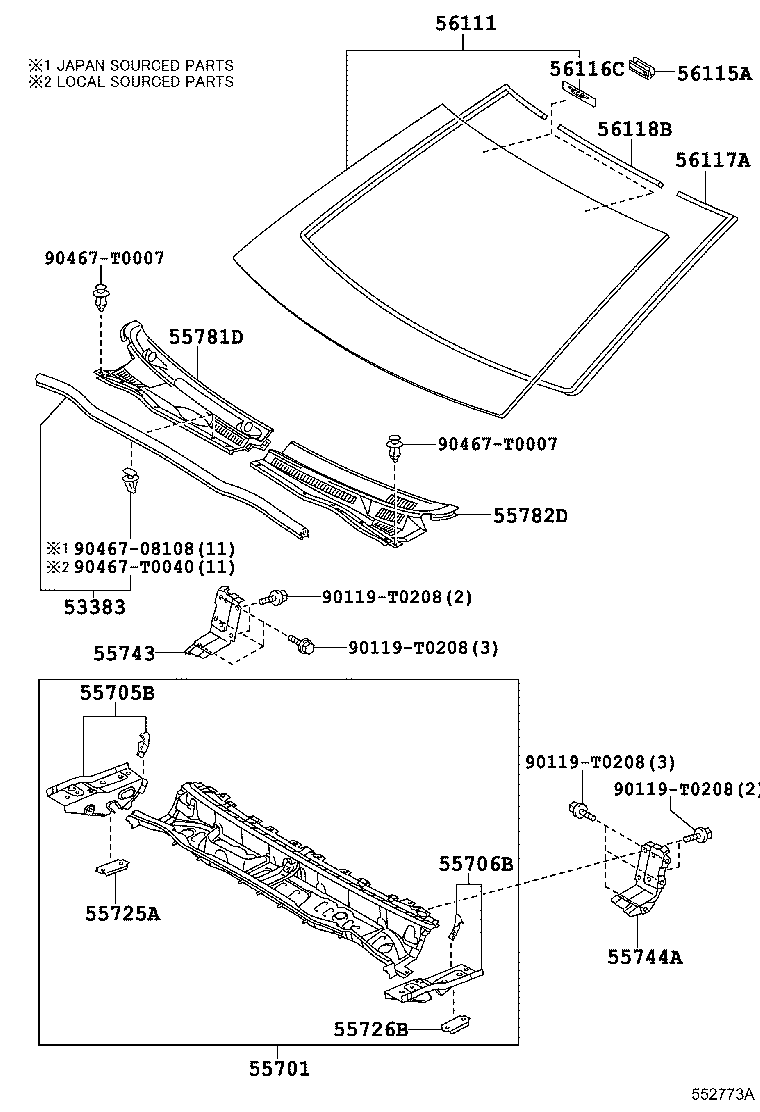

Toyota Hilux TGN15 COWL PANEL & WINDSHIELD GLASS

Part #	Description	Period	Qty
53383 - SEAL, HOOD TO COWL TOP
53383-0K010	KUN26..5FC..IV3;KUN26..5FC..(GEN,TH);KUN16,26..(4FC,5F)..(ARL,GEN,MA,PHL,SA,TH);GGN15,25,35,KUN10,15,25,3#,LAN15,25,35,TGN1#,26,36..ARL,GCC,GEN,IDN,MA,PHL,PKN,SA,TH	07/2011 - 12/2999	1
55701 - PANEL SUB-ASSY, COWL
55700-0K010	KUN36..4FC;KUN26..4FC..TH;KUN25..SCB..MA;TGN16..RHD..HTWC;KUN36..5F..(GEN,SA);KUN26..RHD..(GEN,SA);KUN15,25..RHD..HDCR..(GEN,IDN,PKN,SA);KUN15,16,TGN26..RHD..(4FC,5F)..(DCR,HTWC)..(GEN,PKN,SA,TH);GGN15,25,35,KUN10,35,LAN15,25,35,TGN10,15,36..RHD..(ARL,IDN,SA)	07/2011 - 09/2016	1
55705B - PANEL SUB-ASSY, COWL TOP SIDE, RH
55705-0K050	KUN25..SCB..MA;GGN15,25,35,KUN1#,2#,3#,LAN15,25,35,TGN1#,26,36..ANCOM,ARL,CO,GCC,GEN,IDN,LA,PHL,SA,TH	07/2011 - 12/2999	1
55706B - PANEL SUB-ASSY, COWL TOP SIDE, LH
55706-0K050	KUN25..SCB..MA;GGN15,25,35,KUN1#,2#,3#,LAN15,25,35,TGN1#,26,36..ANCOM,ARL,CO,GCC,GEN,IDN,LA,PHL,SA,TH	07/2011 - 12/2999	1
55725A - REINFORCEMENT, HOOD HINGE MOUNTING, RH
55725-0K010	KUN25..SCB..MA;GGN15,25,35,KUN1#,2#,3#,LAN15,25,35,TGN1#,26,36..ANCOM,ARL,CO,GCC,GEN,IDN,LA,PHL,SA,TH	07/2011 - 12/2999	1
55726B - REINFORCEMENT, HOOD HINGE MOUNTING, LH
55725-0K010	KUN25..SCB..MA;GGN15,25,35,KUN1#,2#,3#,LAN15,25,35,TGN1#,26,36..ANCOM,ARL,CO,GCC,GEN,IDN,LA,PHL,SA,TH	07/2011 - 12/2999	1
55743 - PANEL, COWL TOP OUTSIDE CORNER, RH
55743-0K010	KUN25..SCB..MA;GGN15,25,35,KUN1#,2#,3#,LAN15,25,35,TGN1#,26,36..ANCOM,ARL,CO,GCC,GEN,IDN,LA,PHL,SA,TH	07/2011 - 12/2999	1
55744A - REINFORCEMENT, PEDAL BRACKET MOUNTING
55744-0K010	KUN25..SCB..MA;GGN15,25,35,KUN1#,2#,3#,LAN15,25,35,TGN1#,26,36..ANCOM,ARL,CO,GCC,GEN,IDN,LA,PHL,SA,TH	07/2011 - 12/2999	1
55781D - LOUVER, COWL TOP VENTILATOR, RH
55708-0K040	KUN26..RHD..SADCB;GGN25,35,KUN15,2#,3#,LAN15,25,35,TGN15,36..RHD..SA	08/2011 - 12/2015	1
55782D - LOUVER, COWL TOP VENTILATOR, LH
55709-0K040	KUN26..RHD..SADCB;GGN25,35,KUN15,2#,3#,LAN15,25,35,TGN15,36..RHD..SA	08/2011 - 12/2015	1
56111 - GLASS, WINDSHIELD
56101-0K060	KUN26..SADCB;GGN25,35,KUN15,2#,3#,LAN15,25,35,TGN15,16,26,36..SA *LAM,T=4.96,GREEN	08/2011 - 12/2015	1
56115A - STOPPER, WINDSHIELD GLASS, NO.1
56115-02020	KUN26..4FC,5F;KUN26..5FC..SR;KUN26..5FC..IV3;KUN26..5FC..DLX..LA;GGN15,25,35,KUN1#,25,3#,LAN15,25,35,TGN1#,26,36..ANCOM,ARL,CO,GCC,GEN,IDN,LA,MA,PHL,SA,TH	07/2011 - 12/2999	2
56116C - STOPPER, WINDSHIELD GLASS, NO.2
56116-02020	KUN26..4FC,5F;KUN26..5FC..SR;KUN26..5FC..IV3;KUN26..5FC..DLX..LA;GGN15,25,35,KUN1#,25,3#,LAN15,25,35,TGN1#,26,36..ANCOM,ARL,CO,GCC,GEN,IDN,LA,MA,PHL,SA,TH	07/2011 - 12/2999	2
56117A - DAM, WINDOW GLASS ADHESIVE
56117-0K010	KUN26..4FC,5F;KUN26..5FC..SR;KUN26..5FC..IV3;KUN26..5FC..DLX..LA;GGN15,25,35,KUN1#,25,3#,LAN15,25,35,TGN1#,26,36..ANCOM,ARL,CO,GCC,GEN,IDN,LA,MA,PHL,SA,TH L=3089	07/2011 - 12/2999	1
56118B - DAM, WINDOW GLASS ADHESIVE, NO.2
56118-0K010	KUN26..4FC,5F;KUN26..5FC..SR;KUN26..5FC..IV3;KUN26..5FC..DLX..LA;GGN15,25,35,KUN1#,25,3#,LAN15,25,35,TGN1#,26,36..ANCOM,ARL,CO,GCC,GEN,IDN,LA,MA,PHL,SA,TH L=706	07/2011 - 12/2999	1
Common parts
90119-T0208
90467-08108
90467-T0007
90467-T0040

TGN15R-TRMDKN (2011)

(1108- )SA ; (1201- )SADCB

(1505- )RHD
