TGN15R-TRMDKN (2011)
Toyota Hilux
(1108- )KUN15,LAN15,TGN15,16..SA
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04465 - PAD KIT, DISC BRAKE, FRONT | ||||
| 04465-0K310 |
KUN15,LAN15,TGN15,16..SA MARK ADVICS PS558H |
1 | ||
| 04479 - CYLINDER KIT, DISC BRAKE, FRONT | ||||
| 04478-0K060 |
KUN15,LAN15,TGN15,16..SA |
1 | ||
| 04945 - SHIM KIT, ANTI SQUEAL, FRONT | ||||
| 04945-0K171 |
KUN15,LAN15,TGN15,16..SA |
1 | ||
| 04947 - FITTING KIT, DISC BRAKE, FRONT | ||||
| 04947-0K020 |
KUN15,LAN15,TGN15,16..SA |
1 | ||
| 04952 - PIN KIT, FRONT DISC BRAKE CYLINDER SLIDE | ||||
| 04952-02030 |
KUN15,LAN15,TGN15,16..SA |
1 | ||
| 04953 - BOOT KIT, FRONT DISC BRAKE CYLINDER SLIDE PIN | ||||
| 04953-02030 |
KUN15,LAN15,TGN15,16..SA |
1 | ||
| 31478B - CAP, BLEEDER PLUG(FOR FRONT DISC BRAKE) | ||||
| 31478-0K020 |
KUN15,LAN15,TGN15,16..SA |
2 | ||
| 47710A - BOLT, HEXAGON(FOR FRONT DISC BRAKE CALIPER) | ||||
| 91552-C1230 |
GGN15,KUN1#,LAN15,TGN1# *12-1.25PX30-26.25 |
4 | ||
| 47721 - MOUNTING, FRONT DISC BRAKE CYLINDER, RH | ||||
| 47721-09500 |
KUN15,LAN15,TGN15,16..SA |
1 | ||
| 47721A - BOLT(FOR FRONT DISC BRAKE CYLINDER MOUNTING) | ||||
| 90080-10190 |
KUN15,LAN15,TGN15,16..SA *8-1.00PX22-14.5 |
4 | ||
| 47721A - BOLT(FOR FRONT DISC BRAKE CYLINDER MOUNTING) | ||||
| 90080-10190 |
KUN15,LAN15,TGN15,16..SA *8-1.00PX22-14.5 |
4 | ||
| 47722 - MOUNTING, FRONT DISC BRAKE CYLINDER, LH | ||||
| 47722-09200 |
KUN15,LAN15,TGN15,16..SA |
1 | ||
| 47730 - CYLINDER ASSY, FRONT DISC BRAKE, RH | ||||
| 47730-0K120 |
KUN15,LAN15,TGN15,16..SA |
1 | ||
| 47750 - CYLINDER ASSY, DISC BRAKE, LH | ||||
| 47750-0K120 |
KUN15,LAN15,TGN15,16..SA |
1 | ||
| 47781 - COVER, DISC BRAKE DUST, FRONT RH | ||||
| 47781-0K020 |
KUN15,LAN15,TGN15,16..SA |
1 | ||
| 47781F - BOLT(FOR DUST COVER TO STEERING KNUCKLE ARM RH) | ||||
| 90119-T0005 |
LAN15..LHD;KUN15,TGN15,16..SA |
3 | ||
| 47781G - BOLT(FOR DUST COVER TO STEERING KNUCKLE ARM LH) | ||||
| 90119-T0005 |
LAN15..LHD;KUN15,TGN15,16..SA |
3 | ||
| 47782 - COVER, DISC BRAKE DUST, FRONT LH | ||||
| 47782-0K020 |
KUN15,LAN15,TGN15,16..SA |
1 | ||

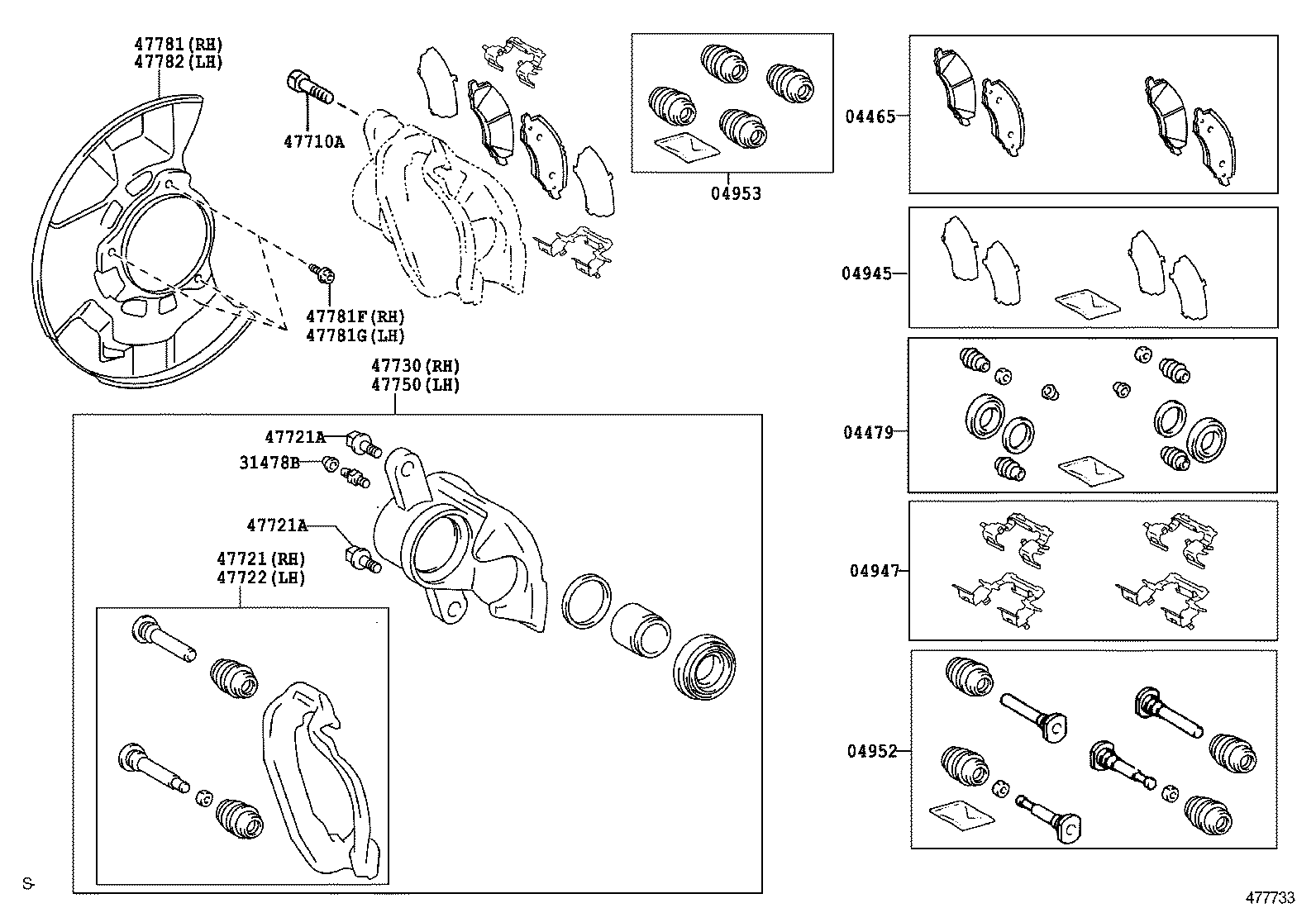

ILLUST NO. 1 OF 2(1505- )ARL,BZAGT,GCC,GEN,IDN,KEN,LA,MA,PH,PKN,SA,TAIW,TH,VN
4POD TYPE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Linked diagrams | ||||
| 4303 | ||||
ILLUST NO. 2 OF 2(1505- )ARL,BZAGT,GCC,GEN,IDN,KEN,LA,MA,PH,PKN,SA,TAIW,TH,VN
1POD TYPE
| Part # | Description | Qty | Price |
|---|
ILLUST NO. 1 OF 2(1505- )ARL,BZAGT,GCC,GEN,IDN,KEN,LA,MA,PH,PKN,SA,TAIW,TH,VN
1POD TYPE
| Part # | Description | Qty | Price |
|---|
ILLUST NO. 2 OF 2(1505- )ARL,BZAGT,GCC,GEN,IDN,KEN,LA,MA,PH,PKN,SA,TAIW,TH,VN
4POD TYPE
| Part # | Description | Qty | Price |
|---|
