Toyota Hilux TGN15 RADIATOR & WATER OUTLET

Manufacturers Home
Toyota
US
HILUX
TGN15R-TRMDKN (2011)
1603 - RADIATOR & WATER OUTLET

TGN15R-TRMDKN (2011)

Toyota Hilux

Production Aug 2011 - Dec 2015

Engine 1TRFE

Transmission

Displacement 2500cc

Power 168 HP (125 kW)

ILLUST NO. 2 OF 2(1503- )1TRFE..TGN15..SA

Click highlighted areas on diagram

Part #	Description	Period	Qty
16261 - HOSE, WATER BY-PASS
16261-0C010	1TRFE,2TRFE..TGN15,16,26,36..HTWC..(ANCOM,CO,LA,SA)	08/2011 - 12/2999	1
16261A - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE)
96137-41501	2TRFE..TGN36..4FC..ANCOM;1TRFE,2TRFE..TGN15,16,36..HTWC..(LA,SA);2TRFE..TGN26..DCB..HTWC..(ANCOM,CO,LA,SA)	07/2011 - 09/2015	2
90466-T0015	1TRFE,2TRFE..TGN1#,26,36 (L)	10/2015 - 12/2999	2
96136-41501	1TRFE,2TRFE..TGN1#,26,36 (J)	10/2015 - 12/2999	2
16261A - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE)
96137-41501	2TRFE..TGN36..4FC..ANCOM;1TRFE,2TRFE..TGN15,16,36..HTWC..(LA,SA);2TRFE..TGN26..DCB..HTWC..(ANCOM,CO,LA,SA)	07/2011 - 09/2015	2
90466-T0015	1TRFE,2TRFE..TGN1#,26,36 (L)	10/2015 - 12/2999	2
96136-41501	1TRFE,2TRFE..TGN1#,26,36 (J)	10/2015 - 12/2999	2
16264 - HOSE, WATER BY-PASS, NO.2
16264-0C010	1TRFE..TGN15..SA	08/2011 - 12/2015	1
16264A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.2)
96137-41501	2TRFE..TGN36..4FC..ANCOM;1TRFE,2TRFE..TGN15,16,36..HTWC..(LA,SA);2TRFE..TGN26..DCB..HTWC..(ANCOM,CO,LA,SA)	07/2011 - 09/2015	2
90466-T0015	1TRFE,2TRFE..TGN1#,26,36 (L)	10/2015 - 12/2999	2
96136-41501	1TRFE,2TRFE..TGN1#,26,36 (J)	10/2015 - 12/2999	2
16264A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.2)
96137-41501	2TRFE..TGN36..4FC..ANCOM;1TRFE,2TRFE..TGN15,16,36..HTWC..(LA,SA);2TRFE..TGN26..DCB..HTWC..(ANCOM,CO,LA,SA)	07/2011 - 09/2015	2
90466-T0015	1TRFE,2TRFE..TGN1#,26,36 (L)	10/2015 - 12/2999	2
96136-41501	1TRFE,2TRFE..TGN1#,26,36 (J)	10/2015 - 12/2999	2
16268G - GASKET(FOR WATER BY-PASS PIPE)
16258-75010	1TRFE,2TRFE..TGN15,16,26,36..ANCOM,CO,LA,SA	07/2011 - 03/2013	1
16321 - INLET, WATER
16321-0C010	1TRFE,2TRFE..TGN15,16,26,36..CO,LA,SA	08/2011 - 12/2011	1
16321-75020	1TRFE,2TRFE..TGN1#,26,36 (J)	12/2011 - 06/2012	1
16321-0C010	1TRFE,2TRFE..TGN15,16,26,36..ANCOM,CO,LA,SA (L)	12/2011 - 12/2999	1
16325 - GASKET, WATER INLET HOUSING, NO.1
16325-0C021	1TRFE,2TRFE..TGN15,16,26,36..ANCOM,CO,LA,SA	04/2012 - 03/2015	1
16325-75011	1TRFE,2TRFE..TGN15,16,26,36..ANCOM,CO,LA,SA (J)	03/2015 - 12/2999	1
16325-0C020	1TRFE,2TRFE..TGN1#,26,36	07/2011 - 04/2012	1
16326 - GASKET, WATER INLET HOUSING, NO.2
16325-0C030	1TRFE,2TRFE..TGN15,16,26,36..ANCOM,CO,LA,SA	07/2011 - 03/2015	1
16325-76010	1TRFE,2TRFE..TGN15,16,26,36..ANCOM,CO,LA,SA (J)	03/2015 - 12/2999	1
16325-0C030	1TRFE,2TRFE..TGN15,16,26,36..ANCOM,CO,LA,SA (L)	03/2015 - 12/2999	1
16331A - THERMOSTAT
90916-03093	1TRFE,2TRFE..TGN1#,26,36 *WAX 82-95	07/2011 - 12/2999	1
Common parts
90119-T0237
90178-T0019
90178-T0030
90179-08087
91551-00825
Linked diagrams
1106
8716

ILLUST NO. 2 OF 2(1503- )1TRFE,2TRFE..TGN15,16,26,36..ANCOM,CO,LA,SA

Click highlighted areas on diagram

Part #	Description	Period	Qty
16261 - HOSE, WATER BY-PASS
16261-0C010	1TRFE,2TRFE..TGN15,16,26,36..HTWC..(ANCOM,CO,LA,SA)	08/2011 - 12/2999	1
16261A - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE)
96137-41501	2TRFE..TGN36..4FC..ANCOM;1TRFE,2TRFE..TGN15,16,36..HTWC..(LA,SA);2TRFE..TGN26..DCB..HTWC..(ANCOM,CO,LA,SA)	07/2011 - 09/2015	2
90466-T0015	1TRFE,2TRFE..TGN1#,26,36 (L)	10/2015 - 12/2999	2
96136-41501	1TRFE,2TRFE..TGN1#,26,36 (J)	10/2015 - 12/2999	2
16261A - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE)
96137-41501	2TRFE..TGN36..4FC..ANCOM;1TRFE,2TRFE..TGN15,16,36..HTWC..(LA,SA);2TRFE..TGN26..DCB..HTWC..(ANCOM,CO,LA,SA)	07/2011 - 09/2015	2
90466-T0015	1TRFE,2TRFE..TGN1#,26,36 (L)	10/2015 - 12/2999	2
96136-41501	1TRFE,2TRFE..TGN1#,26,36 (J)	10/2015 - 12/2999	2
16264 - HOSE, WATER BY-PASS, NO.2
16264-0C010	1TRFE..TGN15..SA	08/2011 - 12/2015	1
16264A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.2)
96137-41501	2TRFE..TGN36..4FC..ANCOM;1TRFE,2TRFE..TGN15,16,36..HTWC..(LA,SA);2TRFE..TGN26..DCB..HTWC..(ANCOM,CO,LA,SA)	07/2011 - 09/2015	2
90466-T0015	1TRFE,2TRFE..TGN1#,26,36 (L)	10/2015 - 12/2999	2
96136-41501	1TRFE,2TRFE..TGN1#,26,36 (J)	10/2015 - 12/2999	2
16264A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.2)
96137-41501	2TRFE..TGN36..4FC..ANCOM;1TRFE,2TRFE..TGN15,16,36..HTWC..(LA,SA);2TRFE..TGN26..DCB..HTWC..(ANCOM,CO,LA,SA)	07/2011 - 09/2015	2
90466-T0015	1TRFE,2TRFE..TGN1#,26,36 (L)	10/2015 - 12/2999	2
96136-41501	1TRFE,2TRFE..TGN1#,26,36 (J)	10/2015 - 12/2999	2
16268 - PIPE, WATER BY-PASS, NO.1
16268-0C010	1TRFE..TGN15..SA	03/2013 - 12/2015	1
16268-75091	1TRFE,2TRFE..TGN15,16,26,36..ANCOM,CO,LA,SA	07/2011 - 03/2013	1
16268G - GASKET(FOR WATER BY-PASS PIPE)
16258-75010	1TRFE,2TRFE..TGN15,16,26,36..ANCOM,CO,LA,SA	07/2011 - 03/2013	1
16321 - INLET, WATER
16321-0C010	1TRFE,2TRFE..TGN15,16,26,36..CO,LA,SA	08/2011 - 12/2011	1
16321-75020	1TRFE,2TRFE..TGN1#,26,36 (J)	12/2011 - 06/2012	1
16321-0C010	1TRFE,2TRFE..TGN15,16,26,36..ANCOM,CO,LA,SA (L)	12/2011 - 12/2999	1
16325 - GASKET, WATER INLET HOUSING, NO.1
16325-0C021	1TRFE,2TRFE..TGN15,16,26,36..ANCOM,CO,LA,SA	04/2012 - 03/2015	1
16325-75011	1TRFE,2TRFE..TGN15,16,26,36..ANCOM,CO,LA,SA (J)	03/2015 - 12/2999	1
16325-0C020	1TRFE,2TRFE..TGN1#,26,36	07/2011 - 04/2012	1
16326 - GASKET, WATER INLET HOUSING, NO.2
16325-0C030	1TRFE,2TRFE..TGN15,16,26,36..ANCOM,CO,LA,SA	07/2011 - 03/2015	1
16325-76010	1TRFE,2TRFE..TGN15,16,26,36..ANCOM,CO,LA,SA (J)	03/2015 - 12/2999	1
16325-0C030	1TRFE,2TRFE..TGN15,16,26,36..ANCOM,CO,LA,SA (L)	03/2015 - 12/2999	1
16331A - THERMOSTAT
90916-03093	1TRFE,2TRFE..TGN1#,26,36 *WAX 82-95	07/2011 - 12/2999	1
Common parts
90119-T0237
90178-T0019
90178-T0030
91551-00825
94151-80800
Linked diagrams
1106
8716

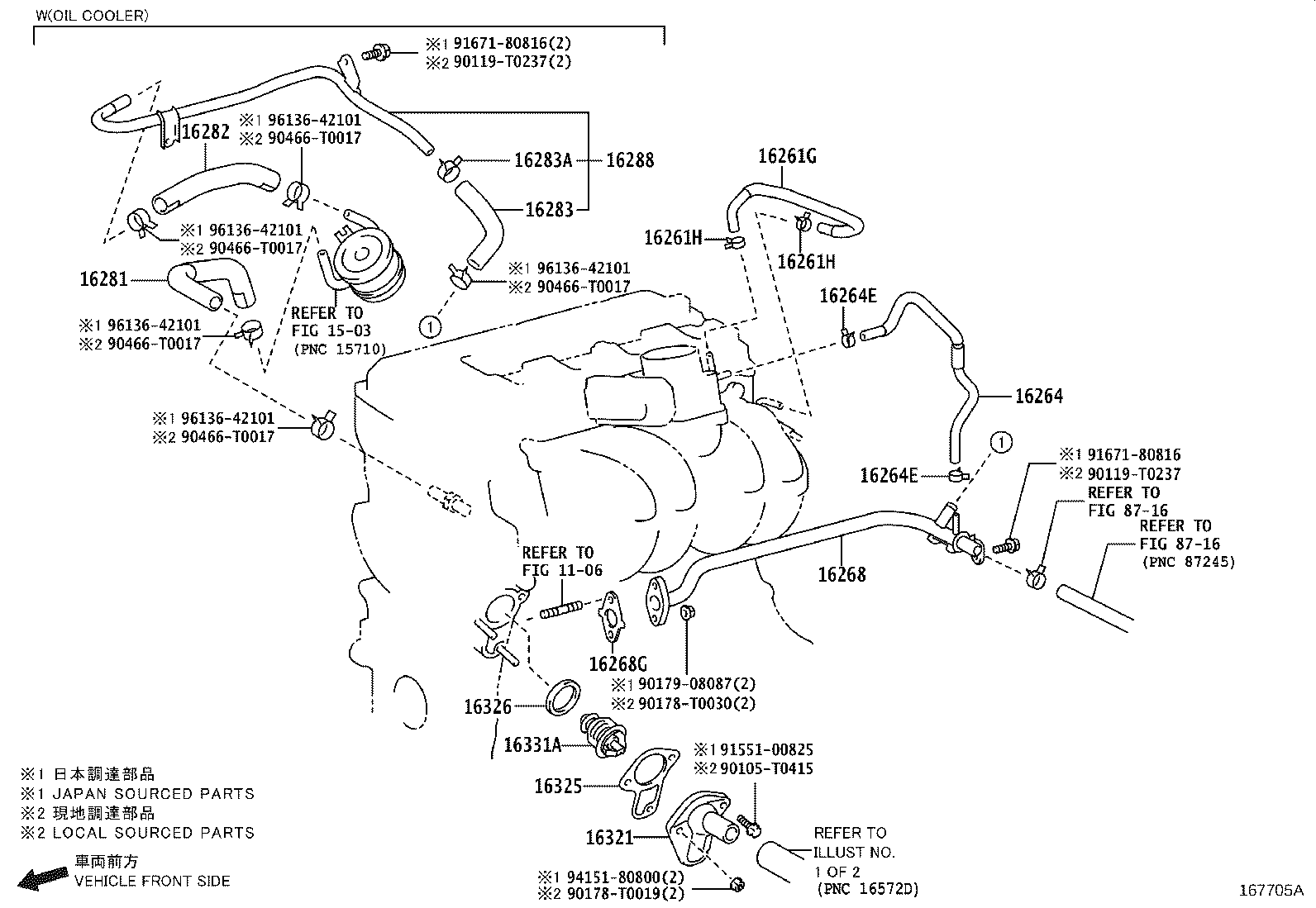

ILLUST NO. 2 OF 2(2006- )1TRFE,2TRFE..ARL,BZAG,GCC,GEN,LA,PKN,SA

Click highlighted areas on diagram

Part #	Description	Period	Qty	Price
Common parts
90105-T0415
90119-T0237
90178-T0019
90178-T0030
90179-08087
90466-T0017
91551-00825
91671-80816
94151-80800
96136-42101
Linked diagrams
1106
1503
8716

ILLUST NO. 1 OF 2(2006- )1TRFE,2TRFE

Click highlighted areas on diagram

Part #	Description	Period	Qty	Price
Common parts
90119-T0384
90119-T0526
90119-T0610
90178-T0114
90179-06293
94151-80600
Linked diagrams
1104

TGN15R-TRMDKN (2011)

ILLUST NO. 2 OF 2(1503- )1TRFE..TGN15..SA

ILLUST NO. 2 OF 2(1503- )1TRFE,2TRFE..TGN15,16,26,36..ANCOM,CO,LA,SA

ILLUST NO. 2 OF 2(2006- )1TRFE,2TRFE..ARL,BZAG,GCC,GEN,LA,PKN,SA

ILLUST NO. 1 OF 2(2006- )1TRFE,2TRFE

Part Price Details
