TGN15R-TRMDKN (2011)
Toyota Hilux

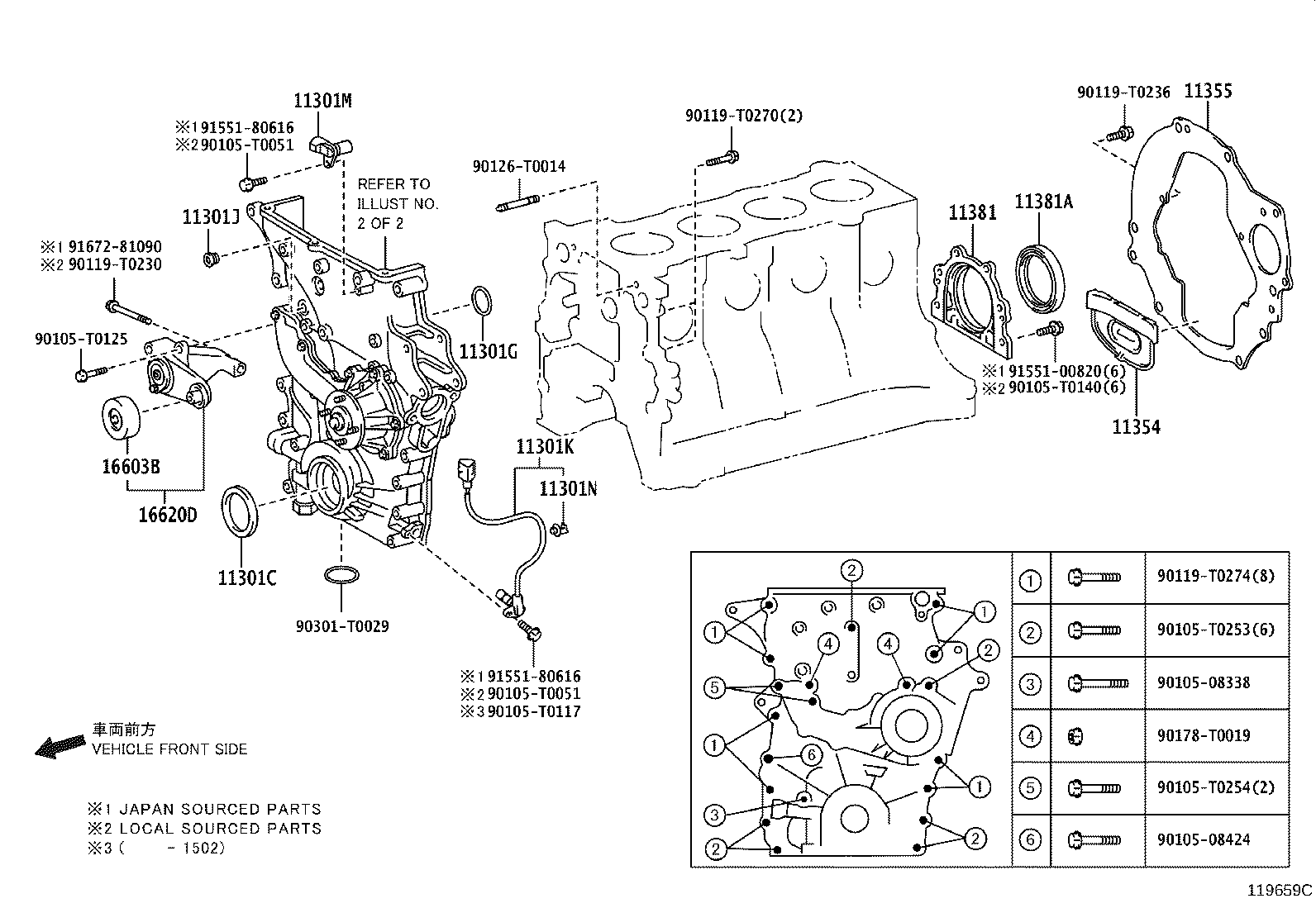

ILLUST NO. 1 OF 2(1107-1412)1TRFE,2TRFE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 11301C - SEAL, OIL(FOR TIMING GEAR CASE OR TIMING CHAIN CASE) | ||||
| 90311-T0032 |
1TRFE,2TRFE..TGN1#,26,36 |
1 | ||
| 11301G - RING, O(FOR TIMING GEAR CASE, UPPER) | ||||
| 90301-T0021 |
1TRFE,2TRFE..TGN1#,26,36 |
1 | ||
| 11301J - PLUG, W/HEAD STRAIGHT SCREW(FOR TIMING GEAR CASE) | ||||
| 90341-T0011 |
1TRFE,2TRFE..TGN1#,26,36 |
1 | ||
| 11301K - SENSOR, CRANK POSITION | ||||
| 90919-05059 |
1TRFE,2TRFE..TGN1#,26,36 |
1 | ||
| 11301M - SENSOR, CAM POSITION | ||||
| 90919-05036 |
1TRFE,2TRFE..TGN1#,26,36 |
1 | ||
| 11301N - CLAMP | ||||
| 90469-07018 |
1TRFE,2TRFE..TGN1#,26,36 |
1 | ||
| 11354 - SEAL, FLYWHEEL HOUSING DUST | ||||
| 11354-0C010 |
1TRFE,2TRFE..TGN1#,26,36 |
1 | ||
| 11355 - PLATE, REAR END | ||||
| 11355-0C010 |
1TRFE,2TRFE..TGN15,16,26,36..ANCOM,CO,LA,SA |
1 | ||
| 11381 - RETAINER, ENGINE REAR OIL SEAL | ||||
| 11381-0C011 |
1TRFE,2TRFE..TGN15,16,26,36..CO,LA,SA |
1 | ||
| 11381-75011 |
1TRFE,2TRFE..TGN1#,26,36 (J) |
1 | ||
| 11381-0C011 |
1TRFE,2TRFE..TGN15,16,26,36..ANCOM,CO,LA,SA (L) |
1 | ||
| 11381-0C012 |
1TRFE,2TRFE..TGN15,16,26,36..ANCOM,CO,LA,SA (L) |
1 | ||
| 11381A - SEAL, ENGINE REAR OIL | ||||
| 90311-T0026 |
1TRFE,2TRFE..TGN1#,26,36 |
1 | ||
| 90311-T0058 |
1TRFE,2TRFE..TGN15,16,26,36..ANCOM,CO,LA,SA |
1 | ||
| 16603B - PULLEY SUB-ASSY, IDLER | ||||
| 16603-0C020 |
1TRFE,2TRFE..TGN1#,26,36 |
1 | ||
| 16620D - TENSIONER ASSY, V-RIBBED BELT | ||||
| 16620-0C011 |
1TRFE,2TRFE..TGN1#,26,36 |
1 | ||
| Common parts | ||||
| 90105-08338 | ||||
| 90105-08424 | ||||
| 90105-T0051 | ||||
| 90105-T0117 | ||||
| 90105-T0125 | ||||
| 90105-T0140 | ||||
| 90116-08337 | ||||
| 90119-T0230 | ||||
| 90119-T0236 | ||||
| 90178-T0019 | ||||
| 90301-T0029 | ||||
| 91551-00820 | ||||
| 91551-80875 | ||||
| 91551-80890 | ||||
| 91641-80835 | ||||
| 91672-81090 | ||||
| 91672-K1075 | ||||
ILLUST NO. 2 OF 2(1107- )1TRFE,2TRFE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 11302 - COVER SUB-ASSY, TIMING CHAIN OR BELT | ||||
| 11310-0C010 |
1TRFE..TGN10,15 |
1 | ||
| 11310-0C011 |
1TRFE..TGN15..SA |
1 | ||
| 11310-0C012 |
1TRFE..TGN15..SA |
1 | ||
| Common parts | ||||
| 92112-80822 | ||||
| Linked diagrams | ||||
| 1501 | ||||
| 1601 | ||||
ILLUST NO. 1 OF 2(1412- )1TRFE,2TRFE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 11301C - SEAL, OIL(FOR TIMING GEAR CASE OR TIMING CHAIN CASE) | ||||
| 90311-T0032 |
1TRFE,2TRFE..TGN1#,26,36 |
1 | ||
| 11301G - RING, O(FOR TIMING GEAR CASE, UPPER) | ||||
| 90301-T0021 |
1TRFE,2TRFE..TGN1#,26,36 |
1 | ||
| 11301J - PLUG, W/HEAD STRAIGHT SCREW(FOR TIMING GEAR CASE) | ||||
| 90341-T0011 |
1TRFE,2TRFE..TGN1#,26,36 |
1 | ||
| 11301K - SENSOR, CRANK POSITION | ||||
| 90919-05059 |
1TRFE,2TRFE..TGN1#,26,36 |
1 | ||
| 11301M - SENSOR, CAM POSITION | ||||
| 90919-05036 |
1TRFE,2TRFE..TGN1#,26,36 |
1 | ||
| 11301N - CLAMP | ||||
| 90469-07018 |
1TRFE,2TRFE..TGN1#,26,36 |
1 | ||
| 11354 - SEAL, FLYWHEEL HOUSING DUST | ||||
| 11354-0C010 |
1TRFE,2TRFE..TGN1#,26,36 |
1 | ||
| 11355 - PLATE, REAR END | ||||
| 11355-0C010 |
1TRFE,2TRFE..TGN15,16,26,36..ANCOM,CO,LA,SA |
1 | ||
| 11381 - RETAINER, ENGINE REAR OIL SEAL | ||||
| 11381-0C011 |
1TRFE,2TRFE..TGN15,16,26,36..CO,LA,SA |
1 | ||
| 11381-75011 |
1TRFE,2TRFE..TGN1#,26,36 (J) |
1 | ||
| 11381-0C011 |
1TRFE,2TRFE..TGN15,16,26,36..ANCOM,CO,LA,SA (L) |
1 | ||
| 11381-0C012 |
1TRFE,2TRFE..TGN15,16,26,36..ANCOM,CO,LA,SA (L) |
1 | ||
| 11381A - SEAL, ENGINE REAR OIL | ||||
| 90311-T0026 |
1TRFE,2TRFE..TGN1#,26,36 |
1 | ||
| 90311-T0058 |
1TRFE,2TRFE..TGN15,16,26,36..ANCOM,CO,LA,SA |
1 | ||
| 16603B - PULLEY SUB-ASSY, IDLER | ||||
| 16603-0C020 |
1TRFE,2TRFE..TGN1#,26,36 |
1 | ||
| 16620D - TENSIONER ASSY, V-RIBBED BELT | ||||
| 16620-0C011 |
1TRFE,2TRFE..TGN1#,26,36 |
1 | ||
| Common parts | ||||
| 90105-08338 | ||||
| 90105-08424 | ||||
| 90105-T0051 | ||||
| 90105-T0117 | ||||
| 90105-T0125 | ||||
| 90105-T0140 | ||||
| 90105-T0253 | ||||
| 90105-T0254 | ||||
| 90119-T0230 | ||||
| 90119-T0236 | ||||
| 90119-T0270 | ||||
| 90119-T0274 | ||||
| 90126-T0014 | ||||
| 90178-T0019 | ||||
| 90301-T0029 | ||||
| 91551-00820 | ||||
| 91551-80616 | ||||
| 91672-81090 | ||||
ILLUST NO. 1 OF 2(2006- )1TRFE,2TRFE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90105-08424 | ||||
| 90105-T0051 | ||||
| 90105-T0125 | ||||
| 90105-T0140 | ||||
| 90105-T0253 | ||||
| 90105-T0254 | ||||
| 90116-08337 | ||||
| 90119-T0230 | ||||
| 90119-T0236 | ||||
| 90119-T0270 | ||||
| 90119-T0274 | ||||
| 90126-T0014 | ||||
| 90178-T0019 | ||||
| 91551-00820 | ||||
| 91551-80616 | ||||
| 91551-F0875 | ||||
| 91551-F0890 | ||||
| 91552-81040 | ||||
| 91671-80814 | ||||
| 91671-80840 | ||||
| 91672-81090 | ||||
| 91672-K1075 | ||||
| Linked diagrams | ||||
| 1104 | ||||
| 1105 | ||||
ILLUST NO. 2 OF 2(2006- )1TRFE,2TRFE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 91551-80616 | ||||
| 92112-80822 | ||||
| Linked diagrams | ||||
| 1501 | ||||
| 1601 | ||||
