TGN15R-TRMDKN (2008)

Toyota Hilux

Production Oct 2008 - Aug 2011
Engine 1TRFE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(0810- )TGN15,16,26,36..SA

Click highlighted areas on diagram

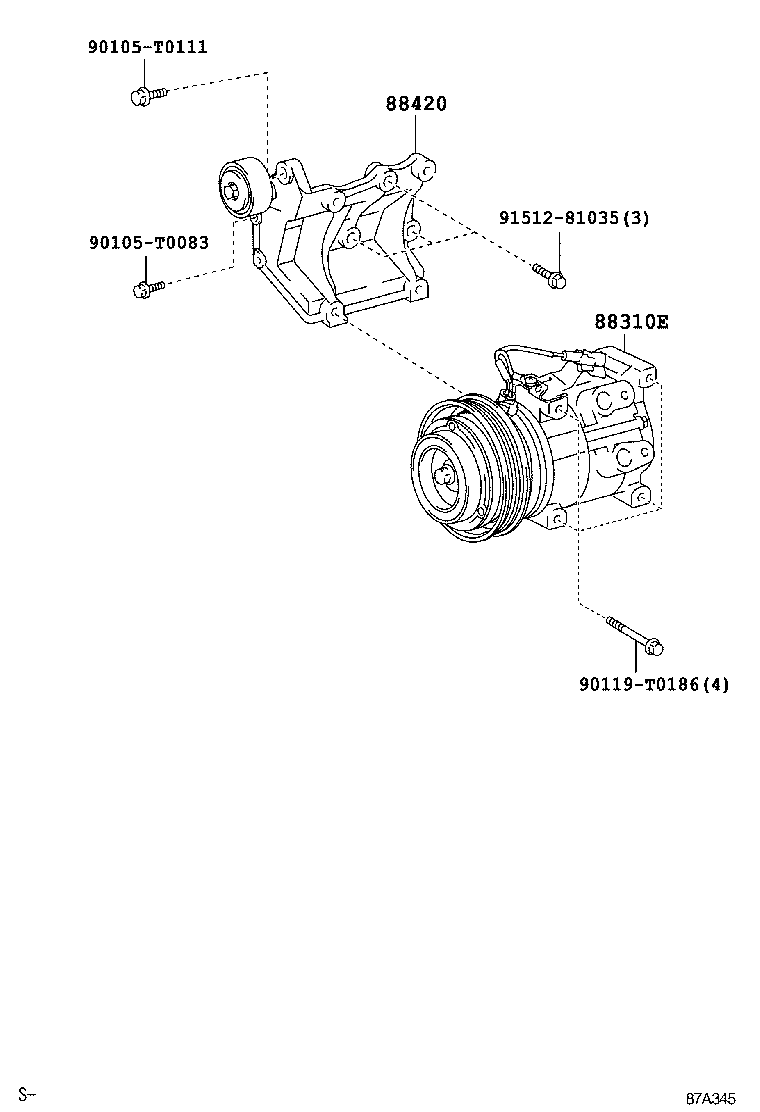

diagram 88310E 88420 90105T0083 90105T0111 90119T0186 9151281035
Part # Description Qty Price
88310E - COMPRESSOR, W/MAGNET CLUTCH
88310-0K122

TGN15,16,26..SA

AIR CONDITIONER-SINGLE AIR CONDITIONER

 1
88420 - PULLEY ASSY, IDLE, W/BRACKET
88420-0K060

TGN15,16,26..SA

AIR CONDITIONER-SINGLE AIR CONDITIONER

 1
Common parts
90105-T0083
90105-T0111
90119-T0186
91512-81035

(1107- )TGN1#..HTWC..ARL,GCC,IDN,SA,TH ; (1107- )TGN26..5F..DLX..HTWC..GCC,LA

Click highlighted areas on diagram

DEALER OPTION

diagram 88320 88330A 88410 88431 88440B 8856932120 88688K 9009140612 9009904349 9009907065 9009907114 9010508403 9010510361 9011908B42 9331915008 9331915008
Part # Description Qty Price
Common parts
88569-32120
90091-40612
90099-04349
90099-07065
90099-07114
90105-08403
90105-10361
90119-08B42
93319-15008
