TGN15L-PRMDK (2008)
Toyota Hilux
(0810-0812)GGN25,KUN25,3#,TGN26,36..DCB,SCB,SMT,XTR..ANCOM,ARL,GCC,GEN,MA,PHL,TH ;

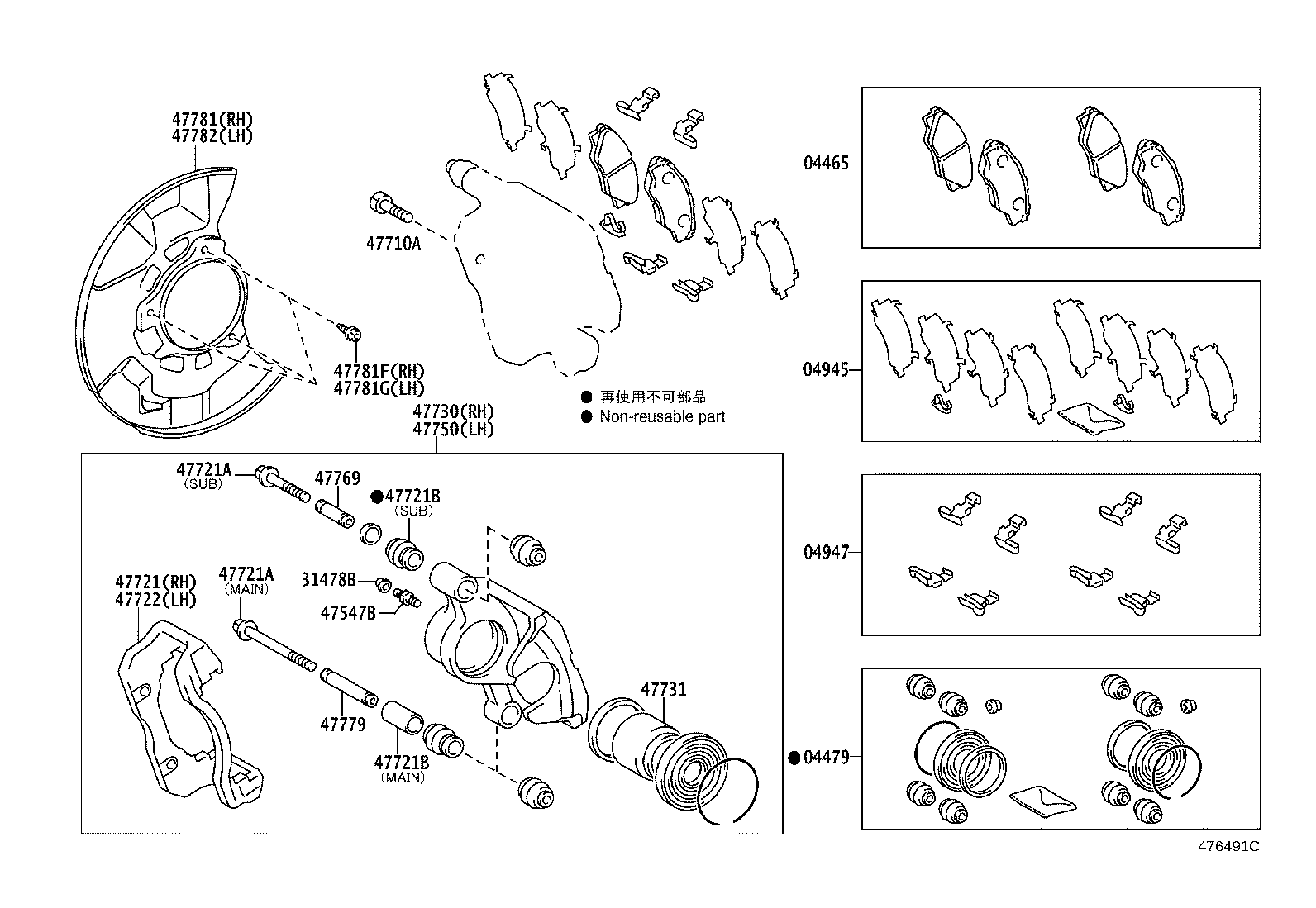

| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04465 - PAD KIT, DISC BRAKE, FRONT | ||||
| 04465-0K010 |
GGN15,KUN1#,TGN1#..ARL,GEN,PHL,TH MARK ADVICS PS558H |
1 | ||
| 04465-0K010 |
GGN15,KUN1#,TGN1#..ARL,GEN,PHL,TH MARK ADVICS PS558H |
1 | ||
| 04465-0K010 |
GGN15,KUN1#,TGN1#..ARL,GEN,PHL,TH MARK ADVICS PS558H |
1 | ||
| 04465-0K010 |
GGN15,KUN1#,TGN1#..ARL,GEN,PHL,TH MARK ADVICS PS558H |
1 | ||
| 04479 - CYLINDER KIT, DISC BRAKE, FRONT | ||||
| 04479-04030 |
KUN15..PHL..CBU;KUN16,TGN16..XTR..TH;TGN16..5F..(ARL,GCC,GEN);KUN16,TGN10..(DCB,SCB)..(DLX,SR);GGN15,KUN10,15,LAN15,TGN11,15..(DCB,SCB,XTR)..(ARL,GCC,GEN,PKN,TH) |
1 | ||
| 04479-04030 |
KUN15..PHL..CBU;KUN16,TGN16..XTR..TH;TGN16..5F..(ARL,GCC,GEN);KUN16,TGN10..(DCB,SCB)..(DLX,SR);GGN15,KUN10,15,LAN15,TGN11,15..(DCB,SCB,XTR)..(ARL,GCC,GEN,PKN,TH) |
1 | ||
| 04479-04030 |
KUN15..PHL..CBU;KUN16,TGN16..XTR..TH;TGN16..5F..(ARL,GCC,GEN);KUN16,TGN10..(DCB,SCB)..(DLX,SR);GGN15,KUN10,15,LAN15,TGN11,15..(DCB,SCB,XTR)..(ARL,GCC,GEN,PKN,TH) |
1 | ||
| 04479-04030 |
KUN15..PHL..CBU;KUN16,TGN16..XTR..TH;TGN16..5F..(ARL,GCC,GEN);KUN16,TGN10..(DCB,SCB)..(DLX,SR);GGN15,KUN10,15,LAN15,TGN11,15..(DCB,SCB,XTR)..(ARL,GCC,GEN,PKN,TH) |
1 | ||
| 04945 - SHIM KIT, ANTI SQUEAL, FRONT | ||||
| 04945-0K130 |
KUN15..PHL..CBU;KUN16,TGN16..XTR..TH;TGN16..5F..(ARL,GCC,GEN);KUN16,TGN10..(DCB,SCB)..(DLX,SR);GGN15,KUN10,15,LAN15,TGN11,15..(DCB,SCB,XTR)..(ARL,GCC,GEN,PKN,TH) |
1 | ||
| 04945-0K130 |
KUN15..PHL..CBU;KUN16,TGN16..XTR..TH;TGN16..5F..(ARL,GCC,GEN);KUN16,TGN10..(DCB,SCB)..(DLX,SR);GGN15,KUN10,15,LAN15,TGN11,15..(DCB,SCB,XTR)..(ARL,GCC,GEN,PKN,TH) |
1 | ||
| 04945-0K130 |
KUN15..PHL..CBU;KUN16,TGN16..XTR..TH;TGN16..5F..(ARL,GCC,GEN);KUN16,TGN10..(DCB,SCB)..(DLX,SR);GGN15,KUN10,15,LAN15,TGN11,15..(DCB,SCB,XTR)..(ARL,GCC,GEN,PKN,TH) |
1 | ||
| 04945-0K130 |
KUN15..PHL..CBU;KUN16,TGN16..XTR..TH;TGN16..5F..(ARL,GCC,GEN);KUN16,TGN10..(DCB,SCB)..(DLX,SR);GGN15,KUN10,15,LAN15,TGN11,15..(DCB,SCB,XTR)..(ARL,GCC,GEN,PKN,TH) |
1 | ||
| 04947 - FITTING KIT, DISC BRAKE, FRONT | ||||
| 04947-0K010 |
KUN15..PHL..CBU;KUN16,TGN16..XTR..TH;TGN16..5F..(ARL,GCC,GEN);KUN16,TGN10..(DCB,SCB)..(DLX,SR);GGN15,KUN10,15,LAN15,TGN11,15..(DCB,SCB,XTR)..(ARL,GCC,GEN,PKN,TH) |
1 | ||
| 04947-0K010 |
KUN15..PHL..CBU;KUN16,TGN16..XTR..TH;TGN16..5F..(ARL,GCC,GEN);KUN16,TGN10..(DCB,SCB)..(DLX,SR);GGN15,KUN10,15,LAN15,TGN11,15..(DCB,SCB,XTR)..(ARL,GCC,GEN,PKN,TH) |
1 | ||
| 04947-0K010 |
KUN15..PHL..CBU;KUN16,TGN16..XTR..TH;TGN16..5F..(ARL,GCC,GEN);KUN16,TGN10..(DCB,SCB)..(DLX,SR);GGN15,KUN10,15,LAN15,TGN11,15..(DCB,SCB,XTR)..(ARL,GCC,GEN,PKN,TH) |
1 | ||
| 04947-0K010 |
KUN15..PHL..CBU;KUN16,TGN16..XTR..TH;TGN16..5F..(ARL,GCC,GEN);KUN16,TGN10..(DCB,SCB)..(DLX,SR);GGN15,KUN10,15,LAN15,TGN11,15..(DCB,SCB,XTR)..(ARL,GCC,GEN,PKN,TH) |
1 | ||
| 31478B - CAP, BLEEDER PLUG(FOR FRONT DISC BRAKE) | ||||
| 31478-30010 |
KUN26..THDCB;KUN25..GCC,GEN;KUN25..SCB..MA;KUN16..DCB,SCB;KUN15..PHL..CBU;KUN25..(DCB,XTR)..SR;KUN16,TGN16..XTR..TH;KUN26..(DCB,SCB,XTR)..(ARL,PHL,TH);KUN15..(DCB,SCB,XTR)..(GCC,GEN,PKN,TH);GGN15,25,KUN10,35,LAN15,TGN11,15,16..(5F,5FC)..(ARL,GCC,GEN,PKN);KUN36,TGN10,26,36..(DCB,SCB,THDCB,XTR)..(GCC,GEN,IDN,PHL,TH)..CBU |
2 | ||
| 31478-30010 |
KUN26..THDCB;KUN25..GCC,GEN;KUN25..SCB..MA;KUN16..DCB,SCB;KUN15..PHL..CBU;KUN25..(DCB,XTR)..SR;KUN16,TGN16..XTR..TH;KUN26..(DCB,SCB,XTR)..(ARL,PHL,TH);KUN15..(DCB,SCB,XTR)..(GCC,GEN,PKN,TH);GGN15,25,KUN10,35,LAN15,TGN11,15,16..(5F,5FC)..(ARL,GCC,GEN,PKN);KUN36,TGN10,26,36..(DCB,SCB,THDCB,XTR)..(GCC,GEN,IDN,PHL,TH)..CBU |
2 | ||
| 31478-30010 |
KUN26..THDCB;KUN25..GCC,GEN;KUN25..SCB..MA;KUN16..DCB,SCB;KUN15..PHL..CBU;KUN25..(DCB,XTR)..SR;KUN16,TGN16..XTR..TH;KUN26..(DCB,SCB,XTR)..(ARL,PHL,TH);KUN15..(DCB,SCB,XTR)..(GCC,GEN,PKN,TH);GGN15,25,KUN10,35,LAN15,TGN11,15,16..(5F,5FC)..(ARL,GCC,GEN,PKN);KUN36,TGN10,26,36..(DCB,SCB,THDCB,XTR)..(GCC,GEN,IDN,PHL,TH)..CBU |
2 | ||
| 31478-30010 |
KUN26..THDCB;KUN25..GCC,GEN;KUN25..SCB..MA;KUN16..DCB,SCB;KUN15..PHL..CBU;KUN25..(DCB,XTR)..SR;KUN16,TGN16..XTR..TH;KUN26..(DCB,SCB,XTR)..(ARL,PHL,TH);KUN15..(DCB,SCB,XTR)..(GCC,GEN,PKN,TH);GGN15,25,KUN10,35,LAN15,TGN11,15,16..(5F,5FC)..(ARL,GCC,GEN,PKN);KUN36,TGN10,26,36..(DCB,SCB,THDCB,XTR)..(GCC,GEN,IDN,PHL,TH)..CBU |
2 | ||
| 31478-30010 |
TGN15..GEN;TGN16..4FC..TH |
2 | ||
| 31478-30010 |
TGN15..GEN;TGN16..4FC..TH |
2 | ||
| 31478-30010 |
TGN15..GEN;TGN16..4FC..TH |
2 | ||
| 31478-30010 |
TGN15..GEN;TGN16..4FC..TH |
2 | ||
| 47547B - PLUG, BLEEDER(FOR FRONT DISC BRAKE) | ||||
| 47547-12010 |
KUN15..PHL..CBU;KUN16,TGN16..XTR..TH;TGN16..5F..(ARL,GCC,GEN);KUN16,TGN10..(DCB,SCB)..(DLX,SR);GGN15,KUN10,15,LAN15,TGN11,15..(DCB,SCB,XTR)..(ARL,GCC,GEN,PKN,TH) |
2 | ||
| 47547-12010 |
KUN15..PHL..CBU;KUN16,TGN16..XTR..TH;TGN16..5F..(ARL,GCC,GEN);KUN16,TGN10..(DCB,SCB)..(DLX,SR);GGN15,KUN10,15,LAN15,TGN11,15..(DCB,SCB,XTR)..(ARL,GCC,GEN,PKN,TH) |
2 | ||
| 47547-12010 |
KUN15..PHL..CBU;KUN16,TGN16..XTR..TH;TGN16..5F..(ARL,GCC,GEN);KUN16,TGN10..(DCB,SCB)..(DLX,SR);GGN15,KUN10,15,LAN15,TGN11,15..(DCB,SCB,XTR)..(ARL,GCC,GEN,PKN,TH) |
2 | ||
| 47547-12010 |
KUN15..PHL..CBU;KUN16,TGN16..XTR..TH;TGN16..5F..(ARL,GCC,GEN);KUN16,TGN10..(DCB,SCB)..(DLX,SR);GGN15,KUN10,15,LAN15,TGN11,15..(DCB,SCB,XTR)..(ARL,GCC,GEN,PKN,TH) |
2 | ||
| 47710A - BOLT, HEXAGON(FOR FRONT DISC BRAKE CALIPER) | ||||
| 91552-C1230 |
KUN16,TGN16..XTR..TH;KUN15..(DCB,SCB)..(PHL,SA)..CBU;KUN16,TGN10..(DCB,SCB)..(DLX,SR);KUN15..(DCB,SCB,XTR)..(GCC,GEN,PKN,TH);GGN15,KUN10,LAN15,TGN11,15,16..(5F,5FC)..(ARL,GCC,GEN,PKN,SA) *12-1.25PX30-26.25 |
4 | ||
| 91552-C1230 |
KUN16,TGN16..XTR..TH;KUN15..(DCB,SCB)..(PHL,SA)..CBU;KUN16,TGN10..(DCB,SCB)..(DLX,SR);KUN15..(DCB,SCB,XTR)..(GCC,GEN,PKN,TH);GGN15,KUN10,LAN15,TGN11,15,16..(5F,5FC)..(ARL,GCC,GEN,PKN,SA) *12-1.25PX30-26.25 |
4 | ||
| 91552-C1230 |
KUN16,TGN16..XTR..TH;KUN15..(DCB,SCB)..(PHL,SA)..CBU;KUN16,TGN10..(DCB,SCB)..(DLX,SR);KUN15..(DCB,SCB,XTR)..(GCC,GEN,PKN,TH);GGN15,KUN10,LAN15,TGN11,15,16..(5F,5FC)..(ARL,GCC,GEN,PKN,SA) *12-1.25PX30-26.25 |
4 | ||
| 91552-C1230 |
KUN16,TGN16..XTR..TH;KUN15..(DCB,SCB)..(PHL,SA)..CBU;KUN16,TGN10..(DCB,SCB)..(DLX,SR);KUN15..(DCB,SCB,XTR)..(GCC,GEN,PKN,TH);GGN15,KUN10,LAN15,TGN11,15,16..(5F,5FC)..(ARL,GCC,GEN,PKN,SA) *12-1.25PX30-26.25 |
4 | ||
| 47730 - CYLINDER ASSY, FRONT DISC BRAKE, RH | ||||
| 47730-0K010 |
KUN15..PHL..CBU;KUN16,TGN16..XTR..TH;TGN16..5F..(ARL,GCC,GEN);KUN16,TGN10..(DCB,SCB)..(DLX,SR);GGN15,KUN10,15,LAN15,TGN11,15..(DCB,SCB,XTR)..(ARL,GCC,GEN,PKN,TH) |
1 | ||
| 47730-0K010 |
KUN15..PHL..CBU;KUN16,TGN16..XTR..TH;TGN16..5F..(ARL,GCC,GEN);KUN16,TGN10..(DCB,SCB)..(DLX,SR);GGN15,KUN10,15,LAN15,TGN11,15..(DCB,SCB,XTR)..(ARL,GCC,GEN,PKN,TH) |
1 | ||
| 47730-0K010 |
KUN15..PHL..CBU;KUN16,TGN16..XTR..TH;TGN16..5F..(ARL,GCC,GEN);KUN16,TGN10..(DCB,SCB)..(DLX,SR);GGN15,KUN10,15,LAN15,TGN11,15..(DCB,SCB,XTR)..(ARL,GCC,GEN,PKN,TH) |
1 | ||
| 47730-0K010 |
KUN15..PHL..CBU;KUN16,TGN16..XTR..TH;TGN16..5F..(ARL,GCC,GEN);KUN16,TGN10..(DCB,SCB)..(DLX,SR);GGN15,KUN10,15,LAN15,TGN11,15..(DCB,SCB,XTR)..(ARL,GCC,GEN,PKN,TH) |
1 | ||
| 47731 - PISTON, FRONT DISC BRAKE | ||||
| 47731-04050 |
KUN15..PHL..CBU;KUN16,TGN16..XTR..TH;TGN16..5F..(ARL,GCC,GEN);KUN16,TGN10..(DCB,SCB)..(DLX,SR);GGN15,KUN10,15,LAN15,TGN11,15..(DCB,SCB,XTR)..(ARL,GCC,GEN,PKN,TH) |
2 | ||
| 47731-04050 |
KUN15..PHL..CBU;KUN16,TGN16..XTR..TH;TGN16..5F..(ARL,GCC,GEN);KUN16,TGN10..(DCB,SCB)..(DLX,SR);GGN15,KUN10,15,LAN15,TGN11,15..(DCB,SCB,XTR)..(ARL,GCC,GEN,PKN,TH) |
2 | ||
| 47731-04050 |
KUN15..PHL..CBU;KUN16,TGN16..XTR..TH;TGN16..5F..(ARL,GCC,GEN);KUN16,TGN10..(DCB,SCB)..(DLX,SR);GGN15,KUN10,15,LAN15,TGN11,15..(DCB,SCB,XTR)..(ARL,GCC,GEN,PKN,TH) |
2 | ||
| 47731-04050 |
KUN15..PHL..CBU;KUN16,TGN16..XTR..TH;TGN16..5F..(ARL,GCC,GEN);KUN16,TGN10..(DCB,SCB)..(DLX,SR);GGN15,KUN10,15,LAN15,TGN11,15..(DCB,SCB,XTR)..(ARL,GCC,GEN,PKN,TH) |
2 | ||
| 47731 - PISTON, FRONT DISC BRAKE | ||||
| 47731-04050 |
KUN15..PHL..CBU;KUN16,TGN16..XTR..TH;TGN16..5F..(ARL,GCC,GEN);KUN16,TGN10..(DCB,SCB)..(DLX,SR);GGN15,KUN10,15,LAN15,TGN11,15..(DCB,SCB,XTR)..(ARL,GCC,GEN,PKN,TH) |
2 | ||
| 47731-04050 |
KUN15..PHL..CBU;KUN16,TGN16..XTR..TH;TGN16..5F..(ARL,GCC,GEN);KUN16,TGN10..(DCB,SCB)..(DLX,SR);GGN15,KUN10,15,LAN15,TGN11,15..(DCB,SCB,XTR)..(ARL,GCC,GEN,PKN,TH) |
2 | ||
| 47731-04050 |
KUN15..PHL..CBU;KUN16,TGN16..XTR..TH;TGN16..5F..(ARL,GCC,GEN);KUN16,TGN10..(DCB,SCB)..(DLX,SR);GGN15,KUN10,15,LAN15,TGN11,15..(DCB,SCB,XTR)..(ARL,GCC,GEN,PKN,TH) |
2 | ||
| 47731-04050 |
KUN15..PHL..CBU;KUN16,TGN16..XTR..TH;TGN16..5F..(ARL,GCC,GEN);KUN16,TGN10..(DCB,SCB)..(DLX,SR);GGN15,KUN10,15,LAN15,TGN11,15..(DCB,SCB,XTR)..(ARL,GCC,GEN,PKN,TH) |
2 | ||
| 47731 - PISTON, FRONT DISC BRAKE | ||||
| 47731-04050 |
KUN15..PHL..CBU;KUN16,TGN16..XTR..TH;TGN16..5F..(ARL,GCC,GEN);KUN16,TGN10..(DCB,SCB)..(DLX,SR);GGN15,KUN10,15,LAN15,TGN11,15..(DCB,SCB,XTR)..(ARL,GCC,GEN,PKN,TH) |
2 | ||
| 47731-04050 |
KUN15..PHL..CBU;KUN16,TGN16..XTR..TH;TGN16..5F..(ARL,GCC,GEN);KUN16,TGN10..(DCB,SCB)..(DLX,SR);GGN15,KUN10,15,LAN15,TGN11,15..(DCB,SCB,XTR)..(ARL,GCC,GEN,PKN,TH) |
2 | ||
| 47731-04050 |
KUN15..PHL..CBU;KUN16,TGN16..XTR..TH;TGN16..5F..(ARL,GCC,GEN);KUN16,TGN10..(DCB,SCB)..(DLX,SR);GGN15,KUN10,15,LAN15,TGN11,15..(DCB,SCB,XTR)..(ARL,GCC,GEN,PKN,TH) |
2 | ||
| 47731-04050 |
KUN15..PHL..CBU;KUN16,TGN16..XTR..TH;TGN16..5F..(ARL,GCC,GEN);KUN16,TGN10..(DCB,SCB)..(DLX,SR);GGN15,KUN10,15,LAN15,TGN11,15..(DCB,SCB,XTR)..(ARL,GCC,GEN,PKN,TH) |
2 | ||
| 47731 - PISTON, FRONT DISC BRAKE | ||||
| 47731-04050 |
KUN15..PHL..CBU;KUN16,TGN16..XTR..TH;TGN16..5F..(ARL,GCC,GEN);KUN16,TGN10..(DCB,SCB)..(DLX,SR);GGN15,KUN10,15,LAN15,TGN11,15..(DCB,SCB,XTR)..(ARL,GCC,GEN,PKN,TH) |
2 | ||
| 47731-04050 |
KUN15..PHL..CBU;KUN16,TGN16..XTR..TH;TGN16..5F..(ARL,GCC,GEN);KUN16,TGN10..(DCB,SCB)..(DLX,SR);GGN15,KUN10,15,LAN15,TGN11,15..(DCB,SCB,XTR)..(ARL,GCC,GEN,PKN,TH) |
2 | ||
| 47731-04050 |
KUN15..PHL..CBU;KUN16,TGN16..XTR..TH;TGN16..5F..(ARL,GCC,GEN);KUN16,TGN10..(DCB,SCB)..(DLX,SR);GGN15,KUN10,15,LAN15,TGN11,15..(DCB,SCB,XTR)..(ARL,GCC,GEN,PKN,TH) |
2 | ||
| 47731-04050 |
KUN15..PHL..CBU;KUN16,TGN16..XTR..TH;TGN16..5F..(ARL,GCC,GEN);KUN16,TGN10..(DCB,SCB)..(DLX,SR);GGN15,KUN10,15,LAN15,TGN11,15..(DCB,SCB,XTR)..(ARL,GCC,GEN,PKN,TH) |
2 | ||
| 47750 - CYLINDER ASSY, DISC BRAKE, LH | ||||
| 47750-0K010 |
KUN15..PHL..CBU;KUN16,TGN16..XTR..TH;TGN16..5F..(ARL,GCC,GEN);KUN16,TGN10..(DCB,SCB)..(DLX,SR);GGN15,KUN10,15,LAN15,TGN11,15..(DCB,SCB,XTR)..(ARL,GCC,GEN,PKN,TH) |
1 | ||
| 47750-0K010 |
KUN15..PHL..CBU;KUN16,TGN16..XTR..TH;TGN16..5F..(ARL,GCC,GEN);KUN16,TGN10..(DCB,SCB)..(DLX,SR);GGN15,KUN10,15,LAN15,TGN11,15..(DCB,SCB,XTR)..(ARL,GCC,GEN,PKN,TH) |
1 | ||
| 47750-0K010 |
KUN15..PHL..CBU;KUN16,TGN16..XTR..TH;TGN16..5F..(ARL,GCC,GEN);KUN16,TGN10..(DCB,SCB)..(DLX,SR);GGN15,KUN10,15,LAN15,TGN11,15..(DCB,SCB,XTR)..(ARL,GCC,GEN,PKN,TH) |
1 | ||
| 47750-0K010 |
KUN15..PHL..CBU;KUN16,TGN16..XTR..TH;TGN16..5F..(ARL,GCC,GEN);KUN16,TGN10..(DCB,SCB)..(DLX,SR);GGN15,KUN10,15,LAN15,TGN11,15..(DCB,SCB,XTR)..(ARL,GCC,GEN,PKN,TH) |
1 | ||
| 47781 - COVER, DISC BRAKE DUST, FRONT RH | ||||
| 47781-0K010 |
KUN16,TGN16..XTR..TH;KUN15..(DCB,SCB)..(PHL,SA)..CBU;KUN16,TGN10..(DCB,SCB)..(DLX,SR);KUN15..(DCB,SCB,XTR)..(GCC,GEN,PKN,TH);GGN15,KUN10,LAN15,TGN11,15,16..(5F,5FC)..(ARL,GCC,GEN,PKN,SA) |
1 | ||
| 47781-0K010 |
KUN16,TGN16..XTR..TH;KUN15..(DCB,SCB)..(PHL,SA)..CBU;KUN16,TGN10..(DCB,SCB)..(DLX,SR);KUN15..(DCB,SCB,XTR)..(GCC,GEN,PKN,TH);GGN15,KUN10,LAN15,TGN11,15,16..(5F,5FC)..(ARL,GCC,GEN,PKN,SA) |
1 | ||
| 47781-0K010 |
KUN16,TGN16..XTR..TH;KUN15..(DCB,SCB)..(PHL,SA)..CBU;KUN16,TGN10..(DCB,SCB)..(DLX,SR);KUN15..(DCB,SCB,XTR)..(GCC,GEN,PKN,TH);GGN15,KUN10,LAN15,TGN11,15,16..(5F,5FC)..(ARL,GCC,GEN,PKN,SA) |
1 | ||
| 47781-0K010 |
KUN16,TGN16..XTR..TH;KUN15..(DCB,SCB)..(PHL,SA)..CBU;KUN16,TGN10..(DCB,SCB)..(DLX,SR);KUN15..(DCB,SCB,XTR)..(GCC,GEN,PKN,TH);GGN15,KUN10,LAN15,TGN11,15,16..(5F,5FC)..(ARL,GCC,GEN,PKN,SA) |
1 | ||
| 47782 - COVER, DISC BRAKE DUST, FRONT LH | ||||
| 47782-0K010 |
KUN16,TGN16..XTR..TH;KUN15..(DCB,SCB)..(PHL,SA)..CBU;KUN16,TGN10..(DCB,SCB)..(DLX,SR);KUN15..(DCB,SCB,XTR)..(GCC,GEN,PKN,TH);GGN15,KUN10,LAN15,TGN11,15,16..(5F,5FC)..(ARL,GCC,GEN,PKN,SA) |
1 | ||
| 47782-0K010 |
KUN16,TGN16..XTR..TH;KUN15..(DCB,SCB)..(PHL,SA)..CBU;KUN16,TGN10..(DCB,SCB)..(DLX,SR);KUN15..(DCB,SCB,XTR)..(GCC,GEN,PKN,TH);GGN15,KUN10,LAN15,TGN11,15,16..(5F,5FC)..(ARL,GCC,GEN,PKN,SA) |
1 | ||
| 47782-0K010 |
KUN16,TGN16..XTR..TH;KUN15..(DCB,SCB)..(PHL,SA)..CBU;KUN16,TGN10..(DCB,SCB)..(DLX,SR);KUN15..(DCB,SCB,XTR)..(GCC,GEN,PKN,TH);GGN15,KUN10,LAN15,TGN11,15,16..(5F,5FC)..(ARL,GCC,GEN,PKN,SA) |
1 | ||
| 47782-0K010 |
KUN16,TGN16..XTR..TH;KUN15..(DCB,SCB)..(PHL,SA)..CBU;KUN16,TGN10..(DCB,SCB)..(DLX,SR);KUN15..(DCB,SCB,XTR)..(GCC,GEN,PKN,TH);GGN15,KUN10,LAN15,TGN11,15,16..(5F,5FC)..(ARL,GCC,GEN,PKN,SA) |
1 | ||
| Linked diagrams | ||||
| 4303 | ||||
(0808- )KUN15..SR..SA ; (0808- )GGN15,KUN1#,TGN1#..ARL,GCC,GEN,IDN,PHL,TH
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04465 - PAD KIT, DISC BRAKE, FRONT | ||||
| 04465-0K010 |
GGN15,KUN1#,TGN1#..ARL,GEN,PHL,TH MARK ADVICS PS558H |
1 | ||
| 04479 - CYLINDER KIT, DISC BRAKE, FRONT | ||||
| 04479-04030 |
KUN15..PHL..CBU;KUN16,TGN16..XTR..TH;TGN16..5F..(ARL,GCC,GEN);KUN16,TGN10..(DCB,SCB)..(DLX,SR);GGN15,KUN10,15,LAN15,TGN11,15..(DCB,SCB,XTR)..(ARL,GCC,GEN,PKN,TH) |
1 | ||
| 04945 - SHIM KIT, ANTI SQUEAL, FRONT | ||||
| 04945-0K130 |
KUN15..PHL..CBU;KUN16,TGN16..XTR..TH;TGN16..5F..(ARL,GCC,GEN);KUN16,TGN10..(DCB,SCB)..(DLX,SR);GGN15,KUN10,15,LAN15,TGN11,15..(DCB,SCB,XTR)..(ARL,GCC,GEN,PKN,TH) |
1 | ||
| 04947 - FITTING KIT, DISC BRAKE, FRONT | ||||
| 04947-0K010 |
KUN15..PHL..CBU;KUN16,TGN16..XTR..TH;TGN16..5F..(ARL,GCC,GEN);KUN16,TGN10..(DCB,SCB)..(DLX,SR);GGN15,KUN10,15,LAN15,TGN11,15..(DCB,SCB,XTR)..(ARL,GCC,GEN,PKN,TH) |
1 | ||
| 31478B - CAP, BLEEDER PLUG(FOR FRONT DISC BRAKE) | ||||
| 31478-30010 |
KUN26..THDCB;KUN25..GCC,GEN;KUN25..SCB..MA;KUN16..DCB,SCB;KUN15..PHL..CBU;KUN25..(DCB,XTR)..SR;KUN16,TGN16..XTR..TH;KUN26..(DCB,SCB,XTR)..(ARL,PHL,TH);KUN15..(DCB,SCB,XTR)..(GCC,GEN,PKN,TH);GGN15,25,KUN10,35,LAN15,TGN11,15,16..(5F,5FC)..(ARL,GCC,GEN,PKN);KUN36,TGN10,26,36..(DCB,SCB,THDCB,XTR)..(GCC,GEN,IDN,PHL,TH)..CBU |
2 | ||
| 31478-30010 |
TGN15..GEN;TGN16..4FC..TH |
2 | ||
| 47547B - PLUG, BLEEDER(FOR FRONT DISC BRAKE) | ||||
| 47547-12010 |
KUN15..PHL..CBU;KUN16,TGN16..XTR..TH;TGN16..5F..(ARL,GCC,GEN);KUN16,TGN10..(DCB,SCB)..(DLX,SR);GGN15,KUN10,15,LAN15,TGN11,15..(DCB,SCB,XTR)..(ARL,GCC,GEN,PKN,TH) |
2 | ||
| 47710A - BOLT, HEXAGON(FOR FRONT DISC BRAKE CALIPER) | ||||
| 91552-C1230 |
KUN16,TGN16..XTR..TH;KUN15..(DCB,SCB)..(PHL,SA)..CBU;KUN16,TGN10..(DCB,SCB)..(DLX,SR);KUN15..(DCB,SCB,XTR)..(GCC,GEN,PKN,TH);GGN15,KUN10,LAN15,TGN11,15,16..(5F,5FC)..(ARL,GCC,GEN,PKN,SA) *12-1.25PX30-26.25 |
4 | ||
| 47721 - MOUNTING, FRONT DISC BRAKE CYLINDER, RH | ||||
| 47721-0K010 |
KUN15..PHL..CBU;KUN16,TGN16..XTR..TH;TGN16..5F..(ARL,GCC,GEN);KUN16,TGN10..(DCB,SCB)..(DLX,SR);GGN15,KUN10,15,LAN15,TGN11,15..(DCB,SCB,XTR)..(ARL,GCC,GEN,PKN,TH) |
1 | ||
| 47721A - BOLT(FOR FRONT DISC BRAKE CYLINDER MOUNTING) | ||||
| 90080-11308 |
KUN15..PHL..CBU;KUN16,TGN16..XTR..TH;TGN16..5F..(ARL,GCC,GEN);KUN16,TGN10..(DCB,SCB)..(DLX,SR);GGN15,KUN10,15,LAN15,TGN11,15..(DCB,SCB,XTR)..(ARL,GCC,GEN,PKN,TH) *10-1.25PX63.7-30,SUB PIN SIDE |
2 | ||
| 90016-AA201 |
KUN15..PHL..CBU;KUN16,TGN16..XTR..TH;TGN16..5F..(ARL,GCC,GEN);KUN16,TGN10..(DCB,SCB)..(DLX,SR);GGN15,KUN10,15,LAN15,TGN11,15..(DCB,SCB,XTR)..(ARL,GCC,GEN,PKN,TH) *10-1.25PX89.7-30,MAIN PIN SIDE |
2 | ||
| 47721A - BOLT(FOR FRONT DISC BRAKE CYLINDER MOUNTING) | ||||
| 90080-11308 |
KUN15..PHL..CBU;KUN16,TGN16..XTR..TH;TGN16..5F..(ARL,GCC,GEN);KUN16,TGN10..(DCB,SCB)..(DLX,SR);GGN15,KUN10,15,LAN15,TGN11,15..(DCB,SCB,XTR)..(ARL,GCC,GEN,PKN,TH) *10-1.25PX63.7-30,SUB PIN SIDE |
2 | ||
| 90016-AA201 |
KUN15..PHL..CBU;KUN16,TGN16..XTR..TH;TGN16..5F..(ARL,GCC,GEN);KUN16,TGN10..(DCB,SCB)..(DLX,SR);GGN15,KUN10,15,LAN15,TGN11,15..(DCB,SCB,XTR)..(ARL,GCC,GEN,PKN,TH) *10-1.25PX89.7-30,MAIN PIN SIDE |
2 | ||
| 47721B - COLLAR(FOR FRONT DISC BRAKE CYLINDER MOUNTING) | ||||
| 90016-AX203 |
KUN15..PHL..CBU;KUN16,TGN16..XTR..TH;TGN16..5F..(ARL,GCC,GEN);KUN16,TGN10..(DCB,SCB)..(DLX,SR);GGN15,KUN10,15,LAN15,TGN11,15..(DCB,SCB,XTR)..(ARL,GCC,GEN,PKN,TH) SUB PIN SIDE |
2 | ||
| 90016-AX202 |
KUN15..PHL..CBU;KUN16,TGN16..XTR..TH;TGN16..5F..(ARL,GCC,GEN);KUN16,TGN10..(DCB,SCB)..(DLX,SR);GGN15,KUN10,15,LAN15,TGN11,15..(DCB,SCB,XTR)..(ARL,GCC,GEN,PKN,TH) MAIN PIN SIDE |
2 | ||
| 47721B - COLLAR(FOR FRONT DISC BRAKE CYLINDER MOUNTING) | ||||
| 90016-AX203 |
KUN15..PHL..CBU;KUN16,TGN16..XTR..TH;TGN16..5F..(ARL,GCC,GEN);KUN16,TGN10..(DCB,SCB)..(DLX,SR);GGN15,KUN10,15,LAN15,TGN11,15..(DCB,SCB,XTR)..(ARL,GCC,GEN,PKN,TH) SUB PIN SIDE |
2 | ||
| 90016-AX202 |
KUN15..PHL..CBU;KUN16,TGN16..XTR..TH;TGN16..5F..(ARL,GCC,GEN);KUN16,TGN10..(DCB,SCB)..(DLX,SR);GGN15,KUN10,15,LAN15,TGN11,15..(DCB,SCB,XTR)..(ARL,GCC,GEN,PKN,TH) MAIN PIN SIDE |
2 | ||
| 47722 - MOUNTING, FRONT DISC BRAKE CYLINDER, LH | ||||
| 47722-0K010 |
KUN15..PHL..CBU;KUN16,TGN16..XTR..TH;TGN16..5F..(ARL,GCC,GEN);KUN16,TGN10..(DCB,SCB)..(DLX,SR);GGN15,KUN10,15,LAN15,TGN11,15..(DCB,SCB,XTR)..(ARL,GCC,GEN,PKN,TH) |
1 | ||
| 47730 - CYLINDER ASSY, FRONT DISC BRAKE, RH | ||||
| 47730-0K010 |
KUN15..PHL..CBU;KUN16,TGN16..XTR..TH;TGN16..5F..(ARL,GCC,GEN);KUN16,TGN10..(DCB,SCB)..(DLX,SR);GGN15,KUN10,15,LAN15,TGN11,15..(DCB,SCB,XTR)..(ARL,GCC,GEN,PKN,TH) |
1 | ||
| 47731 - PISTON, FRONT DISC BRAKE | ||||
| 47731-04050 |
KUN15..PHL..CBU;KUN16,TGN16..XTR..TH;TGN16..5F..(ARL,GCC,GEN);KUN16,TGN10..(DCB,SCB)..(DLX,SR);GGN15,KUN10,15,LAN15,TGN11,15..(DCB,SCB,XTR)..(ARL,GCC,GEN,PKN,TH) |
2 | ||
| 47750 - CYLINDER ASSY, DISC BRAKE, LH | ||||
| 47750-0K010 |
KUN15..PHL..CBU;KUN16,TGN16..XTR..TH;TGN16..5F..(ARL,GCC,GEN);KUN16,TGN10..(DCB,SCB)..(DLX,SR);GGN15,KUN10,15,LAN15,TGN11,15..(DCB,SCB,XTR)..(ARL,GCC,GEN,PKN,TH) |
1 | ||
| 47769 - BUSH, CYLINDER SLIDE, NO.1(FOR FRONT DISC BRAKE) | ||||
| 47769-04010 |
KUN15..PHL..CBU;KUN16,TGN16..XTR..TH;TGN16..5F..(ARL,GCC,GEN);KUN16,TGN10..(DCB,SCB)..(DLX,SR);GGN15,KUN10,15,LAN15,TGN11,15..(DCB,SCB,XTR)..(ARL,GCC,GEN,PKN,TH) |
2 | ||
| 47779 - BUSH, CYLINDER SLIDE, NO.2(FOR FRONT DISC BRAKE) | ||||
| 47779-0K010 |
KUN15..PHL..CBU;KUN16,TGN16..XTR..TH;TGN16..5F..(ARL,GCC,GEN);KUN16,TGN10..(DCB,SCB)..(DLX,SR);GGN15,KUN10,15,LAN15,TGN11,15..(DCB,SCB,XTR)..(ARL,GCC,GEN,PKN,TH) |
2 | ||
| 47781 - COVER, DISC BRAKE DUST, FRONT RH | ||||
| 47781-0K010 |
KUN16,TGN16..XTR..TH;KUN15..(DCB,SCB)..(PHL,SA)..CBU;KUN16,TGN10..(DCB,SCB)..(DLX,SR);KUN15..(DCB,SCB,XTR)..(GCC,GEN,PKN,TH);GGN15,KUN10,LAN15,TGN11,15,16..(5F,5FC)..(ARL,GCC,GEN,PKN,SA) |
1 | ||
| 47781F - BOLT(FOR DUST COVER TO STEERING KNUCKLE ARM RH) | ||||
| 90119-T0005 |
KUN16,TGN16..XTR..TH;KUN15..(DCB,SCB)..(PHL,SA)..CBU;KUN16,TGN10..(DCB,SCB)..(DLX,SR);KUN15..(DCB,SCB,XTR)..(GCC,GEN,PKN,TH);GGN15,KUN10,LAN15,TGN11,15,16..(5F,5FC)..(ARL,GCC,GEN,PKN,SA) |
3 | ||
| 47781G - BOLT(FOR DUST COVER TO STEERING KNUCKLE ARM LH) | ||||
| 90119-T0005 |
KUN16,TGN16..XTR..TH;KUN15..(DCB,SCB)..(PHL,SA)..CBU;KUN16,TGN10..(DCB,SCB)..(DLX,SR);KUN15..(DCB,SCB,XTR)..(GCC,GEN,PKN,TH);GGN15,KUN10,LAN15,TGN11,15,16..(5F,5FC)..(ARL,GCC,GEN,PKN,SA) |
3 | ||
| 47782 - COVER, DISC BRAKE DUST, FRONT LH | ||||
| 47782-0K010 |
KUN16,TGN16..XTR..TH;KUN15..(DCB,SCB)..(PHL,SA)..CBU;KUN16,TGN10..(DCB,SCB)..(DLX,SR);KUN15..(DCB,SCB,XTR)..(GCC,GEN,PKN,TH);GGN15,KUN10,LAN15,TGN11,15,16..(5F,5FC)..(ARL,GCC,GEN,PKN,SA) |
1 | ||
(0808- )KUN26..THDCB ; (0810- )4FC..DLX..LA ; (0810- )TGN26,36..SR..LA ; (
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04465 - PAD KIT, DISC BRAKE, FRONT | ||||
| 04465-0K010 |
GGN15,KUN1#,TGN1#..ARL,GEN,PHL,TH MARK ADVICS PS558H |
1 | ||
| 04479 - CYLINDER KIT, DISC BRAKE, FRONT | ||||
| 04479-04030 |
KUN15..PHL..CBU;KUN16,TGN16..XTR..TH;TGN16..5F..(ARL,GCC,GEN);KUN16,TGN10..(DCB,SCB)..(DLX,SR);GGN15,KUN10,15,LAN15,TGN11,15..(DCB,SCB,XTR)..(ARL,GCC,GEN,PKN,TH) |
1 | ||
| 04945 - SHIM KIT, ANTI SQUEAL, FRONT | ||||
| 04945-0K130 |
KUN15..PHL..CBU;KUN16,TGN16..XTR..TH;TGN16..5F..(ARL,GCC,GEN);KUN16,TGN10..(DCB,SCB)..(DLX,SR);GGN15,KUN10,15,LAN15,TGN11,15..(DCB,SCB,XTR)..(ARL,GCC,GEN,PKN,TH) |
1 | ||
| 04947 - FITTING KIT, DISC BRAKE, FRONT | ||||
| 04947-0K010 |
KUN15..PHL..CBU;KUN16,TGN16..XTR..TH;TGN16..5F..(ARL,GCC,GEN);KUN16,TGN10..(DCB,SCB)..(DLX,SR);GGN15,KUN10,15,LAN15,TGN11,15..(DCB,SCB,XTR)..(ARL,GCC,GEN,PKN,TH) |
1 | ||
| 31478B - CAP, BLEEDER PLUG(FOR FRONT DISC BRAKE) | ||||
| 31478-30010 |
KUN26..THDCB;KUN25..GCC,GEN;KUN25..SCB..MA;KUN16..DCB,SCB;KUN15..PHL..CBU;KUN25..(DCB,XTR)..SR;KUN16,TGN16..XTR..TH;KUN26..(DCB,SCB,XTR)..(ARL,PHL,TH);KUN15..(DCB,SCB,XTR)..(GCC,GEN,PKN,TH);GGN15,25,KUN10,35,LAN15,TGN11,15,16..(5F,5FC)..(ARL,GCC,GEN,PKN);KUN36,TGN10,26,36..(DCB,SCB,THDCB,XTR)..(GCC,GEN,IDN,PHL,TH)..CBU |
2 | ||
| 31478-30010 |
TGN15..GEN;TGN16..4FC..TH |
2 | ||
| 47547B - PLUG, BLEEDER(FOR FRONT DISC BRAKE) | ||||
| 47547-12010 |
KUN15..PHL..CBU;KUN16,TGN16..XTR..TH;TGN16..5F..(ARL,GCC,GEN);KUN16,TGN10..(DCB,SCB)..(DLX,SR);GGN15,KUN10,15,LAN15,TGN11,15..(DCB,SCB,XTR)..(ARL,GCC,GEN,PKN,TH) |
2 | ||
| 47710A - BOLT, HEXAGON(FOR FRONT DISC BRAKE CALIPER) | ||||
| 91552-C1230 |
KUN16,TGN16..XTR..TH;KUN15..(DCB,SCB)..(PHL,SA)..CBU;KUN16,TGN10..(DCB,SCB)..(DLX,SR);KUN15..(DCB,SCB,XTR)..(GCC,GEN,PKN,TH);GGN15,KUN10,LAN15,TGN11,15,16..(5F,5FC)..(ARL,GCC,GEN,PKN,SA) *12-1.25PX30-26.25 |
4 | ||
| 47730 - CYLINDER ASSY, FRONT DISC BRAKE, RH | ||||
| 47730-0K010 |
KUN15..PHL..CBU;KUN16,TGN16..XTR..TH;TGN16..5F..(ARL,GCC,GEN);KUN16,TGN10..(DCB,SCB)..(DLX,SR);GGN15,KUN10,15,LAN15,TGN11,15..(DCB,SCB,XTR)..(ARL,GCC,GEN,PKN,TH) |
1 | ||
| 47731 - PISTON, FRONT DISC BRAKE | ||||
| 47731-04050 |
KUN15..PHL..CBU;KUN16,TGN16..XTR..TH;TGN16..5F..(ARL,GCC,GEN);KUN16,TGN10..(DCB,SCB)..(DLX,SR);GGN15,KUN10,15,LAN15,TGN11,15..(DCB,SCB,XTR)..(ARL,GCC,GEN,PKN,TH) |
2 | ||
| 47731 - PISTON, FRONT DISC BRAKE | ||||
| 47731-04050 |
KUN15..PHL..CBU;KUN16,TGN16..XTR..TH;TGN16..5F..(ARL,GCC,GEN);KUN16,TGN10..(DCB,SCB)..(DLX,SR);GGN15,KUN10,15,LAN15,TGN11,15..(DCB,SCB,XTR)..(ARL,GCC,GEN,PKN,TH) |
2 | ||
| 47731 - PISTON, FRONT DISC BRAKE | ||||
| 47731-04050 |
KUN15..PHL..CBU;KUN16,TGN16..XTR..TH;TGN16..5F..(ARL,GCC,GEN);KUN16,TGN10..(DCB,SCB)..(DLX,SR);GGN15,KUN10,15,LAN15,TGN11,15..(DCB,SCB,XTR)..(ARL,GCC,GEN,PKN,TH) |
2 | ||
| 47731 - PISTON, FRONT DISC BRAKE | ||||
| 47731-04050 |
KUN15..PHL..CBU;KUN16,TGN16..XTR..TH;TGN16..5F..(ARL,GCC,GEN);KUN16,TGN10..(DCB,SCB)..(DLX,SR);GGN15,KUN10,15,LAN15,TGN11,15..(DCB,SCB,XTR)..(ARL,GCC,GEN,PKN,TH) |
2 | ||
| 47750 - CYLINDER ASSY, DISC BRAKE, LH | ||||
| 47750-0K010 |
KUN15..PHL..CBU;KUN16,TGN16..XTR..TH;TGN16..5F..(ARL,GCC,GEN);KUN16,TGN10..(DCB,SCB)..(DLX,SR);GGN15,KUN10,15,LAN15,TGN11,15..(DCB,SCB,XTR)..(ARL,GCC,GEN,PKN,TH) |
1 | ||
| 47781 - COVER, DISC BRAKE DUST, FRONT RH | ||||
| 47781-0K010 |
KUN16,TGN16..XTR..TH;KUN15..(DCB,SCB)..(PHL,SA)..CBU;KUN16,TGN10..(DCB,SCB)..(DLX,SR);KUN15..(DCB,SCB,XTR)..(GCC,GEN,PKN,TH);GGN15,KUN10,LAN15,TGN11,15,16..(5F,5FC)..(ARL,GCC,GEN,PKN,SA) |
1 | ||
| 47782 - COVER, DISC BRAKE DUST, FRONT LH | ||||
| 47782-0K010 |
KUN16,TGN16..XTR..TH;KUN15..(DCB,SCB)..(PHL,SA)..CBU;KUN16,TGN10..(DCB,SCB)..(DLX,SR);KUN15..(DCB,SCB,XTR)..(GCC,GEN,PKN,TH);GGN15,KUN10,LAN15,TGN11,15,16..(5F,5FC)..(ARL,GCC,GEN,PKN,SA) |
1 | ||
| Linked diagrams | ||||
| 4303 | ||||
(1107-1201)TGN26..SCB,THDCB ; (1107-1201)TGN26..DCB..5F..GCC ; (1107-1201)KUN25,35,
TYPE D
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Linked diagrams | ||||
| 4303 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
