TGN136L-BGMXKG (2015)

Toyota Hilux

Production Nov 2015 - Oct 2020
Engine 2TRFE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

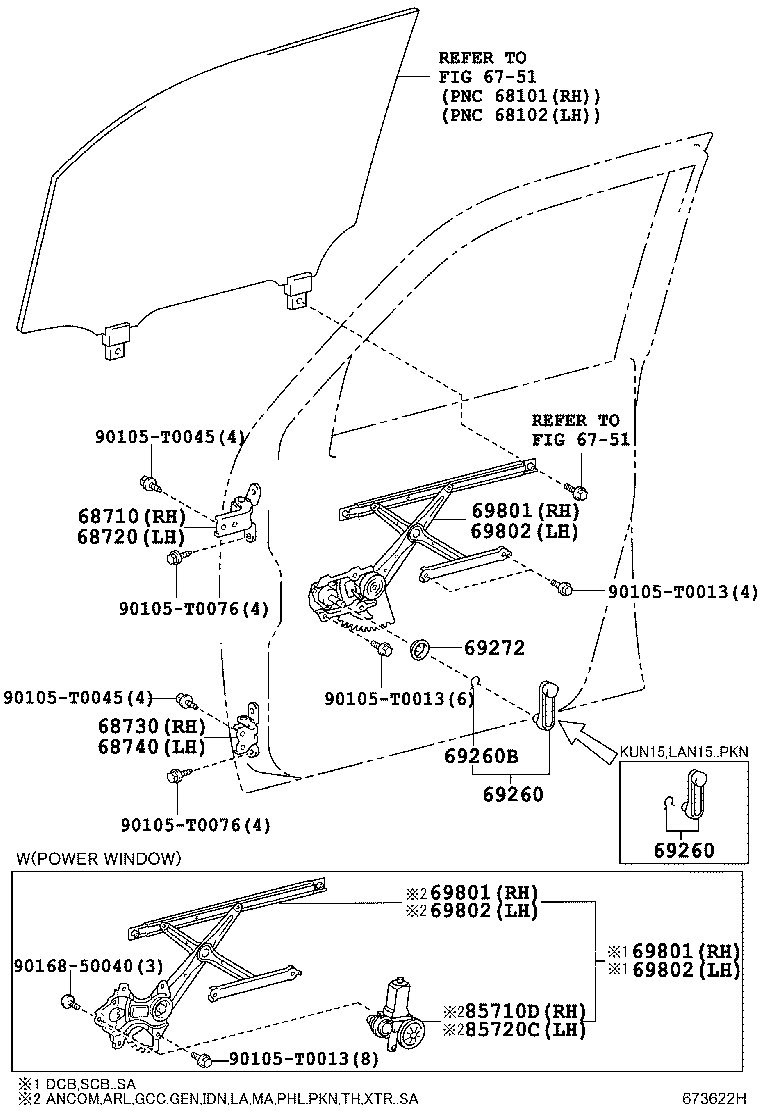

(0408- )

Click highlighted areas on diagram

diagram 6751 6751 68710 68720 68730 68740 69260 69260 69260B 69272 69801 69801 69801 69802 69802 69802 85710D 85720C 90105T0013 90105T0013 90105T0013 90105T0045 90105T0045 90105T0076 90105T0076 9016850040
Part # Description Qty Price
Common parts
90105-T0013
90105-T0045
90105-T0076
90168-50040
Linked diagrams
6751

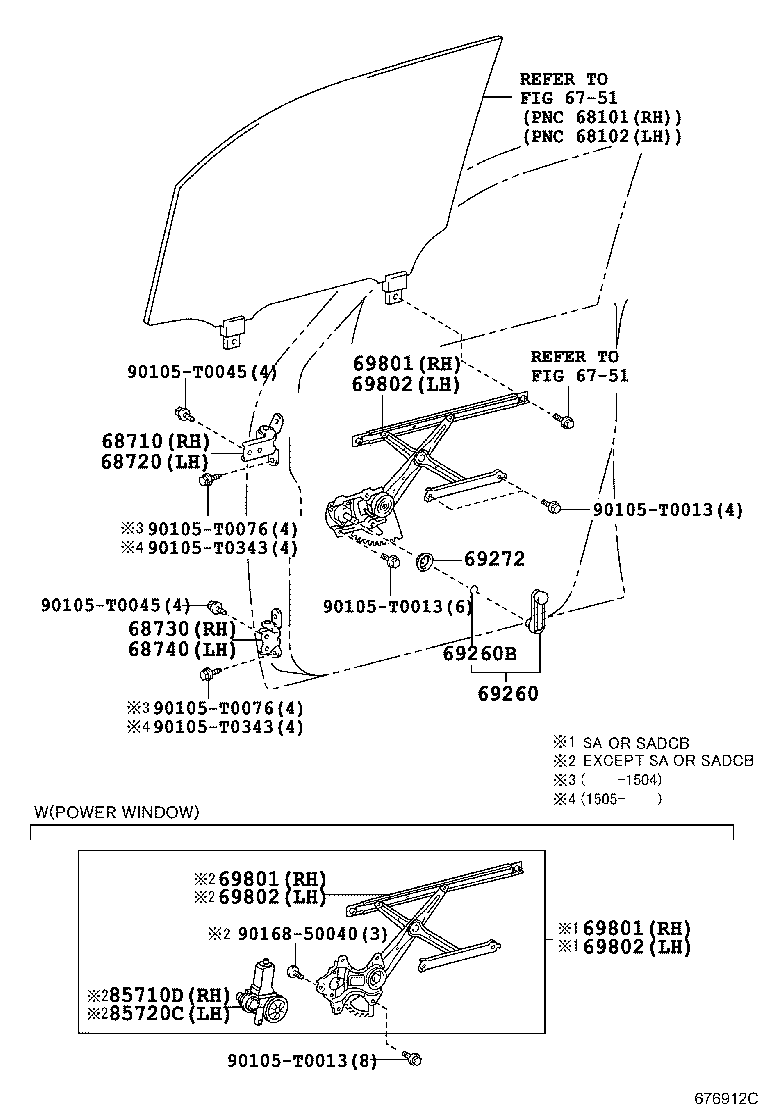

(1107- )

Click highlighted areas on diagram

diagram 6751 6751 68710 68720 68730 68740 69260 69260B 69272 69801 69801 69801 69802 69802 69802 85710D 85720C 90105T0013 90105T0013 90105T0013 90105T0045 90105T0045 90105T0076 90105T0076 90105T0343 90105T0343 9016850040
Part # Description Qty Price
Common parts
90105-T0013
90105-T0045
90105-T0076
90105-T0343
90168-50040
Linked diagrams
6751

(1505- )ARL,BZAGT,GCC,GEN,IDN,KEN,LA,MA,PH,PKN,SA,TAIW,TH,VN

Click highlighted areas on diagram

diagram 6751 68710 68720 68730 68740 69260 69260B 69272 69801 69801 69802 69802 85710D 85720C 90105T0013 90105T0013 90105T0013 90105T0013 90105T0045 90105T0154 90105T0343 90105T0343 90119T0395 9016850040
Part # Description Qty Price
68710 - HINGE ASSY, FRONT DOOR, UPPER RH
68710-0K010

GGN125,KUN125,126,13#..(ADC,ASC)..LA;GUN125,126,13#,TGN126,128,13#..ADC,ASC

 1
68720 - HINGE ASSY, FRONT DOOR, UPPER LH
68720-0K010

GGN125,KUN125,126,13#..(ADC,ASC)..LA;GUN125,126,13#,TGN126,128,13#..ADC,ASC

 1
68730 - HINGE ASSY, FRONT DOOR, LOWER RH
68730-0K050

GGN125,KUN125,126,13#..(ADC,ASC)..LA;GUN125,126,13#,TGN126,128,13#..ADC,ASC

 1
68740 - HINGE ASSY, FRONT DOOR, LOWER LH
68740-0K050

GGN125,KUN125,126,13#..(ADC,ASC)..LA;GUN125,126,13#,TGN126,128,13#..ADC,ASC

 1
69260 - HANDLE ASSY, FRONT DOOR WINDOW REGULATOR
69260-0K060C0

GUN126..ADC..6FC..X;GUN125,135,KUN125,126,135,TGN126,136..(ADC,ASC)..(L,X)

POWER DOOR LOCK-WITH & WITHOUT(AUTO LOCK(SPEED))&WIRELESS DOOR LOCK-WITH,BLACK,TRIM2#

 2
69260-0K060C0

GUN125,126,135,KUN125,126,135,TGN126,13#..(ADC,ASC)..(L,X)

BLACK,TRIM2#

 2
69260-0K060C0

GUN126,TGN13#..(L,X)..BZAGT

POWER DOOR LOCK-WITH(AUTO LOCK(SPEED)) & WITHOUT(*DCB),BLACK,TRIM2#

 2
69260-0K060C0

GUN126,TGN13#..(L,X)..BZAGT

POWER DOOR LOCK-WITH(AUTO LOCK(SPEED)) & WITHOUT(*DCB)&WIRELESS DOOR LOCK-WITH(PANIC BUTTON),BLACK,TRIM2#

 2
69260-0K060C0

TGN126..ADC..X;GUN125,126,135,KUN125,126,135,TGN136..(ADC,ASC)..(5F,5FC,6F)..(L,X)..(DCR,HDCR,HTWC)

POWER DOOR LOCK-WITH & WITHOUT(AUTO LOCK(SPEED)),BLACK,TRIM2#

 2
69260B - RING, SHAFT SNAP(FOR FRONT DOOR WINDOW REGULATOR HANDLE
90080-52152

GUN125,135,KUN125,135,TGN126,136..ASC

POWER DOOR LOCK-WITH & WITHOUT(AUTO LOCK(SPEED))&WIRELESS DOOR LOCK-WITH

 2
90080-52152

KUN122..RHD..SA;GUN126,TGN136..ASC..BZAGT

POWER DOOR LOCK-WITH(AUTO LOCK(SPEED)) & WITHOUT(*DCB)

 2
90080-52152

KUN122..RHD..SA;GUN126,TGN136..ASC..BZAGT

POWER DOOR LOCK-WITH(AUTO LOCK(SPEED)) & WITHOUT(*DCB)&WIRELESS DOOR LOCK-WITH(PANIC BUTTON)

 2
90080-52152

GUN125,135,KUN125,135,TGN136..ASC;KUN122,LAN125,TGN121..LHD..SSC..X..CBU

POWER DOOR LOCK-WITH & WITHOUT(AUTO LOCK(SPEED))

 2
69272 - PLATE, FRONT DOOR REGULATOR INSIDE HANDLE
69268-02022

GUN126..ADC..6FC..X;GUN125,135,KUN125,126,135,TGN126,136..(ADC,ASC)..(L,X)

POWER DOOR LOCK-WITH & WITHOUT(AUTO LOCK(SPEED))&WIRELESS DOOR LOCK-WITH

 2
69268-02022

KUN122,125..RHD..X..SA;GUN126,TGN13#..(L,X)..BZAGT

POWER DOOR LOCK-WITH(AUTO LOCK(SPEED)) & WITHOUT(*DCB)&WIRELESS DOOR LOCK-WITH(PANIC BUTTON)

 2
69268-02022

TGN126..(ADC,SDC)..X;GUN125,135..(ADC,ASC)..(L,X);GUN126,KUN12#,135,LAN125,TGN121,136..LHD..(ADC,ASC,SDC,SSC)..(5F,5FC,6F)..X..(DCR,DEFI,HDCR,HTWC)..CBU

POWER DOOR LOCK-WITH & WITHOUT(AUTO LOCK(SPEED))

 2
69268-02022

KUN122,125..RHD..X..SA;GUN126,TGN13#..(L,X)..BZAGT

POWER DOOR LOCK-WITH(AUTO LOCK(SPEED)) & WITHOUT(*DCB)

 2
69801 - REGULATOR SUB-ASSY, FRONT DOOR WINDOW, RH
69810-0K310

GUN125,126,135,KUN125,126,135,TGN126,13#..(ADC,ASC)..(L,X)

 1
69801-0K160

GUN126,KUN126..ADC..ATM..X;GUN125,135,KUN125,135,TGN126,136..(ADC,ASC)..(L,X)

POWER DOOR LOCK-WITH & WITHOUT(AUTO LOCK(SPEED))&WIRELESS DOOR LOCK-WITH

 1
69801 - REGULATOR SUB-ASSY, FRONT DOOR WINDOW, RH
69810-0K310

GUN125,126,135,KUN125,126,135,TGN126,13#..(ADC,ASC)..(L,X)

 1
69801-0K160

GUN126,KUN126..ADC..ATM..X;GUN125,135,KUN125,135,TGN126,136..(ADC,ASC)..(L,X)

POWER DOOR LOCK-WITH & WITHOUT(AUTO LOCK(SPEED))&WIRELESS DOOR LOCK-WITH

 1
69802 - REGULATOR SUB-ASSY, FRONT DOOR WINDOW, LH
69802-0K160

GUN126,KUN126..ADC..ATM..X;GUN125,135,KUN125,135,TGN126,136..(ADC,ASC)..(L,X)

POWER DOOR LOCK-WITH & WITHOUT(AUTO LOCK(SPEED))&WIRELESS DOOR LOCK-WITH

 1
69820-0K320

GUN125,126,135,KUN125,126,135,TGN126,13#..(ADC,ASC)..(L,X)

 1
69802 - REGULATOR SUB-ASSY, FRONT DOOR WINDOW, LH
69802-0K160

GUN126,KUN126..ADC..ATM..X;GUN125,135,KUN125,135,TGN126,136..(ADC,ASC)..(L,X)

POWER DOOR LOCK-WITH & WITHOUT(AUTO LOCK(SPEED))&WIRELESS DOOR LOCK-WITH

 1
69820-0K320

GUN125,126,135,KUN125,126,135,TGN126,13#..(ADC,ASC)..(L,X)

 1
85710D - MOTOR ASSY, POWER WINDOW REGULATOR, RH
85710-0K280

GGN125..LA;GUN126,136..H..BZAGT

 1
85710-0K290

GUN126,KUN126..ADC..ATM..X;GUN125,135,KUN125,135,TGN126,136..(ADC,ASC)..(L,X)

POWER DOOR LOCK-WITH & WITHOUT(AUTO LOCK(SPEED))&WIRELESS DOOR LOCK-WITH

 1
85720C - MOTOR ASSY, POWER WINDOW REGULATOR, LH
85720-0K290

GUN126,KUN126..ADC..ATM..X;GUN125,135,KUN125,135,TGN126,136..(ADC,ASC)..(L,X)

POWER DOOR LOCK-WITH & WITHOUT(AUTO LOCK(SPEED))&WIRELESS DOOR LOCK-WITH

 1
Common parts
90105-T0013
90105-T0045
90105-T0154
90105-T0343
90119-T0395
90168-50040
Linked diagrams
6751

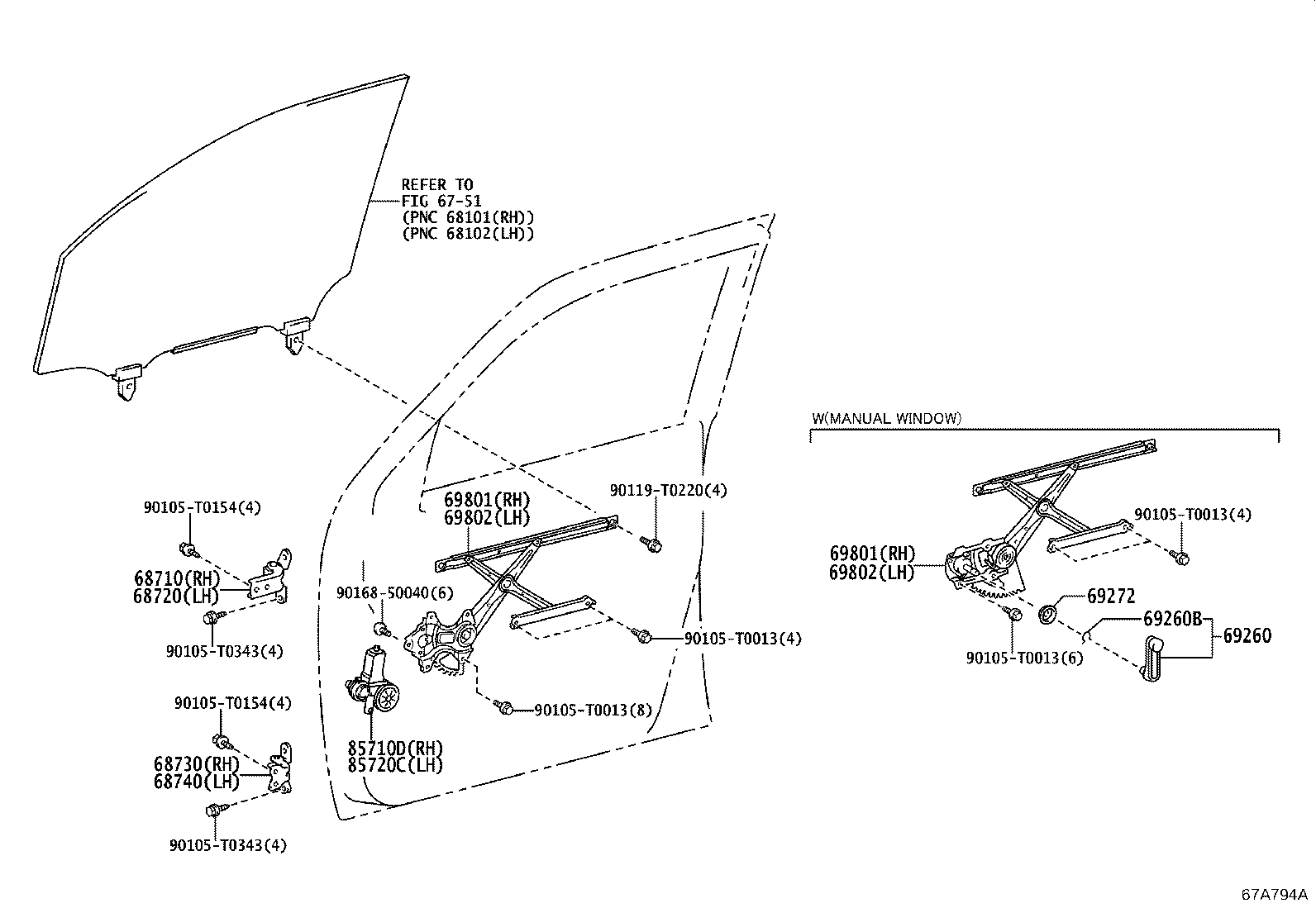

(2006- )ARL,BZAG,GCC,GEN,IDN,KEN,LA,MA,MMR,PH,PKN,SA,TH,TWN,VN

Click highlighted areas on diagram

diagram 6751 68710 68720 68730 68740 69260 69260B 69272 69801 69801 69802 69802 85710D 85720C 90105T0013 90105T0013 90105T0013 90105T0013 90105T0154 90105T0154 90105T0343 90105T0343 90119T0220 9016850040
Part # Description Qty Price
Common parts
90105-T0013
90105-T0154
90105-T0343
90119-T0220
90168-50040
Linked diagrams
6751
