TGN136L-BGMXKG (2015)

Toyota Hilux

Production Nov 2015 - Oct 2020
Engine 2TRFE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(1511- )2TRFE..TGN126,136..ADC,ASC

Click highlighted areas on diagram

12V 1.4KW(BOSCH)

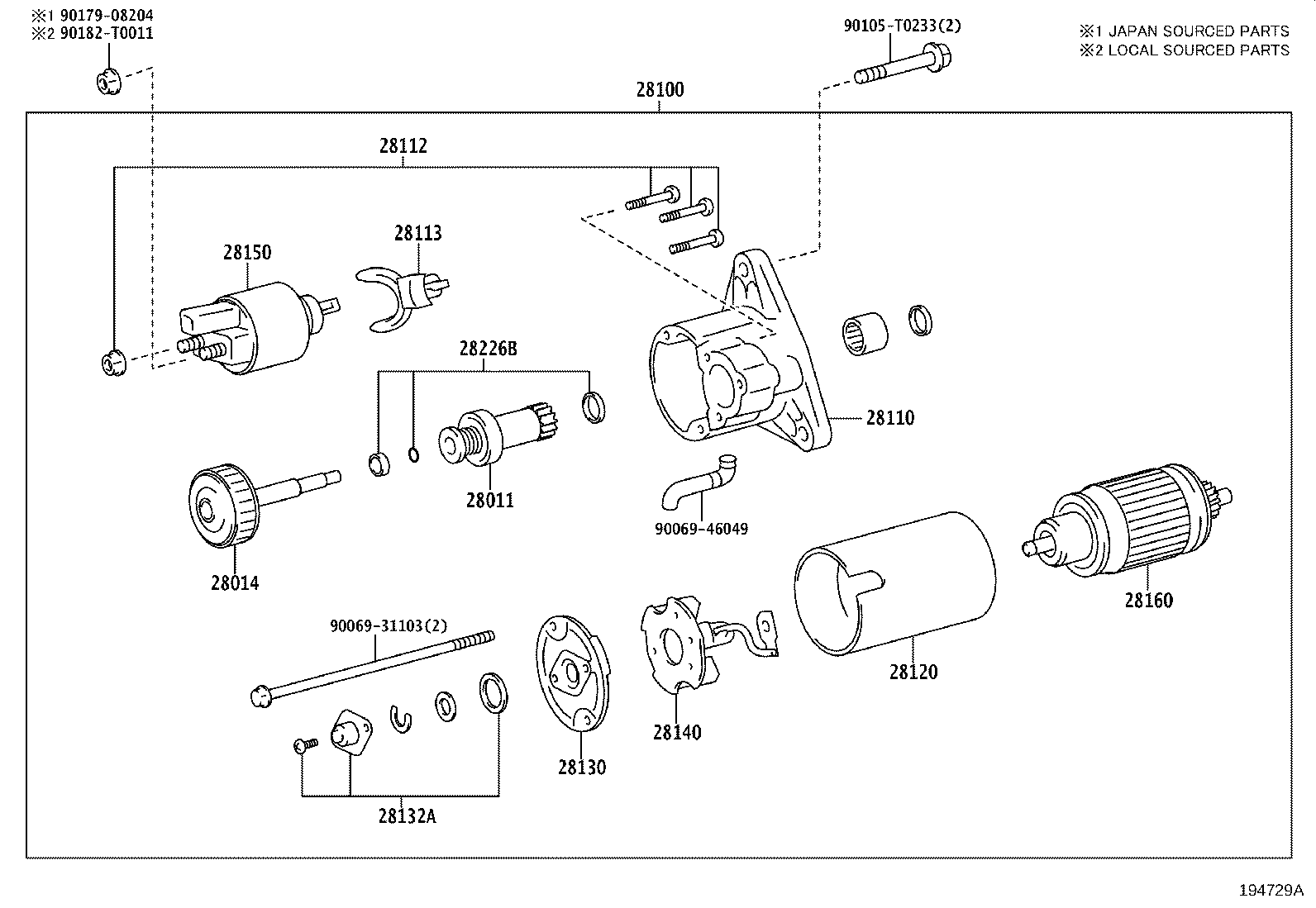

diagram 28011 28014 28100 28110 28112 28113 28120 28130 28132A 28140 28150 28160 28226B 9006931103 9006946049 90105T0233 9017908204 90182T0011
Part # Description Qty Price
28011 - CLUTCH SUB-ASSY, STARTER
28011-0C120

2TRFE..TGN126,136..ADC,ASC

 1
28014 - SHAFT SUB-ASSY, PLANET CARRIER
28014-0C120

2TRFE..TGN126,136..ADC,ASC

 1
28100 - STARTER ASSY
28100-0C120

2TRFE..TGN126,136..ADC,ASC

12V 1.4KW

 1
28110 - HOUSING ASSY, STARTER DRIVE
28110-0C120

2TRFE..TGN126,136..ADC,ASC

 1
28112 - BOLT, HOUSING SET
28112-0L200

2TRFE..TGN126,136..ADC,ASC

 1
28113 - LEVER, STARTER PINION DRIVE
28113-0C120

2TRFE..TGN126,136..ADC,ASC

 1
28120 - YOKE ASSY, STARTER
28120-0C120

2TRFE..TGN126,136..ADC,ASC

 1
28130 - FRAME ASSY, STARTER COMMUTATOR END
28130-0D130

2TRFE..TGN126,136..ADC,ASC

 1
28132A - COVER, STARTER COMMUTATOR END FRAME
28132-0C120

2TRFE..TGN126,136..ADC,ASC

 1
28140 - HOLDER ASSY, STARTER BRUSH
28140-0C120

2TRFE..TGN126,136..ADC,ASC

 1
28150 - SWITCH ASSY, MAGNET STARTER
28150-0C120

2TRFE..TGN126,136..ADC,ASC

 1
28160 - ARMATURE ASSY, STARTER
28160-0C120

2TRFE..TGN126,136..ADC,ASC

 1
28226B - STARTER KIT, REPAIR SERVICE
28226-0C120

2TRFE..TGN126,136..ADC,ASC

 1
Common parts
90069-31103
90069-46049
90105-T0233
90179-08204
90182-T0011
