TGN136L-BGMXKG (2015)
Toyota Hilux

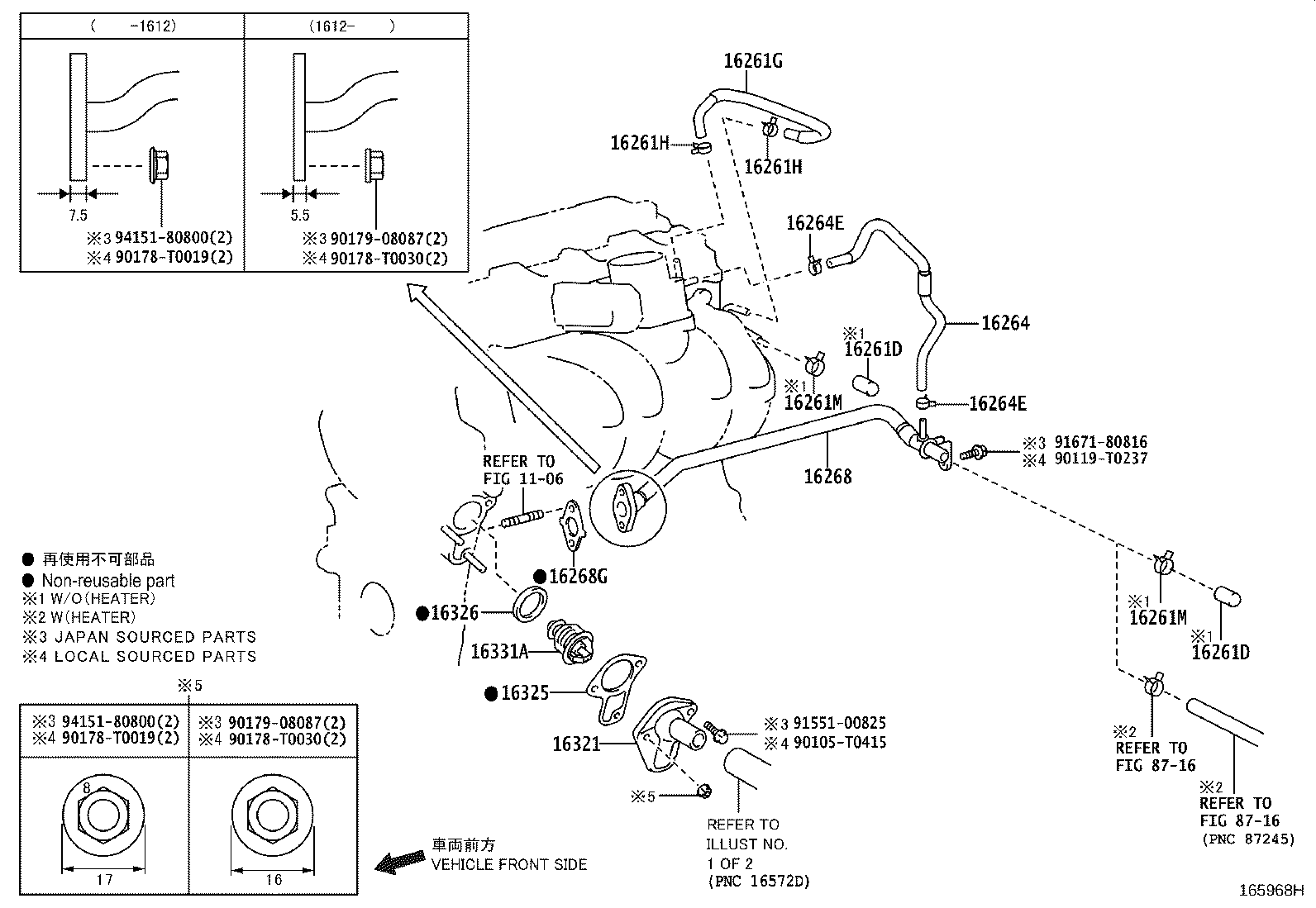

ILLUST NO. 2 OF 2(1505- )2TRFE..TGN111,136..BZAGT,GCC,GEN,LA,SA,TH ; (1505- )2TRFE..TGN121..L.
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 16261G - HOSE, WATER BY-PASS, NO.1 | ||||
| 16261-0C061 |
2TRFE..TGN126..L..GEN;2TRFE..TGN126..BZAGT,GCC,LA,SA;1TRFE,2TRFE..TGN11#,120,121,128,13#..ARL,BZAGT,GCC,GEN,LA,SA MADE IN THAILAND |
1 | ||
| 16261-0C061 |
2TRFE..TGN126..L..GEN;2TRFE..TGN126..BZAGT,GCC,LA,SA;1TRFE,2TRFE..TGN11#,120,121,128,13#..ARL,BZAGT,GCC,GEN,LA,SA MADE IN THAILAND |
1 | ||
| 16261-0C051 |
2TRFE..TGN126..L..GEN;2TRFE..TGN126..BZAGT,GCC,LA,SA;1TRFE,2TRFE..TGN11#,120,121,128,13#..ARL,BZAGT,GCC,GEN,LA,SA MADE IN INDONESIA |
1 | ||
| 16261-0C051 |
2TRFE..TGN126..L..GEN;2TRFE..TGN126..BZAGT,GCC,LA,SA;1TRFE,2TRFE..TGN11#,120,121,128,13#..ARL,BZAGT,GCC,GEN,LA,SA MADE IN INDONESIA |
1 | ||
| 16264 - HOSE, WATER BY-PASS, NO.2 | ||||
| 16264-0C081 |
1TRFE,2TRFE..TGN11#,120,121,126,128,13#..ARL,BZAGT,GCC,GEN,LA,SA MADE IN THAILAND |
1 | ||
| 16264-0C081 |
1TRFE,2TRFE..TGN11#,120,121,126,128,13#..ARL,BZAGT,GCC,GEN,LA,SA MADE IN THAILAND |
1 | ||
| 16264-0C071 |
1TRFE,2TRFE..TGN11#,120,121,126,128,13#..ARL,BZAGT,GCC,GEN,LA,SA MADE IN INDONESIA |
1 | ||
| 16264-0C071 |
1TRFE,2TRFE..TGN11#,120,121,126,128,13#..ARL,BZAGT,GCC,GEN,LA,SA MADE IN INDONESIA |
1 | ||
| 16268 - PIPE, WATER BY-PASS, NO.1 | ||||
| 16268-0C020 |
2TRFE..TGN111,136;2TRFE..TGN121..5F;2TRFE..TGN126..5F..SA;2TRFE..TGN121..6FC..GCC;2TRFE..TGN126..BZAGT,GCC,GEN,LA (L) |
1 | ||
| 16268-0C020 |
2TRFE..TGN111,136;2TRFE..TGN121..5F;2TRFE..TGN126..5F..SA;2TRFE..TGN121..6FC..GCC;2TRFE..TGN126..BZAGT,GCC,GEN,LA (L) |
1 | ||
| 16268-75130 |
2TRFE..TGN111,136;2TRFE..TGN121..5F;2TRFE..TGN126..5F..SA;2TRFE..TGN121..6FC..GCC;2TRFE..TGN126..BZAGT,GCC,GEN,LA (J) |
1 | ||
| 16268-75130 |
2TRFE..TGN111,136;2TRFE..TGN121..5F;2TRFE..TGN126..5F..SA;2TRFE..TGN121..6FC..GCC;2TRFE..TGN126..BZAGT,GCC,GEN,LA (J) |
1 | ||
| 16268-75131 |
2TRFE..TGN126..5F..SA;2TRFE..TGN121..6FC..GCC;2TRFE..TGN126..BZAGT,GCC,GEN,LA;2TRFE..TGN111,121,13#..5F..(ARL,BZAGT,GCC,GEN,LA,SA) (J) |
1 | ||
| 16268-75131 |
2TRFE..TGN126..5F..SA;2TRFE..TGN121..6FC..GCC;2TRFE..TGN126..BZAGT,GCC,GEN,LA;2TRFE..TGN111,121,13#..5F..(ARL,BZAGT,GCC,GEN,LA,SA) (J) |
1 | ||
| 16268-0C021 |
2TRFE..TGN126..5F..SA;2TRFE..TGN121..6FC..GCC;2TRFE..TGN126..BZAGT,GCC,GEN,LA;2TRFE..TGN111,121,13#..5F..(ARL,BZAGT,GCC,GEN,LA,SA) (L) |
1 | ||
| 16268-0C021 |
2TRFE..TGN126..5F..SA;2TRFE..TGN121..6FC..GCC;2TRFE..TGN126..BZAGT,GCC,GEN,LA;2TRFE..TGN111,121,13#..5F..(ARL,BZAGT,GCC,GEN,LA,SA) (L) |
1 | ||
| 16268G - GASKET(FOR WATER BY-PASS PIPE) | ||||
| 16258-75021 |
1TRFE,2TRFE..TGN11#,12#,13# |
1 | ||
| 16258-75021 |
1TRFE,2TRFE..TGN11#,12#,13# |
1 | ||
| 16258-75021 |
1TRFE,2TRFE..TGN11#,120,121,126,128,13#..ADC,ASC,SDC,SSC,TDC,TSC,TXT (J) |
1 | ||
| 16258-75021 |
1TRFE,2TRFE..TGN11#,120,121,126,128,13#..ADC,ASC,SDC,SSC,TDC,TSC,TXT (J) |
1 | ||
| 16258-0C010 |
1TRFE,2TRFE..TGN11#,120,121,126,128,13#..ADC,ASC,SDC,SSC,TDC,TSC,TXT (L) |
1 | ||
| 16258-0C010 |
1TRFE,2TRFE..TGN11#,120,121,126,128,13#..ADC,ASC,SDC,SSC,TDC,TSC,TXT (L) |
1 | ||
| 16321 - INLET, WATER | ||||
| 16321-0C010 |
2TRFE..TGN136..(M,X)..(BZAGT,LA);2TRFE..TGN126..LHD..6FC..(GEN,SA);2TRFE..TGN136..(ADC,SDC,SSC,TXT)..S;1TRFE,2TRFE..TGN11#,120,128,138..BZAGT,GCC,SA;2TRFE..TGN121,126..5F..(BZAGT,GCC,GEN,LA,SA,TH) *447 |
1 | ||
| 16321-0C010 |
2TRFE..TGN136..(M,X)..(BZAGT,LA);2TRFE..TGN126..LHD..6FC..(GEN,SA);2TRFE..TGN136..(ADC,SDC,SSC,TXT)..S;1TRFE,2TRFE..TGN11#,120,128,138..BZAGT,GCC,SA;2TRFE..TGN121,126..5F..(BZAGT,GCC,GEN,LA,SA,TH) *447 |
1 | ||
| 16325 - GASKET, WATER INLET HOUSING, NO.1 | ||||
| 16325-0C021 |
2TRFE..TGN136..(M,X)..(BZAGT,LA);2TRFE..TGN126..LHD..6FC..(GEN,SA);2TRFE..TGN136..(ADC,SDC,SSC,TXT)..S;1TRFE,2TRFE..TGN11#,120,128,138..BZAGT,GCC,SA;2TRFE..TGN121,126..5F..(BZAGT,GCC,GEN,LA,SA,TH) (L) |
1 | ||
| 16325-0C021 |
2TRFE..TGN136..(M,X)..(BZAGT,LA);2TRFE..TGN126..LHD..6FC..(GEN,SA);2TRFE..TGN136..(ADC,SDC,SSC,TXT)..S;1TRFE,2TRFE..TGN11#,120,128,138..BZAGT,GCC,SA;2TRFE..TGN121,126..5F..(BZAGT,GCC,GEN,LA,SA,TH) (L) |
1 | ||
| 16325-75011 |
1TRFE,2TRFE..TGN11#,12#,13# (J) |
1 | ||
| 16325-75011 |
1TRFE,2TRFE..TGN11#,12#,13# (J) |
1 | ||
| 16325-0C040 |
2TRFE..TGN136..(M,X)..(BZAGT,LA);2TRFE..TGN126..LHD..6FC..(GEN,SA);2TRFE..TGN136..(ADC,SDC,SSC,TXT)..S;1TRFE,2TRFE..TGN11#,120,121,126..5F..(BZAGT,GCC,GEN,LA,SA,TH) (L),MADE IN IDN |
1 | ||
| 16325-0C040 |
2TRFE..TGN136..(M,X)..(BZAGT,LA);2TRFE..TGN126..LHD..6FC..(GEN,SA);2TRFE..TGN136..(ADC,SDC,SSC,TXT)..S;1TRFE,2TRFE..TGN11#,120,121,126..5F..(BZAGT,GCC,GEN,LA,SA,TH) (L),MADE IN IDN |
1 | ||
| 16326 - GASKET, WATER INLET HOUSING, NO.2 | ||||
| 16325-0C030 |
2TRFE..TGN136..(M,X)..(BZAGT,LA);2TRFE..TGN126..LHD..6FC..(GEN,SA);2TRFE..TGN136..(ADC,SDC,SSC,TXT)..S;1TRFE,2TRFE..TGN11#,120,128,138..BZAGT,GCC,SA;2TRFE..TGN121,126..5F..(BZAGT,GCC,GEN,LA,SA,TH) (L) |
1 | ||
| 16325-0C030 |
2TRFE..TGN136..(M,X)..(BZAGT,LA);2TRFE..TGN126..LHD..6FC..(GEN,SA);2TRFE..TGN136..(ADC,SDC,SSC,TXT)..S;1TRFE,2TRFE..TGN11#,120,128,138..BZAGT,GCC,SA;2TRFE..TGN121,126..5F..(BZAGT,GCC,GEN,LA,SA,TH) (L) |
1 | ||
| 16325-76010 |
1TRFE,2TRFE..TGN11#,12#,13# (J) |
1 | ||
| 16325-76010 |
1TRFE,2TRFE..TGN11#,12#,13# (J) |
1 | ||
| 16331A - THERMOSTAT | ||||
| 90916-03129 |
1TRFE,2TRFE..TGN11#,120,121,126,136 *WAX 82-95 |
1 | ||
| 90916-03129 |
1TRFE,2TRFE..TGN11#,120,121,126,136 *WAX 82-95 |
1 | ||
| Common parts | ||||
| 90105-T0415 | ||||
| 90119-T0237 | ||||
| 90178-T0019 | ||||
| 90178-T0030 | ||||
| 90179-08087 | ||||
| 91551-00825 | ||||
| 91671-80816 | ||||
| 94151-80800 | ||||
| Linked diagrams | ||||
| 1106 | ||||
| 8716 | ||||
ILLUST NO. 1 OF 2(1511- )2TRFE..TGN126,128,13#..ADC,ASC
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 16361 - FAN | ||||
| 16361-0C011 |
1TRFE,2TRFE..TGN11#,12#,13# |
1 | ||
| 16400 - RADIATOR ASSY | ||||
| 16400-0C410 |
2TRFE..TGN126,136..ADC,ASC |
1 | ||
| 16400-0C411 |
2TRFE..TGN126,13#..(ADC,ASC)..5F |
1 | ||
| 16400F - PACKING(FOR RADIATOR DRAIN COCK) | ||||
| 16492-21050 |
2TRFE..TGN126,128,13#..ADC,ASC |
1 | ||
| 16400R - BUSHING(FOR RADIATOR) | ||||
| 16444-75180 |
2TRFE..TGN126,128,13#..ADC,ASC |
2 | ||
| 16400R - BUSHING(FOR RADIATOR) | ||||
| 16444-75180 |
2TRFE..TGN126,128,13#..ADC,ASC |
2 | ||
| 16400S - COLLAR(FOR RADIATOR) | ||||
| 16445-0C180 |
2TRFE..TGN126..6FC..L..GEN;2TRFE..TGN121,126..(ADC,ASC,TDC,TSC,TXT)..5F;1TRFE,2TRFE..TGN11#,120,128,13#..ADC,ASC,TDC,TSC,TXT |
2 | ||
| 16400S - COLLAR(FOR RADIATOR) | ||||
| 16445-0C180 |
2TRFE..TGN126..6FC..L..GEN;2TRFE..TGN121,126..(ADC,ASC,TDC,TSC,TXT)..5F;1TRFE,2TRFE..TGN11#,120,128,13#..ADC,ASC,TDC,TSC,TXT |
2 | ||
| 16401 - CAP SUB-ASSY, RADIATOR | ||||
| 16401-0C030 |
1TRFE,2TRFE..TGN11#,12#,136 |
1 | ||
| 16401-30020 |
2TRFE..TGN136..ADC,ASC,SDC;1TRFE,2TRFE..TGN12#,138..ADC,ASC,SDC,SSC (J) |
1 | ||
| 16401-0C050 |
2TRFE..TGN128,138;2TRFE..TGN126..6FC..SA;1TRFE,2TRFE..TGN11#,120,121,126..5F;2TRFE..TGN136..(ADC,ASC,SDC,TDC,TSC,TXT)..5F (L) |
1 | ||
| 16417 - COCK | ||||
| 16417-21280 |
2TRFE..TGN126,128,13#..ADC,ASC |
1 | ||
| 16453A - PLATE, RADIATOR SIDE SUPPORT, RH | ||||
| 16453-0L380 |
2TRFE..TGN126,128,13#..ADC,ASC |
1 | ||
| 16454A - PLATE, RADIATOR SIDE SUPPORT, LH | ||||
| 16454-0L380 |
2TRFE..TGN126,128,13#..ADC,ASC |
1 | ||
| 16455 - BOLT, RADIATOR SIDE SUPPORT PLATE | ||||
| 91651-B0820 |
1TRFE,2TRFE..TGN11#,12#,13#..ADC,ASC,TDC,TSC,TXT |
4 | ||
| 16455 - BOLT, RADIATOR SIDE SUPPORT PLATE | ||||
| 91651-B0820 |
1TRFE,2TRFE..TGN11#,12#,13#..ADC,ASC,TDC,TSC,TXT |
4 | ||
| 16465 - PACKING, RADIATOR | ||||
| 88619-0K020 |
2TRFE..TGN126,128,13#..ADC,ASC |
1 | ||
| 16470 - TANK ASSY, RADIATOR RESERVE | ||||
| 16470-0C130 |
2TRFE..TGN126,128,13#..ADC,ASC |
1 | ||
| 16470M - GROMMET | ||||
| 90480-T0003 |
1TRFE,2TRFE..TGN11#,12#,138;2TRFE..TGN136..ADC,ASC,SDC,TDC,TSC,TXT |
1 | ||
| 16471 - CAP SUB-ASSY, RESERVE TANK | ||||
| 16405-0C110 |
2TRFE..TGN126,128,13#..ADC,ASC |
1 | ||
| 16533B - SUPPORT, RADIATOR, NO.1 | ||||
| 16533-0L010 |
1TRFE,2TRFE..TGN11#,12#,13#..ADC,ASC,TDC,TSC,TXT |
2 | ||
| 16534 - SUPPORT, RADIATOR, NO.2 | ||||
| 16534-0L010 |
1TRFE,2TRFE..TGN11#,12#,13#..ADC,ASC,TDC,TSC,TXT |
2 | ||
| 16547 - BUSH, RADIATOR SUPPORT, NO.1 | ||||
| 16547-0L010 |
1TRFE,2TRFE..TGN11#,12#,13#..ADC,ASC,TDC,TSC,TXT |
4 | ||
| 16547 - BUSH, RADIATOR SUPPORT, NO.1 | ||||
| 16547-0L010 |
1TRFE,2TRFE..TGN11#,12#,13#..ADC,ASC,TDC,TSC,TXT |
4 | ||
| 16565A - CLIP | ||||
| 90467-T0027C0 |
2TRFE..TGN121;1TRFE,2TRFE..TGN11#,120,126,128,13#..ADC,ASC,SDC,TDC,TSC,TXT BLACK |
4 | ||
| 16571C - HOSE, RADIATOR, NO.1 | ||||
| 16571-0C170 |
2TRFE..TGN126,128,13#..ADC,ASC |
1 | ||
| 16571-0C160 |
2TRFE..TGN126,128,13#..ADC,ASC |
1 | ||
| 16571D - CLIP, RADIATOR HOSE, NO.1 | ||||
| 90466-T0028 |
1TRFE,2TRFE..TGN11#,12#,13# |
2 | ||
| 90466-T0067 |
1TRFE,2TRFE..TGN11#,12#,13# |
2 | ||
| 90466-T0028 |
2TRFE..TGN138..6FC;2TRFE..TGN121..M,S,X;2TRFE..TGN121..L..CBU;1TRFE,2TRFE..TGN11#,120,126,128..CBU;2TRFE..TGN136..ADC,ASC,SDC,TDC,TSC,TXT |
2 | ||
| 16571D - CLIP, RADIATOR HOSE, NO.1 | ||||
| 90466-T0028 |
1TRFE,2TRFE..TGN11#,12#,13# |
2 | ||
| 90466-T0067 |
1TRFE,2TRFE..TGN11#,12#,13# |
2 | ||
| 90466-T0028 |
2TRFE..TGN138..6FC;2TRFE..TGN121..M,S,X;2TRFE..TGN121..L..CBU;1TRFE,2TRFE..TGN11#,120,126,128..CBU;2TRFE..TGN136..ADC,ASC,SDC,TDC,TSC,TXT |
2 | ||
| 16572D - HOSE, RADIATOR, NO.2 | ||||
| 16572-0C170 |
2TRFE..TGN126,128,13#..ADC,ASC |
1 | ||
| 16572-0C160 |
2TRFE..TGN126,128,13#..ADC,ASC |
1 | ||
| 16572E - CLIP, RADIATOR HOSE, NO.2 | ||||
| 90466-T0028 |
1TRFE,2TRFE..TGN11#,12#,13# |
2 | ||
| 90466-T0067 |
1TRFE,2TRFE..TGN11#,12#,13# |
2 | ||
| 90466-T0028 |
2TRFE..TGN138..6FC;2TRFE..TGN121..M,S,X;2TRFE..TGN121..L..CBU;1TRFE,2TRFE..TGN11#,120,126,128..CBU;2TRFE..TGN136..ADC,ASC,SDC,TDC,TSC,TXT |
2 | ||
| 16572E - CLIP, RADIATOR HOSE, NO.2 | ||||
| 90466-T0028 |
1TRFE,2TRFE..TGN11#,12#,13# |
2 | ||
| 90466-T0067 |
1TRFE,2TRFE..TGN11#,12#,13# |
2 | ||
| 90466-T0028 |
2TRFE..TGN138..6FC;2TRFE..TGN121..M,S,X;2TRFE..TGN121..L..CBU;1TRFE,2TRFE..TGN11#,120,126,128..CBU;2TRFE..TGN136..ADC,ASC,SDC,TDC,TSC,TXT |
2 | ||
| 16581B - CLAMP, HOSE(FOR RADIATOR HOSE) | ||||
| 16581-0C010 |
1TRFE,2TRFE..TGN11#,12#,138;2TRFE..TGN136..ADC,ASC,SDC,TDC,TSC,TXT |
1 | ||
| 16593 - GUIDE, RADIATOR AIR, NO.1 | ||||
| 16593-0L020 |
2TRFE..TGN126,128,13#..ADC,ASC |
1 | ||
| 16711 - SHROUD, FAN | ||||
| 16711-0C200 |
2TRFE..TGN126,128,13#..ADC,ASC |
1 | ||
| Common parts | ||||
| 90119-T0384 | ||||
| 90119-T0526 | ||||
| 90178-T0114 | ||||
| 90179-06293 | ||||
| 94151-80600 | ||||
| Linked diagrams | ||||
| 1104 | ||||
ILLUST NO. 2 OF 2(2006- )1TRFE,2TRFE..ARL,BZAG,GCC,GEN,LA,PKN,SA
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90105-T0415 | ||||
| 90119-T0237 | ||||
| 90178-T0019 | ||||
| 90178-T0030 | ||||
| 90179-08087 | ||||
| 90466-T0017 | ||||
| 91551-00825 | ||||
| 91671-80816 | ||||
| 94151-80800 | ||||
| 96136-42101 | ||||
| Linked diagrams | ||||
| 1106 | ||||
| 1503 | ||||
| 8716 | ||||
ILLUST NO. 1 OF 2(2006- )1TRFE,2TRFE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90119-T0384 | ||||
| 90119-T0526 | ||||
| 90119-T0610 | ||||
| 90178-T0114 | ||||
| 90179-06293 | ||||
| 94151-80600 | ||||
| Linked diagrams | ||||
| 1104 | ||||
