TGN136L-BGMXKG (2015)
Toyota Hilux
(1107-1908)1TRFE,2TRFE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90105-06202 | ||||
| 90105-T0105 | ||||
| 90105-T0129 | ||||
| 90105-T0133 | ||||
| 90119-T0136 | ||||
| 90119-T0388 | ||||
| 90126-06026 | ||||
| 90178-T0018 | ||||
| 90341-T0012 | ||||
| 90341-T0019 | ||||
| 90430-14009 | ||||
| 91671-80614 | ||||
| 91672-81025 | ||||
(1908- )2TRFE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90105-06202 | ||||
| 90105-T0110 | ||||
| 90105-T0133 | ||||
| 90119-T0136 | ||||
| 90119-T0388 | ||||
| 90126-06026 | ||||
| 90178-T0018 | ||||
| 90341-T0012 | ||||
| 90341-T0019 | ||||
| 90430-14009 | ||||
| 91671-80614 | ||||
| 91672-81025 | ||||

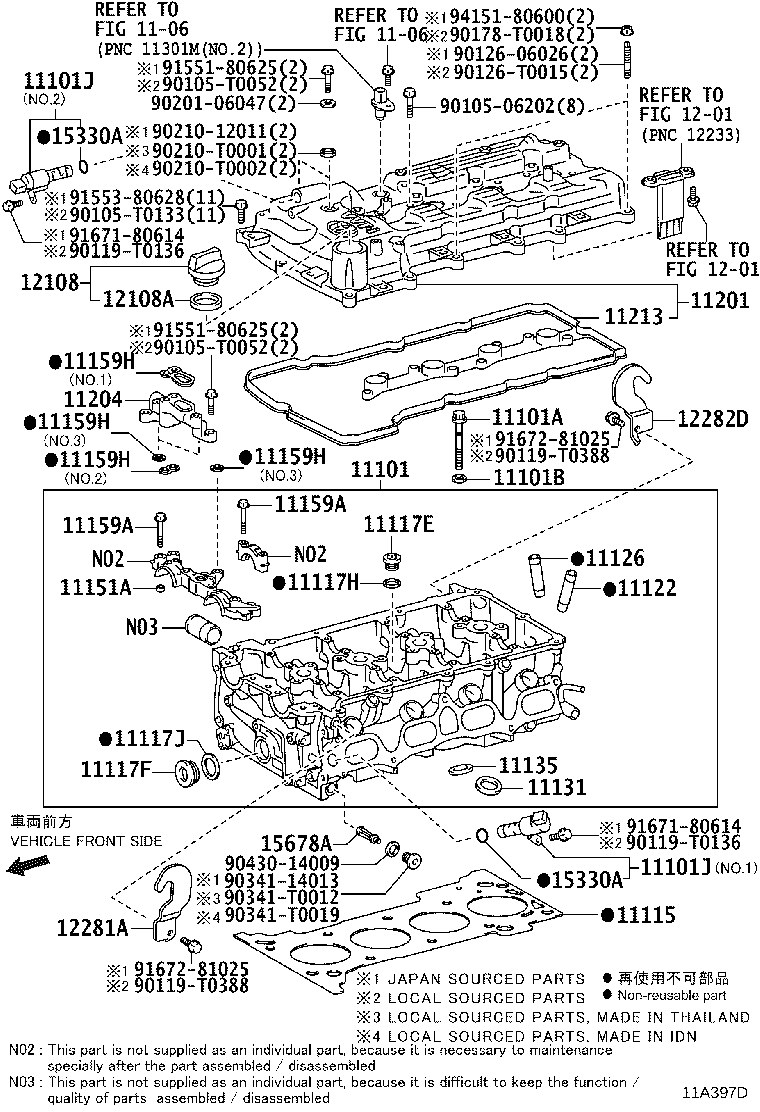

(1505- )2TRFE..TGN136..M,X..BZAGT,LA ; (1505-)2TRFE..TGN126..LHD..BZAGT,GEN,
*555
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 11101 - HEAD SUB-ASSY, CYLINDER | ||||
| 11101-0C110 |
2TRFE..TGN126,136..BZAGT ARGENTINA SPEC(EURO 4 REGULATION),(L) |
1 | ||
| 11101-0C110 |
2TRFE..TGN126,136..BZAGT ARGENTINA SPEC(EURO 4 REGULATION),(L) |
1 | ||
| 11101-0C110 |
2TRFE..TGN126,136..BZAGT ARGENTINA SPEC(EURO 4 REGULATION),(L) |
1 | ||
| 11101-0C110 |
2TRFE..TGN126,136..BZAGT ARGENTINA SPEC(EURO 4 REGULATION)&EXHAUST EMISSION CONTROL-EURO 4 WITH(ON BOARD DIAGNOSIS),(L) |
1 | ||
| 11101-0C110 |
2TRFE..TGN126,136..BZAGT ARGENTINA SPEC(EURO 4 REGULATION)&EXHAUST EMISSION CONTROL-EURO 4 WITH(ON BOARD DIAGNOSIS),(L) |
1 | ||
| 11101-0C110 |
2TRFE..TGN126,136..BZAGT ARGENTINA SPEC(EURO 4 REGULATION)&EXHAUST EMISSION CONTROL-EURO 4 WITH(ON BOARD DIAGNOSIS),(L) |
1 | ||
| 11101-0C100 |
2TRFE..TGN121..ARL;2TRFE..TGN136..S..LA;2TRFE..TGN126..6FC..S..GCC;2TRFE..TGN126..M..(BZAGT,GEN);2TRFE..TGN136..(ADC,ASC,TDC)..(BZAGT,GEN,TH) |
1 | ||
| 11101-0C100 |
2TRFE..TGN121..ARL;2TRFE..TGN136..S..LA;2TRFE..TGN126..6FC..S..GCC;2TRFE..TGN126..M..(BZAGT,GEN);2TRFE..TGN136..(ADC,ASC,TDC)..(BZAGT,GEN,TH) |
1 | ||
| 11101-0C100 |
2TRFE..TGN121..ARL;2TRFE..TGN136..S..LA;2TRFE..TGN126..6FC..S..GCC;2TRFE..TGN126..M..(BZAGT,GEN);2TRFE..TGN136..(ADC,ASC,TDC)..(BZAGT,GEN,TH) |
1 | ||
| 11101A - BOLT(FOR CYLINDER HEAD SET) | ||||
| 90910-02187 |
1TRFE,2TRFE..TGN11#,12#,13# |
10 | ||
| 90910-02187 |
1TRFE,2TRFE..TGN11#,12#,13# |
10 | ||
| 90910-02187 |
1TRFE,2TRFE..TGN11#,12#,13# |
10 | ||
| 11101B - WASHER, PLATE(FOR CYLINDER HEAD SET) | ||||
| 90560-T0015 |
1TRFE,2TRFE..TGN11#,12#,13# |
10 | ||
| 90560-T0015 |
1TRFE,2TRFE..TGN11#,12#,13# |
10 | ||
| 90560-T0015 |
1TRFE,2TRFE..TGN11#,12#,13# |
10 | ||
| 11101J - VALVE ASSY, CAMSHAFT TIMING OIL CONTROL | ||||
| 15330-0C020 |
1TRFE,2TRFE..TGN11#,12#,13# NO.2:REFER ILLUST. |
1 | ||
| 15330-0C020 |
1TRFE,2TRFE..TGN11#,12#,13# NO.2:REFER ILLUST. |
1 | ||
| 15330-0C020 |
1TRFE,2TRFE..TGN11#,12#,13# NO.2:REFER ILLUST. |
1 | ||
| 15330-0C010 |
1TRFE,2TRFE..TGN11#,12#,13# NO.1:REFER ILLUST. |
1 | ||
| 15330-0C010 |
1TRFE,2TRFE..TGN11#,12#,13# NO.1:REFER ILLUST. |
1 | ||
| 15330-0C010 |
1TRFE,2TRFE..TGN11#,12#,13# NO.1:REFER ILLUST. |
1 | ||
| 11101J - VALVE ASSY, CAMSHAFT TIMING OIL CONTROL | ||||
| 15330-0C020 |
1TRFE,2TRFE..TGN11#,12#,13# NO.2:REFER ILLUST. |
1 | ||
| 15330-0C020 |
1TRFE,2TRFE..TGN11#,12#,13# NO.2:REFER ILLUST. |
1 | ||
| 15330-0C020 |
1TRFE,2TRFE..TGN11#,12#,13# NO.2:REFER ILLUST. |
1 | ||
| 15330-0C010 |
1TRFE,2TRFE..TGN11#,12#,13# NO.1:REFER ILLUST. |
1 | ||
| 15330-0C010 |
1TRFE,2TRFE..TGN11#,12#,13# NO.1:REFER ILLUST. |
1 | ||
| 15330-0C010 |
1TRFE,2TRFE..TGN11#,12#,13# NO.1:REFER ILLUST. |
1 | ||
| 11115 - GASKET, CYLINDER HEAD | ||||
| 11115-0C040 |
2TRFE..TGN111,121,126,136 (L) |
1 | ||
| 11115-0C040 |
2TRFE..TGN111,121,126,136 (L) |
1 | ||
| 11115-0C040 |
2TRFE..TGN111,121,126,136 (L) |
1 | ||
| 11115-75090 |
2TRFE..TGN111,121,126,136 (J) |
1 | ||
| 11115-75090 |
2TRFE..TGN111,121,126,136 (J) |
1 | ||
| 11115-75090 |
2TRFE..TGN111,121,126,136 (J) |
1 | ||
| 11117E - PLUG, W/HEAD STRAIGHT SCREW, NO.1 | ||||
| 90341-20002 |
1TRFE,2TRFE..TGN11#,12#,13# |
3 | ||
| 90341-20002 |
1TRFE,2TRFE..TGN11#,12#,13# |
3 | ||
| 90341-20002 |
1TRFE,2TRFE..TGN11#,12#,13# |
3 | ||
| 11117F - PLUG, W/HEAD STRAIGHT SCREW, NO.2 | ||||
| 90341-T0009 |
2TRFE..TGN121,126..5F;2TRFE..TGN126..6FC..S;1TRFE,2TRFE..TGN11#,120,128,13#;2TRFE..TGN121,126..6FC..(M,X)..(ARL,GEN) |
1 | ||
| 90341-T0009 |
2TRFE..TGN121,126..5F;2TRFE..TGN126..6FC..S;1TRFE,2TRFE..TGN11#,120,128,13#;2TRFE..TGN121,126..6FC..(M,X)..(ARL,GEN) |
1 | ||
| 90341-T0009 |
2TRFE..TGN121,126..5F;2TRFE..TGN126..6FC..S;1TRFE,2TRFE..TGN11#,120,128,13#;2TRFE..TGN121,126..6FC..(M,X)..(ARL,GEN) |
1 | ||
| 11117H - GASKET(FOR WATER HOLE) | ||||
| 90430-T0010 |
2TRFE..TGN121,126..5F;2TRFE..TGN126..6FC..S;1TRFE,2TRFE..TGN11#,120,128,13#;2TRFE..TGN121,126..6FC..(M,X)..(ARL,GEN) |
3 | ||
| 90430-T0010 |
2TRFE..TGN121,126..5F;2TRFE..TGN126..6FC..S;1TRFE,2TRFE..TGN11#,120,128,13#;2TRFE..TGN121,126..6FC..(M,X)..(ARL,GEN) |
3 | ||
| 90430-T0010 |
2TRFE..TGN121,126..5F;2TRFE..TGN126..6FC..S;1TRFE,2TRFE..TGN11#,120,128,13#;2TRFE..TGN121,126..6FC..(M,X)..(ARL,GEN) |
3 | ||
| 11117J - GASKET(FOR CYLINDER HEAD SCREW PLUG) | ||||
| 90430-32004 |
1TRFE,2TRFE..TGN11#,12#,13# |
1 | ||
| 90430-32004 |
1TRFE,2TRFE..TGN11#,12#,13# |
1 | ||
| 90430-32004 |
1TRFE,2TRFE..TGN11#,12#,13# |
1 | ||
| 11122 - BUSH, INTAKE VALVE GUIDE | ||||
| 11123-75020 |
2TRFE..TGN121,126..5F;2TRFE..TGN126..6FC..S;1TRFE,2TRFE..TGN11#,120,128,13#;2TRFE..TGN121,126..6FC..(M,X)..(ARL,GEN) O/S 0.05 |
8 | ||
| 11123-75020 |
2TRFE..TGN121,126..5F;2TRFE..TGN126..6FC..S;1TRFE,2TRFE..TGN11#,120,128,13#;2TRFE..TGN121,126..6FC..(M,X)..(ARL,GEN) O/S 0.05 |
8 | ||
| 11123-75020 |
2TRFE..TGN121,126..5F;2TRFE..TGN126..6FC..S;1TRFE,2TRFE..TGN11#,120,128,13#;2TRFE..TGN121,126..6FC..(M,X)..(ARL,GEN) O/S 0.05 |
8 | ||
| 11122-75020 |
1TRFE,2TRFE..TGN11#,12#,13# STD |
8 | ||
| 11122-75020 |
1TRFE,2TRFE..TGN11#,12#,13# STD |
8 | ||
| 11122-75020 |
1TRFE,2TRFE..TGN11#,12#,13# STD |
8 | ||
| 11126 - BUSH, EXHAUST VALVE GUIDE | ||||
| 11123-75020 |
2TRFE..TGN121,126..5F;2TRFE..TGN126..6FC..S;1TRFE,2TRFE..TGN11#,120,128,13#;2TRFE..TGN121,126..6FC..(M,X)..(ARL,GEN) O/S 0.05 |
8 | ||
| 11123-75020 |
2TRFE..TGN121,126..5F;2TRFE..TGN126..6FC..S;1TRFE,2TRFE..TGN11#,120,128,13#;2TRFE..TGN121,126..6FC..(M,X)..(ARL,GEN) O/S 0.05 |
8 | ||
| 11123-75020 |
2TRFE..TGN121,126..5F;2TRFE..TGN126..6FC..S;1TRFE,2TRFE..TGN11#,120,128,13#;2TRFE..TGN121,126..6FC..(M,X)..(ARL,GEN) O/S 0.05 |
8 | ||
| 11122-75020 |
1TRFE,2TRFE..TGN11#,12#,13# STD |
8 | ||
| 11122-75020 |
1TRFE,2TRFE..TGN11#,12#,13# STD |
8 | ||
| 11122-75020 |
1TRFE,2TRFE..TGN11#,12#,13# STD |
8 | ||
| 11131 - SEAT, INTAKE VALVE | ||||
| 11132-75130 |
2TRFE..TGN111,121,126,136 O/S 0.03 |
8 | ||
| 11132-75130 |
2TRFE..TGN111,121,126,136 O/S 0.03 |
8 | ||
| 11132-75130 |
2TRFE..TGN111,121,126,136 O/S 0.03 |
8 | ||
| 11131-0C030 |
2TRFE..TGN111,136;2TRFE..TGN121,126..5F;2TRFE..TGN126..6FC..S;2TRFE..TGN121,126..6FC..(M,X)..(ARL,GEN) STD |
8 | ||
| 11131-0C030 |
2TRFE..TGN111,136;2TRFE..TGN121,126..5F;2TRFE..TGN126..6FC..S;2TRFE..TGN121,126..6FC..(M,X)..(ARL,GEN) STD |
8 | ||
| 11131-0C030 |
2TRFE..TGN111,136;2TRFE..TGN121,126..5F;2TRFE..TGN126..6FC..S;2TRFE..TGN121,126..6FC..(M,X)..(ARL,GEN) STD |
8 | ||
| 11135 - SEAT, EXHAUST VALVE | ||||
| 11136-75100 |
2TRFE..TGN111,136;2TRFE..TGN121,126..5F;2TRFE..TGN126..6FC..S;2TRFE..TGN121,126..6FC..(M,X)..(ARL,GEN) O/S 0.03 |
8 | ||
| 11136-75100 |
2TRFE..TGN111,136;2TRFE..TGN121,126..5F;2TRFE..TGN126..6FC..S;2TRFE..TGN121,126..6FC..(M,X)..(ARL,GEN) O/S 0.03 |
8 | ||
| 11136-75100 |
2TRFE..TGN111,136;2TRFE..TGN121,126..5F;2TRFE..TGN126..6FC..S;2TRFE..TGN121,126..6FC..(M,X)..(ARL,GEN) O/S 0.03 |
8 | ||
| 11135-0C020 |
2TRFE..TGN111,136;2TRFE..TGN121,126..5F;2TRFE..TGN126..6FC..S;2TRFE..TGN121,126..6FC..(M,X)..(ARL,GEN) STD |
8 | ||
| 11135-0C020 |
2TRFE..TGN111,136;2TRFE..TGN121,126..5F;2TRFE..TGN126..6FC..S;2TRFE..TGN121,126..6FC..(M,X)..(ARL,GEN) STD |
8 | ||
| 11135-0C020 |
2TRFE..TGN111,136;2TRFE..TGN121,126..5F;2TRFE..TGN126..6FC..S;2TRFE..TGN121,126..6FC..(M,X)..(ARL,GEN) STD |
8 | ||
| 11151A - PIN, RING(FOR CAMSHAFT BEARING CAP SETTING) | ||||
| 90253-T0004 |
2TRFE..TGN121,126..5F;2TRFE..TGN126..6FC..S;1TRFE,2TRFE..TGN11#,120,128,13#;2TRFE..TGN121,126..6FC..(M,X)..(ARL,GEN) L=7,OD=10 |
2 | ||
| 90253-T0004 |
2TRFE..TGN121,126..5F;2TRFE..TGN126..6FC..S;1TRFE,2TRFE..TGN11#,120,128,13#;2TRFE..TGN121,126..6FC..(M,X)..(ARL,GEN) L=7,OD=10 |
2 | ||
| 90253-T0004 |
2TRFE..TGN121,126..5F;2TRFE..TGN126..6FC..S;1TRFE,2TRFE..TGN11#,120,128,13#;2TRFE..TGN121,126..6FC..(M,X)..(ARL,GEN) L=7,OD=10 |
2 | ||
| 11159A - BOLT(FOR HEAD TO CAMSHAFT BEARING CAP) | ||||
| 90119-T0268 |
2TRFE..TGN121,126..5F;2TRFE..TGN126..6FC..S;1TRFE,2TRFE..TGN11#,120,128,13#;2TRFE..TGN121,126..6FC..(M,X)..(ARL,GEN) |
20 | ||
| 90119-T0268 |
2TRFE..TGN121,126..5F;2TRFE..TGN126..6FC..S;1TRFE,2TRFE..TGN11#,120,128,13#;2TRFE..TGN121,126..6FC..(M,X)..(ARL,GEN) |
20 | ||
| 90119-T0268 |
2TRFE..TGN121,126..5F;2TRFE..TGN126..6FC..S;1TRFE,2TRFE..TGN11#,120,128,13#;2TRFE..TGN121,126..6FC..(M,X)..(ARL,GEN) |
20 | ||
| 11159A - BOLT(FOR HEAD TO CAMSHAFT BEARING CAP) | ||||
| 90119-T0268 |
2TRFE..TGN121,126..5F;2TRFE..TGN126..6FC..S;1TRFE,2TRFE..TGN11#,120,128,13#;2TRFE..TGN121,126..6FC..(M,X)..(ARL,GEN) |
20 | ||
| 90119-T0268 |
2TRFE..TGN121,126..5F;2TRFE..TGN126..6FC..S;1TRFE,2TRFE..TGN11#,120,128,13#;2TRFE..TGN121,126..6FC..(M,X)..(ARL,GEN) |
20 | ||
| 90119-T0268 |
2TRFE..TGN121,126..5F;2TRFE..TGN126..6FC..S;1TRFE,2TRFE..TGN11#,120,128,13#;2TRFE..TGN121,126..6FC..(M,X)..(ARL,GEN) |
20 | ||
| 11159H - GASKET, CAMSHAFT BEARING CAP OIL HOLE | ||||
| 1115B-75010 |
1TRFE,2TRFE..TGN11#,12#,13# (J),NO.3 |
3 | ||
| 1115B-75010 |
1TRFE,2TRFE..TGN11#,12#,13# (J),NO.3 |
3 | ||
| 1115B-75010 |
1TRFE,2TRFE..TGN11#,12#,13# (J),NO.3 |
3 | ||
| 1115B-0C010 |
2TRFE..TGN136..(M,X)..(BZAGT,LA);2TRFE..TGN126..LHD..6FC..(GEN,SA);2TRFE..TGN136..(ADC,SDC,SSC,TXT)..S;1TRFE,2TRFE..TGN11#,120,128,138..BZAGT,GCC,SA;2TRFE..TGN121,126..5F..(BZAGT,GCC,GEN,LA,SA,TH) *447,(L),NO.3 |
3 | ||
| 1115B-0C010 |
2TRFE..TGN136..(M,X)..(BZAGT,LA);2TRFE..TGN126..LHD..6FC..(GEN,SA);2TRFE..TGN136..(ADC,SDC,SSC,TXT)..S;1TRFE,2TRFE..TGN11#,120,128,138..BZAGT,GCC,SA;2TRFE..TGN121,126..5F..(BZAGT,GCC,GEN,LA,SA,TH) *447,(L),NO.3 |
3 | ||
| 1115B-0C010 |
2TRFE..TGN136..(M,X)..(BZAGT,LA);2TRFE..TGN126..LHD..6FC..(GEN,SA);2TRFE..TGN136..(ADC,SDC,SSC,TXT)..S;1TRFE,2TRFE..TGN11#,120,128,138..BZAGT,GCC,SA;2TRFE..TGN121,126..5F..(BZAGT,GCC,GEN,LA,SA,TH) *447,(L),NO.3 |
3 | ||
| 11159-0C010 |
2TRFE..TGN136..(M,X)..(BZAGT,LA);2TRFE..TGN126..LHD..6FC..(GEN,SA);2TRFE..TGN136..(ADC,SDC,SSC,TXT)..S;1TRFE,2TRFE..TGN11#,120,128,138..BZAGT,GCC,SA;2TRFE..TGN121,126..5F..(BZAGT,GCC,GEN,LA,SA,TH) *447,(L),NO.1 |
1 | ||
| 11159-0C010 |
2TRFE..TGN136..(M,X)..(BZAGT,LA);2TRFE..TGN126..LHD..6FC..(GEN,SA);2TRFE..TGN136..(ADC,SDC,SSC,TXT)..S;1TRFE,2TRFE..TGN11#,120,128,138..BZAGT,GCC,SA;2TRFE..TGN121,126..5F..(BZAGT,GCC,GEN,LA,SA,TH) *447,(L),NO.1 |
1 | ||
| 11159-0C010 |
2TRFE..TGN136..(M,X)..(BZAGT,LA);2TRFE..TGN126..LHD..6FC..(GEN,SA);2TRFE..TGN136..(ADC,SDC,SSC,TXT)..S;1TRFE,2TRFE..TGN11#,120,128,138..BZAGT,GCC,SA;2TRFE..TGN121,126..5F..(BZAGT,GCC,GEN,LA,SA,TH) *447,(L),NO.1 |
1 | ||
| 11159-75010 |
1TRFE,2TRFE..TGN11#,12#,13# (J),NO.1 |
1 | ||
| 11159-75010 |
1TRFE,2TRFE..TGN11#,12#,13# (J),NO.1 |
1 | ||
| 11159-75010 |
1TRFE,2TRFE..TGN11#,12#,13# (J),NO.1 |
1 | ||
| 1115A-0C010 |
2TRFE..TGN136..(M,X)..(BZAGT,LA);2TRFE..TGN126..LHD..6FC..(GEN,SA);2TRFE..TGN136..(ADC,SDC,SSC,TXT)..S;1TRFE,2TRFE..TGN11#,120,128,138..BZAGT,GCC,SA;2TRFE..TGN121,126..5F..(BZAGT,GCC,GEN,LA,SA,TH) *447,(L),NO.2 |
1 | ||
| 1115A-0C010 |
2TRFE..TGN136..(M,X)..(BZAGT,LA);2TRFE..TGN126..LHD..6FC..(GEN,SA);2TRFE..TGN136..(ADC,SDC,SSC,TXT)..S;1TRFE,2TRFE..TGN11#,120,128,138..BZAGT,GCC,SA;2TRFE..TGN121,126..5F..(BZAGT,GCC,GEN,LA,SA,TH) *447,(L),NO.2 |
1 | ||
| 1115A-0C010 |
2TRFE..TGN136..(M,X)..(BZAGT,LA);2TRFE..TGN126..LHD..6FC..(GEN,SA);2TRFE..TGN136..(ADC,SDC,SSC,TXT)..S;1TRFE,2TRFE..TGN11#,120,128,138..BZAGT,GCC,SA;2TRFE..TGN121,126..5F..(BZAGT,GCC,GEN,LA,SA,TH) *447,(L),NO.2 |
1 | ||
| 1115A-75010 |
1TRFE,2TRFE..TGN11#,12#,13# (J),NO.2 |
1 | ||
| 1115A-75010 |
1TRFE,2TRFE..TGN11#,12#,13# (J),NO.2 |
1 | ||
| 1115A-75010 |
1TRFE,2TRFE..TGN11#,12#,13# (J),NO.2 |
1 | ||
| 11159H - GASKET, CAMSHAFT BEARING CAP OIL HOLE | ||||
| 1115B-75010 |
1TRFE,2TRFE..TGN11#,12#,13# (J),NO.3 |
3 | ||
| 1115B-75010 |
1TRFE,2TRFE..TGN11#,12#,13# (J),NO.3 |
3 | ||
| 1115B-75010 |
1TRFE,2TRFE..TGN11#,12#,13# (J),NO.3 |
3 | ||
| 1115B-0C010 |
2TRFE..TGN136..(M,X)..(BZAGT,LA);2TRFE..TGN126..LHD..6FC..(GEN,SA);2TRFE..TGN136..(ADC,SDC,SSC,TXT)..S;1TRFE,2TRFE..TGN11#,120,128,138..BZAGT,GCC,SA;2TRFE..TGN121,126..5F..(BZAGT,GCC,GEN,LA,SA,TH) *447,(L),NO.3 |
3 | ||
| 1115B-0C010 |
2TRFE..TGN136..(M,X)..(BZAGT,LA);2TRFE..TGN126..LHD..6FC..(GEN,SA);2TRFE..TGN136..(ADC,SDC,SSC,TXT)..S;1TRFE,2TRFE..TGN11#,120,128,138..BZAGT,GCC,SA;2TRFE..TGN121,126..5F..(BZAGT,GCC,GEN,LA,SA,TH) *447,(L),NO.3 |
3 | ||
| 1115B-0C010 |
2TRFE..TGN136..(M,X)..(BZAGT,LA);2TRFE..TGN126..LHD..6FC..(GEN,SA);2TRFE..TGN136..(ADC,SDC,SSC,TXT)..S;1TRFE,2TRFE..TGN11#,120,128,138..BZAGT,GCC,SA;2TRFE..TGN121,126..5F..(BZAGT,GCC,GEN,LA,SA,TH) *447,(L),NO.3 |
3 | ||
| 11159-0C010 |
2TRFE..TGN136..(M,X)..(BZAGT,LA);2TRFE..TGN126..LHD..6FC..(GEN,SA);2TRFE..TGN136..(ADC,SDC,SSC,TXT)..S;1TRFE,2TRFE..TGN11#,120,128,138..BZAGT,GCC,SA;2TRFE..TGN121,126..5F..(BZAGT,GCC,GEN,LA,SA,TH) *447,(L),NO.1 |
1 | ||
| 11159-0C010 |
2TRFE..TGN136..(M,X)..(BZAGT,LA);2TRFE..TGN126..LHD..6FC..(GEN,SA);2TRFE..TGN136..(ADC,SDC,SSC,TXT)..S;1TRFE,2TRFE..TGN11#,120,128,138..BZAGT,GCC,SA;2TRFE..TGN121,126..5F..(BZAGT,GCC,GEN,LA,SA,TH) *447,(L),NO.1 |
1 | ||
| 11159-0C010 |
2TRFE..TGN136..(M,X)..(BZAGT,LA);2TRFE..TGN126..LHD..6FC..(GEN,SA);2TRFE..TGN136..(ADC,SDC,SSC,TXT)..S;1TRFE,2TRFE..TGN11#,120,128,138..BZAGT,GCC,SA;2TRFE..TGN121,126..5F..(BZAGT,GCC,GEN,LA,SA,TH) *447,(L),NO.1 |
1 | ||
| 11159-75010 |
1TRFE,2TRFE..TGN11#,12#,13# (J),NO.1 |
1 | ||
| 11159-75010 |
1TRFE,2TRFE..TGN11#,12#,13# (J),NO.1 |
1 | ||
| 11159-75010 |
1TRFE,2TRFE..TGN11#,12#,13# (J),NO.1 |
1 | ||
| 1115A-0C010 |
2TRFE..TGN136..(M,X)..(BZAGT,LA);2TRFE..TGN126..LHD..6FC..(GEN,SA);2TRFE..TGN136..(ADC,SDC,SSC,TXT)..S;1TRFE,2TRFE..TGN11#,120,128,138..BZAGT,GCC,SA;2TRFE..TGN121,126..5F..(BZAGT,GCC,GEN,LA,SA,TH) *447,(L),NO.2 |
1 | ||
| 1115A-0C010 |
2TRFE..TGN136..(M,X)..(BZAGT,LA);2TRFE..TGN126..LHD..6FC..(GEN,SA);2TRFE..TGN136..(ADC,SDC,SSC,TXT)..S;1TRFE,2TRFE..TGN11#,120,128,138..BZAGT,GCC,SA;2TRFE..TGN121,126..5F..(BZAGT,GCC,GEN,LA,SA,TH) *447,(L),NO.2 |
1 | ||
| 1115A-0C010 |
2TRFE..TGN136..(M,X)..(BZAGT,LA);2TRFE..TGN126..LHD..6FC..(GEN,SA);2TRFE..TGN136..(ADC,SDC,SSC,TXT)..S;1TRFE,2TRFE..TGN11#,120,128,138..BZAGT,GCC,SA;2TRFE..TGN121,126..5F..(BZAGT,GCC,GEN,LA,SA,TH) *447,(L),NO.2 |
1 | ||
| 1115A-75010 |
1TRFE,2TRFE..TGN11#,12#,13# (J),NO.2 |
1 | ||
| 1115A-75010 |
1TRFE,2TRFE..TGN11#,12#,13# (J),NO.2 |
1 | ||
| 1115A-75010 |
1TRFE,2TRFE..TGN11#,12#,13# (J),NO.2 |
1 | ||
| 11159H - GASKET, CAMSHAFT BEARING CAP OIL HOLE | ||||
| 1115B-75010 |
1TRFE,2TRFE..TGN11#,12#,13# (J),NO.3 |
3 | ||
| 1115B-75010 |
1TRFE,2TRFE..TGN11#,12#,13# (J),NO.3 |
3 | ||
| 1115B-75010 |
1TRFE,2TRFE..TGN11#,12#,13# (J),NO.3 |
3 | ||
| 1115B-0C010 |
2TRFE..TGN136..(M,X)..(BZAGT,LA);2TRFE..TGN126..LHD..6FC..(GEN,SA);2TRFE..TGN136..(ADC,SDC,SSC,TXT)..S;1TRFE,2TRFE..TGN11#,120,128,138..BZAGT,GCC,SA;2TRFE..TGN121,126..5F..(BZAGT,GCC,GEN,LA,SA,TH) *447,(L),NO.3 |
3 | ||
| 1115B-0C010 |
2TRFE..TGN136..(M,X)..(BZAGT,LA);2TRFE..TGN126..LHD..6FC..(GEN,SA);2TRFE..TGN136..(ADC,SDC,SSC,TXT)..S;1TRFE,2TRFE..TGN11#,120,128,138..BZAGT,GCC,SA;2TRFE..TGN121,126..5F..(BZAGT,GCC,GEN,LA,SA,TH) *447,(L),NO.3 |
3 | ||
| 1115B-0C010 |
2TRFE..TGN136..(M,X)..(BZAGT,LA);2TRFE..TGN126..LHD..6FC..(GEN,SA);2TRFE..TGN136..(ADC,SDC,SSC,TXT)..S;1TRFE,2TRFE..TGN11#,120,128,138..BZAGT,GCC,SA;2TRFE..TGN121,126..5F..(BZAGT,GCC,GEN,LA,SA,TH) *447,(L),NO.3 |
3 | ||
| 11159-0C010 |
2TRFE..TGN136..(M,X)..(BZAGT,LA);2TRFE..TGN126..LHD..6FC..(GEN,SA);2TRFE..TGN136..(ADC,SDC,SSC,TXT)..S;1TRFE,2TRFE..TGN11#,120,128,138..BZAGT,GCC,SA;2TRFE..TGN121,126..5F..(BZAGT,GCC,GEN,LA,SA,TH) *447,(L),NO.1 |
1 | ||
| 11159-0C010 |
2TRFE..TGN136..(M,X)..(BZAGT,LA);2TRFE..TGN126..LHD..6FC..(GEN,SA);2TRFE..TGN136..(ADC,SDC,SSC,TXT)..S;1TRFE,2TRFE..TGN11#,120,128,138..BZAGT,GCC,SA;2TRFE..TGN121,126..5F..(BZAGT,GCC,GEN,LA,SA,TH) *447,(L),NO.1 |
1 | ||
| 11159-0C010 |
2TRFE..TGN136..(M,X)..(BZAGT,LA);2TRFE..TGN126..LHD..6FC..(GEN,SA);2TRFE..TGN136..(ADC,SDC,SSC,TXT)..S;1TRFE,2TRFE..TGN11#,120,128,138..BZAGT,GCC,SA;2TRFE..TGN121,126..5F..(BZAGT,GCC,GEN,LA,SA,TH) *447,(L),NO.1 |
1 | ||
| 11159-75010 |
1TRFE,2TRFE..TGN11#,12#,13# (J),NO.1 |
1 | ||
| 11159-75010 |
1TRFE,2TRFE..TGN11#,12#,13# (J),NO.1 |
1 | ||
| 11159-75010 |
1TRFE,2TRFE..TGN11#,12#,13# (J),NO.1 |
1 | ||
| 1115A-0C010 |
2TRFE..TGN136..(M,X)..(BZAGT,LA);2TRFE..TGN126..LHD..6FC..(GEN,SA);2TRFE..TGN136..(ADC,SDC,SSC,TXT)..S;1TRFE,2TRFE..TGN11#,120,128,138..BZAGT,GCC,SA;2TRFE..TGN121,126..5F..(BZAGT,GCC,GEN,LA,SA,TH) *447,(L),NO.2 |
1 | ||
| 1115A-0C010 |
2TRFE..TGN136..(M,X)..(BZAGT,LA);2TRFE..TGN126..LHD..6FC..(GEN,SA);2TRFE..TGN136..(ADC,SDC,SSC,TXT)..S;1TRFE,2TRFE..TGN11#,120,128,138..BZAGT,GCC,SA;2TRFE..TGN121,126..5F..(BZAGT,GCC,GEN,LA,SA,TH) *447,(L),NO.2 |
1 | ||
| 1115A-0C010 |
2TRFE..TGN136..(M,X)..(BZAGT,LA);2TRFE..TGN126..LHD..6FC..(GEN,SA);2TRFE..TGN136..(ADC,SDC,SSC,TXT)..S;1TRFE,2TRFE..TGN11#,120,128,138..BZAGT,GCC,SA;2TRFE..TGN121,126..5F..(BZAGT,GCC,GEN,LA,SA,TH) *447,(L),NO.2 |
1 | ||
| 1115A-75010 |
1TRFE,2TRFE..TGN11#,12#,13# (J),NO.2 |
1 | ||
| 1115A-75010 |
1TRFE,2TRFE..TGN11#,12#,13# (J),NO.2 |
1 | ||
| 1115A-75010 |
1TRFE,2TRFE..TGN11#,12#,13# (J),NO.2 |
1 | ||
| 11159H - GASKET, CAMSHAFT BEARING CAP OIL HOLE | ||||
| 1115B-75010 |
1TRFE,2TRFE..TGN11#,12#,13# (J),NO.3 |
3 | ||
| 1115B-75010 |
1TRFE,2TRFE..TGN11#,12#,13# (J),NO.3 |
3 | ||
| 1115B-75010 |
1TRFE,2TRFE..TGN11#,12#,13# (J),NO.3 |
3 | ||
| 1115B-0C010 |
2TRFE..TGN136..(M,X)..(BZAGT,LA);2TRFE..TGN126..LHD..6FC..(GEN,SA);2TRFE..TGN136..(ADC,SDC,SSC,TXT)..S;1TRFE,2TRFE..TGN11#,120,128,138..BZAGT,GCC,SA;2TRFE..TGN121,126..5F..(BZAGT,GCC,GEN,LA,SA,TH) *447,(L),NO.3 |
3 | ||
| 1115B-0C010 |
2TRFE..TGN136..(M,X)..(BZAGT,LA);2TRFE..TGN126..LHD..6FC..(GEN,SA);2TRFE..TGN136..(ADC,SDC,SSC,TXT)..S;1TRFE,2TRFE..TGN11#,120,128,138..BZAGT,GCC,SA;2TRFE..TGN121,126..5F..(BZAGT,GCC,GEN,LA,SA,TH) *447,(L),NO.3 |
3 | ||
| 1115B-0C010 |
2TRFE..TGN136..(M,X)..(BZAGT,LA);2TRFE..TGN126..LHD..6FC..(GEN,SA);2TRFE..TGN136..(ADC,SDC,SSC,TXT)..S;1TRFE,2TRFE..TGN11#,120,128,138..BZAGT,GCC,SA;2TRFE..TGN121,126..5F..(BZAGT,GCC,GEN,LA,SA,TH) *447,(L),NO.3 |
3 | ||
| 11159-0C010 |
2TRFE..TGN136..(M,X)..(BZAGT,LA);2TRFE..TGN126..LHD..6FC..(GEN,SA);2TRFE..TGN136..(ADC,SDC,SSC,TXT)..S;1TRFE,2TRFE..TGN11#,120,128,138..BZAGT,GCC,SA;2TRFE..TGN121,126..5F..(BZAGT,GCC,GEN,LA,SA,TH) *447,(L),NO.1 |
1 | ||
| 11159-0C010 |
2TRFE..TGN136..(M,X)..(BZAGT,LA);2TRFE..TGN126..LHD..6FC..(GEN,SA);2TRFE..TGN136..(ADC,SDC,SSC,TXT)..S;1TRFE,2TRFE..TGN11#,120,128,138..BZAGT,GCC,SA;2TRFE..TGN121,126..5F..(BZAGT,GCC,GEN,LA,SA,TH) *447,(L),NO.1 |
1 | ||
| 11159-0C010 |
2TRFE..TGN136..(M,X)..(BZAGT,LA);2TRFE..TGN126..LHD..6FC..(GEN,SA);2TRFE..TGN136..(ADC,SDC,SSC,TXT)..S;1TRFE,2TRFE..TGN11#,120,128,138..BZAGT,GCC,SA;2TRFE..TGN121,126..5F..(BZAGT,GCC,GEN,LA,SA,TH) *447,(L),NO.1 |
1 | ||
| 11159-75010 |
1TRFE,2TRFE..TGN11#,12#,13# (J),NO.1 |
1 | ||
| 11159-75010 |
1TRFE,2TRFE..TGN11#,12#,13# (J),NO.1 |
1 | ||
| 11159-75010 |
1TRFE,2TRFE..TGN11#,12#,13# (J),NO.1 |
1 | ||
| 1115A-0C010 |
2TRFE..TGN136..(M,X)..(BZAGT,LA);2TRFE..TGN126..LHD..6FC..(GEN,SA);2TRFE..TGN136..(ADC,SDC,SSC,TXT)..S;1TRFE,2TRFE..TGN11#,120,128,138..BZAGT,GCC,SA;2TRFE..TGN121,126..5F..(BZAGT,GCC,GEN,LA,SA,TH) *447,(L),NO.2 |
1 | ||
| 1115A-0C010 |
2TRFE..TGN136..(M,X)..(BZAGT,LA);2TRFE..TGN126..LHD..6FC..(GEN,SA);2TRFE..TGN136..(ADC,SDC,SSC,TXT)..S;1TRFE,2TRFE..TGN11#,120,128,138..BZAGT,GCC,SA;2TRFE..TGN121,126..5F..(BZAGT,GCC,GEN,LA,SA,TH) *447,(L),NO.2 |
1 | ||
| 1115A-0C010 |
2TRFE..TGN136..(M,X)..(BZAGT,LA);2TRFE..TGN126..LHD..6FC..(GEN,SA);2TRFE..TGN136..(ADC,SDC,SSC,TXT)..S;1TRFE,2TRFE..TGN11#,120,128,138..BZAGT,GCC,SA;2TRFE..TGN121,126..5F..(BZAGT,GCC,GEN,LA,SA,TH) *447,(L),NO.2 |
1 | ||
| 1115A-75010 |
1TRFE,2TRFE..TGN11#,12#,13# (J),NO.2 |
1 | ||
| 1115A-75010 |
1TRFE,2TRFE..TGN11#,12#,13# (J),NO.2 |
1 | ||
| 1115A-75010 |
1TRFE,2TRFE..TGN11#,12#,13# (J),NO.2 |
1 | ||
| 11201 - COVER SUB-ASSY, CYLINDER HEAD | ||||
| 11201-75080 |
1TRFE,2TRFE..TGN11#,12#,13# (J) |
1 | ||
| 11201-75080 |
1TRFE,2TRFE..TGN11#,12#,13# (J) |
1 | ||
| 11201-75080 |
1TRFE,2TRFE..TGN11#,12#,13# (J) |
1 | ||
| 11201-0C050 |
2TRFE..TGN136..(M,X)..(BZAGT,LA);2TRFE..TGN126..LHD..6FC..(GEN,SA);2TRFE..TGN136..(ADC,SDC,SSC,TXT)..S;1TRFE,2TRFE..TGN11#,120,128,138..BZAGT,GCC,SA;2TRFE..TGN121,126..5F..(BZAGT,GCC,GEN,LA,SA,TH) *447,(L) |
1 | ||
| 11201-0C050 |
2TRFE..TGN136..(M,X)..(BZAGT,LA);2TRFE..TGN126..LHD..6FC..(GEN,SA);2TRFE..TGN136..(ADC,SDC,SSC,TXT)..S;1TRFE,2TRFE..TGN11#,120,128,138..BZAGT,GCC,SA;2TRFE..TGN121,126..5F..(BZAGT,GCC,GEN,LA,SA,TH) *447,(L) |
1 | ||
| 11201-0C050 |
2TRFE..TGN136..(M,X)..(BZAGT,LA);2TRFE..TGN126..LHD..6FC..(GEN,SA);2TRFE..TGN136..(ADC,SDC,SSC,TXT)..S;1TRFE,2TRFE..TGN11#,120,128,138..BZAGT,GCC,SA;2TRFE..TGN121,126..5F..(BZAGT,GCC,GEN,LA,SA,TH) *447,(L) |
1 | ||
| 11204 - CONNECTOR SUB-ASSY, CYLINDER HEAD COVER | ||||
| 11204-75010 |
1TRFE,2TRFE..TGN11#,12#,13# (J) |
1 | ||
| 11204-75010 |
1TRFE,2TRFE..TGN11#,12#,13# (J) |
1 | ||
| 11204-75010 |
1TRFE,2TRFE..TGN11#,12#,13# (J) |
1 | ||
| 11204-0C010 |
2TRFE..TGN136..(M,X)..(BZAGT,LA);2TRFE..TGN126..LHD..6FC..(GEN,SA);2TRFE..TGN136..(ADC,SDC,SSC,TXT)..S;1TRFE,2TRFE..TGN11#,120,128,138..BZAGT,GCC,SA;2TRFE..TGN121,126..5F..(BZAGT,GCC,GEN,LA,SA,TH) *447,(L) |
1 | ||
| 11204-0C010 |
2TRFE..TGN136..(M,X)..(BZAGT,LA);2TRFE..TGN126..LHD..6FC..(GEN,SA);2TRFE..TGN136..(ADC,SDC,SSC,TXT)..S;1TRFE,2TRFE..TGN11#,120,128,138..BZAGT,GCC,SA;2TRFE..TGN121,126..5F..(BZAGT,GCC,GEN,LA,SA,TH) *447,(L) |
1 | ||
| 11204-0C010 |
2TRFE..TGN136..(M,X)..(BZAGT,LA);2TRFE..TGN126..LHD..6FC..(GEN,SA);2TRFE..TGN136..(ADC,SDC,SSC,TXT)..S;1TRFE,2TRFE..TGN11#,120,128,138..BZAGT,GCC,SA;2TRFE..TGN121,126..5F..(BZAGT,GCC,GEN,LA,SA,TH) *447,(L) |
1 | ||
| 11213 - GASKET, CYLINDER HEAD COVER | ||||
| 11213-75050 |
1TRFE,2TRFE..TGN11#,12#,13# (J) |
1 | ||
| 11213-75050 |
1TRFE,2TRFE..TGN11#,12#,13# (J) |
1 | ||
| 11213-75050 |
1TRFE,2TRFE..TGN11#,12#,13# (J) |
1 | ||
| 11213-0C020 |
2TRFE..TGN136..(M,X)..(BZAGT,LA);2TRFE..TGN126..LHD..6FC..(GEN,SA);2TRFE..TGN136..(ADC,SDC,SSC,TXT)..S;1TRFE,2TRFE..TGN11#,120,128,138..BZAGT,GCC,SA;2TRFE..TGN121,126..5F..(BZAGT,GCC,GEN,LA,SA,TH) *447,(L) |
1 | ||
| 11213-0C020 |
2TRFE..TGN136..(M,X)..(BZAGT,LA);2TRFE..TGN126..LHD..6FC..(GEN,SA);2TRFE..TGN136..(ADC,SDC,SSC,TXT)..S;1TRFE,2TRFE..TGN11#,120,128,138..BZAGT,GCC,SA;2TRFE..TGN121,126..5F..(BZAGT,GCC,GEN,LA,SA,TH) *447,(L) |
1 | ||
| 11213-0C020 |
2TRFE..TGN136..(M,X)..(BZAGT,LA);2TRFE..TGN126..LHD..6FC..(GEN,SA);2TRFE..TGN136..(ADC,SDC,SSC,TXT)..S;1TRFE,2TRFE..TGN11#,120,128,138..BZAGT,GCC,SA;2TRFE..TGN121,126..5F..(BZAGT,GCC,GEN,LA,SA,TH) *447,(L) |
1 | ||
| 12108 - CAP SUB-ASSY, OIL FILLER | ||||
| 12180-0H020 |
1TRFE,2TRFE..TGN11#,12#,13# (L) |
1 | ||
| 12180-0H020 |
1TRFE,2TRFE..TGN11#,12#,13# (L) |
1 | ||
| 12180-0H020 |
1TRFE,2TRFE..TGN11#,12#,13# (L) |
1 | ||
| 12180-38010 |
1TRFE,2TRFE..TGN11#,12#,13# (J) |
1 | ||
| 12180-38010 |
1TRFE,2TRFE..TGN11#,12#,13# (J) |
1 | ||
| 12180-38010 |
1TRFE,2TRFE..TGN11#,12#,13# (J) |
1 | ||
| 12108A - GASKET(FOR OIL FILLER CAP) | ||||
| 90430-35001 |
1TRFE,2TRFE..TGN11#,12#,13# (J) |
1 | ||
| 90430-35001 |
1TRFE,2TRFE..TGN11#,12#,13# (J) |
1 | ||
| 90430-35001 |
1TRFE,2TRFE..TGN11#,12#,13# (J) |
1 | ||
| 90080-43027 |
1TRFE,2TRFE..TGN11#,12#,13# (L) |
1 | ||
| 90080-43027 |
1TRFE,2TRFE..TGN11#,12#,13# (L) |
1 | ||
| 90080-43027 |
1TRFE,2TRFE..TGN11#,12#,13# (L) |
1 | ||
| 12281A - HANGER, ENGINE, NO.1 | ||||
| 12281-0C010 |
2TRFE..TGN136..(M,X)..(BZAGT,LA);2TRFE..TGN126..LHD..6FC..(GEN,SA);2TRFE..TGN136..(ADC,SDC,SSC,TXT)..S;1TRFE,2TRFE..TGN11#,120,128,138..BZAGT,GCC,SA;2TRFE..TGN121,126..5F..(BZAGT,GCC,GEN,LA,SA,TH) *447 |
1 | ||
| 12281-0C010 |
2TRFE..TGN136..(M,X)..(BZAGT,LA);2TRFE..TGN126..LHD..6FC..(GEN,SA);2TRFE..TGN136..(ADC,SDC,SSC,TXT)..S;1TRFE,2TRFE..TGN11#,120,128,138..BZAGT,GCC,SA;2TRFE..TGN121,126..5F..(BZAGT,GCC,GEN,LA,SA,TH) *447 |
1 | ||
| 12281-0C010 |
2TRFE..TGN136..(M,X)..(BZAGT,LA);2TRFE..TGN126..LHD..6FC..(GEN,SA);2TRFE..TGN136..(ADC,SDC,SSC,TXT)..S;1TRFE,2TRFE..TGN11#,120,128,138..BZAGT,GCC,SA;2TRFE..TGN121,126..5F..(BZAGT,GCC,GEN,LA,SA,TH) *447 |
1 | ||
| 12282D - HANGER, ENGINE, NO.2 | ||||
| 12281-0C010 |
2TRFE..TGN136..(M,X)..(BZAGT,LA);2TRFE..TGN126..LHD..6FC..(GEN,SA);2TRFE..TGN136..(ADC,SDC,SSC,TXT)..S;1TRFE,2TRFE..TGN11#,120,128,138..BZAGT,GCC,SA;2TRFE..TGN121,126..5F..(BZAGT,GCC,GEN,LA,SA,TH) *447 |
1 | ||
| 12281-0C010 |
2TRFE..TGN136..(M,X)..(BZAGT,LA);2TRFE..TGN126..LHD..6FC..(GEN,SA);2TRFE..TGN136..(ADC,SDC,SSC,TXT)..S;1TRFE,2TRFE..TGN11#,120,128,138..BZAGT,GCC,SA;2TRFE..TGN121,126..5F..(BZAGT,GCC,GEN,LA,SA,TH) *447 |
1 | ||
| 12281-0C010 |
2TRFE..TGN136..(M,X)..(BZAGT,LA);2TRFE..TGN126..LHD..6FC..(GEN,SA);2TRFE..TGN136..(ADC,SDC,SSC,TXT)..S;1TRFE,2TRFE..TGN11#,120,128,138..BZAGT,GCC,SA;2TRFE..TGN121,126..5F..(BZAGT,GCC,GEN,LA,SA,TH) *447 |
1 | ||
| 15330A - RING, O(FOR CAM TIMING OIL CONTROL VALVE) | ||||
| 90068-14041 |
1TRFE,2TRFE..TGN11#,12#,13# |
2 | ||
| 90068-14041 |
1TRFE,2TRFE..TGN11#,12#,13# |
2 | ||
| 90068-14041 |
1TRFE,2TRFE..TGN11#,12#,13# |
2 | ||
| 15330A - RING, O(FOR CAM TIMING OIL CONTROL VALVE) | ||||
| 90068-14041 |
1TRFE,2TRFE..TGN11#,12#,13# |
2 | ||
| 90068-14041 |
1TRFE,2TRFE..TGN11#,12#,13# |
2 | ||
| 90068-14041 |
1TRFE,2TRFE..TGN11#,12#,13# |
2 | ||
| 15678A - FILTER, OIL CONTROL VALVE | ||||
| 15678-21010 |
1TRFE,2TRFE..TGN11#,12#,13# (J) |
1 | ||
| 15678-21010 |
1TRFE,2TRFE..TGN11#,12#,13# (J) |
1 | ||
| 15678-21010 |
1TRFE,2TRFE..TGN11#,12#,13# (J) |
1 | ||
| 15678-0C010 |
1TRFE,2TRFE..TGN11#,12#,13# (L) |
1 | ||
| 15678-0C010 |
1TRFE,2TRFE..TGN11#,12#,13# (L) |
1 | ||
| 15678-0C010 |
1TRFE,2TRFE..TGN11#,12#,13# (L) |
1 | ||
| Common parts | ||||
| 90105-06202 | ||||
| 90105-T0052 | ||||
| 90105-T0133 | ||||
| 90119-T0136 | ||||
| 90119-T0388 | ||||
| 90126-06026 | ||||
| 90126-T0015 | ||||
| 90178-T0018 | ||||
| 90201-06047 | ||||
| 90210-12011 | ||||
| 90210-T0001 | ||||
| 90210-T0002 | ||||
| 90341-14013 | ||||
| 90341-T0012 | ||||
| 90341-T0019 | ||||
| 90430-14009 | ||||
| 91551-80625 | ||||
| 91553-80628 | ||||
| 91671-80614 | ||||
| 91672-81025 | ||||
| 94151-80600 | ||||
| Linked diagrams | ||||
| 1106 | ||||
| 1201 | ||||
(2006- )1TRFE,2TRFE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90105-T0052 | ||||
| 90105-T0133 | ||||
| 90119-T0136 | ||||
| 90119-T0388 | ||||
| 90126-06026 | ||||
| 90126-T0015 | ||||
| 90178-T0018 | ||||
| 90201-06047 | ||||
| 90430-14009 | ||||
| 91551-80625 | ||||
| 91553-80628 | ||||
| 91671-80614 | ||||
| 91672-81025 | ||||
| 94151-80600 | ||||
| Linked diagrams | ||||
| 1106 | ||||
| 1201 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
