TGN126L-DTTHK (2020)

Toyota Hilux

Production Jun 2020 - Aug 2021
Engine 2TRFE
Transmission 6FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(2006- )2TRFE..TGN126..GEN

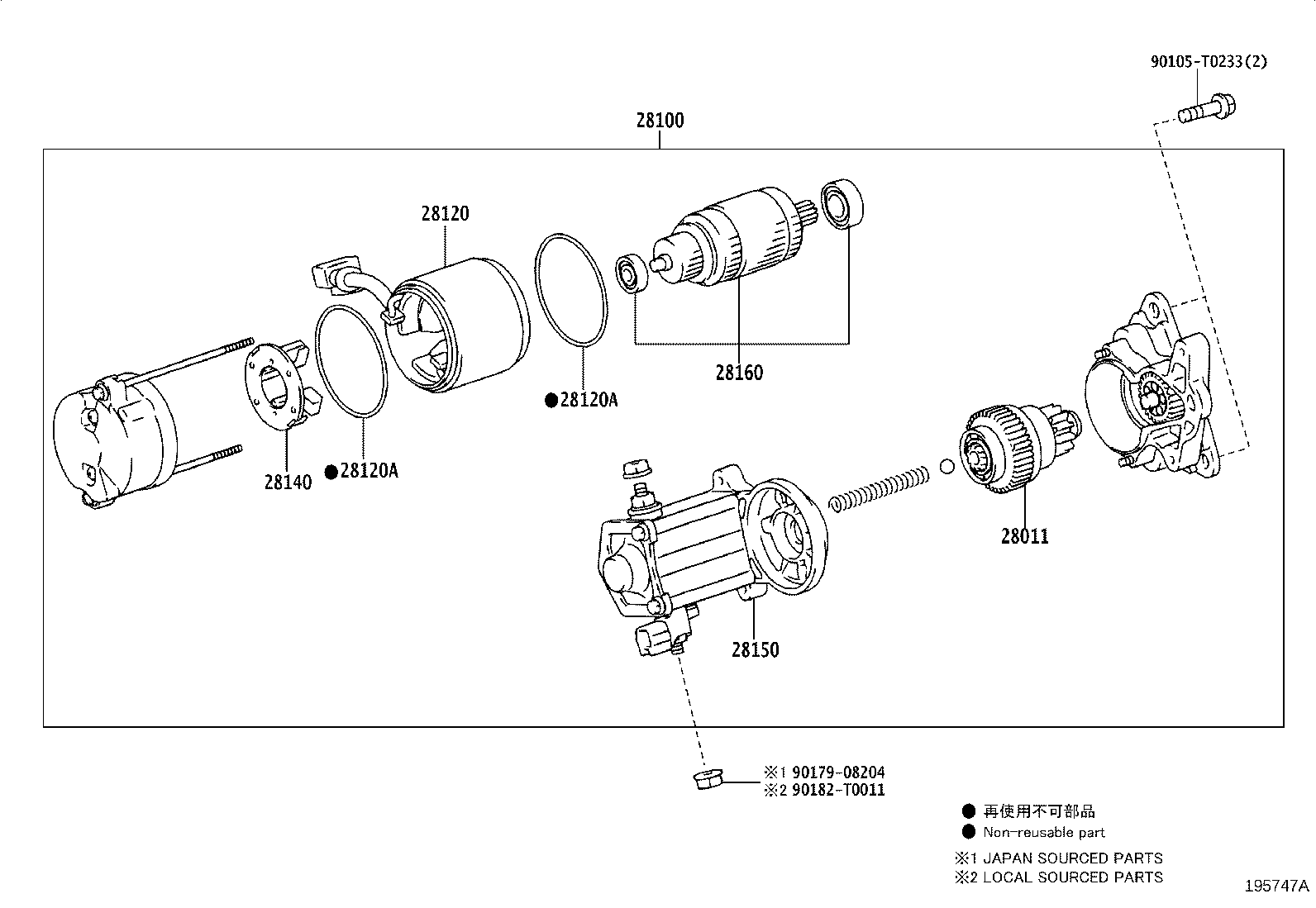

Click highlighted areas on diagram

12V 2.0KW(DENSO)

diagram 28011 28100 28120 28120A 28120A 28140 28150 28160 90105T0233 9017908204 90182T0011
Part # Description Qty Price
28011 - CLUTCH SUB-ASSY, STARTER
28011-75120

2TRFE..TGN126..(H,S)..GEN

 1
28011-75120

2TRFE..TGN126..L..GEN

ASIA COLD COUNTRY SPEC

 1
28100 - STARTER ASSY
28100-75141

2TRFE..TGN126..L..GEN

12V 2.0KW,ASIA COLD COUNTRY SPEC

 1
28100-75141

2TRFE..TGN126..(H,S)..GEN

12V 2.0KW

 1
28120 - YOKE ASSY, STARTER
28120-54380

2TRFE..TGN126..(H,S)..GEN

 1
28120-54380

2TRFE..TGN126..L..GEN

ASIA COLD COUNTRY SPEC

 1
28120A - RING, O(FOR STARTER YOKE)
90099-14064

2TRFE..TGN126..L..GEN

ASIA COLD COUNTRY SPEC

 2
90099-14064

1GRFE..GGN125;2TRFE..TGN126..(H,S)..GEN

 2
28120A - RING, O(FOR STARTER YOKE)
90099-14064

2TRFE..TGN126..L..GEN

ASIA COLD COUNTRY SPEC

 2
90099-14064

1GRFE..GGN125;2TRFE..TGN126..(H,S)..GEN

 2
28140 - HOLDER ASSY, STARTER BRUSH
28140-62030

2TRFE..TGN126..(H,S)..GEN

 1
28140-62030

2TRFE..TGN126..L..GEN

ASIA COLD COUNTRY SPEC

 1
28150 - SWITCH ASSY, MAGNET STARTER
28150-75120

2TRFE..TGN126..(H,S)..GEN

 1
28150-75120

2TRFE..TGN126..L..GEN

ASIA COLD COUNTRY SPEC

 1
28160 - ARMATURE ASSY, STARTER
28160-75120

2TRFE..TGN126..L..GEN

ASIA COLD COUNTRY SPEC

 1
28160-75120

2TRFE..TGN126..(H,S)..GEN

 1
Common parts
90105-T0233
90179-08204
90182-T0011

(2006- )2GDFTV..GUN135..L,S..TH ; (2006- )2GDFTV..GUN135..6F..H..TH ; (2006-

Click highlighted areas on diagram

12V 2.4KW(DENSO),W(STOP & START)

diagram 28100 90105T0081 90105T0081 90105T0082 90178T0022 90182T0003
Part # Description Qty Price
28100 - STARTER ASSY
28100-75141

2TRFE..TGN126..L..GEN

12V 2.0KW,ASIA COLD COUNTRY SPEC

 1
28100-75141

2TRFE..TGN126..L..GEN

12V 2.0KW,ASIA COLD COUNTRY SPEC

 1
28100-75141

2TRFE..TGN126..(H,S)..GEN

12V 2.0KW

 1
28100-75141

2TRFE..TGN126..(H,S)..GEN

12V 2.0KW

 1
Common parts
90105-T0081
90105-T0082
90178-T0022
90182-T0003

(2006- )2GDFTV..GUN135..L..GEN ; (2006- )2GDFTV..GUN125..TS..6FC ; (2006-

Click highlighted areas on diagram

12V 2.7KW

diagram 28011 28100 28120 28140 28150 28160 90105T0081 90105T0082 90178T0022 90178T0022 90182T0003
Part # Description Qty Price
28011 - CLUTCH SUB-ASSY, STARTER
28011-75120

2TRFE..TGN126..(H,S)..GEN

 1
28011-75120

2TRFE..TGN126..L..GEN

ASIA COLD COUNTRY SPEC

 1
28100 - STARTER ASSY
28100-75141

2TRFE..TGN126..L..GEN

12V 2.0KW,ASIA COLD COUNTRY SPEC

 1
28100-75141

2TRFE..TGN126..(H,S)..GEN

12V 2.0KW

 1
28120 - YOKE ASSY, STARTER
28120-54380

2TRFE..TGN126..(H,S)..GEN

 1
28120-54380

2TRFE..TGN126..L..GEN

ASIA COLD COUNTRY SPEC

 1
28140 - HOLDER ASSY, STARTER BRUSH
28140-62030

2TRFE..TGN126..(H,S)..GEN

 1
28140-62030

2TRFE..TGN126..L..GEN

ASIA COLD COUNTRY SPEC

 1
28150 - SWITCH ASSY, MAGNET STARTER
28150-75120

2TRFE..TGN126..(H,S)..GEN

 1
28150-75120

2TRFE..TGN126..L..GEN

ASIA COLD COUNTRY SPEC

 1
28160 - ARMATURE ASSY, STARTER
28160-75120

2TRFE..TGN126..L..GEN

ASIA COLD COUNTRY SPEC

 1
28160-75120

2TRFE..TGN126..(H,S)..GEN

 1
Common parts
90105-T0081
90105-T0082
90178-T0022
90182-T0003
