TGN126L-DTMLKV (2015)
Toyota Hilux

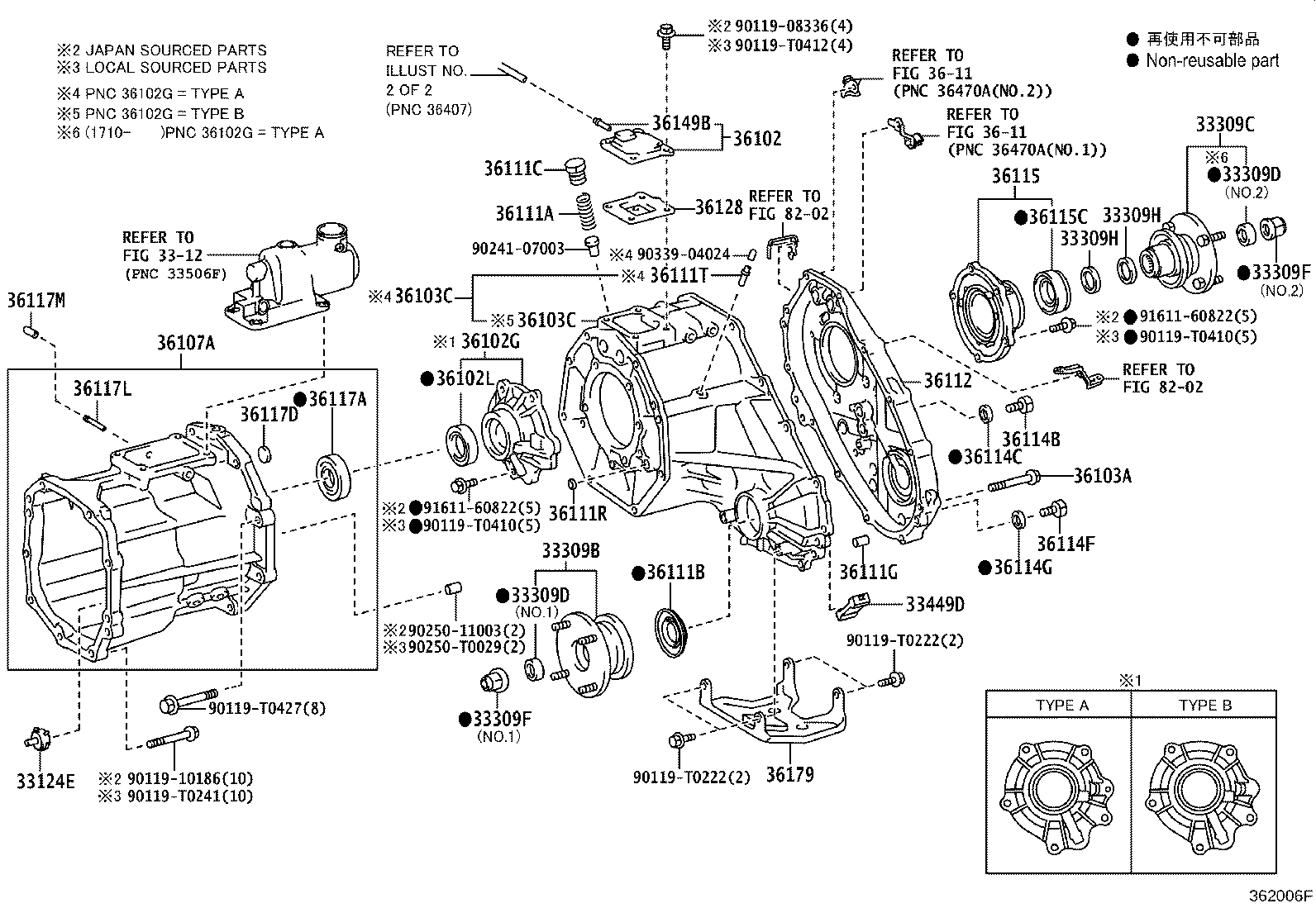

ILLUST NO. 1 OF 2(1505- )LAN125,TGN126..5F
TRANSFER CASE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 33124E - PIPE, OIL RECEIVER(FOR TRANSFER) | ||||
| 33124-0K010 |
TGN126..5F TYPE A:REFER 33-01 |
1 | ||
| 33124-35100 |
TGN126..5F TYPE B:SEE 33-01,(J) |
1 | ||
| 33124-0K010 |
TGN126..5F TYPE C:REFER 33-01 |
1 | ||
| 33124-0K060 |
TGN126..5F TYPE B:SEE 33-01,(L) |
1 | ||
| 33309B - FLANGE SUB-ASSY, OUTPUT SHAFT COMPANION | ||||
| 33309-35112 |
GGN125,GUN125,126,KUN125,126,LAN125,TGN126,128 PNC 36102G=TYPE A |
1 | ||
| 33309-0K011 |
KUN125..LHD..SSC;KUN125..ASC,SXT,TDC,TSC,TXT;GGN125,GUN125,126,KUN126,LAN125,TGN126,128 PNC 36102G=TYPE B |
1 | ||
| 33309-35113 |
GUN125..TDC..6FC..ARL;GUN125..ADC,ASC,SDC,SSC,SXT,TSC,TXT;GUN125..TDC..(GCC,GEN,IDN,LA,PH,TH,VN);GGN125,GUN126,LAN125,TGN126,128..ADC,ASC,PDC,PSC,SDC,SSC,SXT,TDC,TSC,TXT PNC 36102G=TYPE A |
1 | ||
| 33309-0K012 |
GUN125..TDC..6FC..ARL;GUN125..ADC,ASC,SDC,SSC,SXT,TSC,TXT;GUN125..TDC..(GCC,GEN,IDN,LA,PH,TH,VN);GGN125,GUN126,LAN125,TGN126,128..ADC,ASC,PDC,PSC,SDC,SSC,SXT,TDC,TSC,TXT PNC 36102G=TYPE B |
1 | ||
| 33309C - FLANGE SUB-ASSY, OUTPUT SHAFT COMPANION | ||||
| 33309-71010 |
GGN125,GUN125,126,KUN125,126,LAN125,TGN126,128..5F,5FC,6FC PNC 36102G=TYPE A |
1 | ||
| 33309-0K030 |
GGN125,GUN125,126,KUN125,126,LAN125,TGN126,128..(ADC,ASC,PDC,SDC,SSC,SXT,TDC,TSC,TXT)..(5F,5FC,6FC) PNC 36102G=TYPE B |
1 | ||
| 33309-71030 |
GGN125,GUN125,126,KUN126,LAN125,TGN126,128..(ADC,ASC,PDC,SDC,SSC,SXT,TDC,TSC,TXT)..(5F,5FC,6FC) PNC 36102G=TYPE A |
1 | ||
| 33309D - SEAL, OIL(FOR TRANSFER OUTPUT SHAFT COMPANION FLANGE) | ||||
| 90312-23001 |
TGN126..M..GCC;GUN126..6FC..PKN;TGN126..5F..L..GEN;GUN125..6FC..L..GCC;TGN126..(L,S,X)..(GCC,LA) PNC36102G=T/P A,NO.1 |
1 | ||
| 90312-23001 |
TGN126..M..LA;GUN126..PDC..6F;TGN126..6FC..L..GEN;GUN125..TDC..6F..GCC;TGN126..(M,S,X)..(BZAGT,GEN,SA);GUN125..TDC..(GEN,IDN,LA,PH,TH,VN);GUN125..ADC,ASC,SDC,SSC,SXT,TSC,TXT;GUN125..TDC..6FC..(M,S,X)..(ARL,GCC);GUN126..ADC,ASC,PSC,SDC,SSC,SXT,TDC,TSC,TXT;GGN125,KUN125,126,LAN125,TGN128..ARL,BZAGT,GCC,GEN,IDN,LA,PKN,SA,VN PNC36102G=T/P A,NO.1 |
1 | ||
| 90312-32006 |
GUN125..TDC..6FC..ARL;GUN125..ADC,ASC,SDC,SSC,SXT,TSC,TXT;GUN125..TDC..(GCC,GEN,IDN,LA,PH,TH,VN);GGN125,GUN126,KUN126,LAN125,TGN126,128..ADC,ASC,PDC,PSC,SDC,SSC,SXT,TDC,TSC,TXT PNC36102G=T/P A,NO.2 |
1 | ||
| 90312-23001 |
TGN126..M..GCC;TGN126..L..GEN;GUN126..6FC..PKN;GUN125..6FC..L..GCC;TGN126..(L,S,X)..(GCC,LA) PNC 36102G=TYPE A |
1 | ||
| 90312-T0004 |
KUN125..LHD..SSC;GUN125..TDC..6FC..ARL;KUN125..ASC,SXT,TDC,TSC,TXT;GUN125..ADC,ASC,SDC,SSC,SXT,TSC,TXT;GUN125..TDC..(GCC,GEN,IDN,LA,PH,TH,VN);GGN125,GUN126,KUN126,LAN125,TGN126,128..ADC,ASC,PDC,PSC,SDC,SSC,SXT,TDC,TSC,TXT PNC36102G=T/P B,NO.1 |
1 | ||
| 33309D - SEAL, OIL(FOR TRANSFER OUTPUT SHAFT COMPANION FLANGE) | ||||
| 90312-23001 |
TGN126..M..GCC;GUN126..6FC..PKN;TGN126..5F..L..GEN;GUN125..6FC..L..GCC;TGN126..(L,S,X)..(GCC,LA) PNC36102G=T/P A,NO.1 |
1 | ||
| 90312-23001 |
TGN126..M..LA;GUN126..PDC..6F;TGN126..6FC..L..GEN;GUN125..TDC..6F..GCC;TGN126..(M,S,X)..(BZAGT,GEN,SA);GUN125..TDC..(GEN,IDN,LA,PH,TH,VN);GUN125..ADC,ASC,SDC,SSC,SXT,TSC,TXT;GUN125..TDC..6FC..(M,S,X)..(ARL,GCC);GUN126..ADC,ASC,PSC,SDC,SSC,SXT,TDC,TSC,TXT;GGN125,KUN125,126,LAN125,TGN128..ARL,BZAGT,GCC,GEN,IDN,LA,PKN,SA,VN PNC36102G=T/P A,NO.1 |
1 | ||
| 90312-32006 |
GUN125..TDC..6FC..ARL;GUN125..ADC,ASC,SDC,SSC,SXT,TSC,TXT;GUN125..TDC..(GCC,GEN,IDN,LA,PH,TH,VN);GGN125,GUN126,KUN126,LAN125,TGN126,128..ADC,ASC,PDC,PSC,SDC,SSC,SXT,TDC,TSC,TXT PNC36102G=T/P A,NO.2 |
1 | ||
| 90312-23001 |
TGN126..M..GCC;TGN126..L..GEN;GUN126..6FC..PKN;GUN125..6FC..L..GCC;TGN126..(L,S,X)..(GCC,LA) PNC 36102G=TYPE A |
1 | ||
| 90312-T0004 |
KUN125..LHD..SSC;GUN125..TDC..6FC..ARL;KUN125..ASC,SXT,TDC,TSC,TXT;GUN125..ADC,ASC,SDC,SSC,SXT,TSC,TXT;GUN125..TDC..(GCC,GEN,IDN,LA,PH,TH,VN);GGN125,GUN126,KUN126,LAN125,TGN126,128..ADC,ASC,PDC,PSC,SDC,SSC,SXT,TDC,TSC,TXT PNC36102G=T/P B,NO.1 |
1 | ||
| 33309F - NUT (FOR TRANSFER OUTPUT SHAFT COMPANION FLANGE) | ||||
| 90179-24011 |
KUN125..LHD..SSC;GUN125..TDC..6FC..ARL;KUN125..ASC,SXT,TDC,TSC,TXT;GUN125..ADC,ASC,SDC,SSC,SXT,TSC,TXT;GUN125..TDC..(GCC,GEN,IDN,LA,PH,TH,VN);GGN125,GUN126,KUN126,LAN125,TGN126,128..ADC,ASC,PDC,PSC,SDC,SSC,SXT,TDC,TSC,TXT PNC36102G=T/P B,NO.2 |
1 | ||
| 90179-24011 |
GUN125..TDC..6FC..ARL;GUN125..ADC,ASC,SDC,SSC,SXT,TSC,TXT;GUN125..TDC..(GCC,GEN,IDN,LA,PH,TH,VN);GGN125,GUN126,KUN125,126,LAN125,TGN126,128..ADC,ASC,PDC,PSC,SDC,SSC,SXT,TDC,TSC,TXT PNC36102G=T/P A,NO.2 |
1 | ||
| 90179-22016 |
GUN125..TDC..6FC..ARL;GUN125..ADC,ASC,SDC,SSC,SXT,TSC,TXT;GUN125..TDC..(GCC,GEN,IDN,LA,PH,TH,VN);GGN125,GUN126,KUN125,126,LAN125,TGN126,128..ADC,ASC,PDC,PSC,SDC,SSC,SXT,TDC,TSC,TXT PNC36102G=T/P A,NO.1 |
1 | ||
| 90179-22016 |
KUN125..LHD..SSC;GUN125..TDC..6FC..ARL;KUN125..ASC,SXT,TDC,TSC,TXT;GUN125..ADC,ASC,SDC,SSC,SXT,TSC,TXT;GUN125..TDC..(GCC,GEN,IDN,LA,PH,TH,VN);GGN125,GUN126,KUN126,LAN125,TGN126,128..ADC,ASC,PDC,PSC,SDC,SSC,SXT,TDC,TSC,TXT PNC36102G=T/P B,NO.1 |
1 | ||
| 33309F - NUT (FOR TRANSFER OUTPUT SHAFT COMPANION FLANGE) | ||||
| 90179-24011 |
KUN125..LHD..SSC;GUN125..TDC..6FC..ARL;KUN125..ASC,SXT,TDC,TSC,TXT;GUN125..ADC,ASC,SDC,SSC,SXT,TSC,TXT;GUN125..TDC..(GCC,GEN,IDN,LA,PH,TH,VN);GGN125,GUN126,KUN126,LAN125,TGN126,128..ADC,ASC,PDC,PSC,SDC,SSC,SXT,TDC,TSC,TXT PNC36102G=T/P B,NO.2 |
1 | ||
| 90179-24011 |
GUN125..TDC..6FC..ARL;GUN125..ADC,ASC,SDC,SSC,SXT,TSC,TXT;GUN125..TDC..(GCC,GEN,IDN,LA,PH,TH,VN);GGN125,GUN126,KUN125,126,LAN125,TGN126,128..ADC,ASC,PDC,PSC,SDC,SSC,SXT,TDC,TSC,TXT PNC36102G=T/P A,NO.2 |
1 | ||
| 90179-22016 |
GUN125..TDC..6FC..ARL;GUN125..ADC,ASC,SDC,SSC,SXT,TSC,TXT;GUN125..TDC..(GCC,GEN,IDN,LA,PH,TH,VN);GGN125,GUN126,KUN125,126,LAN125,TGN126,128..ADC,ASC,PDC,PSC,SDC,SSC,SXT,TDC,TSC,TXT PNC36102G=T/P A,NO.1 |
1 | ||
| 90179-22016 |
KUN125..LHD..SSC;GUN125..TDC..6FC..ARL;KUN125..ASC,SXT,TDC,TSC,TXT;GUN125..ADC,ASC,SDC,SSC,SXT,TSC,TXT;GUN125..TDC..(GCC,GEN,IDN,LA,PH,TH,VN);GGN125,GUN126,KUN126,LAN125,TGN126,128..ADC,ASC,PDC,PSC,SDC,SSC,SXT,TDC,TSC,TXT PNC36102G=T/P B,NO.1 |
1 | ||
| 33309H - WASHER, TRANSFER OUTPUT SHAFT | ||||
| 36275-71010 |
GUN125..TDC..6FC..ARL;GUN125..ADC,ASC,SDC,SSC,SXT,TSC,TXT;GUN125..TDC..(GCC,GEN,IDN,LA,PH,TH,VN);GGN125,GUN126,KUN125,126,LAN125,TGN126,128..ADC,ASC,PDC,PSC,SDC,SSC,SXT,TDC,TSC,TXT T=0.8,PNC 36102G=TYPE A |
2 | ||
| 36275-71010 |
KUN125..LHD..SSC;GUN125..TDC..6FC..ARL;KUN125..ASC,SXT,TDC,TSC,TXT;GUN125..ADC,ASC,SDC,SSC,SXT,TSC,TXT;GUN125..TDC..(GCC,GEN,IDN,LA,PH,TH,VN);GGN125,GUN126,KUN126,LAN125,TGN126,128..ADC,ASC,PDC,PSC,SDC,SSC,SXT,TDC,TSC,TXT T=0.8,PNC 36102G=TYPE B |
2 | ||
| 33309H - WASHER, TRANSFER OUTPUT SHAFT | ||||
| 36275-71010 |
GUN125..TDC..6FC..ARL;GUN125..ADC,ASC,SDC,SSC,SXT,TSC,TXT;GUN125..TDC..(GCC,GEN,IDN,LA,PH,TH,VN);GGN125,GUN126,KUN125,126,LAN125,TGN126,128..ADC,ASC,PDC,PSC,SDC,SSC,SXT,TDC,TSC,TXT T=0.8,PNC 36102G=TYPE A |
2 | ||
| 36275-71010 |
KUN125..LHD..SSC;GUN125..TDC..6FC..ARL;KUN125..ASC,SXT,TDC,TSC,TXT;GUN125..ADC,ASC,SDC,SSC,SXT,TSC,TXT;GUN125..TDC..(GCC,GEN,IDN,LA,PH,TH,VN);GGN125,GUN126,KUN126,LAN125,TGN126,128..ADC,ASC,PDC,PSC,SDC,SSC,SXT,TDC,TSC,TXT T=0.8,PNC 36102G=TYPE B |
2 | ||
| 33449D - MAGNET (FOR TRANSFER CASE) | ||||
| 33449-32020 |
GUN125..TDC..6FC..ARL;GUN125..ADC,ASC,SDC,SSC,SXT,TSC,TXT;GUN125..TDC..(GCC,GEN,IDN,LA,PH,TH,VN);GGN125,GUN126,KUN125,126,LAN125,TGN126,128..ADC,ASC,PDC,PSC,SDC,SSC,SXT,TDC,TSC,TXT PNC 36102G=TYPE A |
1 | ||
| 33449-32020 |
KUN125..LHD..SSC;GUN125..TDC..6FC..ARL;KUN125..ASC,SXT,TDC,TSC,TXT;GUN125..ADC,ASC,SDC,SSC,SXT,TSC,TXT;GUN125..TDC..(GCC,GEN,IDN,LA,PH,TH,VN);GGN125,GUN126,KUN126,LAN125,TGN126,128..ADC,ASC,PDC,PSC,SDC,SSC,SXT,TDC,TSC,TXT PNC 36102G=TYPE B |
1 | ||
| 36102 - COVER SUB-ASSY, TRANSFER CASE | ||||
| 36102-35040 |
GUN125..TDC..6FC..ARL;GUN125..ADC,ASC,SDC,SSC,SXT,TSC,TXT;GUN125..TDC..(GCC,GEN,IDN,LA,PH,TH,VN);GGN125,GUN126,KUN125,126,LAN125,TGN126,128..ADC,ASC,PDC,PSC,SDC,SSC,SXT,TDC,TSC,TXT PNC 36102G=TYPE A |
1 | ||
| 36102-0K020 |
KUN125..LHD..SSC;GUN125..TDC..6FC..ARL;KUN125..ASC,SXT,TDC,TSC,TXT;GUN125..ADC,ASC,SDC,SSC,SXT,TSC,TXT;GUN125..TDC..(GCC,GEN,IDN,LA,PH,TH,VN);GGN125,GUN126,KUN126,LAN125,TGN126,128..ADC,ASC,PDC,PSC,SDC,SSC,SXT,TDC,TSC,TXT PNC 36102G=TYPE B |
1 | ||
| 36102G - RETAINER SUB-ASSY, TRANSFER FRONT BEARING | ||||
| 36102-0K010 |
GGN125,GUN125,126,KUN125,126,LAN125,TGN126,128..(ADC,ASC,PDC,SDC,SSC,SXT,TDC,TSC,TXT)..(5F,5FC,6FC) TYPE B:REFER ILLUST. |
1 | ||
| 36102-35060 |
GGN125,GUN125,126,KUN125,126,LAN125,TGN126,128..(ADC,ASC,PDC,SDC,SSC,SXT,TDC,TSC,TXT)..(5F,5FC,6FC) TYPE A:REFER ILLUST. |
1 | ||
| 36102L - SEAL, TYPE T OIL(FOR TRANSFER FRONT BEARING) | ||||
| 90311-T0071 |
KUN125..LHD..SSC;GUN125..TDC..6FC..ARL;KUN125..ASC,SXT,TDC,TSC,TXT;GUN125..ADC,ASC,SDC,SSC,SXT,TSC,TXT;GUN125..TDC..(GCC,GEN,IDN,LA,PH,TH,VN);GGN125,GUN126,KUN126,LAN125,TGN126,128..ADC,ASC,PDC,PSC,SDC,SSC,SXT,TDC,TSC,TXT PNC 36102G=TYPE B |
1 | ||
| 90311-43008 |
GUN125..TDC..6FC..ARL;GUN125..ADC,ASC,SDC,SSC,SXT,TSC,TXT;GUN125..TDC..(GCC,GEN,IDN,LA,PH,TH,VN);GGN125,GUN126,KUN125,126,LAN125,TGN126,128..ADC,ASC,PDC,PSC,SDC,SSC,SXT,TDC,TSC,TXT PNC 36102G=TYPE A |
1 | ||
| 36103A - BOLT (FOR TRANSFER CASE) | ||||
| 90119-T0411 |
KUN125..LHD..SSC;GUN125..TDC..6FC..ARL;KUN125..ASC,SXT,TDC,TSC,TXT;GUN125..ADC,ASC,SDC,SSC,SXT,TSC,TXT;GUN125..TDC..(GCC,GEN,IDN,LA,PH,TH,VN);GGN125,GUN126,KUN126,LAN125,TGN126,128..ADC,ASC,PDC,PSC,SDC,SSC,SXT,TDC,TSC,TXT *8-1.25PX55-30,PNC 36102G=TYPE B |
12 | ||
| 90119-08A28 |
GUN125..TDC..6FC..ARL;GUN125..ADC,ASC,SDC,SSC,SXT,TSC,TXT;GUN125..TDC..(GCC,GEN,IDN,LA,PH,TH,VN);GGN125,GUN126,KUN125,126,LAN125,TGN126,128..ADC,ASC,PDC,PSC,SDC,SSC,SXT,TDC,TSC,TXT *8-1.25PX55-30,PNC 36102G=TYPE A |
12 | ||
| 36103C - CASE, TRANSFER, FRONT | ||||
| 36103-35060 |
GUN125..TDC..6FC..ARL;GUN125..ADC,ASC,SDC,SSC,SXT,TSC,TXT;GUN125..TDC..(GCC,GEN,IDN,LA,PH,TH,VN);GGN125,GUN126,KUN125,126,LAN125,TGN126,128..ADC,ASC,PDC,PSC,SDC,SSC,SXT,TDC,TSC,TXT PNC 36102G=TYPE A |
1 | ||
| 36111-0K030 |
KUN125..LHD..SSC;GUN125..TDC..6FC..ARL;KUN125..ASC,SXT,TDC,TSC,TXT;GUN125..ADC,ASC,SDC,SSC,SXT,TSC,TXT;GUN125..TDC..(GCC,GEN,IDN,LA,PH,TH,VN);GGN125,GUN126,KUN126,LAN125,TGN126,128..ADC,ASC,PDC,PSC,SDC,SSC,SXT,TDC,TSC,TXT PNC 36102G=TYPE B |
1 | ||
| 36103C - CASE, TRANSFER, FRONT | ||||
| 36103-35060 |
GUN125..TDC..6FC..ARL;GUN125..ADC,ASC,SDC,SSC,SXT,TSC,TXT;GUN125..TDC..(GCC,GEN,IDN,LA,PH,TH,VN);GGN125,GUN126,KUN125,126,LAN125,TGN126,128..ADC,ASC,PDC,PSC,SDC,SSC,SXT,TDC,TSC,TXT PNC 36102G=TYPE A |
1 | ||
| 36111-0K030 |
KUN125..LHD..SSC;GUN125..TDC..6FC..ARL;KUN125..ASC,SXT,TDC,TSC,TXT;GUN125..ADC,ASC,SDC,SSC,SXT,TSC,TXT;GUN125..TDC..(GCC,GEN,IDN,LA,PH,TH,VN);GGN125,GUN126,KUN126,LAN125,TGN126,128..ADC,ASC,PDC,PSC,SDC,SSC,SXT,TDC,TSC,TXT PNC 36102G=TYPE B |
1 | ||
| 36107A - ADAPTER SUB-ASSY, TRANSFER | ||||
| 36107-0K020 |
TGN126..5F TYPE A:REFER 33-01 |
1 | ||
| 36107-0K020 |
TGN126..5F TYPE C:REFER 33-01 |
1 | ||
| 36107-0K060 |
TGN126..5F TYPE B:REFER 33-01 |
1 | ||
| 36111A - SPRING, COMPRESSION (FOR TRANSFER CASE) | ||||
| 90501-20091 |
GUN125..TDC..6FC..ARL;GUN125..ADC,ASC,SDC,SSC,SXT,TSC,TXT;GUN125..TDC..(GCC,GEN,IDN,LA,PH,TH,VN);GGN125,GUN126,KUN125,126,LAN125,TGN126,128..ADC,ASC,PDC,PSC,SDC,SSC,SXT,TDC,TSC,TXT PNC 36102G=TYPE A |
1 | ||
| 90501-T0034 |
KUN125..LHD..SSC;GUN125..TDC..6FC..ARL;KUN125..ASC,SXT,TDC,TSC,TXT;GUN125..ADC,ASC,SDC,SSC,SXT,TSC,TXT;GUN125..TDC..(GCC,GEN,IDN,LA,PH,TH,VN);GGN125,GUN126,KUN126,LAN125,TGN126,128..ADC,ASC,PDC,PSC,SDC,SSC,SXT,TDC,TSC,TXT PNC 36102G=TYPE B |
1 | ||
| 36111B - SEAL, OIL (FOR TRANSFER CASE) | ||||
| 90311-41017 |
GUN125..TDC..6FC..ARL;GUN125..ADC,ASC,SDC,SSC,SXT,TSC,TXT;GUN125..TDC..(GCC,GEN,IDN,LA,PH,TH,VN);GGN125,GUN126,KUN125,126,LAN125,TGN126,128..ADC,ASC,PDC,PSC,SDC,SSC,SXT,TDC,TSC,TXT PNC 36102G=TYPE A |
1 | ||
| 90311-T0082 |
KUN125..LHD..SSC;GUN125..TDC..6FC..ARL;KUN125..ASC,SXT,TDC,TSC,TXT;GUN125..ADC,ASC,SDC,SSC,SXT,TSC,TXT;GUN125..TDC..(GCC,GEN,IDN,LA,PH,TH,VN);GGN125,GUN126,KUN126,LAN125,TGN126,128..ADC,ASC,PDC,PSC,SDC,SSC,SXT,TDC,TSC,TXT PNC 36102G=TYPE B |
1 | ||
| 36111C - PLUG (FOR TRANSFER CASE) | ||||
| 90341-T0013 |
KUN125..LHD..SSC;GUN125..TDC..6FC..ARL;KUN125..ASC,SXT,TDC,TSC,TXT;GUN125..ADC,ASC,SDC,SSC,SXT,TSC,TXT;GUN125..TDC..(GCC,GEN,IDN,LA,PH,TH,VN);GGN125,GUN126,KUN126,LAN125,TGN126,128..ADC,ASC,PDC,PSC,SDC,SSC,SXT,TDC,TSC,TXT PNC 36102G=TYPE B |
1 | ||
| 90341-14012 |
GUN125..TDC..6FC..ARL;GUN125..ADC,ASC,SDC,SSC,SXT,TSC,TXT;GUN125..TDC..(GCC,GEN,IDN,LA,PH,TH,VN);GGN125,GUN126,KUN125,126,LAN125,TGN126,128..ADC,ASC,PDC,PSC,SDC,SSC,SXT,TDC,TSC,TXT PNC 36102G=TYPE A |
1 | ||
| 36111G - PIN, STRAIGHT (FOR TRANSFER CASE) | ||||
| 90250-T0026 |
KUN125..LHD..SSC;GUN125..TDC..6FC..ARL;KUN125..ASC,SXT,TDC,TSC,TXT;GUN125..ADC,ASC,SDC,SSC,SXT,TSC,TXT;GUN125..TDC..(GCC,GEN,IDN,LA,PH,TH,VN);GGN125,GUN126,KUN126,LAN125,TGN126,128..ADC,ASC,PDC,PSC,SDC,SSC,SXT,TDC,TSC,TXT L=14,OD=10,PNC 36102G=TYPE B |
2 | ||
| 90250-10214 |
GUN125..TDC..6FC..ARL;GUN125..ADC,ASC,SDC,SSC,SXT,TSC,TXT;GUN125..TDC..(GCC,GEN,IDN,LA,PH,TH,VN);GGN125,GUN126,KUN125,126,LAN125,TGN126,128..ADC,ASC,PDC,PSC,SDC,SSC,SXT,TDC,TSC,TXT L=14,OD=10,PNC 36102G=TYPE A |
2 | ||
| 36111R - PLUG, TIGHT (FOR TRANSFER CASE) | ||||
| 90331-15003 |
GUN125..TDC..6FC..ARL;GUN125..ADC,ASC,SDC,SSC,SXT,TSC,TXT;GUN125..TDC..(GCC,GEN,IDN,LA,PH,TH,VN);GGN125,GUN126,KUN125,126,LAN125,TGN126,128..ADC,ASC,PDC,PSC,SDC,SSC,SXT,TDC,TSC,TXT PNC 36102G=TYPE A |
1 | ||
| 90331-15003 |
KUN125..LHD..SSC;GUN125..TDC..6FC..ARL;KUN125..ASC,SXT,TDC,TSC,TXT;GUN125..ADC,ASC,SDC,SSC,SXT,TSC,TXT;GUN125..TDC..(GCC,GEN,IDN,LA,PH,TH,VN);GGN125,GUN126,KUN126,LAN125,TGN126,128..ADC,ASC,PDC,PSC,SDC,SSC,SXT,TDC,TSC,TXT PNC 36102G=TYPE B |
1 | ||
| 36111T - TUBE (FOR TRANSFER CASE) | ||||
| 90441-05001 |
GUN125..TDC..6FC..ARL;GUN125..ADC,ASC,SDC,SSC,SXT,TSC,TXT;GUN125..TDC..(GCC,GEN,IDN,LA,PH,TH,VN);GGN125,GUN126,KUN125,126,LAN125,TGN126,128..ADC,ASC,PDC,PSC,SDC,SSC,SXT,TDC,TSC,TXT PNC 36102G=TYPE A |
1 | ||
| 36112 - CASE, TRANSFER, REAR | ||||
| 36112-0K030 |
KUN125..LHD..SSC;GUN125..TDC..6FC..ARL;KUN125..ASC,SXT,TDC,TSC,TXT;GUN125..ADC,ASC,SDC,SSC,SXT,TSC,TXT;GUN125..TDC..(GCC,GEN,IDN,LA,PH,TH,VN);GGN125,GUN126,KUN126,LAN125,TGN126,128..ADC,ASC,PDC,PSC,SDC,SSC,SXT,TDC,TSC,TXT PNC 36102G=TYPE B |
1 | ||
| 36112-71010 |
GUN125..TDC..6FC..ARL;GUN125..ADC,ASC,SDC,SSC,SXT,TSC,TXT;GUN125..TDC..(GCC,GEN,IDN,LA,PH,TH,VN);GGN125,GUN126,KUN125,126,LAN125,TGN126,128..ADC,ASC,PDC,PSC,SDC,SSC,SXT,TDC,TSC,TXT PNC 36102G=TYPE A |
1 | ||
| 36114B - PLUG, NO.1 (FOR TRANSFER CASE) | ||||
| 90341-18006 |
GUN125..TDC..6FC..ARL;GUN125..ADC,ASC,SDC,SSC,SXT,TSC,TXT;GUN125..TDC..(GCC,GEN,IDN,LA,PH,TH,VN);GGN125,GUN126,KUN125,126,LAN125,TGN126,128..ADC,ASC,PDC,PSC,SDC,SSC,SXT,TDC,TSC,TXT PNC 36102G=TYPE A |
1 | ||
| 90341-18006 |
KUN125..LHD..SSC;GUN125..TDC..6FC..ARL;KUN125..ASC,SXT,TDC,TSC,TXT;GUN125..ADC,ASC,SDC,SSC,SXT,TSC,TXT;GUN125..TDC..(GCC,GEN,IDN,LA,PH,TH,VN);GGN125,GUN126,KUN126,LAN125,TGN126,128..ADC,ASC,PDC,PSC,SDC,SSC,SXT,TDC,TSC,TXT PNC 36102G=TYPE B |
1 | ||
| 36114C - GASKET, NO.1 (FOR TRANSFER CASE) | ||||
| 90430-18008 |
GUN125..TDC..6FC..ARL;GUN125..ADC,ASC,SDC,SSC,SXT,TSC,TXT;GUN125..TDC..(GCC,GEN,IDN,LA,PH,TH,VN);GGN125,GUN126,KUN125,126,LAN125,TGN126,128..ADC,ASC,PDC,PSC,SDC,SSC,SXT,TDC,TSC,TXT PNC 36102G=TYPE A |
1 | ||
| 90430-T0021 |
KUN125..LHD..SSC;GUN125..TDC..6FC..ARL;KUN125..ASC,SXT,TDC,TSC,TXT;GUN125..ADC,ASC,SDC,SSC,SXT,TSC,TXT;GUN125..TDC..(GCC,GEN,IDN,LA,PH,TH,VN);GGN125,GUN126,KUN126,LAN125,TGN126,128..ADC,ASC,PDC,PSC,SDC,SSC,SXT,TDC,TSC,TXT PNC 36102G=TYPE B |
1 | ||
| 36114F - PLUG (FOR TRANSFER DRAIN) | ||||
| 90341-18006 |
KUN125..LHD..SSC;GUN125..TDC..6FC..ARL;KUN125..ASC,SXT,TDC,TSC,TXT;GUN125..ADC,ASC,SDC,SSC,SXT,TSC,TXT;GUN125..TDC..(GCC,GEN,IDN,LA,PH,TH,VN);GGN125,GUN126,KUN126,LAN125,TGN126,128..ADC,ASC,PDC,PSC,SDC,SSC,SXT,TDC,TSC,TXT PNC 36102G=TYPE B |
1 | ||
| 90341-18006 |
GUN125..TDC..6FC..ARL;GUN125..ADC,ASC,SDC,SSC,SXT,TSC,TXT;GUN125..TDC..(GCC,GEN,IDN,LA,PH,TH,VN);GGN125,GUN126,KUN125,126,LAN125,TGN126,128..ADC,ASC,PDC,PSC,SDC,SSC,SXT,TDC,TSC,TXT PNC 36102G=TYPE A |
1 | ||
| 36114G - GASKET (FOR TRANSFER DRAIN PLUG) | ||||
| 90430-18008 |
GUN125..TDC..6FC..ARL;GUN125..ADC,ASC,SDC,SSC,SXT,TSC,TXT;GUN125..TDC..(GCC,GEN,IDN,LA,PH,TH,VN);GGN125,GUN126,KUN125,126,LAN125,TGN126,128..ADC,ASC,PDC,PSC,SDC,SSC,SXT,TDC,TSC,TXT PNC 36102G=TYPE A |
1 | ||
| 90430-T0021 |
KUN125..LHD..SSC;GUN125..TDC..6FC..ARL;KUN125..ASC,SXT,TDC,TSC,TXT;GUN125..ADC,ASC,SDC,SSC,SXT,TSC,TXT;GUN125..TDC..(GCC,GEN,IDN,LA,PH,TH,VN);GGN125,GUN126,KUN126,LAN125,TGN126,128..ADC,ASC,PDC,PSC,SDC,SSC,SXT,TDC,TSC,TXT PNC 36102G=TYPE B |
1 | ||
| 36115 - HOUSING, TRANSFER EXTENSION | ||||
| 36105-71010 |
GUN125..TDC..6FC..ARL;GUN125..ADC,ASC,SDC,SSC,SXT,TSC,TXT;GUN125..TDC..(GCC,GEN,IDN,LA,PH,TH,VN);GGN125,GUN126,KUN125,126,LAN125,TGN126,128..ADC,ASC,PDC,PSC,SDC,SSC,SXT,TDC,TSC,TXT PNC 36102G=TYPE A |
1 | ||
| 36105-0K020 |
KUN125..LHD..SSC;GUN125..TDC..6FC..ARL;KUN125..ASC,SXT,TDC,TSC,TXT;GUN125..ADC,ASC,SDC,SSC,SXT,TSC,TXT;GUN125..TDC..(GCC,GEN,IDN,LA,PH,TH,VN);GGN125,GUN126,KUN126,LAN125,TGN126,128..ADC,ASC,PDC,PSC,SDC,SSC,SXT,TDC,TSC,TXT PNC 36102G=TYPE B |
1 | ||
| 36115C - SEAL, TYPE T OIL (FOR TRANSFER EXTENSION HOUSING) | ||||
| 90311-45034 |
GUN125..TDC..6FC..ARL;GUN125..ADC,ASC,SDC,SSC,SXT,TSC,TXT;GUN125..TDC..(GCC,GEN,IDN,LA,PH,TH,VN);GGN125,GUN126,KUN125,126,LAN125,TGN126,128..ADC,ASC,PDC,PSC,SDC,SSC,SXT,TDC,TSC,TXT PNC 36102G=TYPE A |
1 | ||
| 90311-T0072 |
KUN125..LHD..SSC;GUN125..TDC..6FC..ARL;KUN125..ASC,SXT,TDC,TSC,TXT;GUN125..ADC,ASC,SDC,SSC,SXT,TSC,TXT;GUN125..TDC..(GCC,GEN,IDN,LA,PH,TH,VN);GGN125,GUN126,KUN126,LAN125,TGN126,128..ADC,ASC,PDC,PSC,SDC,SSC,SXT,TDC,TSC,TXT PNC 36102G=TYPE B |
1 | ||
| 36117A - SEAL, OIL(FOR TRANSFER ADAPTER) | ||||
| 90311-T0018 |
TGN126..5F TYPE A:REFER 33-01,TYPE C:REFER 33-01 |
1 | ||
| 90311-T0028 |
TGN126..5F TYPE B:REFER 33-01 |
1 | ||
| 36117D - PLUG(FOR TRANSFER ADAPTER) | ||||
| 90331-21003 |
TGN126..5F TYPE B:REFER 33-01,TYPE C:REFER 33-01 |
1 | ||
| 90331-21003 |
TGN126..5F TYPE A:REFER 33-01 |
1 | ||
| 36117L - TUBE(FOR TRANSFER ADAPTER) | ||||
| 90406-T0007 |
TGN126..5F (L) |
1 | ||
| 90441-05001 |
TGN126..5F (J) |
1 | ||
| 90441-05001 |
TGN126..6FC;GGN125,GUN125,126,KUN125,126,LAN125,TGN128..(ADC,PDC,SDC,SSC,SXT,TDC,TSC,TXT)..(5F,5FC,6FC) |
1 | ||
| 36117M - CAP(FOR TRANSFER ADAPTER) | ||||
| 90339-04024 |
GGN125,GUN125,126,KUN125,126,LAN125,TGN126,128..(ADC,ASC,PDC,SDC,SSC,SXT,TDC,TSC,TXT)..(5F,5FC,6FC) |
1 | ||
| 36128 - DEFLECTOR, BREATHER OIL | ||||
| 36128-0K020 |
KUN125..LHD..SSC;GUN125..TDC..6FC..ARL;KUN125..ASC,SXT,TDC,TSC,TXT;GUN125..ADC,ASC,SDC,SSC,SXT,TSC,TXT;GUN125..TDC..(GCC,GEN,IDN,LA,PH,TH,VN);GGN125,GUN126,KUN126,LAN125,TGN126,128..ADC,ASC,PDC,PSC,SDC,SSC,SXT,TDC,TSC,TXT PNC 36102G=TYPE B |
1 | ||
| 36128-35060 |
GUN125..TDC..6FC..ARL;GUN125..ADC,ASC,SDC,SSC,SXT,TSC,TXT;GUN125..TDC..(GCC,GEN,IDN,LA,PH,TH,VN);GGN125,GUN126,KUN125,126,LAN125,TGN126,128..ADC,ASC,PDC,PSC,SDC,SSC,SXT,TDC,TSC,TXT PNC 36102G=TYPE A |
1 | ||
| 36149B - TUBE, TRANSFER BREATHER | ||||
| 90441-05001 |
GUN125..TDC..6FC..ARL;GUN125..ADC,ASC,SDC,SSC,SXT,TSC,TXT;GUN125..TDC..(GCC,GEN,IDN,LA,PH,TH,VN);GGN125,GUN126,KUN125,126,LAN125,TGN126,128..ADC,ASC,PDC,PSC,SDC,SSC,SXT,TDC,TSC,TXT PNC 36102G=TYPE A |
1 | ||
| 90406-T0007 |
KUN125..LHD..SSC;GUN125..TDC..6FC..ARL;KUN125..ASC,SXT,TDC,TSC,TXT;GUN125..ADC,ASC,SDC,SSC,SXT,TSC,TXT;GUN125..TDC..(GCC,GEN,IDN,LA,PH,TH,VN);GGN125,GUN126,KUN126,LAN125,TGN126,128..ADC,ASC,PDC,PSC,SDC,SSC,SXT,TDC,TSC,TXT PNC 36102G=TYPE B |
1 | ||
| 36179 - PROTECTOR, TRANSFER CASE LOWER | ||||
| 36179-0K011 |
GUN125..TDC..6FC..ARL;GUN125..ADC,ASC,SDC,SSC,SXT,TSC,TXT;GUN125..TDC..(GCC,GEN,IDN,LA,PH,TH,VN);GGN125,GUN126,KUN125,126,LAN125,TGN126,128..ADC,ASC,PDC,PSC,SDC,SSC,SXT,TDC,TSC,TXT |
1 | ||
| Common parts | ||||
| 90119-08336 | ||||
| 90119-10186 | ||||
| 90119-T0222 | ||||
| 90119-T0241 | ||||
| 90119-T0410 | ||||
| 90119-T0412 | ||||
| 90119-T0427 | ||||
| 90241-07003 | ||||
| 90250-11003 | ||||
| 90250-T0029 | ||||
| 90339-04024 | ||||
| 91611-60822 | ||||
| Linked diagrams | ||||
| 3312 | ||||
| 3611 | ||||
| 8202 | ||||
ILLUST NO. 2 OF 2(1505- )GGN125,GUN125,126,KUN125,126,TGN126,128..ARL,BZAGT,GCC,GEN,IDN,KEN,LA,MA
TRANSFER BREATHER HOSE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 36407 - HOSE SUB-ASSY, TRANSFER BREATHER | ||||
| 36407-0K010 |
TGN126..5F |
1 | ||
| 36407 - HOSE SUB-ASSY, TRANSFER BREATHER | ||||
| 36407-0K010 |
TGN126..5F |
1 | ||
| 36407 - HOSE SUB-ASSY, TRANSFER BREATHER | ||||
| 36407-0K010 |
TGN126..5F |
1 | ||
| 36407 - HOSE SUB-ASSY, TRANSFER BREATHER | ||||
| 36407-0K010 |
TGN126..5F |
1 | ||
| 36407 - HOSE SUB-ASSY, TRANSFER BREATHER | ||||
| 36407-0K010 |
TGN126..5F |
1 | ||
| 36478 - BRACKET, TRANSFER BREATHER | ||||
| 36478-0K020 |
GUN125..TDC..6FC..ARL;GUN125..ADC,ASC,SDC,SSC,SXT,TSC,TXT;GUN125..TDC..(GCC,GEN,IDN,LA,PH,TH,VN);GGN125,GUN126,KUN125,126,LAN125,TGN126,128..ADC,ASC,PDC,PSC,SDC,SSC,SXT,TDC,TSC,TXT |
1 | ||
| 36478 - BRACKET, TRANSFER BREATHER | ||||
| 36478-0K020 |
GUN125..TDC..6FC..ARL;GUN125..ADC,ASC,SDC,SSC,SXT,TSC,TXT;GUN125..TDC..(GCC,GEN,IDN,LA,PH,TH,VN);GGN125,GUN126,KUN125,126,LAN125,TGN126,128..ADC,ASC,PDC,PSC,SDC,SSC,SXT,TDC,TSC,TXT |
1 | ||
| 36478 - BRACKET, TRANSFER BREATHER | ||||
| 36478-0K020 |
GUN125..TDC..6FC..ARL;GUN125..ADC,ASC,SDC,SSC,SXT,TSC,TXT;GUN125..TDC..(GCC,GEN,IDN,LA,PH,TH,VN);GGN125,GUN126,KUN125,126,LAN125,TGN126,128..ADC,ASC,PDC,PSC,SDC,SSC,SXT,TDC,TSC,TXT |
1 | ||
| 36478 - BRACKET, TRANSFER BREATHER | ||||
| 36478-0K020 |
GUN125..TDC..6FC..ARL;GUN125..ADC,ASC,SDC,SSC,SXT,TSC,TXT;GUN125..TDC..(GCC,GEN,IDN,LA,PH,TH,VN);GGN125,GUN126,KUN125,126,LAN125,TGN126,128..ADC,ASC,PDC,PSC,SDC,SSC,SXT,TDC,TSC,TXT |
1 | ||
| 36478 - BRACKET, TRANSFER BREATHER | ||||
| 36478-0K020 |
GUN125..TDC..6FC..ARL;GUN125..ADC,ASC,SDC,SSC,SXT,TSC,TXT;GUN125..TDC..(GCC,GEN,IDN,LA,PH,TH,VN);GGN125,GUN126,KUN125,126,LAN125,TGN126,128..ADC,ASC,PDC,PSC,SDC,SSC,SXT,TDC,TSC,TXT |
1 | ||
| Common parts | ||||
| 90412-05002 | ||||
| 90464-00074 | ||||
| 90464-00082 | ||||
| 90464-00320 | ||||
| 90464-00684 | ||||
| 90929-01447 | ||||
| 90930-03207 | ||||
| Linked diagrams | ||||
| 3302 | ||||
| 3503 | ||||
| 3611 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
