TGN126L-DTMLKV (2015)
Toyota Hilux
(1505- )LAN125,TGN126..5F

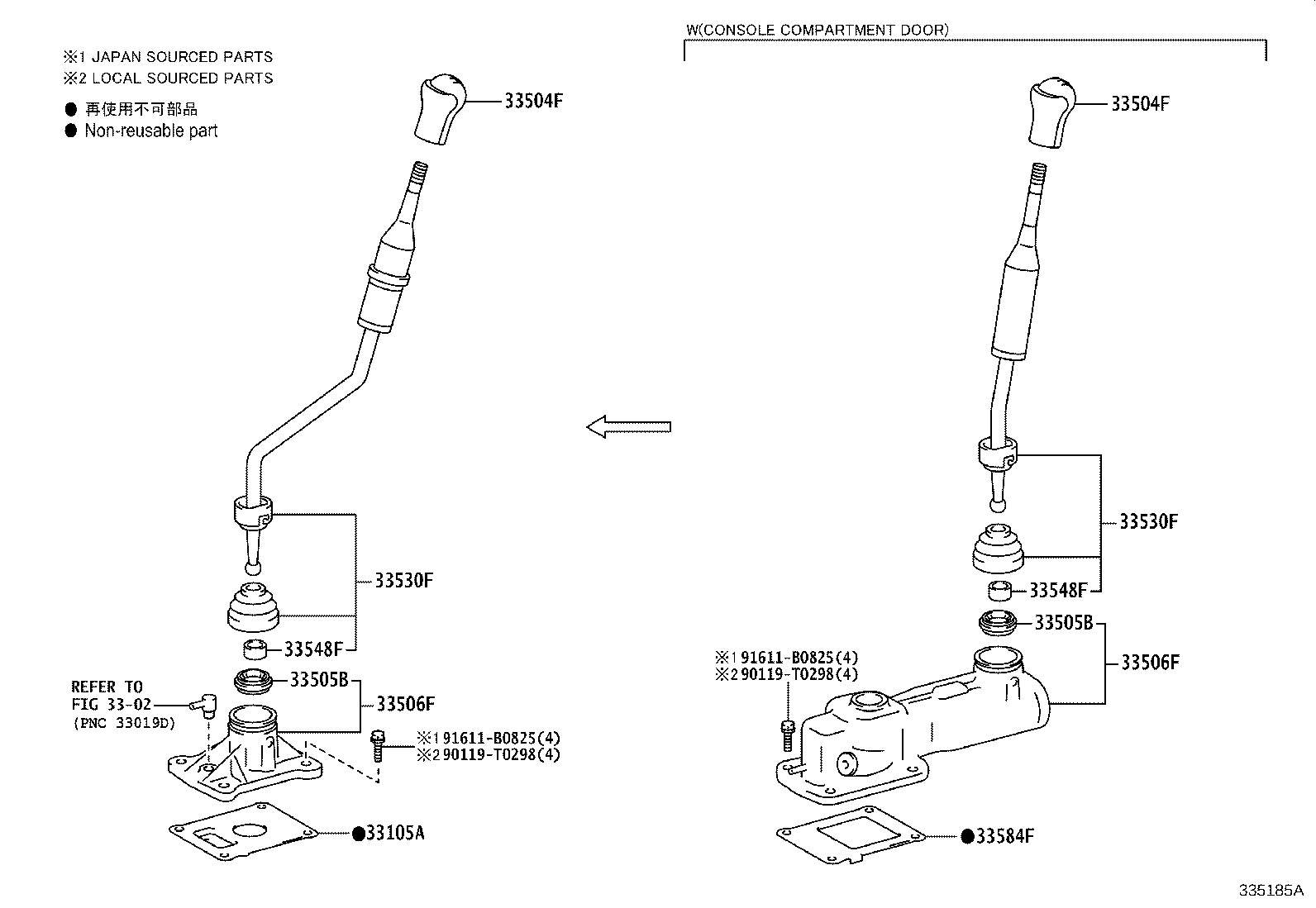

| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 33105A - DEFLECTOR SUB-ASSY, EXTENSION HOUSING OIL(MTM) | ||||
| 33144-35030 |
TGN126..TSC..S;TGN126..5F..(L,X) TYPE A:REFER 33-01 |
1 | ||
| 33144-35030 |
TGN126..TSC..S;TGN126..5F..(L,X) TYPE B:REFER 33-01,TYPE C:REFER 33-01 |
1 | ||
| 33504F - KNOB SUB-ASSY, SHIFT LEVER | ||||
| 33504-0K050C0 |
TGN138..5F;GUN122,KUN122,TGN121,126,136..5F..(H,M) BLACK,TRIM2#,3#,4# |
1 | ||
| 33504-0K270C0 |
TGN126..TSC..S;TGN126..5F..L..GCC;GUN112,122,KUN112,122,TGN11#,120,121..5F..(L,S)..(GCC,PKN) BLACK,TRIM2#,3# |
1 | ||
| 33504F - KNOB SUB-ASSY, SHIFT LEVER | ||||
| 33504-0K050C0 |
TGN138..5F;GUN122,KUN122,TGN121,126,136..5F..(H,M) BLACK,TRIM2#,3#,4# |
1 | ||
| 33504-0K270C0 |
TGN126..TSC..S;TGN126..5F..L..GCC;GUN112,122,KUN112,122,TGN11#,120,121..5F..(L,S)..(GCC,PKN) BLACK,TRIM2#,3# |
1 | ||
| 33505B - SEAT SUB-ASSY, SHIFT LEVER | ||||
| 33505-35030 |
TGN126..TSC..S;TGN126..5F..(L,X) TYPE C:REFER 33-01 |
1 | ||
| 33505-0K010 |
TGN126..(ADC,SDC,TDC)..5F..(M,S);TGN136..(ADC,ASC,SDC,TDC,TSC,TXT)..5F;GUN112,122,123,KUN112,122,TGN11#,120,121,138..5F TYPE C:REFER 33-01 |
1 | ||
| 33505-0K010 |
TGN136..(ADC,ASC,SDC,TDC,TSC,TXT)..5F;GUN13#..6F..(BZAGT,GEN,LA,MA,PH,SA,TH,VN);GUN125..(ADC,ASC,SDC,SSC,SXT,TSC,TXT)..6F;GUN125..TDC..6F..(GCC,GEN,IDN,LA,PH,TH,VN);GUN126,KUN122,126..MTM..(ARL,BZAGT,GCC,GEN,LA,PH,PKN,SA,TH,VN);GUN112,122,123,KUN112,125,13#,TGN11#,120,121,126,138..(ADC,ASC,SDC,SSC,SXT,TDC,TSC,TXT)..MTM TYPE B:REFER 33-01 |
1 | ||
| 33505-35030 |
TGN136..ADC..M;TGN126,138..5F..M..BZAGT;TGN120,121,126..(TDC,TSC,TXT)..5F;GUN112,122,123,KUN112,122,TGN11#..5F;TGN136..(ASC,TDC,TSC,TXT)..5F..(GEN,LA,TH) TYPE A:REFER 33-01 |
1 | ||
| 33505B - SEAT SUB-ASSY, SHIFT LEVER | ||||
| 33505-35030 |
TGN126..TSC..S;TGN126..5F..(L,X) TYPE C:REFER 33-01 |
1 | ||
| 33505-0K010 |
TGN126..(ADC,SDC,TDC)..5F..(M,S);TGN136..(ADC,ASC,SDC,TDC,TSC,TXT)..5F;GUN112,122,123,KUN112,122,TGN11#,120,121,138..5F TYPE C:REFER 33-01 |
1 | ||
| 33505-0K010 |
TGN136..(ADC,ASC,SDC,TDC,TSC,TXT)..5F;GUN13#..6F..(BZAGT,GEN,LA,MA,PH,SA,TH,VN);GUN125..(ADC,ASC,SDC,SSC,SXT,TSC,TXT)..6F;GUN125..TDC..6F..(GCC,GEN,IDN,LA,PH,TH,VN);GUN126,KUN122,126..MTM..(ARL,BZAGT,GCC,GEN,LA,PH,PKN,SA,TH,VN);GUN112,122,123,KUN112,125,13#,TGN11#,120,121,126,138..(ADC,ASC,SDC,SSC,SXT,TDC,TSC,TXT)..MTM TYPE B:REFER 33-01 |
1 | ||
| 33505-35030 |
TGN136..ADC..M;TGN126,138..5F..M..BZAGT;TGN120,121,126..(TDC,TSC,TXT)..5F;GUN112,122,123,KUN112,122,TGN11#..5F;TGN136..(ASC,TDC,TSC,TXT)..5F..(GEN,LA,TH) TYPE A:REFER 33-01 |
1 | ||
| 33506F - RETAINER SUB-ASSY, CONTROL SHIFT LEVER (FOR FLOOR SHIFT | ||||
| 33506-0K020 |
TGN126..TSC..S;TGN126..5F..(L,X) TYPE B:REFER 33-01 |
1 | ||
| 33506-60060 |
TGN126..TSC..S;TGN126..5F..(L,X) TYPE C:REFER 33-01 |
1 | ||
| 33570-0K050 |
TGN126..(ADC,SDC,TDC)..5F..(M,S) TYPE A:REFER 33-01 |
1 | ||
| 33570-0K060 |
TGN126..(ADC,SDC,TDC)..5F..(M,S) TYPE B:REFER 33-01 |
1 | ||
| 33570-0K070 |
TGN126..(ADC,SDC,TDC)..5F..(M,S) TYPE C:REFER 33-01 |
1 | ||
| 33506-0K010 |
TGN126..TSC..S;TGN126..5F..(L,X) TYPE A:REFER 33-01 |
1 | ||
| 33506F - RETAINER SUB-ASSY, CONTROL SHIFT LEVER (FOR FLOOR SHIFT | ||||
| 33506-0K020 |
TGN126..TSC..S;TGN126..5F..(L,X) TYPE B:REFER 33-01 |
1 | ||
| 33506-60060 |
TGN126..TSC..S;TGN126..5F..(L,X) TYPE C:REFER 33-01 |
1 | ||
| 33570-0K050 |
TGN126..(ADC,SDC,TDC)..5F..(M,S) TYPE A:REFER 33-01 |
1 | ||
| 33570-0K060 |
TGN126..(ADC,SDC,TDC)..5F..(M,S) TYPE B:REFER 33-01 |
1 | ||
| 33570-0K070 |
TGN126..(ADC,SDC,TDC)..5F..(M,S) TYPE C:REFER 33-01 |
1 | ||
| 33506-0K010 |
TGN126..TSC..S;TGN126..5F..(L,X) TYPE A:REFER 33-01 |
1 | ||
| 33530F - LEVER ASSY, SHIFT (FOR FLOOR SHIFT) | ||||
| 33530-0K630 |
TGN126..(ADC,SDC,TDC)..5F..(M,S) |
1 | ||
| 33530-0K740 |
TGN126..TSC..S;TGN126..5F..(L,X) |
1 | ||
| 33530F - LEVER ASSY, SHIFT (FOR FLOOR SHIFT) | ||||
| 33530-0K630 |
TGN126..(ADC,SDC,TDC)..5F..(M,S) |
1 | ||
| 33530-0K740 |
TGN126..TSC..S;TGN126..5F..(L,X) |
1 | ||
| 33548F - BUSH, NO.1, SHIFT LEVER (FOR FLOOR SHIFT) | ||||
| 33548-04010 |
TGN136..(ADC,ASC,SDC,TDC,TSC,TXT)..5F;GUN112,122,123,KUN112,122,LAN125,TGN11#,120,121,126,138..5F |
1 | ||
| 33548F - BUSH, NO.1, SHIFT LEVER (FOR FLOOR SHIFT) | ||||
| 33548-04010 |
TGN136..(ADC,ASC,SDC,TDC,TSC,TXT)..5F;GUN112,122,123,KUN112,122,LAN125,TGN11#,120,121,126,138..5F |
1 | ||
| 33584F - GASKET, CONTROL SHIFT LEVER RETAINER (FOR FLOOR SHIFT) | ||||
| 33584-0K030 |
TGN126..(ADC,SDC,TDC)..5F..(M,S) TYPE B:REFER 33-01 |
1 | ||
| 33584-60070 |
TGN126..(ADC,SDC,TDC)..5F..(M,S) TYPE C:REFER 33-01 |
1 | ||
| 33584-60070 |
TGN126..(ADC,SDC,TDC)..5F..(M,S) TYPE A:REFER 33-01 |
1 | ||
| Common parts | ||||
| 90119-T0298 | ||||
| 91611-B0825 | ||||
| Linked diagrams | ||||
| 3302 | ||||
