TGN126L-DTMLKV (2015)

Toyota Hilux

Production May 2015 - May 2020
Engine 2TRFE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

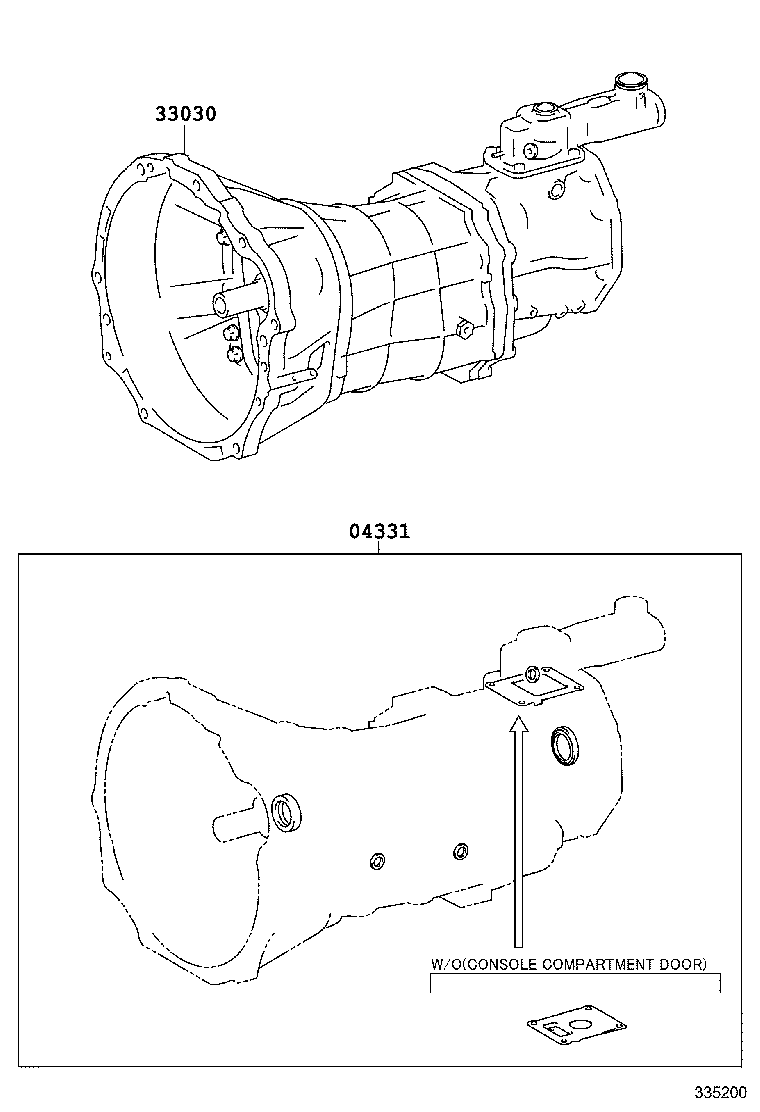

ILLUST NO. 1 OF 2(1505- )LAN125,TGN126..5F

Click highlighted areas on diagram

R151F

diagram 04331 33030
Part # Description Qty Price
04331 - GASKET KIT, MANUAL TRANSMISSION OVERHAUL
04331-0K500

TGN126..TDC..5F..(M,S)

TYPE C:REFER ILLUST.,TYPE A:REFER ILLUST.

 1
04331-0K490

TGN126..S..GCC;TGN126..5F..(L,X)

TYPE C:REFER ILLUST.,TYPE A:REFER ILLUST.

 1
04331-0K501

TGN126..(ADC,SDC,TDC)..5F..(M,S)

TYPE C:REFER ILLUST.,TYPE A:REFER ILLUST.

 1
04331-0K491

TGN126..TSC..S;TGN126..5F..(L,X)

TYPE C:REFER ILLUST.,TYPE A:REFER ILLUST.

 1
04331-0K502

TGN126..(ADC,SDC,TDC)..5F..(M,S)

TYPE A:REFER ILLUST.

 1
04331-0K520

TGN126..TSC..S;TGN126..5F..(L,X)

TYPE B:REFER ILLUST.

 1
04331-0K530

TGN126..(ADC,SDC,TDC)..5F..(M,S)

TYPE B:REFER ILLUST.

 1
33030 - TRANSMISSION UNIT ASSY, MANUAL
33030-0KC00

TGN126..TSC..S;TGN126..5F..(L,X)

R151F,TYPE A:REFER ILLUST.

 1
33030-0KC90

TGN126..(ADC,SDC,TDC)..5F..(M,S)

R151F,TYPE C:REFER ILLUST.

 1
33030-0KC40

TGN126..(ADC,SDC,TDC)..5F..(M,S)

R151F,TYPE B:REFER ILLUST.

 1
33030-0KB90

TGN126..(ADC,SDC,TDC)..5F..(M,S)

R151F,TYPE A:REFER ILLUST.

 1
33030-0KD00

TGN126..TSC..S;TGN126..5F..(L,X)

R151F,TYPE C:REFER ILLUST.

 1
33030-0KC50

TGN126..TSC..S;TGN126..5F..(L,X)

R151F,TYPE B:REFER ILLUST.

 1
