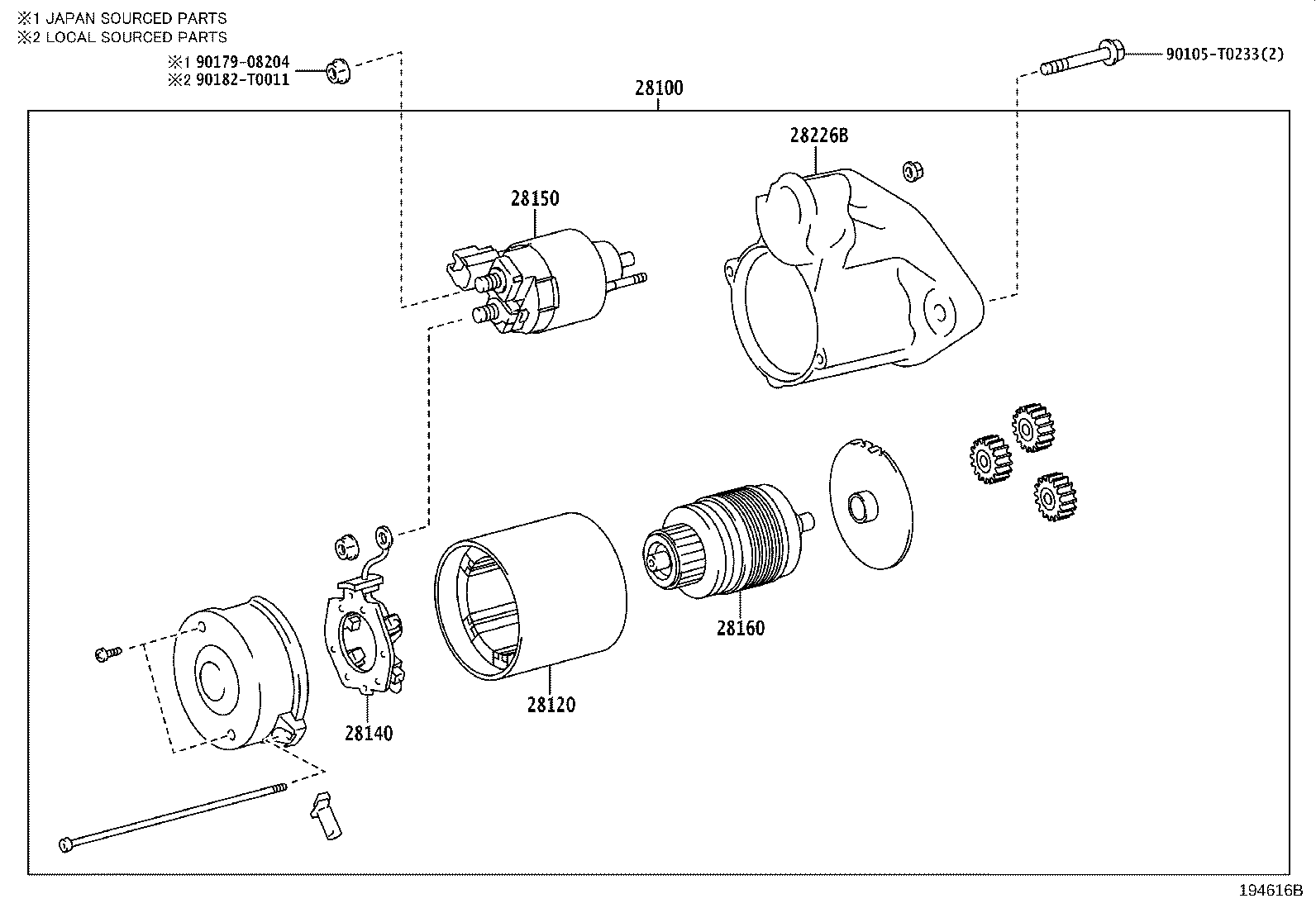

TGN126L-DTMLKV (2015)
Toyota Hilux
(1505- )2GDFTV..GUN125..X..GEN ; (1505- )2GDFTV..GUN125..H,L,M,S..GEN,IDN ; (
12V 2.7KW(DENSO)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 28100 - STARTER ASSY | ||||
| 28100-0C080 |
1TRFE,2TRFE..TGN11#,120,121,126..5F..(GCC,IDN) 12V 1.3KW |
1 | ||
| 28100-0C090 |
1TRFE,2TRFE..TGN11#,120,121,126..5F..(GCC,IDN)..CBU 12V 1.6KW |
1 | ||
| 28120 - YOKE ASSY, STARTER | ||||
| 28120-0C080 |
1TRFE,2TRFE..TGN11#,120,121,126..5F..(GCC,IDN) |
1 | ||
| 28140 - HOLDER ASSY, STARTER BRUSH | ||||
| 28140-0C080 |
1TRFE,2TRFE..TGN11#,120,121,126..5F..(GCC,IDN) |
1 | ||
| 28150 - SWITCH ASSY, MAGNET STARTER | ||||
| 28150-0C080 |
1TRFE,2TRFE..TGN11#,120,121,126..5F..(GCC,IDN) |
1 | ||
| 28160 - ARMATURE ASSY, STARTER | ||||
| 28160-37060 |
1TRFE,2TRFE..TGN11#,120,121,126..5F..(GCC,IDN) |
1 | ||
| 28160-31090 |
1TRFE,2TRFE..TGN11#,120,121,126..5F..(GCC,IDN) |
1 | ||
| 28160-0C090 |
1TRFE,2TRFE..TGN11#,120,121,126..5F..(GCC,IDN)..CBU |
1 | ||
| Common parts | ||||
| 90105-T0081 | ||||
| 90105-T0082 | ||||
| 90178-T0022 | ||||
| 90182-T0003 | ||||
(1505- )2TRFE..TGN128,138 ; (1505- )1TRFE,2TRFE..TGN11#,120,121,126,136..TDC,
12V 1.3KW,1.6KW(DENSO)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 28100 - STARTER ASSY | ||||
| 28100-0C080 |
1TRFE,2TRFE..TGN11#,120,121,126..5F..(GCC,IDN) 12V 1.3KW |
1 | ||
| 28100-0C090 |
1TRFE,2TRFE..TGN11#,120,121,126..5F..(GCC,IDN)..CBU 12V 1.6KW |
1 | ||
| 28120 - YOKE ASSY, STARTER | ||||
| 28120-0C080 |
1TRFE,2TRFE..TGN11#,120,121,126..5F..(GCC,IDN) |
1 | ||
| 28140 - HOLDER ASSY, STARTER BRUSH | ||||
| 28140-0C080 |
1TRFE,2TRFE..TGN11#,120,121,126..5F..(GCC,IDN) |
1 | ||
| 28150 - SWITCH ASSY, MAGNET STARTER | ||||
| 28150-0C080 |
1TRFE,2TRFE..TGN11#,120,121,126..5F..(GCC,IDN) |
1 | ||
| 28160 - ARMATURE ASSY, STARTER | ||||
| 28160-37060 |
1TRFE,2TRFE..TGN11#,120,121,126..5F..(GCC,IDN) |
1 | ||
| 28160-31090 |
1TRFE,2TRFE..TGN11#,120,121,126..5F..(GCC,IDN) |
1 | ||
| 28160-0C090 |
1TRFE,2TRFE..TGN11#,120,121,126..5F..(GCC,IDN)..CBU |
1 | ||
| 28226B - STARTER KIT, REPAIR SERVICE | ||||
| 28226-0C080 |
1TRFE,2TRFE..TGN11#,120,121,126..5F..(GCC,IDN) |
1 | ||
| 28226-0C090 |
1TRFE,2TRFE..TGN11#,120,121,126..5F..(GCC,IDN)..CBU |
1 | ||
| Common parts | ||||
| 90105-T0233 | ||||
| 90179-08204 | ||||
| 90182-T0011 | ||||
(1505- )2GDFTV..GUN125..SDC..6FC..S ; (1505-)1GDFTV..GUN136..S..ARL,BZAGT ;
12V 2.0KW(DENSO)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 28100 - STARTER ASSY | ||||
| 28100-0C080 |
1TRFE,2TRFE..TGN11#,120,121,126..5F..(GCC,IDN) 12V 1.3KW |
1 | ||
| 28100-0C080 |
1TRFE,2TRFE..TGN11#,120,121,126..5F..(GCC,IDN) 12V 1.3KW |
1 | ||
| 28100-0C080 |
1TRFE,2TRFE..TGN11#,120,121,126..5F..(GCC,IDN) 12V 1.3KW |
1 | ||
| 28100-0C080 |
1TRFE,2TRFE..TGN11#,120,121,126..5F..(GCC,IDN) 12V 1.3KW |
1 | ||
| 28100-0C080 |
1TRFE,2TRFE..TGN11#,120,121,126..5F..(GCC,IDN) 12V 1.3KW |
1 | ||
| 28100-0C090 |
1TRFE,2TRFE..TGN11#,120,121,126..5F..(GCC,IDN)..CBU 12V 1.6KW |
1 | ||
| 28100-0C090 |
1TRFE,2TRFE..TGN11#,120,121,126..5F..(GCC,IDN)..CBU 12V 1.6KW |
1 | ||
| 28100-0C090 |
1TRFE,2TRFE..TGN11#,120,121,126..5F..(GCC,IDN)..CBU 12V 1.6KW |
1 | ||
| 28100-0C090 |
1TRFE,2TRFE..TGN11#,120,121,126..5F..(GCC,IDN)..CBU 12V 1.6KW |
1 | ||
| 28100-0C090 |
1TRFE,2TRFE..TGN11#,120,121,126..5F..(GCC,IDN)..CBU 12V 1.6KW |
1 | ||
| 28120 - YOKE ASSY, STARTER | ||||
| 28120-0C080 |
1TRFE,2TRFE..TGN11#,120,121,126..5F..(GCC,IDN) |
1 | ||
| 28120-0C080 |
1TRFE,2TRFE..TGN11#,120,121,126..5F..(GCC,IDN) |
1 | ||
| 28120-0C080 |
1TRFE,2TRFE..TGN11#,120,121,126..5F..(GCC,IDN) |
1 | ||
| 28120-0C080 |
1TRFE,2TRFE..TGN11#,120,121,126..5F..(GCC,IDN) |
1 | ||
| 28120-0C080 |
1TRFE,2TRFE..TGN11#,120,121,126..5F..(GCC,IDN) |
1 | ||
| 28140 - HOLDER ASSY, STARTER BRUSH | ||||
| 28140-0C080 |
1TRFE,2TRFE..TGN11#,120,121,126..5F..(GCC,IDN) |
1 | ||
| 28140-0C080 |
1TRFE,2TRFE..TGN11#,120,121,126..5F..(GCC,IDN) |
1 | ||
| 28140-0C080 |
1TRFE,2TRFE..TGN11#,120,121,126..5F..(GCC,IDN) |
1 | ||
| 28140-0C080 |
1TRFE,2TRFE..TGN11#,120,121,126..5F..(GCC,IDN) |
1 | ||
| 28140-0C080 |
1TRFE,2TRFE..TGN11#,120,121,126..5F..(GCC,IDN) |
1 | ||
| 28150 - SWITCH ASSY, MAGNET STARTER | ||||
| 28150-0C080 |
1TRFE,2TRFE..TGN11#,120,121,126..5F..(GCC,IDN) |
1 | ||
| 28150-0C080 |
1TRFE,2TRFE..TGN11#,120,121,126..5F..(GCC,IDN) |
1 | ||
| 28150-0C080 |
1TRFE,2TRFE..TGN11#,120,121,126..5F..(GCC,IDN) |
1 | ||
| 28150-0C080 |
1TRFE,2TRFE..TGN11#,120,121,126..5F..(GCC,IDN) |
1 | ||
| 28150-0C080 |
1TRFE,2TRFE..TGN11#,120,121,126..5F..(GCC,IDN) |
1 | ||
| 28160 - ARMATURE ASSY, STARTER | ||||
| 28160-37060 |
1TRFE,2TRFE..TGN11#,120,121,126..5F..(GCC,IDN) |
1 | ||
| 28160-37060 |
1TRFE,2TRFE..TGN11#,120,121,126..5F..(GCC,IDN) |
1 | ||
| 28160-37060 |
1TRFE,2TRFE..TGN11#,120,121,126..5F..(GCC,IDN) |
1 | ||
| 28160-37060 |
1TRFE,2TRFE..TGN11#,120,121,126..5F..(GCC,IDN) |
1 | ||
| 28160-37060 |
1TRFE,2TRFE..TGN11#,120,121,126..5F..(GCC,IDN) |
1 | ||
| 28160-31090 |
1TRFE,2TRFE..TGN11#,120,121,126..5F..(GCC,IDN) |
1 | ||
| 28160-31090 |
1TRFE,2TRFE..TGN11#,120,121,126..5F..(GCC,IDN) |
1 | ||
| 28160-31090 |
1TRFE,2TRFE..TGN11#,120,121,126..5F..(GCC,IDN) |
1 | ||
| 28160-31090 |
1TRFE,2TRFE..TGN11#,120,121,126..5F..(GCC,IDN) |
1 | ||
| 28160-31090 |
1TRFE,2TRFE..TGN11#,120,121,126..5F..(GCC,IDN) |
1 | ||
| 28160-0C090 |
1TRFE,2TRFE..TGN11#,120,121,126..5F..(GCC,IDN)..CBU |
1 | ||
| 28160-0C090 |
1TRFE,2TRFE..TGN11#,120,121,126..5F..(GCC,IDN)..CBU |
1 | ||
| 28160-0C090 |
1TRFE,2TRFE..TGN11#,120,121,126..5F..(GCC,IDN)..CBU |
1 | ||
| 28160-0C090 |
1TRFE,2TRFE..TGN11#,120,121,126..5F..(GCC,IDN)..CBU |
1 | ||
| 28160-0C090 |
1TRFE,2TRFE..TGN11#,120,121,126..5F..(GCC,IDN)..CBU |
1 | ||
| 28226B - STARTER KIT, REPAIR SERVICE | ||||
| 28226-0C080 |
1TRFE,2TRFE..TGN11#,120,121,126..5F..(GCC,IDN) |
1 | ||
| 28226-0C080 |
1TRFE,2TRFE..TGN11#,120,121,126..5F..(GCC,IDN) |
1 | ||
| 28226-0C080 |
1TRFE,2TRFE..TGN11#,120,121,126..5F..(GCC,IDN) |
1 | ||
| 28226-0C080 |
1TRFE,2TRFE..TGN11#,120,121,126..5F..(GCC,IDN) |
1 | ||
| 28226-0C080 |
1TRFE,2TRFE..TGN11#,120,121,126..5F..(GCC,IDN) |
1 | ||
| 28226-0C090 |
1TRFE,2TRFE..TGN11#,120,121,126..5F..(GCC,IDN)..CBU |
1 | ||
| 28226-0C090 |
1TRFE,2TRFE..TGN11#,120,121,126..5F..(GCC,IDN)..CBU |
1 | ||
| 28226-0C090 |
1TRFE,2TRFE..TGN11#,120,121,126..5F..(GCC,IDN)..CBU |
1 | ||
| 28226-0C090 |
1TRFE,2TRFE..TGN11#,120,121,126..5F..(GCC,IDN)..CBU |
1 | ||
| 28226-0C090 |
1TRFE,2TRFE..TGN11#,120,121,126..5F..(GCC,IDN)..CBU |
1 | ||
| Common parts | ||||
| 90105-T0081 | ||||
| 90105-T0082 | ||||
| 90178-T0022 | ||||
| 90179-08204 | ||||
| 90182-T0011 | ||||
