TGN126L-DTMLKV (2015)
Toyota Hilux
(1505- )2TRFE..TGN121..L..CBU ; (1505- )2TRFE..TGN121..5F..M,S,X ; (1505-
| Part # | Description | Qty | Price | |
|---|---|---|---|---|

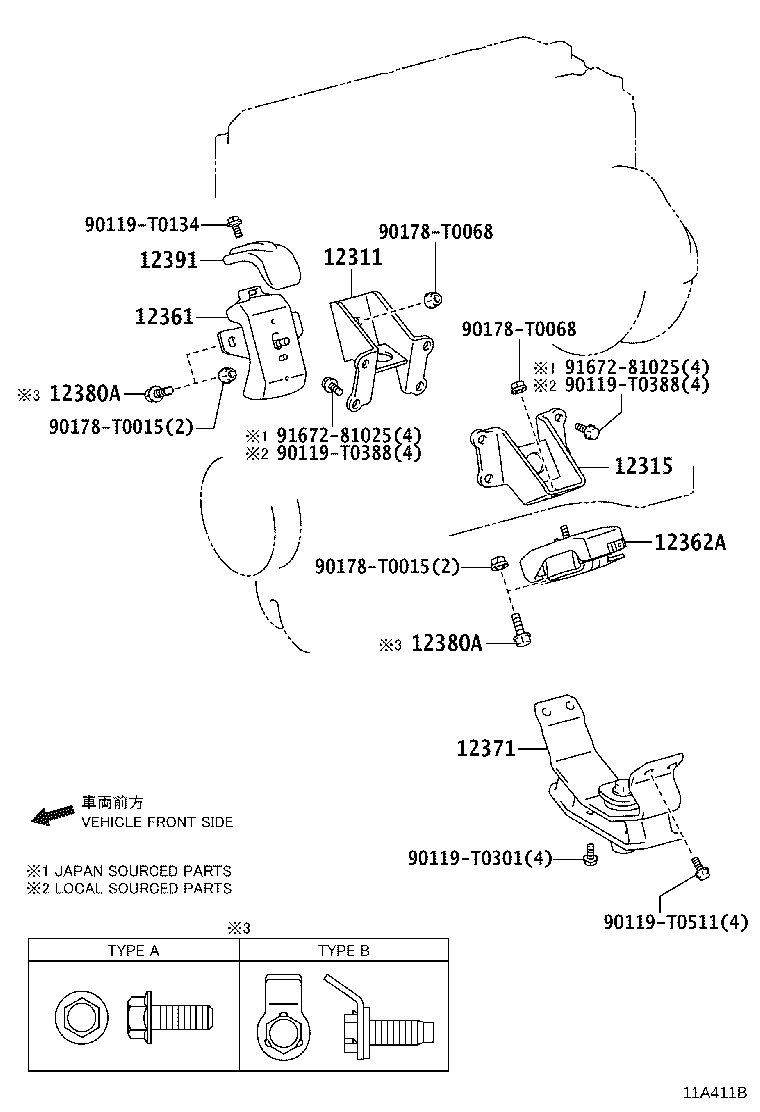

| 12311 - BRACKET, ENGINE MOUNTING, FRONT NO.1 RH | ||||
| 12311-0C010 |
2TRFE..TGN121..5F..M;2TRFE..TGN126..TSC..S;2TRFE..TGN121..TSC..GCC..CBU;2TRFE..TGN126..5F..(L,M)..GCC..CBU IRAN SPEC&EXHAUST EMISSION CONTROL-EURO 6 WITH(ON BOARD DIAGNOSIS),IDN SOURCED PARTS |
1 | ||
| 12311-0C020 |
2TRFE..TGN126..L..GEN;2TRFE..TGN126..(TDC,TSC)..(GCC,LA);1TRFE,2TRFE..TGN11#,120,121,136..TDC,TSC,TXT THA SOURCED PARTS |
1 | ||
| 12311-0C010 |
2TRFE..TGN136..(M,X)..(BZAGT,LA);2TRFE..TGN126..LHD..6FC..(GEN,SA);2TRFE..TGN136..(ADC,SDC,SSC,TXT)..S;1TRFE,2TRFE..TGN11#,120,128,138..BZAGT,GCC,SA;2TRFE..TGN121,126..5F..(BZAGT,GCC,GEN,LA,SA,TH) IDN SOURCED PARTS |
1 | ||
| 12315 - BRACKET, ENGINE MOUNTING, FRONT NO.1 LH | ||||
| 12315-0C010 |
2TRFE..TGN121..5F..M;2TRFE..TGN126..TSC..S;2TRFE..TGN121..TSC..GCC..CBU;2TRFE..TGN126..5F..(L,M)..GCC..CBU IRAN SPEC&EXHAUST EMISSION CONTROL-EURO 6 WITH(ON BOARD DIAGNOSIS),IDN SOURCED PARTS |
1 | ||
| 12315-0C020 |
2TRFE..TGN126..L..GEN;2TRFE..TGN126..(TDC,TSC)..(GCC,LA);1TRFE,2TRFE..TGN11#,120,121,136..TDC,TSC,TXT THA SOURCED PARTS |
1 | ||
| 12315-0C010 |
2TRFE..TGN136..(M,X)..(BZAGT,LA);2TRFE..TGN126..LHD..6FC..(GEN,SA);2TRFE..TGN136..(ADC,SDC,SSC,TXT)..S;1TRFE,2TRFE..TGN11#,120,128,138..BZAGT,GCC,SA;2TRFE..TGN121,126..5F..(BZAGT,GCC,GEN,LA,SA,TH) IDN SOURCED PARTS |
1 | ||
| 12361 - INSULATOR, ENGINE MOUNTING, FRONT | ||||
| 12305-0C050 |
1TRFE,2TRFE..TGN11#,12#,138;2TRFE..TGN136..ADC,ASC,SDC,TDC,TSC,TXT |
1 | ||
| 12362A - INSULATOR, ENGINE MOUNTING, FRONT LH | ||||
| 12305-0C050 |
1TRFE,2TRFE..TGN11#,12#,138;2TRFE..TGN136..ADC,ASC,SDC,TDC,TSC,TXT |
1 | ||
| 12371 - INSULATOR, ENGINE MOUNTING, REAR NO.1 | ||||
| 12371-0C200 |
2TRFE..TGN126..5F |
1 | ||
| 12380A - BOLT(FOR ENGINE MOUNTING INSURATOR) | ||||
| 90910-03003 |
1TRFE,2TRFE..TGN11#,12#,138;2TRFE..TGN136..ADC,ASC,SDC,TDC,TSC,TXT TYPE B:REFER ILLUST. |
4 | ||
| 90105-T0174 |
1TRFE,2TRFE..TGN11#,12#,138;2TRFE..TGN136..ADC,ASC,SDC,TDC,TSC,TXT TYPE A:REFER ILLUST. |
4 | ||
| 12380A - BOLT(FOR ENGINE MOUNTING INSURATOR) | ||||
| 90910-03003 |
1TRFE,2TRFE..TGN11#,12#,138;2TRFE..TGN136..ADC,ASC,SDC,TDC,TSC,TXT TYPE B:REFER ILLUST. |
4 | ||
| 90105-T0174 |
1TRFE,2TRFE..TGN11#,12#,138;2TRFE..TGN136..ADC,ASC,SDC,TDC,TSC,TXT TYPE A:REFER ILLUST. |
4 | ||
| 12391 - INSULATOR, ENGINE MOUNTING FRONT, HEAT, RH | ||||
| 12391-0L010 |
1TRFE,2TRFE..TGN11#,120,121,126,136..TDC,TSC,TXT |
1 | ||
| Common parts | ||||
| 90119-T0134 | ||||
| 90119-T0301 | ||||
| 90119-T0388 | ||||
| 90119-T0511 | ||||
| 90178-T0015 | ||||
| 90178-T0068 | ||||
| 91672-81025 | ||||
(1505- )2TRFE..TGN126..5F
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 12311 - BRACKET, ENGINE MOUNTING, FRONT NO.1 RH | ||||
| 12311-0C010 |
2TRFE..TGN121..5F..M;2TRFE..TGN126..TSC..S;2TRFE..TGN121..TSC..GCC..CBU;2TRFE..TGN126..5F..(L,M)..GCC..CBU IRAN SPEC&EXHAUST EMISSION CONTROL-EURO 6 WITH(ON BOARD DIAGNOSIS),IDN SOURCED PARTS |
1 | ||
| 12311-0C020 |
2TRFE..TGN126..L..GEN;2TRFE..TGN126..(TDC,TSC)..(GCC,LA);1TRFE,2TRFE..TGN11#,120,121,136..TDC,TSC,TXT THA SOURCED PARTS |
1 | ||
| 12311-0C010 |
2TRFE..TGN136..(M,X)..(BZAGT,LA);2TRFE..TGN126..LHD..6FC..(GEN,SA);2TRFE..TGN136..(ADC,SDC,SSC,TXT)..S;1TRFE,2TRFE..TGN11#,120,128,138..BZAGT,GCC,SA;2TRFE..TGN121,126..5F..(BZAGT,GCC,GEN,LA,SA,TH) IDN SOURCED PARTS |
1 | ||
| 12315 - BRACKET, ENGINE MOUNTING, FRONT NO.1 LH | ||||
| 12315-0C010 |
2TRFE..TGN121..5F..M;2TRFE..TGN126..TSC..S;2TRFE..TGN121..TSC..GCC..CBU;2TRFE..TGN126..5F..(L,M)..GCC..CBU IRAN SPEC&EXHAUST EMISSION CONTROL-EURO 6 WITH(ON BOARD DIAGNOSIS),IDN SOURCED PARTS |
1 | ||
| 12315-0C020 |
2TRFE..TGN126..L..GEN;2TRFE..TGN126..(TDC,TSC)..(GCC,LA);1TRFE,2TRFE..TGN11#,120,121,136..TDC,TSC,TXT THA SOURCED PARTS |
1 | ||
| 12315-0C010 |
2TRFE..TGN136..(M,X)..(BZAGT,LA);2TRFE..TGN126..LHD..6FC..(GEN,SA);2TRFE..TGN136..(ADC,SDC,SSC,TXT)..S;1TRFE,2TRFE..TGN11#,120,128,138..BZAGT,GCC,SA;2TRFE..TGN121,126..5F..(BZAGT,GCC,GEN,LA,SA,TH) IDN SOURCED PARTS |
1 | ||
| 12361 - INSULATOR, ENGINE MOUNTING, FRONT | ||||
| 12305-0C050 |
1TRFE,2TRFE..TGN11#,12#,138;2TRFE..TGN136..ADC,ASC,SDC,TDC,TSC,TXT |
1 | ||
| 12362A - INSULATOR, ENGINE MOUNTING, FRONT LH | ||||
| 12305-0C050 |
1TRFE,2TRFE..TGN11#,12#,138;2TRFE..TGN136..ADC,ASC,SDC,TDC,TSC,TXT |
1 | ||
| 12371 - INSULATOR, ENGINE MOUNTING, REAR NO.1 | ||||
| 12371-0C200 |
2TRFE..TGN126..5F |
1 | ||
| 12380A - BOLT(FOR ENGINE MOUNTING INSURATOR) | ||||
| 90910-03003 |
1TRFE,2TRFE..TGN11#,12#,138;2TRFE..TGN136..ADC,ASC,SDC,TDC,TSC,TXT TYPE B:REFER ILLUST. |
4 | ||
| 90105-T0174 |
1TRFE,2TRFE..TGN11#,12#,138;2TRFE..TGN136..ADC,ASC,SDC,TDC,TSC,TXT TYPE A:REFER ILLUST. |
4 | ||
| 12380A - BOLT(FOR ENGINE MOUNTING INSURATOR) | ||||
| 90910-03003 |
1TRFE,2TRFE..TGN11#,12#,138;2TRFE..TGN136..ADC,ASC,SDC,TDC,TSC,TXT TYPE B:REFER ILLUST. |
4 | ||
| 90105-T0174 |
1TRFE,2TRFE..TGN11#,12#,138;2TRFE..TGN136..ADC,ASC,SDC,TDC,TSC,TXT TYPE A:REFER ILLUST. |
4 | ||
| 12391 - INSULATOR, ENGINE MOUNTING FRONT, HEAT, RH | ||||
| 12391-0L010 |
1TRFE,2TRFE..TGN11#,120,121,126,136..TDC,TSC,TXT |
1 | ||
| Common parts | ||||
| 90119-T0134 | ||||
| 90119-T0301 | ||||
| 90119-T0388 | ||||
| 90119-T0511 | ||||
| 90178-T0015 | ||||
| 90178-T0068 | ||||
| 91672-81025 | ||||
