TGN126L-DNMXKN (2016)

Toyota Hilux

Production Jan 2016 - Sep 2020
Engine 2TRFE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(1601- )1TRFE,2TRFE..TGN120,121,126,136..SA

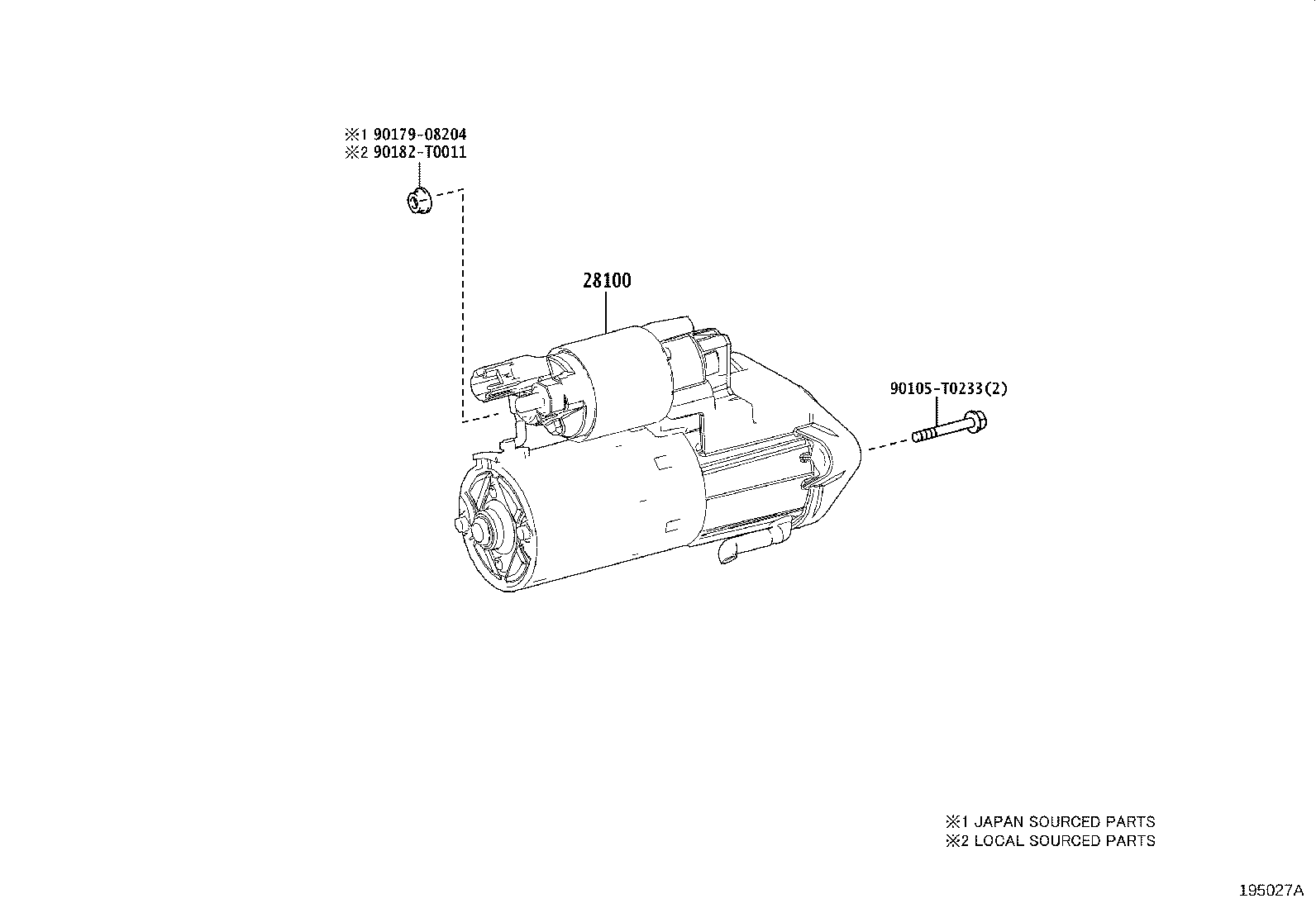

Click highlighted areas on diagram

12V 1.4KW(BOSCH)

diagram 28100 90105T0233 9017908204 90182T0011
Part # Description Qty Price
28100 - STARTER ASSY
28100-0C110

1TRFE,2TRFE..TGN120,121,126,136..SA

12V 1.4KW

 1
Common parts
90105-T0233
90179-08204
90182-T0011

(2006- )2GDFTV..GUN135..L,S..TH ; (2006- )2GDFTV..GUN135..6F..H..TH ; (2006-

Click highlighted areas on diagram

12V 2.4KW(DENSO),W(STOP & START)

diagram 28100 90105T0081 90105T0081 90105T0082 90178T0022 90182T0003
Part # Description Qty Price
Common parts
90105-T0081
90105-T0082
90178-T0022
90182-T0003

(2006- )2GDFTV..GUN135..L..GEN ; (2006- )2GDFTV..GUN125..TS..6FC ; (2006-

Click highlighted areas on diagram

12V 2.7KW

diagram 28011 28100 28120 28140 28150 28160 90105T0081 90105T0082 90178T0022 90178T0022 90182T0003
Part # Description Qty Price
Common parts
90105-T0081
90105-T0082
90178-T0022
90182-T0003
