TGN126L-DNMXKN (2016)
Toyota Hilux
Production
Jan 2016
-
Sep 2020
Engine
2TRFE
Transmission
5F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(1601- )1TRFE,2TRFE..TGN120,121,126,136..SA

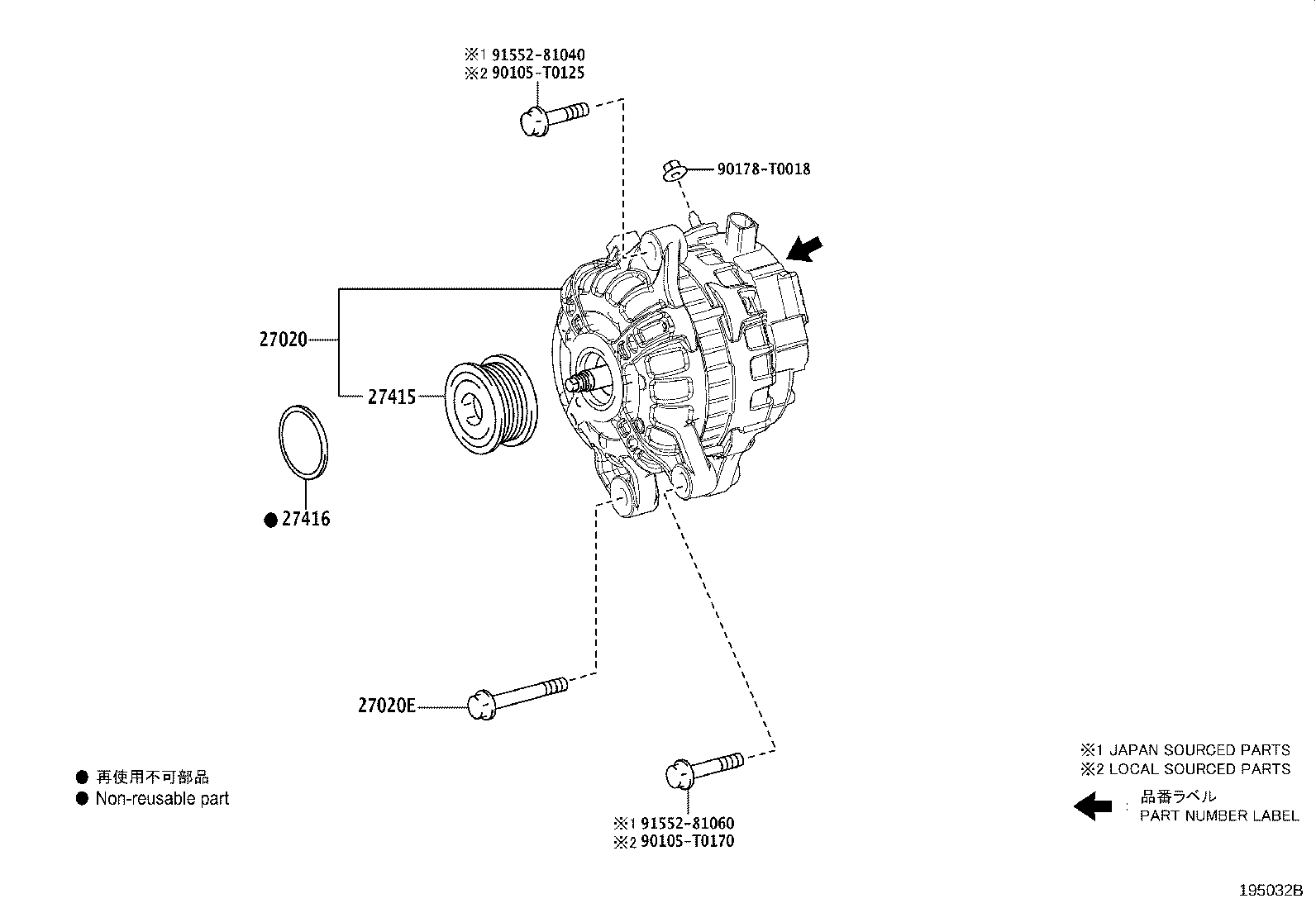

Click highlighted areas on diagram
12V 90A(BOSCH)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 27020 - ALTERNATOR ASSY | ||||
| 27060-0C150 |
1TRFE,2TRFE..TGN120,121,126,136..SA 12V 90A |
1 | ||
| 27020E - BOLT(FOR ALTERNATOR) | ||||
| 90105-T0211 |
1TRFE,2TRFE..TGN11#,12#,13# (L) |
1 | ||
| 91552-81080 |
1TRFE,2TRFE..TGN11#,12#,13# (J) |
1 | ||
| 27416 - CAP, ALTERNATOR PULLEY | ||||
| 27416-0W050 |
1TRFE,2TRFE..TGN11#,12#,13# |
1 | ||
| Common parts | ||||
| 90105-T0125 | ||||
| 90105-T0170 | ||||
| 90178-T0018 | ||||
| 91552-81040 | ||||
| 91552-81060 | ||||
(2006- )2TRFE..TGN126,136..LA ; (2006- )2TRFE..TGN121..6FC..H ; (2006- )2T
Click highlighted areas on diagram
12V 100A
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90105-T0125 | ||||
| 90105-T0170 | ||||
| 90178-T0018 | ||||
| 91552-81040 | ||||
| 91552-81060 | ||||
(2006- )1TRFE,2TRFE..TGN11#,120,121,136..L,S..ARL,GCC,GEN,IDN,TH ; (2102- )2T
Click highlighted areas on diagram
12V 80A
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90105-T0125 | ||||
| 90178-T0018 | ||||
| 91552-81040 | ||||
(2006- )2TRFE..TGN121..5F..H ; (2006- )2TRFE..TGN126..6FC..L ; (2006- )2TR
Click highlighted areas on diagram
12V 80A
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90105-T0125 | ||||
| 90178-T0018 | ||||
| 91552-81040 | ||||
