TGN121L-DTMMKV (2015)

Toyota Hilux

Production May 2015 - May 2020
Engine 2TRFE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(1505- )KUN122..PKN ; (1505- )KUN122..LHD..SSC ; (1505- )TGN121..L..GCC..C

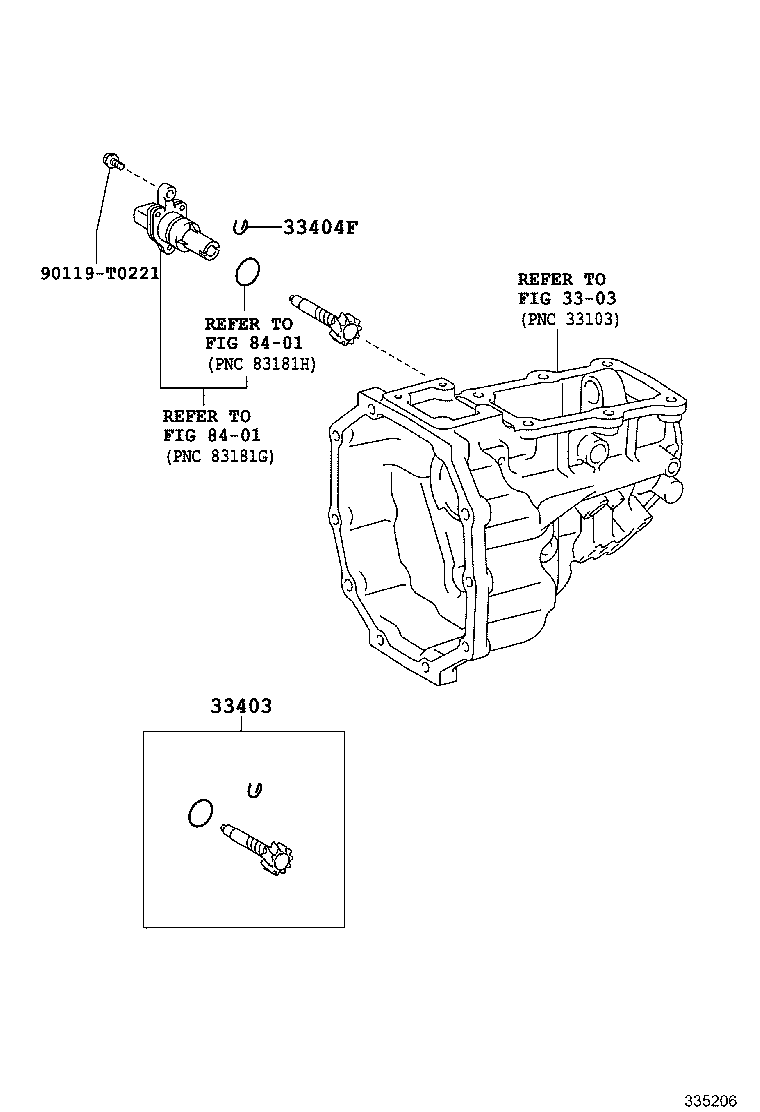

Click highlighted areas on diagram

R151

diagram 3303 33403 33404F 8401 8401 90119T0221
Part # Description Qty Price
33403 - GEAR SUB-ASSY, SPEEDOMETER DRIVEN (MTM)
33403-39355

TGN111,121..L..GCC

N=31,MARK 31:10,SRS AIR BAG-WITHOUT

 1
33404F - CLIP (FOR MTM SPEEDOMETER SHAFT SLEEVE)
90468-12005

TGN11#,120,121..L..GCC

SRS AIR BAG-WITHOUT

 1
Common parts
90119-T0221
Linked diagrams
3303
8401
