TGN121L-DNMLKN (2020)
Toyota Hilux
(2009- )GUN122,TGN120,121..SA
W/O(VSC)

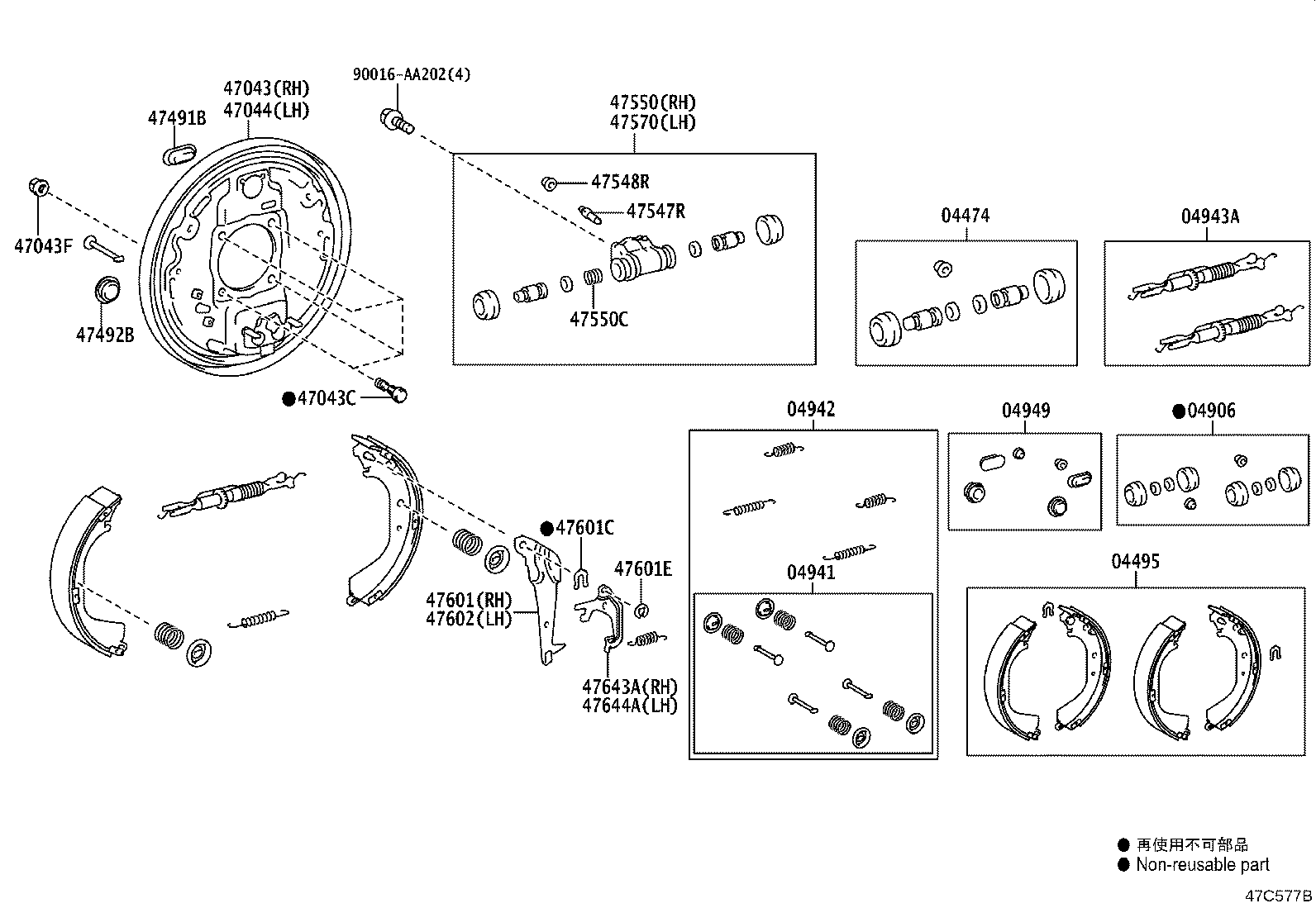

| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04474 - CYLINDER KIT, REAR WHEEL | ||||
| 04474-0K050 |
TGN120..GCC;GUN112,120,122,123,TGN11#,121..SD,SS,TD,TS,TX |
2 | ||
| 04474-43020 |
GUN122,TGN121..SA VEHICLE STABILITY CONT-WITHOUT |
2 | ||
| 04495 - SHOE KIT, REAR BRAKE | ||||
| 04495-0K060 |
GUN122,TGN121..SA MARK NSA LN512,VEHICLE STABILITY CONT-WITHOUT |
1 | ||
| 04495-0K130 |
TGN120..GCC;GUN112,120,122,123,TGN11#,121..SD,SS,TD,TS,TX MARK NSA D9033 |
1 | ||
| 04906 - CUP KIT, REAR WHEEL CYLINDER | ||||
| 04906-0K090 |
TGN120..GCC;GUN112,120,122,123,TGN11#,121..SD,SS,TD,TS,TX |
1 | ||
| 04906-43040 |
GUN122,TGN121..SA VEHICLE STABILITY CONT-WITHOUT |
1 | ||
| 04941 - SPRING KIT, REAR BRAKE SHOE HOLD DOWN | ||||
| 04941-0K110 |
GUN122,TGN121..SA VEHICLE STABILITY CONT-WITHOUT |
1 | ||
| 04941-0K070 |
TGN120..GCC;GUN112,120,122,123,TGN11#,121..SD,SS,TD,TS,TX |
1 | ||
| 04942 - SPRING KIT, REAR BRAKE | ||||
| 04942-0K220 |
GUN122,TGN121..SA VEHICLE STABILITY CONT-WITHOUT |
1 | ||
| 04942-0K180 |
TGN120..GCC;GUN112,120,122,123,TGN11#,121..SD,SS,TD,TS,TX |
1 | ||
| 04943A - STRUT KIT, REAR BRAKE | ||||
| 04943-0K050 |
GUN122,TGN121..SA VEHICLE STABILITY CONT-WITHOUT |
1 | ||
| 04943-0K080 |
TGN120..GCC;GUN112,120,122,123,TGN11#,121..SD,SS,TD,TS,TX |
1 | ||
| 04949 - PLUG KIT, REAR BRAKE | ||||
| 04949-0K150 |
GUN122,TGN121..SA VEHICLE STABILITY CONT-WITHOUT |
2 | ||
| 04949-0D010 |
TGN120..GCC;GUN112,120,122,123,TGN11#,121..SD,SS,TD,TS,TX |
1 | ||
| 47043 - PLATE SUB-ASSY, BRAKE BACKING, REAR RH | ||||
| 47043-0K020 |
GUN122,TGN121..SA VEHICLE STABILITY CONT-WITHOUT |
1 | ||
| 47043-0K090 |
TGN120..GCC;GUN112,120,122,123,TGN11#,121..SD,SS,TD,TS,TX |
1 | ||
| 47043C - BOLT(FOR BACKING PLATE TO REAR AXLE HOUSING SETTING) | ||||
| 90114-T0011 |
GGN125,GUN112,12#,13#,LAN125,TGN11#,12#,13#..AD,AS,KD,KS,MD,MMD,MS,SD,SS,SX,TD,TS,TX *10-1.25PX54.5-30 |
8 | ||
| 47043F - NUT(FOR BACKING PLATE TO REAR AXLE HOUSING SETTING) | ||||
| 90178-T0077 |
GGN125,GUN112,12#,13#,LAN125,TGN11#,12#,13#..AD,AS,KD,KS,MD,MMD,MS,SD,SS,SX,TD,TS,TX |
8 | ||
| 47044 - PLATE SUB-ASSY, BRAKE BACKING, REAR LH | ||||
| 47044-0K090 |
TGN120..GCC;GUN112,120,122,123,TGN11#,121..SD,SS,TD,TS,TX |
1 | ||
| 47044-0K020 |
GUN122,TGN121..SA VEHICLE STABILITY CONT-WITHOUT |
1 | ||
| 47491B - PLUG, HOLE(FOR REAR BRAKE) | ||||
| 47491-0K120 |
GUN122,TGN121..SA VEHICLE STABILITY CONT-WITHOUT |
2 | ||
| 47492B - PLUG, SHOE INSPECTION(FOR REAR BRAKE) | ||||
| 47492-0K120 |
GUN122,TGN121..SA VEHICLE STABILITY CONT-WITHOUT |
2 | ||
| 47547R - PLUG, BLEEDER(FOR DRUM BRAKE, REAR) | ||||
| 47547-20030 |
GUN112,120,122,123,TGN11#,120,121..SD,SS,TD,TS,TX |
2 | ||
| 47548R - CAP, BLEEDER PLUG(FOR DRUM BRAKE, REAR) | ||||
| 31478-30010 |
GUN112,120,122,123,TGN11#,120,121..SD,SS,TD,TS,TX |
2 | ||
| 47550 - CYLINDER ASSY, REAR WHEEL BRAKE(FOR RH, FRONT OR UPPER) | ||||
| 47550-71010 |
GUN122,TGN121..SA VEHICLE STABILITY CONT-WITHOUT |
1 | ||
| 47550-0K010 |
TGN120..GCC;GUN112,120,122,123,TGN11#,121..SD,SS,TD,TS,TX |
1 | ||
| 47550C - SPRING, COMPRESSION(FOR REAR WHEEL BRAKE CYLINDER) | ||||
| 90029-60009 |
GUN122,TGN121..SA VEHICLE STABILITY CONT-WITHOUT |
2 | ||
| 90016-AY002 |
TGN120..GCC;GUN112,120,122,123,TGN11#,121..PS,SD,SS,TD,TS,TX |
2 | ||
| 47570 - CYLINDER ASSY, REAR WHEEL BRAKE(FOR LH, FRONT OR UPPER) | ||||
| 47550-0K010 |
TGN120..GCC;GUN112,120,122,123,TGN11#,121..SD,SS,TD,TS,TX |
1 | ||
| 47550-71010 |
GUN122,TGN121..SA VEHICLE STABILITY CONT-WITHOUT |
1 | ||
| 47601 - LEVER SUB-ASSY, PARKING BRAKE SHOE, RH(FOR REAR BRAKE) | ||||
| 47611-0K010 |
TGN120..GCC;GUN112,120,122,123,TGN11#,121..SD,SS,TD,TS,TX |
1 | ||
| 47611-0K020 |
GUN122,TGN121..SA VEHICLE STABILITY CONT-WITHOUT |
1 | ||
| 47601C - WASHER, C(FOR REAR BRAKE) | ||||
| 90016-DD002 |
GUN122,TGN121..SA VEHICLE STABILITY CONT-WITHOUT |
2 | ||
| 47601E - RING, E(FOR REAR BRAKE) | ||||
| 96160-00500 |
GUN122,TGN121..SA VEHICLE STABILITY CONT-WITHOUT |
2 | ||
| 47602 - LEVER SUB-ASSY, PARKING BRAKE SHOE, LH (FOR REAR BRAKE) | ||||
| 47612-0K020 |
GUN122,TGN121..SA VEHICLE STABILITY CONT-WITHOUT |
1 | ||
| 47612-0K010 |
TGN120..GCC;GUN112,120,122,123,TGN11#,121..SD,SS,TD,TS,TX |
1 | ||
| 47643A - LEVER, REAR BRAKE AUTOMATIC ADJUST, RH | ||||
| 47643-0K020 |
GUN122,TGN121..SA VEHICLE STABILITY CONT-WITHOUT |
1 | ||
| 47643-45010 |
TGN120..GCC;GUN112,120,122,123,TGN11#,121..SD,SS,TD,TS,TX |
1 | ||
| 47644A - LEVER, REAR BRAKE AUTOMATIC ADJUST, LH | ||||
| 47644-0K020 |
GUN122,TGN121..SA VEHICLE STABILITY CONT-WITHOUT |
1 | ||
| 47644-45010 |
TGN120..GCC;GUN112,120,122,123,TGN11#,121..SD,SS,TD,TS,TX |
1 | ||
| Common parts | ||||
| 90016-AA202 | ||||
