TGN11L-TRMDKV (2008)

Toyota Hilux

Production Aug 2008 - Jul 2011
Engine 2TRFE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

ILLUST NO. 1 OF 2(0408- )KUN15,16,2#,3#,LAN15,25,35..CBU

Click highlighted areas on diagram

FUEL TANK

diagram 6554 77017B 77026A 77035 77100 77144 77161C 77169A 77201 77204A 77209D 77213B 77241V 77241W 77269A 77277T 77281 77283C 77285A 77290 77306 77310A 77316 77366 77377 77601A 77602B 77611A 77611A 77641A 77642A 77644 77644 776440K010 77652 77652 77681A 77682 77697 8401 9008054035 90105T0204 90178T0020 90178T0020 9017906169 9017908241 9017908241 9026904059 9046046005 9046046005 90464T0003 90466T0037 90466T0037 90466T0040 90466T0040 9046814039 9046814039 90469T0003 90959T1001 90959T1001 90959T1001
Part # Description Qty Price
77017B - TUBE SUB-ASSY, FUEL TANK VENT
77010-0K040

KUN15,16,2#..(DCB,SCB)..(ARL,GCC,GEN,MA,PHL,TH)

 1
77026A - TUBE SUB-ASSY, FUEL EVAPORATION, NO.1
77026-0K020

TGN10,11

 1
77035 - CABLE SUB-ASSY, FUEL LID LOCK CONTROL
77035-0K240

KUN10,TGN10,11..GCC

 1
77100 - TANK ASSY, FUEL
77001-0K020

KUN1#,2#

 1
77001-0K030

TGN10,11

 1
77144 - RETAINER, FUEL PUMP GAUGE
77144-0K010

GGN25..5FC..SA;GGN15..DCB..DLX;TGN26..ANCOM..CBU;TGN36..ANCOM..IV3;TGN16..ARL,GCC,SA,TH;KUN15,TGN16..XTR..DLX;GGN25..DCB..(ANCOM,ARL,LA);TGN26..LHD..(GCC,GEN,LA,SA);GGN15,KUN16,TGN10..SCB,SMT,XTR;GGN15,KUN16..DCB..(4FC,5FC)..SR;KUN15..(DCB,SCB,SMT)..(GCC,GEN,PHL,SA,TH);KUN16,TGN15,36..(DCB,SCB)..(ANCOM,ARL,GCC,GEN,LA,SA)..CBU;GGN35,KUN10,2#,3#,LAN15,25,35,TGN11..(DLX,SR)..(ANCOM,ARL,GCC,GEN,LA,MA,PHL,PKN,SA,TH)

 1
77144-0K010

TGN36..SCB;KUN26..THDCB;KUN25..SCB..MA;KUN26..DCB..5F..SA;KUN36..(DCB,SCB)..5F;KUN25..(DCB,XTR)..SR;KUN16,36,TGN16..XTR..TH;TGN26,36..DCB..5F..DLX..LA;TGN26..ANCOM,GCC,GEN,SA,TH;TGN36..DCB..(ANCOM,PHL,SA);KUN15..(DCB,SCB)..(PHL,SA)..CBU;KUN16,TGN10..(DCB,SCB)..(DLX,SR);KUN25,35..DLX..(ANCOM,GCC,GEN,LA,SA);KUN26..(DCB,SCB,XTR)..(ARL,LA,PHL,TH);KUN15..(DCB,SCB,XTR)..(GCC,GEN,PKN,TH);GGN15,25,KUN10,LAN15,25,35,TGN11,15,16..(5F,5FC)..(ANCOM,ARL,GCC,GEN,PKN,SA)

 1
77169A - GASKET, FUEL SUCTION TUBE SET
77169-0K010

GGN25..5FC..SA;GGN15..DCB..DLX;TGN26..ANCOM..CBU;TGN36..ANCOM..IV3;TGN16..ARL,GCC,SA,TH;KUN15,TGN16..XTR..DLX;GGN25..DCB..(ANCOM,ARL,LA);TGN26..LHD..(GCC,GEN,LA,SA);GGN15,KUN16,TGN10..SCB,SMT,XTR;GGN15,KUN16..DCB..(4FC,5FC)..SR;KUN15..(DCB,SCB,SMT)..(GCC,GEN,PHL,SA,TH);KUN16,TGN15,36..(DCB,SCB)..(ANCOM,ARL,GCC,GEN,LA,SA)..CBU;GGN35,KUN10,2#,3#,LAN15,25,35,TGN11..(DLX,SR)..(ANCOM,ARL,GCC,GEN,LA,MA,PHL,PKN,SA,TH)

 1
77169-0K010

TGN36..SCB;KUN26..THDCB;KUN25..SCB..MA;KUN26..DCB..5F..SA;KUN36..(DCB,SCB)..5F;KUN25..(DCB,XTR)..SR;KUN16,36,TGN16..XTR..TH;TGN26,36..DCB..5F..DLX..LA;TGN26..ANCOM,GCC,GEN,SA,TH;TGN36..DCB..(ANCOM,PHL,SA);KUN15..(DCB,SCB)..(PHL,SA)..CBU;KUN16,TGN10..(DCB,SCB)..(DLX,SR);KUN25,35..DLX..(ANCOM,GCC,GEN,LA,SA);KUN26..(DCB,SCB,XTR)..(ARL,LA,PHL,TH);KUN15..(DCB,SCB,XTR)..(GCC,GEN,PKN,TH);GGN15,25,KUN10,LAN15,25,35,TGN11,15,16..(5F,5FC)..(ANCOM,ARL,GCC,GEN,PKN,SA)

 1
77201 - PIPE SUB-ASSY, FUEL TANK INLET
77201-0K010

TGN10,11..CBU

 1
77204A - TUBE, FUEL TANK RETURN
77204-0K030

TGN10,11

 1
77209D - TUBE SUB-ASSY, FUEL TANK MAIN
77209-0K030

TGN10,11

 1
77213B - HOSE, FUEL TANK TO FILLER PIPE
77213-0K050

TGN10,11

 1
77241V - CLIP, TUBE JOINT
77241-35450

KUN16..4FC;KUN15..XTR..TH;KUN16..DCB..ARL;KUN16..SCB,SMT,XTR;KUN15..(DCB,SCB,SMT)..(GCC,GEN,PHL,SA,TH);KUN10,2#,3#,LAN15,25,35..(DLX,SR)..(ANCOM,ARL,GCC,GEN,LA,MA,PHL,PKN,SA,TH)

 1
77241W - CLIP, TUBE JOINT
77241-33011

KUN16..4FC;KUN15..XTR..TH;KUN16..DCB..ARL;KUN16..SCB,SMT,XTR;KUN15..(DCB,SCB,SMT)..(GCC,GEN,PHL,SA,TH);KUN10,2#,3#,LAN15,25,35..(DLX,SR)..(ANCOM,ARL,GCC,GEN,LA,MA,PHL,PKN,SA,TH)

 1
77269A - HOSE, FUEL TANK BREATHER
77269-0K010

KUN10,TGN10,11

 1
77277T - BRACKET, CHECK VALVE
77277-0K010

KUN16..4FC;KUN16..SCB,SMT,XTR;KUN15,TGN16..XTR..DLX;KUN16,TGN26..DCB..(ARL,GEN);KUN15..(DCB,SCB,SMT)..(GCC,GEN,PHL,SA,TH);KUN10,2#,3#,LAN15,25,35..(DLX,SR)..(ANCOM,ARL,GCC,GEN,LA,MA,PHL,PKN,SA,TH)

 1
77281 - BRACKET, FUEL MAIN TUBE, NO.1
77281-0K070

KUN10,TGN10,11

 2
77281-0K040

KUN10,TGN10,11

 2
77285A - SUPPORT, FUEL RETURN AND MAIN TUBE
77285-0K190

KUN26..THDCB;KUN25..SCB..MA;TGN36..SCB..CBU;KUN26..DCB..5F..SA;KUN36..(DCB,SCB)..5F;KUN36,TGN16..XTR..TH;KUN25..(DCB,XTR)..SR;TGN26,36..DCB..5F..DLX..LA;TGN36..DCB..(ANCOM,PHL,SA);TGN26..(ANCOM,GCC,GEN,SA,TH)..CBU;KUN15,16..(DCB,SCB)..(ARL,SA)..CBU;KUN26..(DCB,XTR)..(ARL,LA,PHL,TH)..CBU;KUN25,35..DLX..(ANCOM,GCC,GEN,LA,SA)..CBU;KUN15,16..(DCB,SCB,XTR)..(GCC,GEN,PHL,PKN,TH)..CBU;GGN15,25,KUN10,LAN15,25,35,TGN1#..(5F,5FC)..(ANCOM,ARL,GCC,GEN,IDN,PKN,SA)..CBU

 1
77285-0K190

GGN25..5FC..SA;TGN26..LHD..CBU;KUN15,TGN16..XTR..DLX;GGN15,KUN16..DCB..DLX;GGN25..DCB..(ANCOM,ARL,LA);TGN16..(ARL,GCC,SA,TH)..CBU;GGN15,KUN16..DCB..(4FC,5FC)..SR;GGN15,KUN16..(SCB,SMT,XTR)..CBU;KUN26..(ARL,GEN,LA,PHL,SA,TH)..CBU;KUN15..(DCB,SCB,SMT)..(DLX,SR)..CBU;GGN35,KUN10,25,3#,LAN15,25,35,TGN10,11,15,36..(DLX,SR)..CBU

 1
77290 - SHIELD ASSY, FUEL TANK FILLER PIPE
77290-0K010

GGN15,KUN16..DCB..DLX;TGN16..(ARL,GCC,TH)..CBU;KUN26,36,TGN16..XTR..(GEN,SA);GGN15,KUN16..(SCB,SMT,XTR)..CBU;GGN15,KUN16..DCB..(4FC,5FC)..SR;KUN15,26..(ARL,GCC,GEN,PHL,TH)..CBU;GGN25,KUN10,25,3#,TGN10,11,15,26..(DCB,SCB,SMT,THDCB,THSCB)..(ARL,GCC,GEN,IDN,MA,PHL,PKN,TH)..CBU

 1
77290-0K010

KUN26..THDCB;KUN25..SCB..MA;TGN16..XTR..TH;KUN25..(DCB,XTR)..SR;KUN26..(DCB,XTR)..(ARL,PHL,TH)..CBU;KUN16,25..(DCB,SCB,THDCB,THSCB)..(ARL,GCC,GEN)..CBU;GGN15,25,KUN10,35,LAN15,TGN1#..(5F,5FC)..(ARL,GCC,GEN,IDN,PKN)..CBU;KUN15,16,36,TGN26,36..(DCB,SCB,THDCB,XTR)..(GCC,GEN,PHL,PKN,TH)..CBU

 1
77306 - LEVER SUB-ASSY, FUEL LID LOCK OPEN
77306-0K010

GGN15..DCB..DLX;TGN16..(ARL,GCC,TH)..CBU;KUN26,36,TGN16..XTR..(GEN,SA);GGN15,KUN16..(SCB,SMT,XTR)..CBU;GGN15,KUN16..DCB..(4FC,5FC)..SR;KUN15,2#,3#..(DLX,SR)..(ANCOM,ARL,GCC,GEN,LA,MA,PHL,PKN,TH)..CBU;GGN25,KUN10,16,TGN10,11,15,26,36..(DCB,SCB,THDCB)..(ANCOM,ARL,GCC,GEN,IDN,LA)..CBU

 1
77306-0K010

KUN26..THDCB;KUN25..SCB..MA;TGN26..DCB..DLX..LA;KUN25..(DCB,XTR)..SR;TGN16..5F..(ARL,GCC,GEN)..CBU;KUN16,36..(DCB,SCB,XTR)..(LA,TH);KUN26..(DCB,XTR)..(ARL,LA,PHL,TH)..CBU;TGN16,36..(DCB,XTR)..4FC..(ANCOM,PHL,TH);KUN16,25,35,TGN36..(DCB,SCB,THDCB,THSCB)..5F..DLX..(ANCOM,ARL,GCC,GEN,LA)..CBU;GGN15,25,KUN10,15,LAN15,TGN10,11,15,26..(DCB,SCB,THDCB,XTR)..(ANCOM,ARL,GCC,GEN,IDN,PHL,PKN,TH)..CBU

 1
77310A - CAP ASSY, FUEL TANK
77300-52030

GGN25..5FC..SA;TGN26..LHD..CBU;KUN15,TGN16..XTR..DLX;GGN15,KUN16..DCB..DLX;GGN25..DCB..(ANCOM,ARL,LA);TGN16..(ARL,GCC,SA,TH)..CBU;GGN15,KUN16..DCB..(4FC,5FC)..SR;GGN15,KUN16..(SCB,SMT,XTR)..CBU;KUN26..(ARL,GEN,LA,PHL,SA,TH)..CBU;KUN15..(DCB,SCB,SMT)..(DLX,SR)..CBU;GGN35,KUN10,25,3#,LAN15,25,35,TGN10,11,15,36..(DLX,SR)..CBU

 1
77316 - GASKET, FUEL TANK CAP
77316-16010

KUN26..THDCB;KUN25..SCB..MA;KUN15..GCC..IV3;TGN36..SCB..CBU;KUN26..DCB..5F..SA;KUN36..(DCB,SCB)..5F;KUN36,TGN16..XTR..TH;KUN25..(DCB,XTR)..SR;TGN26,36..DCB..5F..DLX..LA;TGN36..DCB..(ANCOM,PHL,SA);TGN26..(ANCOM,GCC,GEN,SA,TH)..CBU;KUN15,16..(DCB,SCB)..(ARL,SA)..CBU;KUN26..(DCB,XTR)..(ARL,LA,PHL,TH)..CBU;KUN25,35..DLX..(ANCOM,GCC,GEN,LA,SA)..CBU;KUN15,16..(DCB,SCB,XTR)..(GCC,GEN,PHL,PKN,TH)..CBU;GGN15,25,KUN10,LAN15,25,35,TGN1#..(5F,5FC)..(ANCOM,ARL,GCC,GEN,IDN,PKN,SA)..CBU

 1
77316-52040

GGN25..5FC..SA;TGN26..LHD..CBU;KUN15,TGN16..XTR..DLX;GGN15,KUN16..DCB..DLX;GGN25..DCB..(ANCOM,ARL,LA);TGN16..(ARL,GCC,SA,TH)..CBU;GGN15,KUN16..DCB..(4FC,5FC)..SR;GGN15,KUN16..(SCB,SMT,XTR)..CBU;KUN26..(ARL,GEN,LA,PHL,SA,TH)..CBU;KUN15..(DCB,SCB,SMT)..(DLX,SR)..CBU;GGN35,KUN10,25,3#,LAN15,25,35,TGN10,11,15,36..(DLX,SR)..CBU

 1
77366 - SPRING, FUEL FILLER OPENING LID HINGE
77360-0K030

GGN25..5FC..SA;TGN26..LHD..CBU;KUN15,TGN16..XTR..DLX;GGN15,KUN16..DCB..DLX;GGN25..DCB..(ANCOM,ARL,LA);TGN16..(ARL,GCC,SA,TH)..CBU;GGN15,KUN16..DCB..(4FC,5FC)..SR;GGN15,KUN16..(SCB,SMT,XTR)..CBU;KUN26..(ARL,GEN,LA,PHL,SA,TH)..CBU;KUN15..(DCB,SCB,SMT)..(DLX,SR)..CBU;GGN35,KUN10,25,3#,LAN15,25,35,TGN10,11,15,36..(DLX,SR)..CBU

 1
77360-0K030

KUN26..THDCB;KUN25..SCB..MA;TGN36..SCB..CBU;KUN26..DCB..5F..SA;KUN36..(DCB,SCB)..5F;KUN36,TGN16..XTR..TH;KUN25..(DCB,XTR)..SR;TGN26,36..DCB..5F..DLX..LA;TGN36..DCB..(ANCOM,PHL,SA);TGN26..(ANCOM,GCC,GEN,SA,TH)..CBU;KUN15,16..(DCB,SCB)..(ARL,SA)..CBU;KUN26..(DCB,XTR)..(ARL,LA,PHL,TH)..CBU;KUN25,35..DLX..(ANCOM,GCC,GEN,LA,SA)..CBU;KUN15,16..(DCB,SCB,XTR)..(GCC,GEN,PHL,PKN,TH)..CBU;GGN15,25,KUN10,LAN15,25,35,TGN1#..(5F,5FC)..(ANCOM,ARL,GCC,GEN,IDN,PKN,SA)..CBU

 1
77377 - RETAINER, FUEL FILLER OPENING LID LOCK
77377-0K010

KUN26..THDCB;KUN25..SCB..MA;TGN36..SCB..CBU;KUN26..DCB..5F..SA;KUN36..(DCB,SCB)..5F;KUN36,TGN16..XTR..TH;KUN25..(DCB,XTR)..SR;TGN26,36..DCB..5F..DLX..LA;TGN36..DCB..(ANCOM,PHL,SA);TGN26..(ANCOM,GCC,GEN,SA,TH)..CBU;KUN15,16..(DCB,SCB)..(ARL,SA)..CBU;KUN26..(DCB,XTR)..(ARL,LA,PHL,TH)..CBU;KUN25,35..DLX..(ANCOM,GCC,GEN,LA,SA)..CBU;KUN15,16..(DCB,SCB,XTR)..(GCC,GEN,PHL,PKN,TH)..CBU;GGN15,25,KUN10,LAN15,25,35,TGN1#..(5F,5FC)..(ANCOM,ARL,GCC,GEN,IDN,PKN,SA)..CBU

 1
77377-0K010

GGN25..5FC..SA;TGN26..LHD..CBU;KUN15,TGN16..XTR..DLX;GGN15,KUN16..DCB..DLX;GGN25..DCB..(ANCOM,ARL,LA);TGN16..(ARL,GCC,SA,TH)..CBU;GGN15,KUN16..DCB..(4FC,5FC)..SR;GGN15,KUN16..(SCB,SMT,XTR)..CBU;KUN26..(ARL,GEN,LA,PHL,SA,TH)..CBU;KUN15..(DCB,SCB,SMT)..(DLX,SR)..CBU;GGN35,KUN10,25,3#,LAN15,25,35,TGN10,11,15,36..(DLX,SR)..CBU

 1
77601A - BAND SUB-ASSY, FUEL TANK, NO.1
77601-0K020

KUN10,TGN10,11

 1
77602B - BAND SUB-ASSY, FUEL TANK, NO.1 LH
77602-0K020

KUN10,TGN10,11

 1
77611A - PIN (FOR FUEL TANK BAND)
77653-0K041

KUN10,TGN10,11..GCC

 3
77611A - PIN (FOR FUEL TANK BAND)
77653-0K041

KUN10,TGN10,11..GCC

 3
77644 - BOLT, FUEL TANK
77644-35030

KUN10,TGN10,11..GCC

 3
77644 - BOLT, FUEL TANK
77644-35030

KUN10,TGN10,11..GCC

 3
77652 - CUSHION, FUEL TANK, NO.1
77652-0K030

KUN10,TGN10,11

 2
77652 - CUSHION, FUEL TANK, NO.1
77652-0K030

KUN10,TGN10,11

 2
77682 - SEAT, FUEL TANK BAND, LH
77682-0K010

KUN10,TGN10,11

 1
77697 - INSULATOR, FUEL TANK HEAT, NO.1
77697-0K020

KUN10,TGN10,11

 1
Common parts
77644-0K010
90080-54035
90105-T0204
90178-T0020
90179-06169
90179-08241
90269-04059
90460-46005
90464-T0003
90466-T0037
90466-T0040
90468-14039
90469-T0003
90959-T1001
Linked diagrams
6554
8401

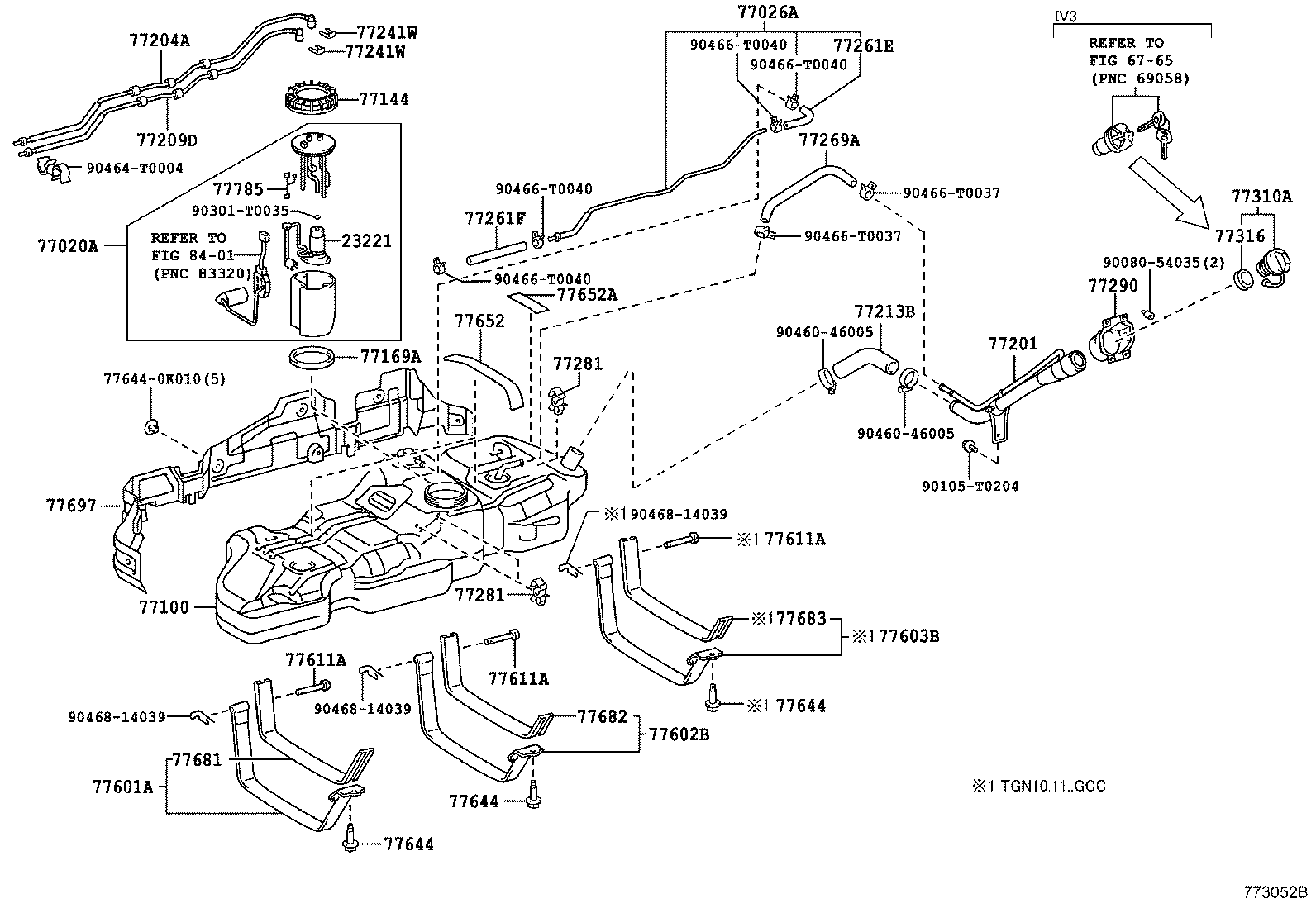

ILLUST NO. 1 OF 4(1107- )TGN10,11

Click highlighted areas on diagram

FUEL TANK

diagram 23221 6765 77020A 77026A 77100 77144 77169A 77201 77204A 77209D 77213B 77241W 77241W 77261E 77261F 77269A 77281 77281 77290 77310A 77316 77601A 77602B 77603B 77611A 77611A 77611A 77644 77644 77644 776440K010 77652 77652A 77681 77682 77683 77697 77785 8401 9008054035 90105T0204 90301T0035 9046046005 9046046005 90464T0004 90466T0037 90466T0037 90466T0040 90466T0040 90466T0040 90466T0040 9046814039 9046814039 9046814039
Part # Description Qty Price
Common parts
77644-0K010
90080-54035
90105-T0204
90301-T0035
90460-46005
90464-T0004
90466-T0037
90466-T0040
90468-14039
Linked diagrams
6765
8401

ILLUST NO. 3 OF 4(1107- )TGN10,11

Click highlighted areas on diagram

FUEL TUBE

diagram 2211 2211 2211 77251B 77254A 77255D 77261D 77285D 77285F 77285G 77286D 77289B 77740 77751 77754 77775 90105T0059 90105T0059 90182T0001 90466T0040 9046907011 90469T0005
Part # Description Qty Price
Common parts
90105-T0059
90182-T0001
90466-T0040
90469-07011
90469-T0005
Linked diagrams
2211

ILLUST NO. 4 OF 4(1107- )CBU

Click highlighted areas on diagram

FUEL LID OPENER

diagram 6554 77035 77035 77285A 77285A 77306 77306 77366 77377 77377 9026904059 90464T0003 90464T0003 90469T0003 90959T1001 90959T1001 90959T1001 90959T1001 90959T1001 90959T1001 90959T1001 90959T1001
Part # Description Qty Price
Common parts
90269-04059
90464-T0003
90469-T0003
90959-T1001
Linked diagrams
6554

ILLUST NO. 1 OF 4(1107- )KUN1#,2#,3#,LAN15,25,35..CBU

Click highlighted areas on diagram

FUEL TANK

diagram 77017B 77026A 77026A 77100 77144 77161C 77169A 77201 77201 77204A 77209D 77213B 77213B 77241V 77241W 77259A 77269A 77269A 77277T 77277T 77281 77283C 77285L 77290 77290 77310A 77310A 77316 77316 77397 77601A 77602B 77611A 77611A 77641A 77642A 77644 77644 776440K010 77652 77652 77681A 77682 77697 8401 9008054035 9008054035 90105T0204 90105T0204 90178T0020 90178T0020 9017906169 9046046005 9046046005 9046046005 9046046005 90466T0037 90466T0037 90466T0037 90466T0037 90466T0040 90466T0040 90466T0040 90466T0040 90466T0041 9046814039 9046814039
Part # Description Qty Price
Common parts
77644-0K010
90080-54035
90105-T0204
90178-T0020
90179-06169
90460-46005
90466-T0037
90466-T0040
90466-T0041
90468-14039
Linked diagrams
8401

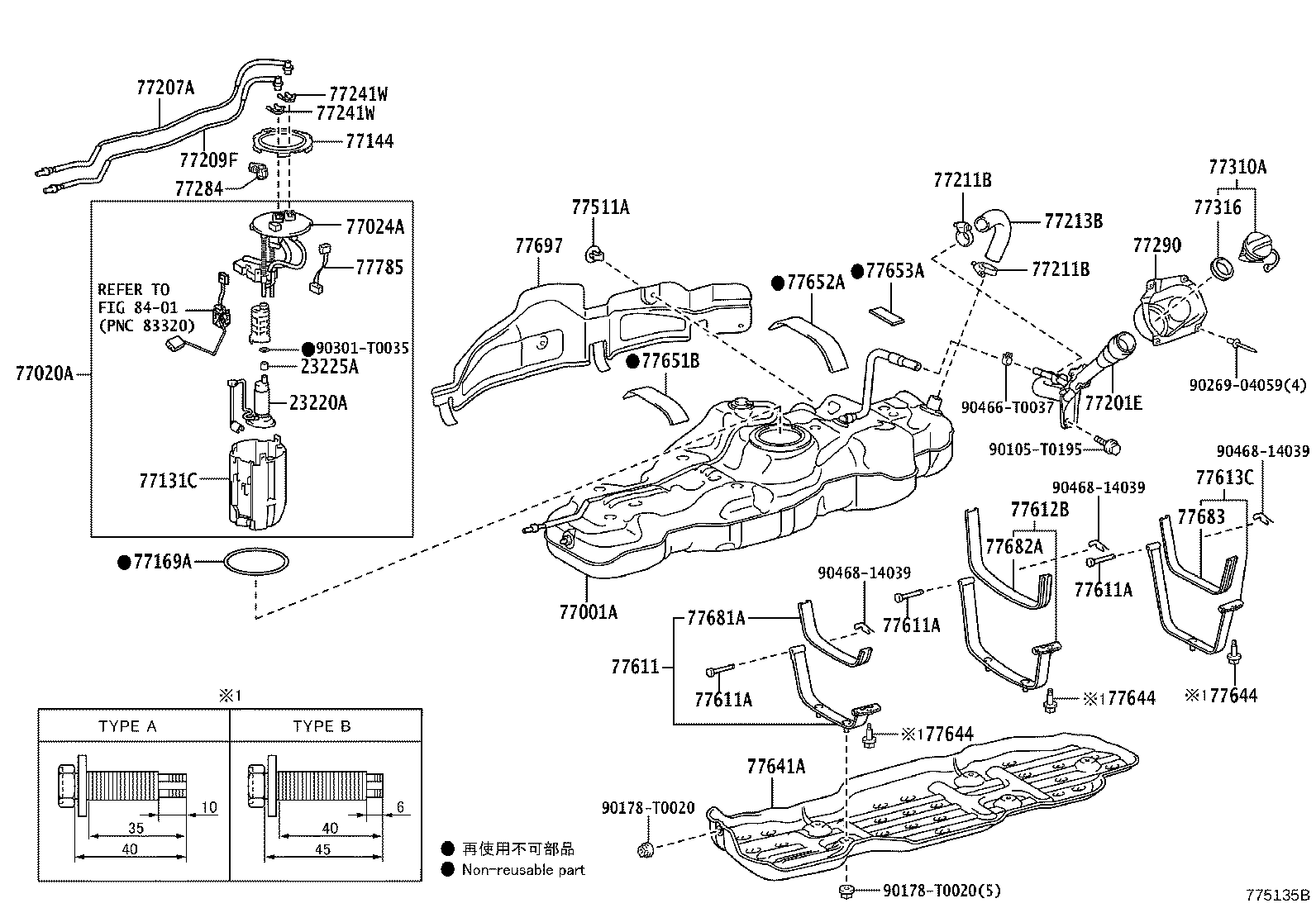

ILLUST NO. 1 OF 3(1505- )TGN11#..GCC

Click highlighted areas on diagram

FUEL TANK

diagram 23220A 23225A 77001A 77020A 77024A 77131C 77144 77169A 77201E 77207A 77209F 77211B 77211B 77213B 77241W 77241W 77284 77290 77310A 77316 77511A 77611 77611A 77611A 77611A 77612B 77613C 77641A 77642A 77644 77644 77644 77651B 77652A 77653A 77681A 77682A 77683 77697 77785 8401 9010508158 90105T0195 90178T0020 90178T0020 9026904059 90301T0035 90466T0037 9046814039 9046814039 9046814039
Part # Description Qty Price
Common parts
90105-08158
90105-T0195
90178-T0020
90269-04059
90301-T0035
90466-T0037
90468-14039
Linked diagrams
8401

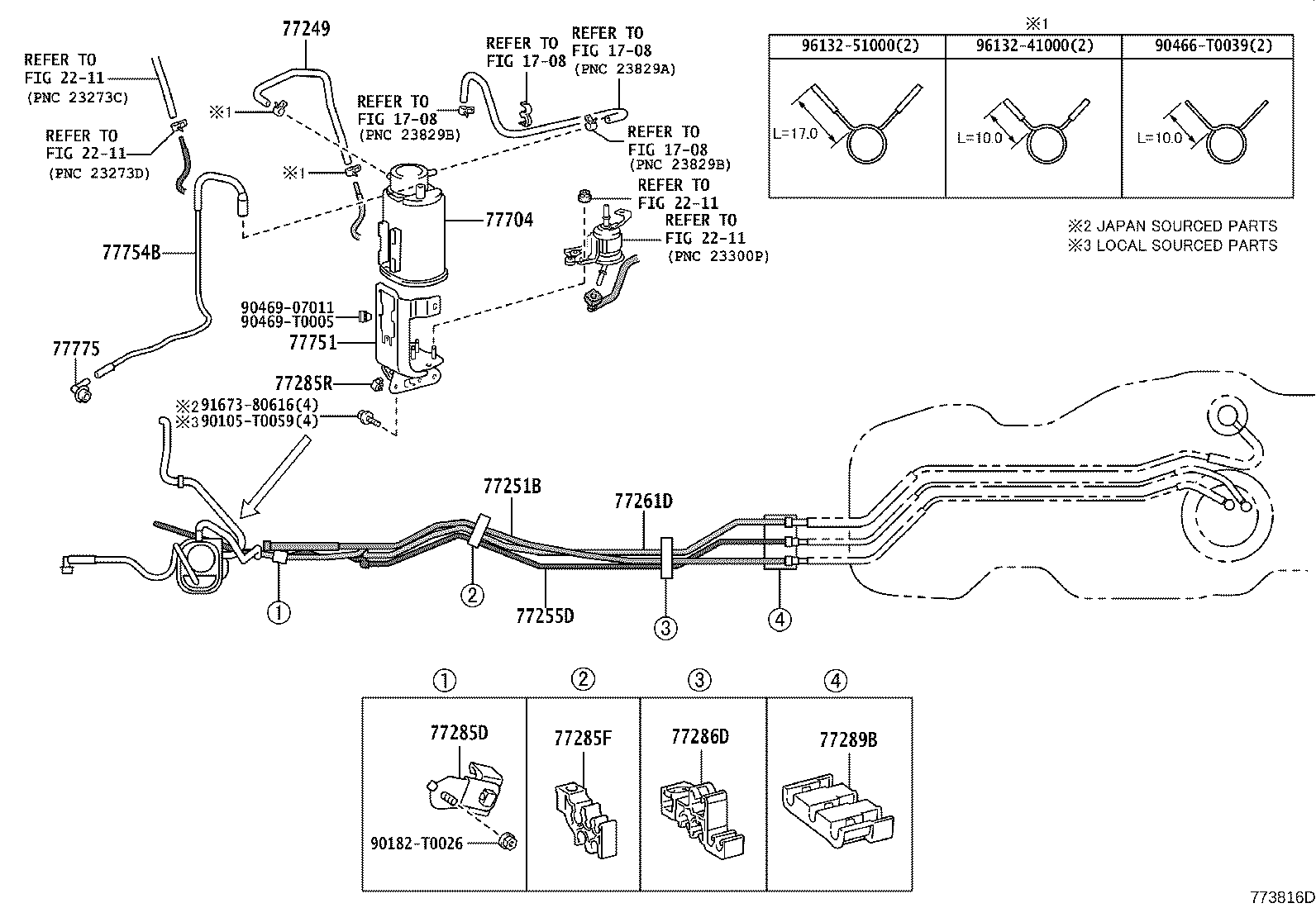

ILLUST NO. 2 OF 3(1505- )TGN11#

Click highlighted areas on diagram

FUEL TUBE

diagram 1708 1708 1708 1708 2211 2211 2211 2211 77249 77251B 77255D 77261D 77285D 77285F 77285R 77286D 77289B 77704 77751 77754B 77775 90105T0059 90182T0026 90466T0039 9046907011 90469T0005 9167380616 9613241000 9613251000
Part # Description Qty Price
Common parts
90105-T0059
90182-T0026
90466-T0039
90469-07011
90469-T0005
91673-80616
96132-41000
96132-51000
Linked diagrams
1708
2211

ILLUST NO. 1 OF 3(2006- )TGN11#..GCC

Click highlighted areas on diagram

FUEL TANK

diagram 23220A 23225A 77001A 77020A 77024A 77131C 77144 77169A 77201E 77207A 77209F 77211B 77211B 77213B 77241W 77241W 77284 77290 77310A 77316 77511A 77611 77611A 77611A 77611A 77612B 77613C 77641A 77644 77644 77644 77651B 77652A 77653A 77681A 77682A 77683 77697 77785 8401 90105T0195 90178T0020 90178T0020 9026904059 90301T0035 90466T0037 9046814039 9046814039 9046814039
Part # Description Qty Price
Common parts
90105-T0195
90178-T0020
90269-04059
90301-T0035
90466-T0037
90468-14039
Linked diagrams
8401

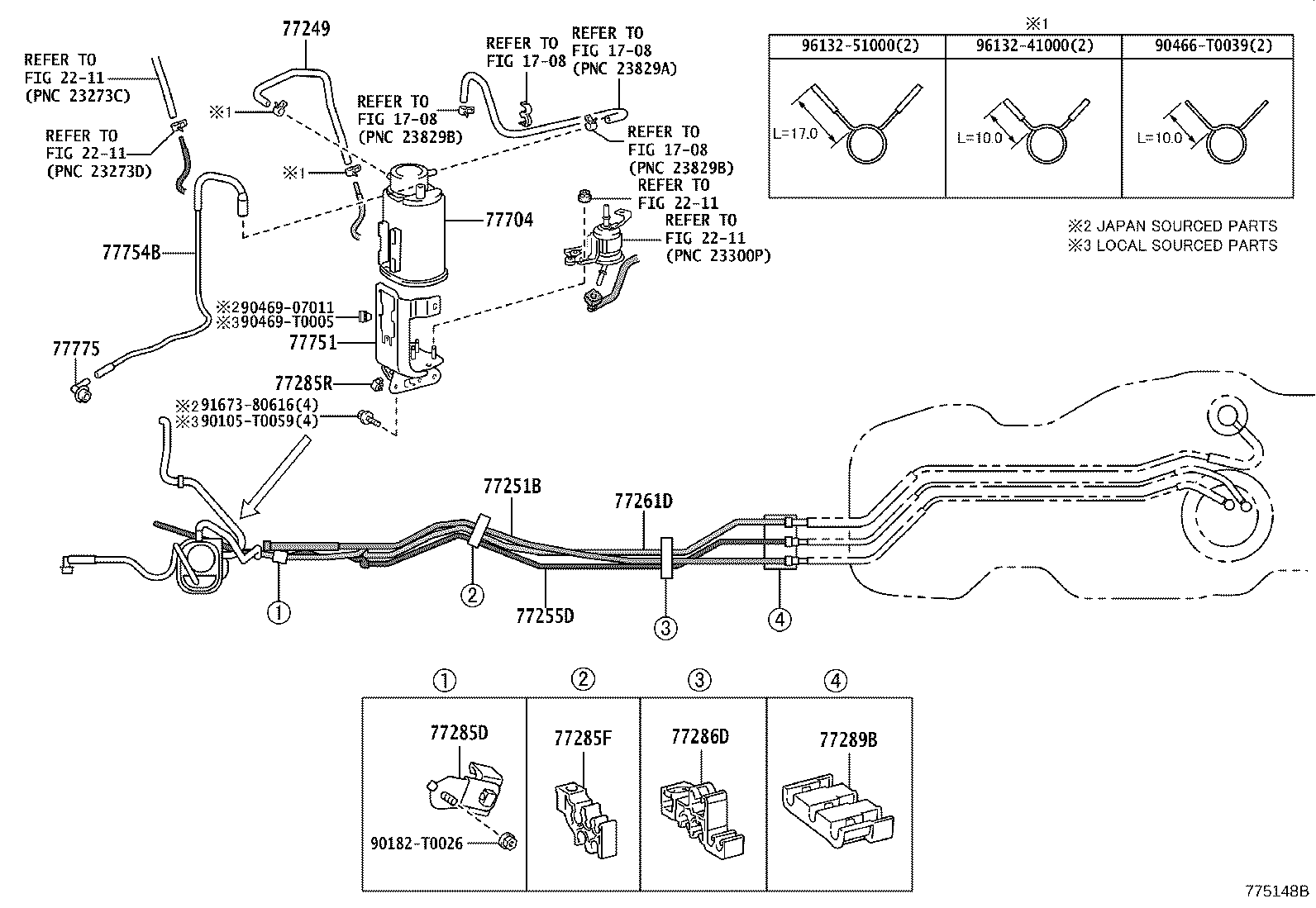

ILLUST NO. 2 OF 3(2006- )TGN11#

Click highlighted areas on diagram

FUEL TUBE

diagram 1708 1708 1708 1708 2211 2211 2211 2211 77249 77251B 77255D 77261D 77285D 77285F 77285R 77286D 77289B 77704 77751 77754B 77775 90105T0059 90182T0026 90466T0039 9046907011 90469T0005 9167380616 9613241000 9613251000
Part # Description Qty Price
Common parts
90105-T0059
90182-T0026
90466-T0039
90469-07011
90469-T0005
91673-80616
96132-41000
96132-51000
Linked diagrams
1708
2211

ILLUST NO. 3 OF 3(2006- )AD,KD,MD,MMD,PD,SD,TD

Click highlighted areas on diagram

FUEL LID OPENER

diagram 77035 77035 77285G 77285G 77306 77306 77350 77360A 77377 77377 827111A750 827111A750 9008054035 9026906017 90469T0003 90469T0003 9092901382 9092901382 90959T1001 90959T1001
Part # Description Qty Price
Common parts
82711-1A750
90080-54035
90269-06017
90469-T0003
90929-01382
90959-T1001
