LAN25L-PRMDEN (2011)

Toyota Hilux

Production Aug 2011 - Dec 2015
Engine 5LE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(1108- )5LE

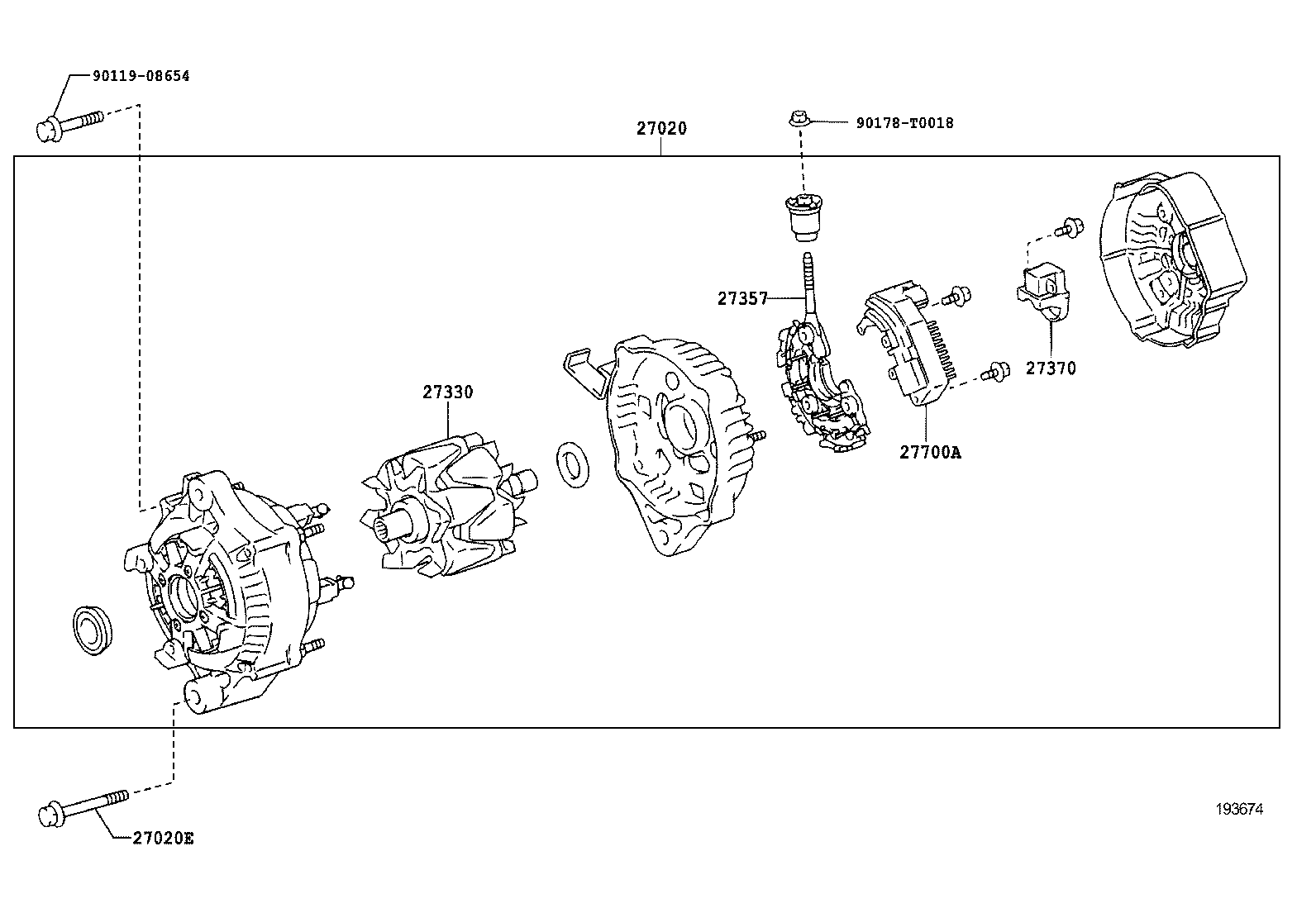

Click highlighted areas on diagram

12V 70A

diagram 27020 27020E 27330 27357 27370 27700A 9011908654 90178T0018
Part # Description Qty Price
27020 - ALTERNATOR ASSY
27060-54360

5LE..LAN15,25,35

12V 70A

 1
27020E - BOLT(FOR ALTERNATOR)
90105-10287

5LE..LAN15,25,35

 1
27330 - ROTOR ASSY, ALTERNATOR
27330-64190

5LE..LAN15,25,35

 1
27357 - HOLDER, ALTERNATOR, W/RECTIFIER
27357-55080

5LE..LAN15,25,35

 1
27370 - HOLDER ASSY, ALTERNATOR BRUSH
27370-75060

5LE..LAN15,25,35;1GRFE..GGN15,25..ARL

 1
27700A - REGULATOR ASSY, GENERATOR
27700-35040

5LE..LAN15,25,35

 1
Common parts
90119-08654
90178-T0018
