LAN25L-PRMDEN (2005)

Toyota Hilux

Production Jul 2005 - Oct 2008
Engine 5LE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(0507- )5LE

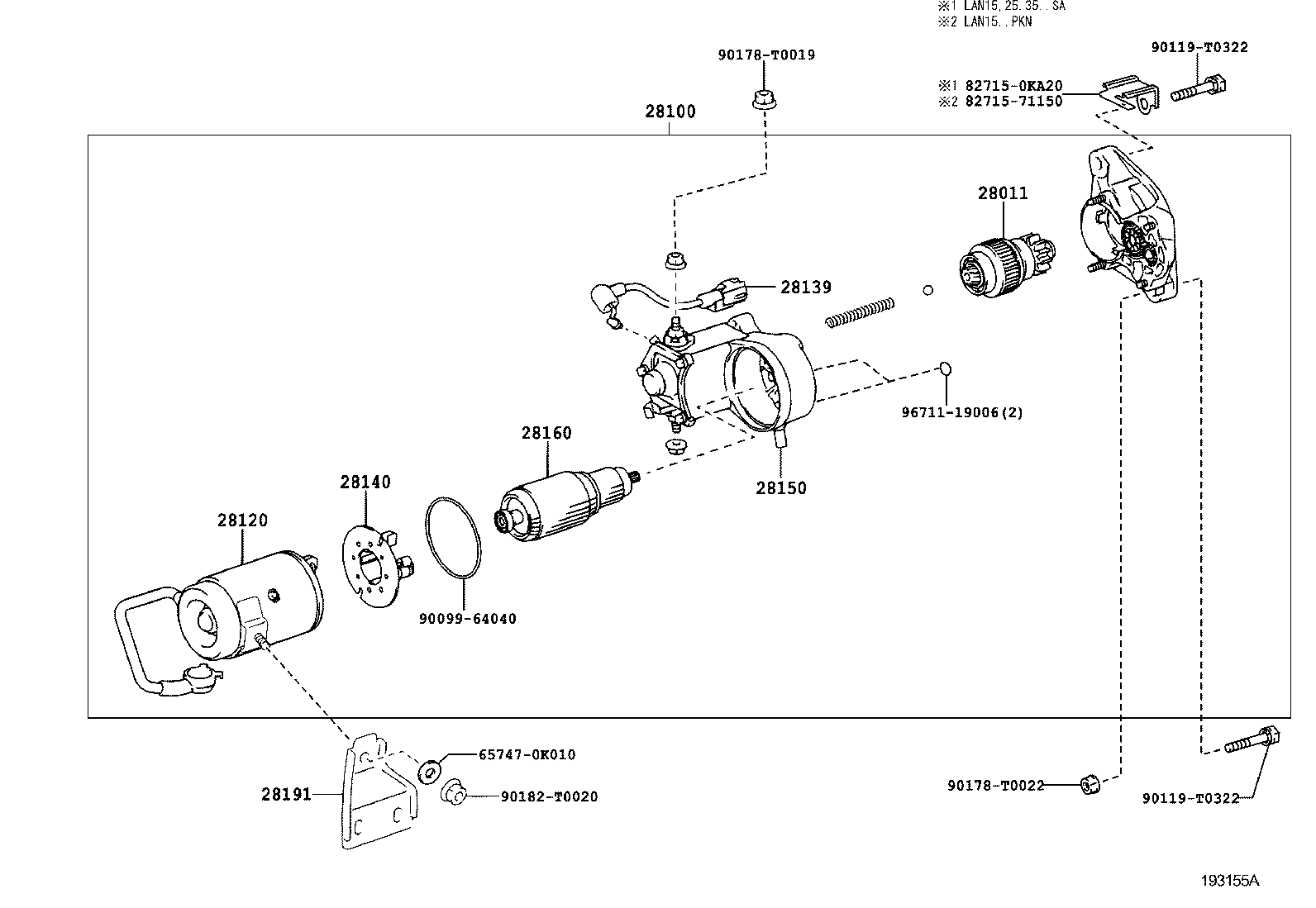

Click highlighted areas on diagram

12V 2.2KW

diagram 28011 28100 28120 28139 28140 28150 28160 28191 657470K010 827150KA20 8271571150 9009964040 90119T0322 90119T0322 90178T0019 90178T0022 90182T0020 9671119006
Part # Description Qty Price
28140 - HOLDER ASSY, STARTER BRUSH
28140-64040

1KDFTV..KUN26..THDCB;1KDFTV..KUN16..XTR..TH;1KDFTV,5LE..KUN16,LAN15,25,35..DCB,SCB;1KDFTV..KUN26,36..(DCB,SCB,XTR)..(ARL,PHL,TH)

1
28160 - ARMATURE ASSY, STARTER
28160-64041

2KDFTV..KUN15..PKN;1KDFTV..KUN16..XTR..TH;1KDFTV..KUN26..THDCB..5F;1KDFTV..KUN26..LHD..4FC..(GEN,LA);1KDFTV,5LE..KUN16,LAN15,25,35..DCB,SCB;1KDFTV..KUN26,36..(DCB,SCB,XTR)..(ARL,PHL,TH)

1
Common parts
65747-0K010
82715-0KA20
82715-71150
90099-64040
90119-T0322
90178-T0019
90178-T0022
90182-T0020
96711-19006
