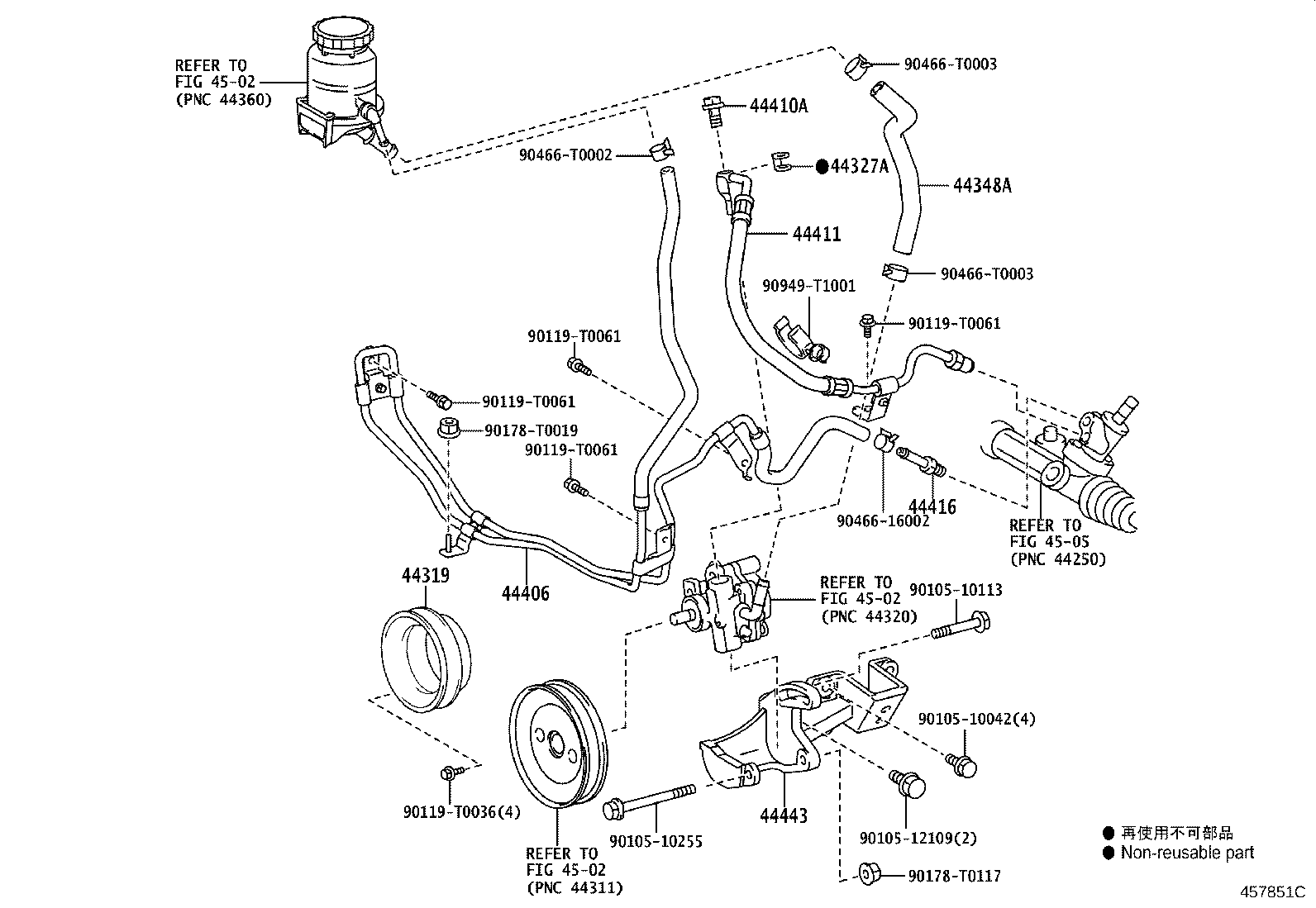

Toyota Hilux LAN125 POWER STEERING TUBE

Part #	Description	Period	Qty
44319 - PULLEY, VANE PUMP DRIVE
44319-22010	LAN125	09/2020 - 12/2999	1
44327A - GASKET, PRESSURE PORT, NO.1
44327-30030	GGN125,GUN112,12#,13#,LAN125,TGN11#,12#,13#..AD,AS,KD,KS,MD,MMD,MS,SD,SS,SX,TD,TS,TX	06/2020 - 02/2022	1
44348A - HOSE, OIL RESERVOIR TO PUMP, NO.1
44348-0K110	GUN112,12#,13#..AD,AS,KD,KS,MD,MMD,MS,SD,SS,SX,TD,TS,TX	06/2020 - 02/2022	1
44348-0K070	LAN125	09/2020 - 09/2021	1
44406 - TUBE SUB-ASSY, RETURN
44406-0K210	LAN125	09/2020 - 12/2999	1
44410A - BOLT, UNION(FOR PRESSURE FEED TUBE)
96341-41603	TGN136..LHD;TGN11#,12#,138..AD,AS,SD,SS,TD,TS	06/2020 - 02/2022	1
44411 - HOSE, PRESSURE FEED
44411-0K100	LAN125	09/2020 - 12/2999	1
44416 - TUBE, RETURN(FOR STEERING GEAR OUTLET)
44416-0K040	GGN125,GUN112,12#,13#,LAN125,TGN11#,12#,13#..AD,AS,KD,KS,MD,MMD,MS,SD,SS,SX,TD,TS,TX	06/2020 - 02/2022	1
44443 - BRACKET, PUMP
44443-26091	LAN125	09/2020 - 12/2999	1
Common parts
90105-10042
90105-10113
90105-10255
90105-12109
90119-T0036
90119-T0061
90178-T0019
90178-T0117
90466-16002
90466-T0002
90466-T0003
90949-T1001
Linked diagrams
4502
4505

LAN125L-DNMSEN (2020)
