KUN36R-PRMSYT (2008)

Toyota Hilux

Production Aug 2008 - Jul 2011
Engine 1KDFTV
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(0808- )KUN16,36..5F..ARL,TH ; (0808- )GGN15,KUN15,35,TGN11,16..5F..HDCR,HTWC

Click highlighted areas on diagram

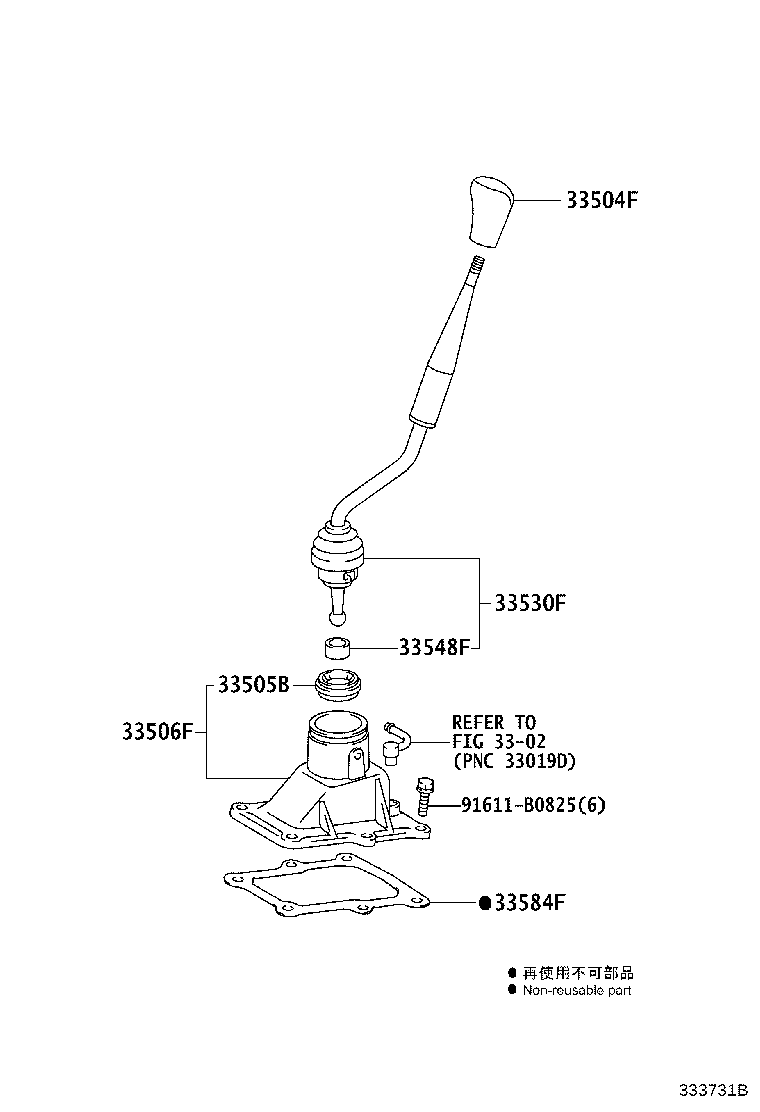

diagram 3302 33504F 33505B 33506F 33530F 33548F 33584F 91611B0825
Part # Description Qty Price
33504F - KNOB SUB-ASSY, SHIFT LEVER
33504-0D050E0

KUN15,16,2#,36..(DCB,XTR)..5F..SR..(LA,MA,PHL,TH)

SANDAL WOOD,TRIM0#

 1
33505B - SEAT SUB-ASSY, SHIFT LEVER
33505-35030

KUN16,36..5F;TGN36..5F..CBU;TGN36..ANCOM..IV3;GGN15,KUN15,35,TGN11,16..5F..(HDCR,HTWC)

TYPE D:REFER 33-01

 1
33505-35030

KUN36;KUN16,2#..(DCB,SCB)..5F..(ANCOM,LA,MA,SA,TH);GGN25,KUN15,35..5F..(HDCR,HTWC)..(ANCOM,LA,SA,TH)

TYPE C:REFER 33-01

 1
33505-35030

KUN16,26,36..5F..TH;KUN15,25,35..HDCR..TH

TYPE A:REFER 33-01

 1
33505-35030

KUN16,26,36..5F..(ARL,GEN,IDN,PHL,TH);GGN15,25,KUN15,25,35,TGN11,16,26..5F..(HDCR,HTWC)..(ARL,GCC,GEN,PHL,TH)

TYPE B:REFER 33-01

 1
33506F - RETAINER SUB-ASSY, CONTROL SHIFT LEVER (FOR FLOOR SHIFT
33570-0K010

KUN36;KUN16..(DCB,SCB)..5F..TH;KUN15,35..(DCB,SCB,XTR)..HDCR

TYPE C:REFER 33-01

 1
33570-71030

KUN16,36..5F;TGN36..5F..CBU;TGN36..ANCOM..IV3;GGN15,KUN15,35,TGN11,16..5F..(HDCR,HTWC)

TYPE D:REFER 33-01

 1
33570-71030

KUN16..5F..TH;KUN15,3#..SR..TH

TYPE A:REFER 33-01

 1
33570-0K030

KUN16,36..5F..TH;KUN15,35..HDCR..TH

TYPE A:REFER 33-01

 1
33530F - LEVER ASSY, SHIFT (FOR FLOOR SHIFT)
33530-0K100

KUN16,36..RHD..5F;KUN15,35..RHD..HDCR

 1
33548F - BUSH, NO.1, SHIFT LEVER (FOR FLOOR SHIFT)
33548-04010

GGN15..5F..DLX;TGN36..5F..SR..LA;KUN16..SCB,SMT,XTR;KUN15,TGN16..XTR..DLX;TGN26..LHD..5F..(GCC,GEN,LA,SA);KUN36,TGN16..5F..(ARL,GCC,SA,TH);GGN25,TGN26..(DCB,SCB)..5F..(ANCOM,ARL)..CBU;KUN16,TGN15..(DCB,SCB)..(ARL,GCC,GEN,SA)..CBU;KUN15,35,TGN10,36..(DCB,SCB,SMT,THDCB)..5F..(ANCOM,GCC,GEN,IDN,PHL,SA,TH);KUN10,2#,LAN15,25,35,TGN11..5F..(DLX,SR)..(ANCOM,ARL,GCC,GEN,LA,MA,PHL,PKN,SA,TH)

 1
33548-04010

TGN36..SCB;KUN25..SCB..MA;KUN16,36..XTR..TH;TGN26,36..DCB..5F..DLX..LA;KUN15..(DCB,SCB)..(PHL,SA)..CBU;KUN26..DCB..5F..(ARL,LA,PHL,SA,TH);KUN25,TGN36..RHD..(DCB,XTR)..5F..SR;KUN25,35..DLX..(ANCOM,GCC,GEN,LA,SA);KUN15..(DCB,SCB,XTR)..(GCC,GEN,PKN,TH);KUN16,36,TGN10..(DCB,SCB)..5F..(DLX,SR);KUN26..(SCB,THDCB,XTR)..5F..(ARL,GEN,TH);GGN15,25,KUN10,LAN15,25,35,TGN11,15,16,26..5F..(ANCOM,ARL,GCC,GEN,PKN,SA)

 1
33584F - GASKET, CONTROL SHIFT LEVER RETAINER (FOR FLOOR SHIFT)
33182-35020

KUN16,36..5F..TH;KUN15,35..HDCR..TH

TYPE A:REFER 33-01

 1
33182-35020

KUN36;KUN16..(DCB,SCB)..5F..TH;KUN15,35..(DCB,SCB,XTR)..HDCR

TYPE C:REFER 33-01

 1
33584-71010

KUN16,36..5F..TH;KUN15,35..HDCR..TH

TYPE A:REFER 33-01

 1
Common parts
91611-B0825
Linked diagrams
3302
