KUN36R-PRMSYN (2011)
Toyota Hilux

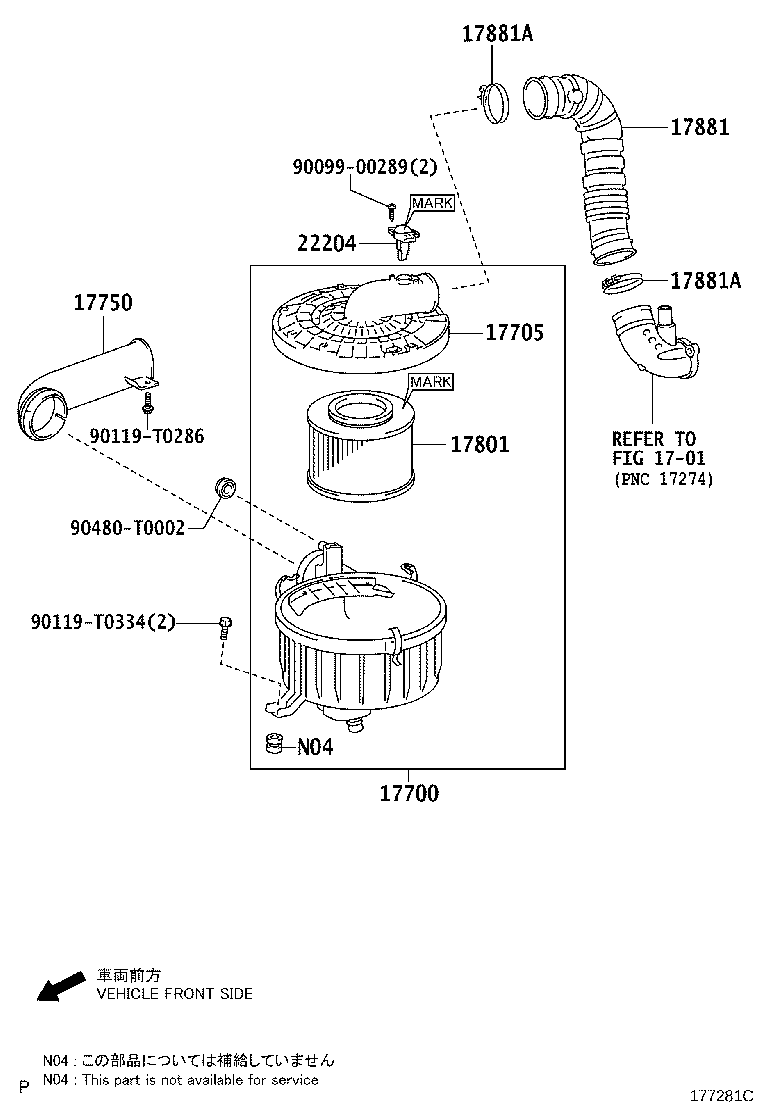

ILLUST NO. 1 OF 2(1108- )1KDFTV..KUN26,36..4FC,5F..DCR..CO,LA,SA ; (1201- )1KDFTV..KUN26..SADC
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 17700 - CLEANER ASSY, AIR | ||||
| 17700-0L061 |
1KDFTV..KUN26,36..SA;1KDFTV..KUN26..SADCB |
1 | ||
| 17700-0L061 |
1KDFTV..KUN26,36..SA;1KDFTV..KUN26..SADCB |
1 | ||
| 17705 - CAP SUB-ASSY, AIR CLEANER | ||||
| 17705-0L030 |
1KDFTV..KUN26,36..SA;1KDFTV..KUN26..SADCB |
1 | ||
| 17705-0L030 |
1KDFTV..KUN26,36..SA;1KDFTV..KUN26..SADCB |
1 | ||
| 17750 - COVER ASSY, AIR CLEANER INLET, SEAL | ||||
| 17751-0L030 |
1KDFTV..KUN26..SADCB;1KDFTV,2KDFTV..KUN15,2#,3#..SA |
1 | ||
| 17751-0L030 |
1KDFTV..KUN26..SADCB;1KDFTV,2KDFTV..KUN15,2#,3#..SA |
1 | ||
| 17801 - ELEMENT SUB-ASSY, AIR CLEANER FILTER | ||||
| 17801-0C010 |
1KDFTV..KUN26..SADCB;1KDFTV,2KDFTV..KUN15,2#,3#..SA MARK 17801-0C010 |
1 | ||
| 17801-0C010 |
1KDFTV..KUN26..SADCB;1KDFTV,2KDFTV..KUN15,2#,3#..SA MARK 17801-0C010 |
1 | ||
| 17801-0C020 |
1KDFTV..KUN26..SADCB;1KDFTV,2KDFTV..KUN15,2#,3#..SA MARK 17801-0C020 |
1 | ||
| 17801-0C020 |
1KDFTV..KUN26..SADCB;1KDFTV,2KDFTV..KUN15,2#,3#..SA MARK 17801-0C020 |
1 | ||
| 17881 - HOSE, AIR CLEANER, NO.1 | ||||
| 17881-0L030 |
2KDFTV..KUN25..IDN;1KDFTV..KUN26..4FC..TH;1KDFTV,2KDFTV..KUN3#..4FC;1KDFTV..KUN36..5F..(GEN,SA);1KDFTV..KUN16..(4FC,5F)..(GEN,TH);1KDFTV..KUN26..(4FC,5F)..(GEN,MA,PHL,SA) |
1 | ||
| 17881-0L030 |
2KDFTV..KUN25..IDN;1KDFTV..KUN26..4FC..TH;1KDFTV,2KDFTV..KUN3#..4FC;1KDFTV..KUN36..5F..(GEN,SA);1KDFTV..KUN16..(4FC,5F)..(GEN,TH);1KDFTV..KUN26..(4FC,5F)..(GEN,MA,PHL,SA) |
1 | ||
| 17881A - CLAMP(FOR AIR CLEANER HOSE, NO.1) | ||||
| 90460-T0005 |
1KDFTV..KUN16;2KDFTV..KUN25..IDN,LA;1KDFTV..KUN26..(4FC,5FC)..TH;1KDFTV,2KDFTV..KUN3#..4FC,5FC;1KDFTV..KUN36..5F..(GEN,LA,SA);1KDFTV..KUN26..ARL,CO,GEN,LA,MA,PHL,SA;2KDFTV..KUN15,35..(DCB,SCB)..DLX..HDCR..(GEN,LA) |
2 | ||
| 90460-T0005 |
1KDFTV..KUN16;2KDFTV..KUN25..IDN,LA;1KDFTV..KUN26..(4FC,5FC)..TH;1KDFTV,2KDFTV..KUN3#..4FC,5FC;1KDFTV..KUN36..5F..(GEN,LA,SA);1KDFTV..KUN26..ARL,CO,GEN,LA,MA,PHL,SA;2KDFTV..KUN15,35..(DCB,SCB)..DLX..HDCR..(GEN,LA) |
2 | ||
| 17881A - CLAMP(FOR AIR CLEANER HOSE, NO.1) | ||||
| 90460-T0005 |
1KDFTV..KUN16;2KDFTV..KUN25..IDN,LA;1KDFTV..KUN26..(4FC,5FC)..TH;1KDFTV,2KDFTV..KUN3#..4FC,5FC;1KDFTV..KUN36..5F..(GEN,LA,SA);1KDFTV..KUN26..ARL,CO,GEN,LA,MA,PHL,SA;2KDFTV..KUN15,35..(DCB,SCB)..DLX..HDCR..(GEN,LA) |
2 | ||
| 90460-T0005 |
1KDFTV..KUN16;2KDFTV..KUN25..IDN,LA;1KDFTV..KUN26..(4FC,5FC)..TH;1KDFTV,2KDFTV..KUN3#..4FC,5FC;1KDFTV..KUN36..5F..(GEN,LA,SA);1KDFTV..KUN26..ARL,CO,GEN,LA,MA,PHL,SA;2KDFTV..KUN15,35..(DCB,SCB)..DLX..HDCR..(GEN,LA) |
2 | ||
| 22204 - METER SUB-ASSY, INTAKE AIR FLOW | ||||
| 22204-0N010 |
1KDFTV..KUN26..SADCB;2KDFTV..KUN35..SR..SA;2KDFTV..KUN35..(SCB,XTR)..SA;1KDFTV,2KDFTV..KUN15,2#,36..RHD..SA MARK 22204-0N010 |
1 | ||
| 22204-0N010 |
1KDFTV..KUN26..SADCB;2KDFTV..KUN35..SR..SA;2KDFTV..KUN35..(SCB,XTR)..SA;1KDFTV,2KDFTV..KUN15,2#,36..RHD..SA MARK 22204-0N010 |
1 | ||
| 22204-0L010 |
1KDFTV..KUN26..SADCB;2KDFTV..KUN35..SR..SA;2KDFTV..KUN35..(SCB,XTR)..SA;1KDFTV,2KDFTV..KUN15,2#,36..RHD..SA MARK 22204-0L010 |
1 | ||
| 22204-0L010 |
1KDFTV..KUN26..SADCB;2KDFTV..KUN35..SR..SA;2KDFTV..KUN35..(SCB,XTR)..SA;1KDFTV,2KDFTV..KUN15,2#,36..RHD..SA MARK 22204-0L010 |
1 | ||
| Common parts | ||||
| 90099-00289 | ||||
| 90119-T0286 | ||||
| 90119-T0334 | ||||
| 90480-T0002 | ||||
| Linked diagrams | ||||
| 1701 | ||||
ILLUST NO. 2 OF 2(1210- )2KDFTV..KUN35..SR..SA ; (1308- )2KDFTV..KUN25..LHD..DCB..GEN ; (1311-
