KUN36R-CRMSYT (2005)
Toyota Hilux

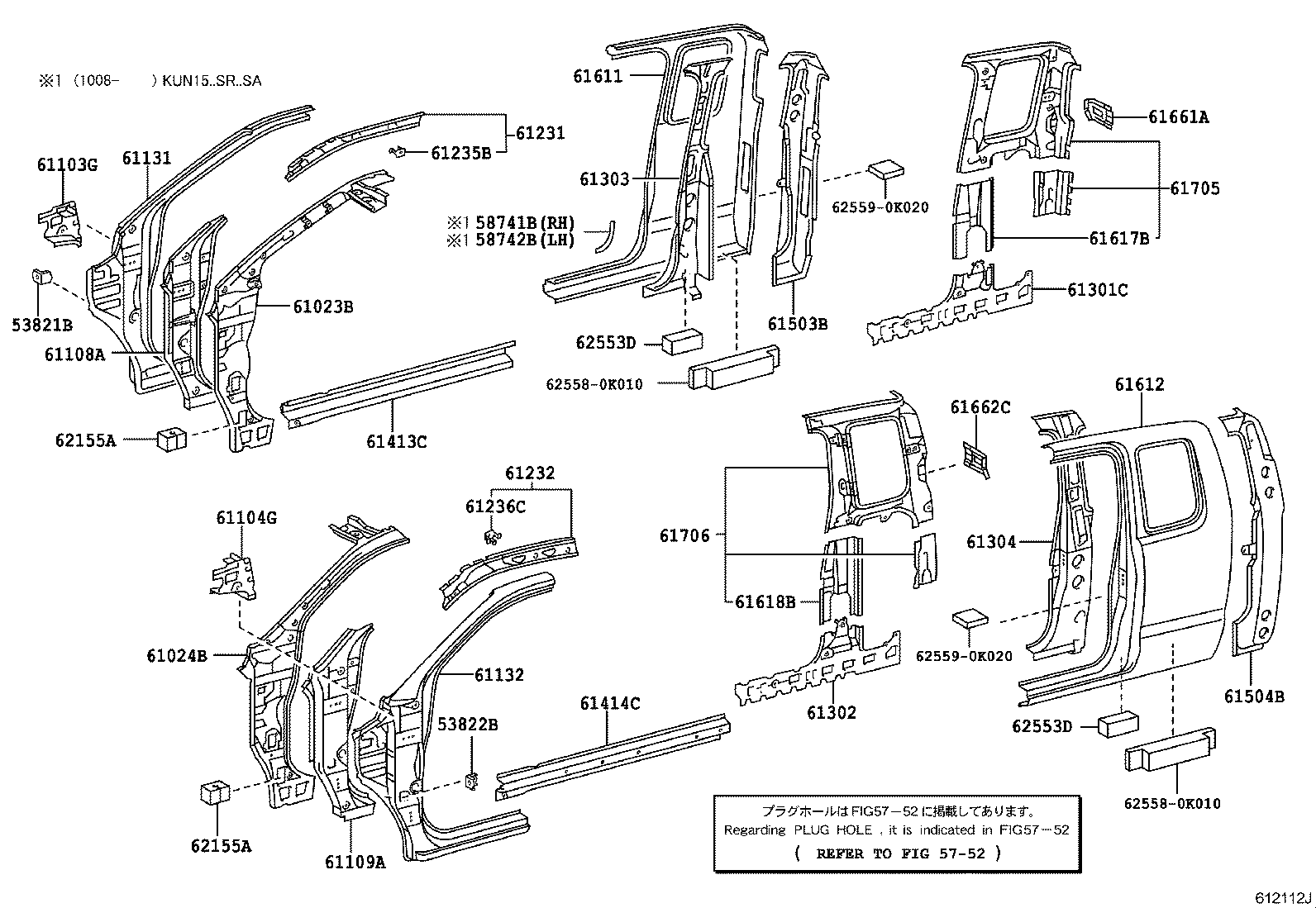

(0408- )XTR
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 53821B - BRACKET, FRONT FENDER, REAR RH | ||||
| 53821-16010 |
TGN36..SCB;KUN26..THDCB;KUN25..SCB..MA;KUN26..DCB..5F..SA;KUN36..(DCB,SCB)..5F;KUN25..(DCB,XTR)..SR;KUN16,36,TGN16..XTR..TH;TGN26,36..DCB..5F..DLX..LA;TGN26..ANCOM,GCC,GEN,SA,TH;TGN36..DCB..(ANCOM,PHL,SA);KUN15..(DCB,SCB)..(PHL,SA)..CBU;KUN16,TGN10..(DCB,SCB)..(DLX,SR);KUN25,35..DLX..(ANCOM,GCC,GEN,LA,SA);KUN26..(DCB,SCB,XTR)..(ARL,LA,PHL,TH);KUN15..(DCB,SCB,XTR)..(GCC,GEN,PKN,TH);GGN15,25,KUN10,LAN15,25,35,TGN11,15,16..(5F,5FC)..(ANCOM,ARL,GCC,GEN,PKN,SA) |
1 | ||
| 53822B - BRACKET, FRONT FENDER, REAR LH | ||||
| 53821-16010 |
TGN36..SCB;KUN26..THDCB;KUN25..SCB..MA;KUN26..DCB..5F..SA;KUN36..(DCB,SCB)..5F;KUN25..(DCB,XTR)..SR;KUN16,36,TGN16..XTR..TH;TGN26,36..DCB..5F..DLX..LA;TGN26..ANCOM,GCC,GEN,SA,TH;TGN36..DCB..(ANCOM,PHL,SA);KUN15..(DCB,SCB)..(PHL,SA)..CBU;KUN16,TGN10..(DCB,SCB)..(DLX,SR);KUN25,35..DLX..(ANCOM,GCC,GEN,LA,SA);KUN26..(DCB,SCB,XTR)..(ARL,LA,PHL,TH);KUN15..(DCB,SCB,XTR)..(GCC,GEN,PKN,TH);GGN15,25,KUN10,LAN15,25,35,TGN11,15,16..(5F,5FC)..(ANCOM,ARL,GCC,GEN,PKN,SA) |
1 | ||
| 61023B - PILLAR SUB-ASSY, FRONT BODY, INNER RH | ||||
| 61023-0K020 |
GGN25,KUN2#,3#,LAN25,35,TGN26,36..ANCOM,ARL,GCC,GEN,MA,PHL,SA,TH |
1 | ||
| 61024B - PILLAR SUB-ASSY, FRONT BODY, INNER LH | ||||
| 61024-0K020 |
GGN25,KUN2#,3#,LAN25,35,TGN26,36..ANCOM,ARL,GCC,GEN,MA,PHL,SA,TH |
1 | ||
| 61103G - GUSSET SUB-ASSY, FRONT BODY PILLAR, LOWER RH | ||||
| 61103-0K010 |
TGN36..SCB;KUN26..THDCB;KUN25..SCB..MA;KUN26..DCB..5F..SA;KUN36..(DCB,SCB)..5F;KUN25..(DCB,XTR)..SR;KUN16,36,TGN16..XTR..TH;TGN26,36..DCB..5F..DLX..LA;TGN26..ANCOM,GCC,GEN,SA,TH;TGN36..DCB..(ANCOM,PHL,SA);KUN15..(DCB,SCB)..(PHL,SA)..CBU;KUN16,TGN10..(DCB,SCB)..(DLX,SR);KUN25,35..DLX..(ANCOM,GCC,GEN,LA,SA);KUN26..(DCB,SCB,XTR)..(ARL,LA,PHL,TH);KUN15..(DCB,SCB,XTR)..(GCC,GEN,PKN,TH);GGN15,25,KUN10,LAN15,25,35,TGN11,15,16..(5F,5FC)..(ANCOM,ARL,GCC,GEN,PKN,SA) |
1 | ||
| 61104G - GUSSET SUB-ASSY, FRONT BODY PILLAR, LOWER LH | ||||
| 61104-0K010 |
TGN36..SCB;KUN26..THDCB;KUN25..SCB..MA;KUN26..DCB..5F..SA;KUN36..(DCB,SCB)..5F;KUN25..(DCB,XTR)..SR;KUN16,36,TGN16..XTR..TH;TGN26,36..DCB..5F..DLX..LA;TGN26..ANCOM,GCC,GEN,SA,TH;TGN36..DCB..(ANCOM,PHL,SA);KUN15..(DCB,SCB)..(PHL,SA)..CBU;KUN16,TGN10..(DCB,SCB)..(DLX,SR);KUN25,35..DLX..(ANCOM,GCC,GEN,LA,SA);KUN26..(DCB,SCB,XTR)..(ARL,LA,PHL,TH);KUN15..(DCB,SCB,XTR)..(GCC,GEN,PKN,TH);GGN15,25,KUN10,LAN15,25,35,TGN11,15,16..(5F,5FC)..(ANCOM,ARL,GCC,GEN,PKN,SA) |
1 | ||
| 61108A - REINFORCE SUB-ASSY, FRONT BODY PILLAR, LOWER RH | ||||
| 61108-0K010 |
TGN36..SCB;KUN26..THDCB;KUN25..SCB..MA;KUN26..DCB..5F..SA;KUN36..(DCB,SCB)..5F;KUN25..(DCB,XTR)..SR;KUN16,36,TGN16..XTR..TH;TGN26,36..DCB..5F..DLX..LA;TGN26..ANCOM,GCC,GEN,SA,TH;TGN36..DCB..(ANCOM,PHL,SA);KUN15..(DCB,SCB)..(PHL,SA)..CBU;KUN16,TGN10..(DCB,SCB)..(DLX,SR);KUN25,35..DLX..(ANCOM,GCC,GEN,LA,SA);KUN26..(DCB,SCB,XTR)..(ARL,LA,PHL,TH);KUN15..(DCB,SCB,XTR)..(GCC,GEN,PKN,TH);GGN15,25,KUN10,LAN15,25,35,TGN11,15,16..(5F,5FC)..(ANCOM,ARL,GCC,GEN,PKN,SA) |
1 | ||
| 61109A - REINFORCE SUB-ASSY, FRONT BODY PILLAR, LOWER LH | ||||
| 61109-0K010 |
TGN36..SCB;KUN26..THDCB;KUN25..SCB..MA;KUN26..DCB..5F..SA;KUN36..(DCB,SCB)..5F;KUN25..(DCB,XTR)..SR;KUN16,36,TGN16..XTR..TH;TGN26,36..DCB..5F..DLX..LA;TGN26..ANCOM,GCC,GEN,SA,TH;TGN36..DCB..(ANCOM,PHL,SA);KUN15..(DCB,SCB)..(PHL,SA)..CBU;KUN16,TGN10..(DCB,SCB)..(DLX,SR);KUN25,35..DLX..(ANCOM,GCC,GEN,LA,SA);KUN26..(DCB,SCB,XTR)..(ARL,LA,PHL,TH);KUN15..(DCB,SCB,XTR)..(GCC,GEN,PKN,TH);GGN15,25,KUN10,LAN15,25,35,TGN11,15,16..(5F,5FC)..(ANCOM,ARL,GCC,GEN,PKN,SA) |
1 | ||
| 61131 - PILLAR, FRONT BODY, UPPER OUTER RH | ||||
| 61131-0K030 |
KUN16..SCB;KUN16,TGN16..XTR..TH;KUN15,26,36..RHD..(SCB,XTR)..(ARL,GEN,PKN,TH);GGN15,25,KUN25,35,LAN15,25,TGN15,26,36..RHD..(SCB,XTR);KUN15,36,TGN10,16..RHD..SCB..5F..(DLX,SR)..(ARL,IDN,SA) |
1 | ||
| 61132 - PILLAR, FRONT BODY, UPPER OUTER LH | ||||
| 61132-0K030 |
KUN16..SCB;KUN16,TGN16..XTR..TH;KUN15,26,36..RHD..(SCB,XTR)..(ARL,GEN,PKN,TH);GGN15,25,KUN25,35,LAN15,25,TGN15,26,36..RHD..(SCB,XTR);KUN15,36,TGN10,16..RHD..SCB..5F..(DLX,SR)..(ARL,IDN,SA) |
1 | ||
| 61231 - RAIL, ROOF SIDE, INNER RH | ||||
| 61210-0K020 |
KUN15..SCB..SA;KUN16,TGN16..(SCB,XTR)..SR;TGN16..(SCB,XTR)..5F..DLX..(ARL,GCC,GEN,SA);KUN15,26,36..(SCB,XTR)..(ARL,GCC,GEN,PKN,TH);KUN16,36,TGN10,36..SCB..(DLX,SR)..(ARL,GCC,IDN,LA,SA,TH);GGN15,25,KUN10,25,35,LAN15,25,TGN11,15,26..(SCB,THSCB,XTR)..(ARL,GCC,GEN,MA,PKN,SA,TH) |
1 | ||
| 61232 - RAIL, ROOF SIDE, INNER LH | ||||
| 61220-0K020 |
KUN15..SCB..SA;KUN16,TGN16..(SCB,XTR)..SR;TGN16..(SCB,XTR)..5F..DLX..(ARL,GCC,GEN,SA);KUN15,26,36..(SCB,XTR)..(ARL,GCC,GEN,PKN,TH);KUN16,36,TGN10,36..SCB..(DLX,SR)..(ARL,GCC,IDN,LA,SA,TH);GGN15,25,KUN10,25,35,LAN15,25,TGN11,15,26..(SCB,THSCB,XTR)..(ARL,GCC,GEN,MA,PKN,SA,TH) |
1 | ||
| 61235B - BRACKET, ASSIST GRIP | ||||
| 61235-0K010 |
KUN16..SCB;KUN16,TGN16..(SCB,XTR)..SR;KUN15,36,TGN36..SCB..(LA,SA);TGN16..(SCB,XTR)..5F..DLX..(ARL,GCC,GEN,SA);KUN15,26,36,TGN10..(SCB,XTR)..(DLX,SR)..(ARL,GCC,GEN,IDN,TH);GGN15,25,KUN10,25,35,LAN15,25,TGN11,15,26..(SCB,THSCB,XTR)..(ARL,GCC,GEN,MA,PKN,SA,TH) |
2 | ||
| 61236C - BRACKET, ASSIST GRIP | ||||
| 61235-0K010 |
KUN16..SCB;KUN16,TGN16..(SCB,XTR)..SR;KUN15,36,TGN36..SCB..(LA,SA);TGN16..(SCB,XTR)..5F..DLX..(ARL,GCC,GEN,SA);KUN15,26,36,TGN10..(SCB,XTR)..(DLX,SR)..(ARL,GCC,GEN,IDN,TH);GGN15,25,KUN10,25,35,LAN15,25,TGN11,15,26..(SCB,THSCB,XTR)..(ARL,GCC,GEN,MA,PKN,SA,TH) |
2 | ||
| 61301C - PILLAR SUB-ASSY, CENTER BODY, OUTER RH | ||||
| 61301-0K070 |
KUN15..XTR..DLX;KUN15..XTR..HDCR;GGN15,25,KUN16,2#,36,TGN16,26..XTR |
1 | ||
| 61302 - PILLAR SUB-ASSY, CENTER BODY, LH | ||||
| 61302-0K070 |
GGN15,25,KUN15,16,2#,36,TGN16,26..XTR |
1 | ||
| 61303 - REINFORCE SUB-ASSY, CENTER BODY PILLAR, UPPER RH | ||||
| 61303-0K030 |
GGN15,25,KUN15,16,2#,36,TGN16,26..XTR |
1 | ||
| 61304 - REINFORCE SUB-ASSY, CENTER BODY PILLAR, UPPER LH | ||||
| 61304-0K030 |
GGN15,25,KUN15,16,2#,36,TGN16,26..XTR |
1 | ||
| 61413C - REINFORCEMENT, ROCKER PANEL, NO.2 RH | ||||
| 61413-0K020 |
KUN15..SCB..SA;KUN16,TGN16..(SCB,XTR)..SR;KUN16,36,TGN10..SCB..(DLX,SR);TGN26..(SCB,XTR)..(ANCOM,GCC,SA,TH);TGN16..(SCB,XTR)..5F..DLX..(ARL,GCC,GEN,SA);KUN15,26,36..(SCB,XTR)..(ARL,GCC,GEN,PKN,TH);GGN15,25,KUN10,25,35,LAN15,25,TGN11,15,36..SCB,THSCB,XTR |
1 | ||
| 61414C - REINFORCEMENT, ROCKER PANEL, NO.2 LH | ||||
| 61414-0K030 |
KUN15..SCB..SA;KUN16,TGN16..(SCB,XTR)..SR;KUN16,36,TGN10..SCB..(DLX,SR);TGN26..(SCB,XTR)..(ANCOM,GCC,SA,TH);TGN16..(SCB,XTR)..5F..DLX..(ARL,GCC,GEN,SA);KUN15,26,36..(SCB,XTR)..(ARL,GCC,GEN,PKN,TH);GGN15,25,KUN10,25,35,LAN15,25,TGN11,15,36..SCB,THSCB,XTR |
1 | ||
| 61503B - REINFORCEMENT SUB-ASSY, QUARTER LOCK PILLAR, RH | ||||
| 61503-0K020 |
GGN15,25,KUN15,16,2#,36,TGN16,26..XTR |
1 | ||
| 61504B - REINFORCEMENT SUB-ASSY, QUARTER LOCK PILLAR, LH | ||||
| 61504-0K020 |
KUN15..XTR..DLX;KUN15..XTR..HDCR;GGN15,25,KUN16,2#,36,TGN16,26..XTR |
1 | ||
| 61611 - PANEL, QUARTER, RH | ||||
| 61611-0K030 |
GGN15,25,KUN15,16,2#,36,TGN16,26..XTR |
1 | ||
| 61612 - PANEL, QUARTER, LH | ||||
| 61612-0K030 |
GGN15,25,KUN15,16,2#,36,TGN16,26..XTR |
1 | ||
| 61617B - PANEL, QUARTER INNER, LOWER RH | ||||
| 61617-0K010 |
KUN15..XTR..DLX;KUN15..XTR..HDCR;GGN15,25,KUN16,2#,36,TGN16,26..XTR |
1 | ||
| 61618B - PANEL, QUARTER, INNER LOWER LH | ||||
| 61618-0K010 |
KUN15..XTR..DLX;KUN15..XTR..HDCR;GGN15,25,KUN16,2#,36,TGN16,26..XTR |
1 | ||
| 61661A - EXTENSION, QUARTER PANEL TO UPPER BACK, RH | ||||
| 61661-0K010 |
GGN15,25,KUN15,16,2#,36,TGN16,26..XTR |
1 | ||
| 61662C - EXTENSION, QUARTER PANEL TO UPPER BACK, LH | ||||
| 61662-0K010 |
KUN15..XTR..DLX;KUN15..XTR..HDCR;GGN15,25,KUN16,2#,36,TGN16,26..XTR |
1 | ||
| 61705 - PANEL SUB-ASSY, ROOF SIDE, INNER RH | ||||
| 61705-0K050 |
GGN15,25,KUN15,16,2#,36,TGN16,26..XTR |
1 | ||
| 61706 - PANEL SUB-ASSY, ROOF SIDE, INNER LH | ||||
| 61706-0K050 |
GGN15,25,KUN15,16,2#,36,TGN16,26..XTR |
1 | ||
| 62155A - PAD, COWL SIDE LOWER SILENCER | ||||
| 62155-0K010 |
KUN15,36..SCB..SA;TGN16..(SCB,XTR)..SR;KUN15..(SCB,XTR)..(GCC,GEN,PKN,TH);TGN26..(SCB,XTR)..(ANCOM,GCC,SA,TH);TGN16..(SCB,XTR)..5F..DLX..(ARL,GCC,GEN,SA);KUN16,26,36,TGN10..(SCB,XTR)..(GCC,IDN,TH)..CBU;GGN15,25,KUN10,25,35,LAN15,25,TGN11,15,36..SCB,THSCB,XTR |
2 | ||
| 62155A - PAD, COWL SIDE LOWER SILENCER | ||||
| 62155-0K010 |
KUN15,36..SCB..SA;TGN16..(SCB,XTR)..SR;KUN15..(SCB,XTR)..(GCC,GEN,PKN,TH);TGN26..(SCB,XTR)..(ANCOM,GCC,SA,TH);TGN16..(SCB,XTR)..5F..DLX..(ARL,GCC,GEN,SA);KUN16,26,36,TGN10..(SCB,XTR)..(GCC,IDN,TH)..CBU;GGN15,25,KUN10,25,35,LAN15,25,TGN11,15,36..SCB,THSCB,XTR |
2 | ||
| 62553D - PAD, PILLAR, NO.3 | ||||
| 62557-0K010 |
TGN36..SCB;KUN26..THDCB;KUN25..SCB..MA;KUN26..DCB..5F..SA;KUN36..(DCB,SCB)..5F;KUN25..(DCB,XTR)..SR;KUN16,36,TGN16..XTR..TH;TGN26,36..DCB..5F..DLX..LA;TGN26..ANCOM,GCC,GEN,SA,TH;TGN36..DCB..(ANCOM,PHL,SA);KUN15..(DCB,SCB)..(PHL,SA)..CBU;KUN16,TGN10..(DCB,SCB)..(DLX,SR);KUN25,35..DLX..(ANCOM,GCC,GEN,LA,SA);KUN26..(DCB,SCB,XTR)..(ARL,LA,PHL,TH);KUN15..(DCB,SCB,XTR)..(GCC,GEN,PKN,TH);GGN15,25,KUN10,LAN15,25,35,TGN11,15,16..(5F,5FC)..(ANCOM,ARL,GCC,GEN,PKN,SA) |
2 | ||
| 62553D - PAD, PILLAR, NO.3 | ||||
| 62557-0K010 |
TGN36..SCB;KUN26..THDCB;KUN25..SCB..MA;KUN26..DCB..5F..SA;KUN36..(DCB,SCB)..5F;KUN25..(DCB,XTR)..SR;KUN16,36,TGN16..XTR..TH;TGN26,36..DCB..5F..DLX..LA;TGN26..ANCOM,GCC,GEN,SA,TH;TGN36..DCB..(ANCOM,PHL,SA);KUN15..(DCB,SCB)..(PHL,SA)..CBU;KUN16,TGN10..(DCB,SCB)..(DLX,SR);KUN25,35..DLX..(ANCOM,GCC,GEN,LA,SA);KUN26..(DCB,SCB,XTR)..(ARL,LA,PHL,TH);KUN15..(DCB,SCB,XTR)..(GCC,GEN,PKN,TH);GGN15,25,KUN10,LAN15,25,35,TGN11,15,16..(5F,5FC)..(ANCOM,ARL,GCC,GEN,PKN,SA) |
2 | ||
| Common parts | ||||
| 62558-0K010 | ||||
| 62559-0K020 | ||||
| Linked diagrams | ||||
| 5752 | ||||

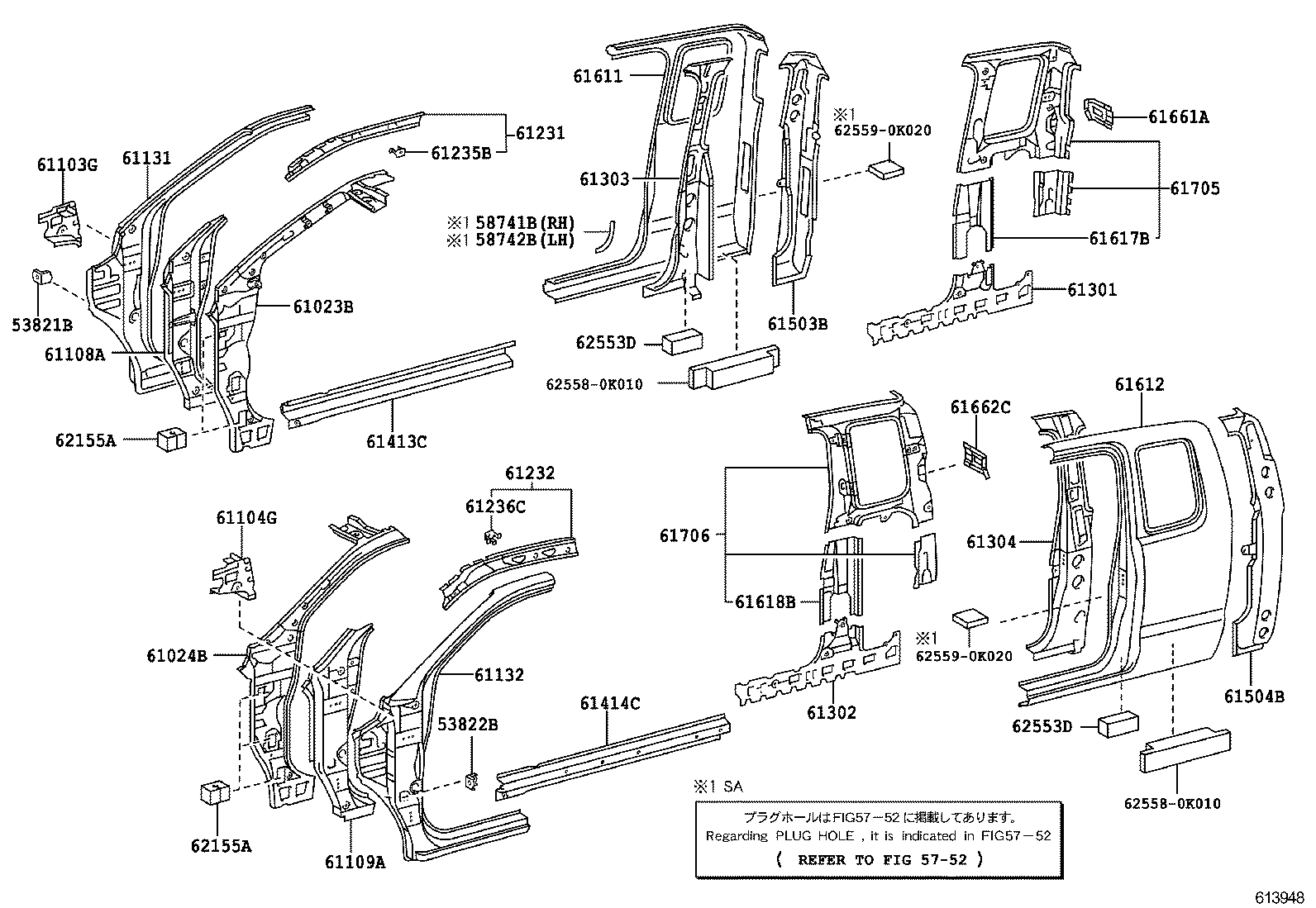

(1107- )XTR
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 62558-0K010 | ||||
| 62559-0K020 | ||||
| Linked diagrams | ||||
| 5752 | ||||
