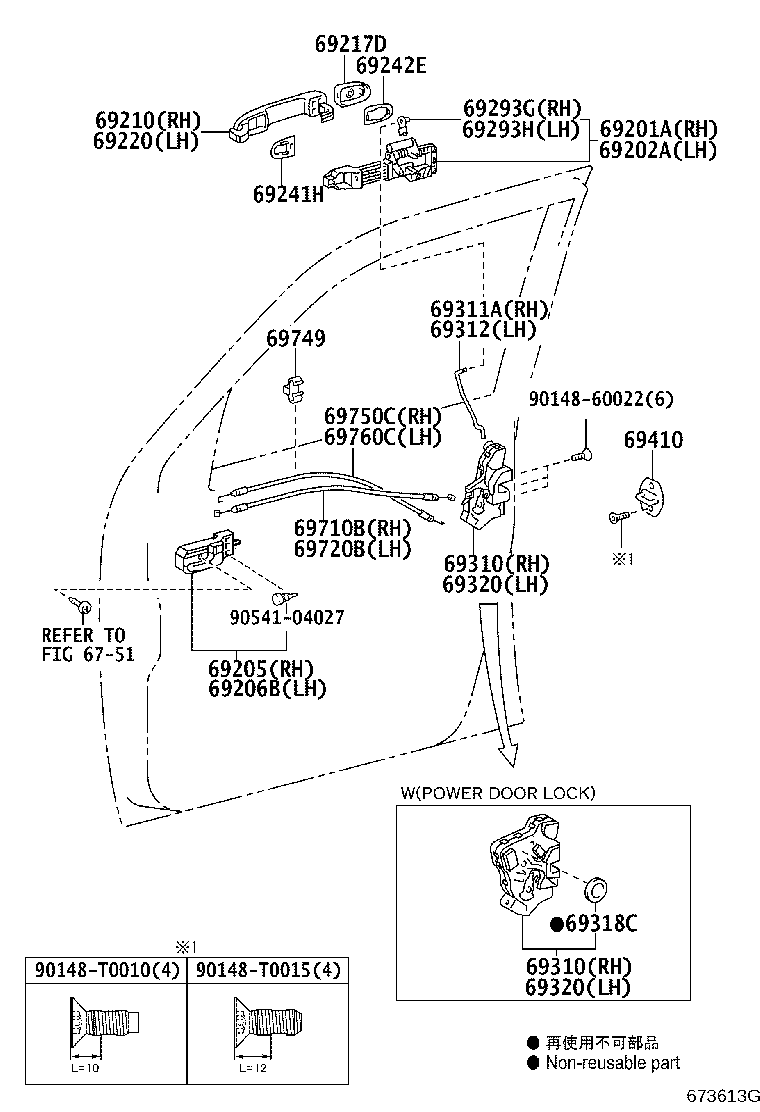

KUN36R-CRMSYT (2005)
Toyota Hilux
(0408- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 69201A - FRAME SUB-ASSY, FRONT DOOR OUTSIDE HANDLE, RH | ||||
| 69201-06010 |
KUN16..DCB,SCB;KUN25..SCB..MA;KUN25..(DCB,XTR)..SR;KUN16,TGN16..XTR..TH;KUN25,TGN16..5F..(ANCOM,ARL,GCC,GEN);KUN15,26,TGN36..(DCB,SCB,THDCB,XTR)..(ANCOM,ARL,GCC,GEN,PHL,TH);GGN15,25,KUN10,3#,TGN10,11,15,26..(DCB,SCB,THDCB,XTR)..(ANCOM,ARL,GCC,GEN,IDN,TH) |
1 | ||
| 69202A - FRAME SUB-ASSY, FRONT DOOR OUTSIDE HANDLE, LH | ||||
| 69202-06010 |
KUN16..DCB,SCB;KUN25..SCB..MA;KUN25..(DCB,XTR)..SR;KUN16,TGN16..XTR..TH;KUN25,TGN16..5F..(ANCOM,ARL,GCC,GEN);KUN15,26,TGN36..(DCB,SCB,THDCB,XTR)..(ANCOM,ARL,GCC,GEN,PHL,TH);GGN15,25,KUN10,3#,TGN10,11,15,26..(DCB,SCB,THDCB,XTR)..(ANCOM,ARL,GCC,GEN,IDN,TH) |
1 | ||
| 69205 - HANDLE SUB-ASSY, FRONT DOOR INSIDE, RH | ||||
| 69205-0D070A0 |
KUN26..XTR..TH;GGN15,25,KUN26..DCB..SR..(ARL,PHL,SA,TH);KUN15,16,25,36,TGN16,26,36..(DCB,XTR)..SR..(GCC,MA,PHL,SA,TH) IVORY,TRIM0# |
1 | ||
| 69206B - HANDLE SUB-ASSY, FRONT DOOR INSIDE, LH | ||||
| 69206-0D070A0 |
KUN26..XTR..TH;GGN15,25,KUN26..DCB..SR..(ARL,PHL,SA,TH);KUN15,16,25,36,TGN16,26,36..(DCB,XTR)..SR..(GCC,MA,PHL,SA,TH) IVORY,TRIM0# |
1 | ||
| 69210 - HANDLE ASSY, FRONT DOOR, OUTSIDE RH | ||||
| 69210-06040 |
TGN26..GCC,TH;TGN26..SR..(ANCOM,GEN);KUN10,15,25,TGN1#..5F..DLX..GCC;GGN15,25,KUN15,16,2#,36,TGN16,36..(DCB,SCB,THDCB,XTR)..SR..(ANCOM,ARL,GCC,GEN,MA,PHL,TH) PLATED |
1 | ||
| 69217D - COVER, FRONT DOOR OUTSIDE HANDLE | ||||
| 69217-06020 |
TGN26..GCC,TH;TGN26..SR..(ANCOM,GEN);KUN10,15,25,TGN1#..5F..DLX..GCC;GGN15,25,KUN15,16,2#,36,TGN16,36..(DCB,SCB,THDCB,XTR)..SR..(ANCOM,ARL,GCC,GEN,MA,PHL,TH) *CR |
2 | ||
| 69220 - HANDLE ASSY, FRONT DOOR OUTSIDE, LH | ||||
| 69210-06040 |
TGN26..GCC,TH;TGN26..SR..(ANCOM,GEN);KUN10,15,25,TGN1#..5F..DLX..GCC;GGN15,25,KUN15,16,2#,36,TGN16,36..(DCB,SCB,THDCB,XTR)..SR..(ANCOM,ARL,GCC,GEN,MA,PHL,TH) PLATED |
1 | ||
| 69241H - PAD, FRONT DOOR OUTSIDE HANDLE, FRONT | ||||
| 69241-06020 |
KUN26..THDCB;KUN25..SCB..MA;KUN16..DCB,SCB;KUN15..PHL..CBU;KUN25..ANCOM,GCC,GEN;KUN16,TGN16..XTR..TH;KUN25..(DCB,XTR)..SR;KUN26..(DCB,SCB,XTR)..(ARL,PHL,TH);KUN15..(DCB,SCB,XTR)..(GCC,GEN,PKN,TH);GGN15,25,KUN10,35,LAN15,TGN11,15,16..(5F,5FC)..(ANCOM,ARL,GCC,GEN,PKN);KUN36,TGN10,26,36..(DCB,SCB,THDCB,XTR)..(DLX,SR)..(ANCOM,GCC,GEN,IDN,PHL,TH) |
2 | ||
| 69242E - PAD, FRONT DOOR OUTSIDE HANDLE, REAR | ||||
| 69242-06020 |
KUN26..THDCB;KUN25..SCB..MA;KUN16..DCB,SCB;KUN15..PHL..CBU;KUN25..ANCOM,GCC,GEN;KUN16,TGN16..XTR..TH;KUN25..(DCB,XTR)..SR;KUN26..(DCB,SCB,XTR)..(ARL,PHL,TH);KUN15..(DCB,SCB,XTR)..(GCC,GEN,PKN,TH);GGN15,25,KUN10,35,LAN15,TGN11,15,16..(5F,5FC)..(ANCOM,ARL,GCC,GEN,PKN);KUN36,TGN10,26,36..(DCB,SCB,THDCB,XTR)..(DLX,SR)..(ANCOM,GCC,GEN,IDN,PHL,TH) |
2 | ||
| 69293G - SNAP, FRONT DOOR OUTSIDE HANDLE, RH | ||||
| 69293-33010 |
KUN16..DCB,SCB;KUN25..SCB..MA;KUN25..(DCB,XTR)..SR;KUN16,TGN16..XTR..TH;KUN25,TGN16..5F..(ANCOM,ARL,GCC,GEN);KUN15,26,TGN36..(DCB,SCB,THDCB,XTR)..(ANCOM,ARL,GCC,GEN,PHL,TH);GGN15,25,KUN10,3#,TGN10,11,15,26..(DCB,SCB,THDCB,XTR)..(ANCOM,ARL,GCC,GEN,IDN,TH) |
1 | ||
| 69293H - SNAP, FRONT DOOR OUTSIDE HANDLE, LH | ||||
| 69293-33020 |
KUN16..DCB,SCB;KUN25..SCB..MA;KUN25..(DCB,XTR)..SR;KUN16,TGN16..XTR..TH;KUN25,TGN16..5F..(ANCOM,ARL,GCC,GEN);KUN15,26,TGN36..(DCB,SCB,THDCB,XTR)..(ANCOM,ARL,GCC,GEN,PHL,TH);GGN15,25,KUN10,3#,TGN10,11,15,26..(DCB,SCB,THDCB,XTR)..(ANCOM,ARL,GCC,GEN,IDN,TH) |
1 | ||
| 69310 - LOCK ASSY, FRONT DOOR, RH | ||||
| 69030-0K010 |
KUN16..(DCB,SCB)..ARL;KUN15,16,25,TGN16..RHD..SR;GGN15,25,KUN26,36,TGN26..ARL,TH |
1 | ||
| 69310 - LOCK ASSY, FRONT DOOR, RH | ||||
| 69030-0K010 |
KUN16..(DCB,SCB)..ARL;KUN15,16,25,TGN16..RHD..SR;GGN15,25,KUN26,36,TGN26..ARL,TH |
1 | ||
| 69311A - ROD, FRONT DOOR LOCK OPEN, RH | ||||
| 69311-0K010 |
KUN26..THDCB;KUN25..GCC,GEN;KUN25..SCB..MA;KUN16..DCB,SCB;KUN15..PHL..CBU;KUN25..(DCB,XTR)..SR;KUN16,TGN16..XTR..TH;KUN26..(DCB,SCB,XTR)..(ARL,PHL,TH);KUN15..(DCB,SCB,XTR)..(GCC,GEN,PKN,TH);GGN15,25,KUN10,35,LAN15,TGN11,15,16..(5F,5FC)..(ARL,GCC,GEN,PKN);KUN36,TGN10,26,36..(DCB,SCB,THDCB,XTR)..(GCC,GEN,IDN,PHL,TH)..CBU |
1 | ||
| 69312 - ROD, FRONT DOOR LOCK OPEN, LH | ||||
| 69312-0K010 |
KUN26..THDCB;KUN25..GCC,GEN;KUN25..SCB..MA;KUN16..DCB,SCB;KUN15..PHL..CBU;KUN25..(DCB,XTR)..SR;KUN16,TGN16..XTR..TH;KUN26..(DCB,SCB,XTR)..(ARL,PHL,TH);KUN15..(DCB,SCB,XTR)..(GCC,GEN,PKN,TH);GGN15,25,KUN10,35,LAN15,TGN11,15,16..(5F,5FC)..(ARL,GCC,GEN,PKN);KUN36,TGN10,26,36..(DCB,SCB,THDCB,XTR)..(GCC,GEN,IDN,PHL,TH)..CBU |
1 | ||
| 69318C - SEAL, DOOR LOCK WIRING HARNESS | ||||
| 69318-51010 |
KUN16..IV3;TGN26..SR..ANCOM;KUN36..(DCB,XTR)..SR..(LA,TH);GGN25,KUN26..SR..(ANCOM,GEN,LA);GGN15,25,KUN2#..(SCB,XTR)..(ARL,TH);KUN15,16,TGN16,26..(SCB,THDCB,XTR)..SR |
2 | ||
| 69320 - LOCK ASSY, FRONT DOOR, LH | ||||
| 69040-0K010 |
KUN16..(DCB,SCB)..ARL;KUN15,16,25,TGN16..RHD..SR;GGN15,25,KUN26,36,TGN26..ARL,TH |
1 | ||
| 69320 - LOCK ASSY, FRONT DOOR, LH | ||||
| 69040-0K010 |
KUN16..(DCB,SCB)..ARL;KUN15,16,25,TGN16..RHD..SR;GGN15,25,KUN26,36,TGN26..ARL,TH |
1 | ||
| 69410 - PLATE ASSY, FRONT DOOR LOCK STRIKER | ||||
| 69410-0K010 |
KUN26..THDCB;KUN25..GCC,GEN;KUN25..SCB..MA;KUN16..DCB,SCB;KUN15..PHL..CBU;KUN25..(DCB,XTR)..SR;KUN16,TGN16..XTR..TH;KUN26..(DCB,SCB,XTR)..(ARL,PHL,TH);KUN15..(DCB,SCB,XTR)..(GCC,GEN,PKN,TH);GGN15,25,KUN10,35,LAN15,TGN11,15,16..(5F,5FC)..(ARL,GCC,GEN,PKN);KUN36,TGN10,26,36..(DCB,SCB,THDCB,XTR)..(GCC,GEN,IDN,PHL,TH)..CBU |
2 | ||
| 69710B - CABLE ASSY, FRONT DOOR LOCK REMOTE CONTROL, RH | ||||
| 69710-0K040 |
KUN16,TGN10..SCB..DLX;KUN16,TGN16..(SCB,XTR)..SR;TGN16..(SCB,XTR)..5F..DLX..(ARL,GCC,GEN);GGN15,25,KUN10,15,2#,36,LAN15,TGN11,15,26..(SCB,THSCB,XTR)..(ARL,GCC,GEN,MA,PKN,TH) |
1 | ||
| 69720B - CABLE ASSY, FRONT DOOR LOCK REMOTE CONTROL, LH | ||||
| 69710-0K040 |
KUN16,TGN10..SCB..DLX;KUN16,TGN16..(SCB,XTR)..SR;TGN16..(SCB,XTR)..5F..DLX..(ARL,GCC,GEN);GGN15,25,KUN10,15,2#,36,LAN15,TGN11,15,26..(SCB,THSCB,XTR)..(ARL,GCC,GEN,MA,PKN,TH) |
1 | ||
| 69749 - CLAMP, FRONT DOOR LOCK LINK | ||||
| 69749-32040 |
TGN36..SCB;KUN26..THDCB;KUN25..SCB..MA;KUN26..DCB..5F..SA;KUN36..(DCB,SCB)..5F;KUN25..(DCB,XTR)..SR;KUN16,36,TGN16..XTR..TH;TGN26,36..DCB..5F..DLX..LA;TGN26..ANCOM,GCC,GEN,SA,TH;TGN36..DCB..(ANCOM,PHL,SA);KUN15..(DCB,SCB)..(PHL,SA)..CBU;KUN16,TGN10..(DCB,SCB)..(DLX,SR);KUN25,35..DLX..(ANCOM,GCC,GEN,LA,SA);KUN26..(DCB,SCB,XTR)..(ARL,LA,PHL,TH);KUN15..(DCB,SCB,XTR)..(GCC,GEN,PKN,TH);GGN15,25,KUN10,LAN15,25,35,TGN11,15,16..(5F,5FC)..(ANCOM,ARL,GCC,GEN,PKN,SA) |
2 | ||
| 69750C - CABLE ASSY, FRONT DOOR INSIDE LOCKING, RH | ||||
| 69750-0K040 |
KUN16,TGN10..SCB..DLX;KUN16,TGN16..(SCB,XTR)..SR;TGN16..(SCB,XTR)..5F..DLX..(ARL,GCC,GEN);GGN15,25,KUN10,15,2#,36,LAN15,TGN11,15,26..(SCB,THSCB,XTR)..(ARL,GCC,GEN,MA,PKN,TH) |
1 | ||
| 69760C - CABLE ASSY, FRONT DOOR INSIDE LOCKING LH | ||||
| 69760-0K040 |
KUN16,TGN10..SCB..DLX;KUN16,TGN16..(SCB,XTR)..SR;TGN16..(SCB,XTR)..5F..DLX..(ARL,GCC,GEN);GGN15,25,KUN10,15,2#,36,LAN15,TGN11,15,26..(SCB,THSCB,XTR)..(ARL,GCC,GEN,MA,PKN,TH) |
1 | ||
| Common parts | ||||
| 90148-60022 | ||||
| 90148-T0010 | ||||
| 90148-T0015 | ||||
| 90541-04027 | ||||
| Linked diagrams | ||||
| 6751 | ||||

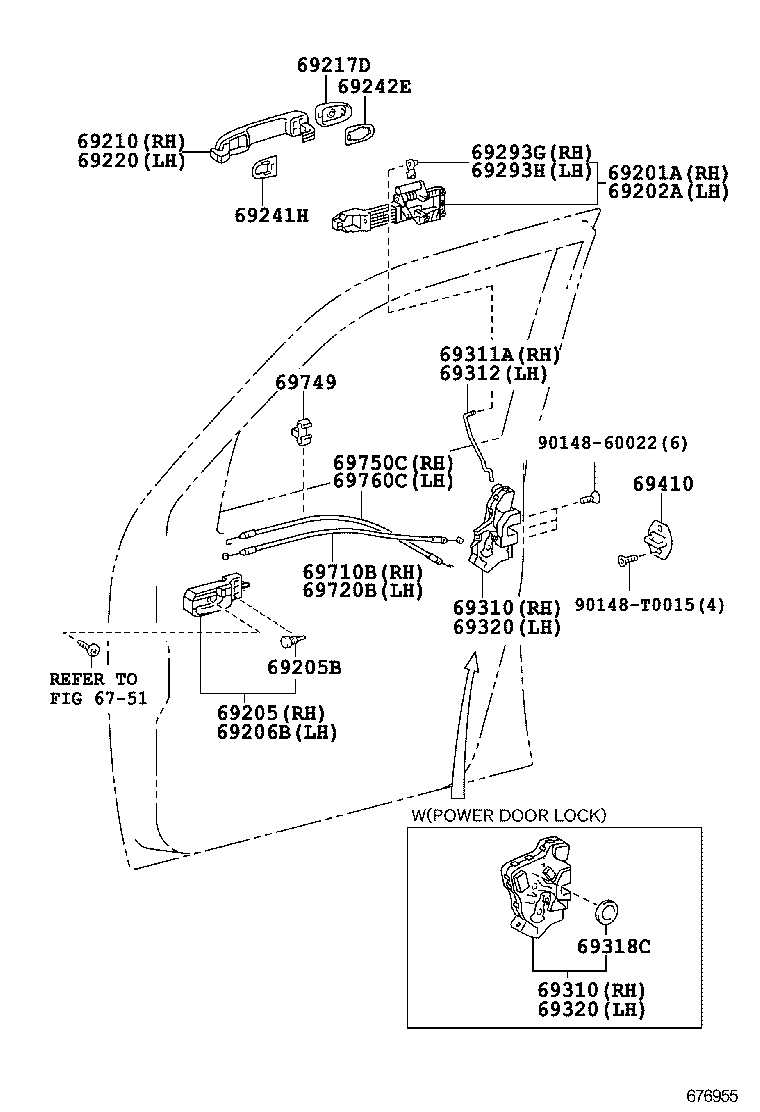

(1107- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90148-60022 | ||||
| 90148-T0015 | ||||
| Linked diagrams | ||||
| 6751 | ||||
