KUN36R-CRMSYT (2005)

Toyota Hilux

Production Dec 2005 - Aug 2008
Engine 1KDFTV
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(0408- )SMT,XTR..CBU

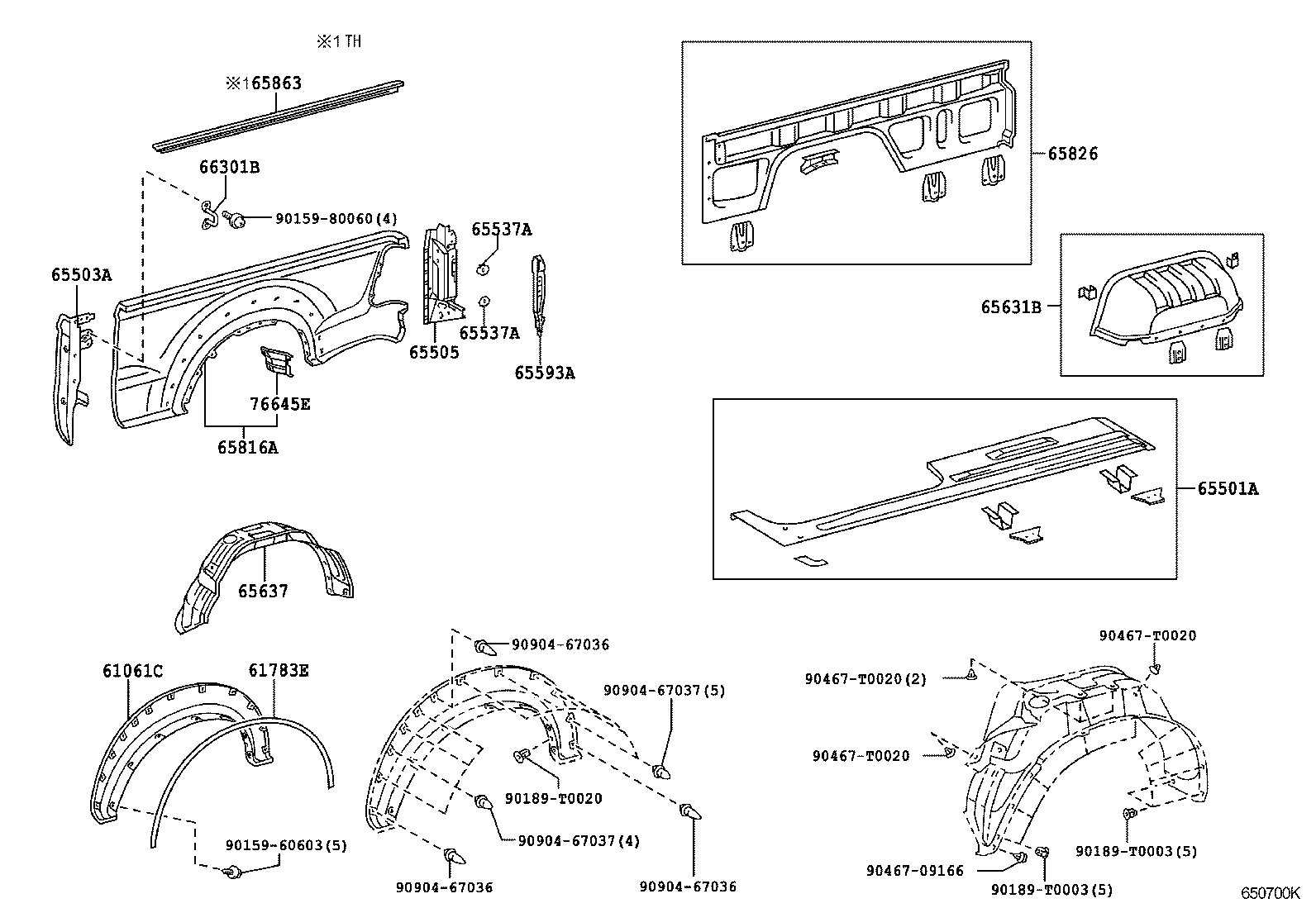

Click highlighted areas on diagram

RH

diagram 61061C 61783E 65501A 65503A 65505 65537A 65537A 65593A 65631B 65637 65816A 65826 65863 66301B 76645E 9015960603 9015980060 90189T0003 90189T0003 90189T0020 9046709166 90467T0020 90467T0020 90467T0020 9090467036 9090467036 9090467036 9090467037 9090467037
Part # Description Qty Price
61061C - EXTENSION SUB-ASSY, REAR WHEEL OPENING, NO.1 RH
61681-0K905

GGN25,KUN2#,36,TGN26..XTR..CBU

 1
61783E - PAD, REAR WHEEL OPENING EXTENSION, NO.1
61783-0K040B0

GGN25,KUN2#,TGN26,36..SR..(ARL,PHL,TH)

GRAY,040 ,1C0 ,4P9 ,6S0 ,8P1

 1
61783-0K040C0

GGN25,KUN2#,36,TGN26,36..SR..(ARL,PHL,TH)

BLACK,1E9 ,209 ,3Q2 ,6S3 ,8P1 ,8P4

 1
61783-0K041B0

GGN25,KUN2#,36,TGN26,36..SR..(ARL,GEN,PHL,TH)

GRAY,040 ,1C0 ,4P9

 1
61783-0K041C0

GGN25,KUN2#,36,TGN26,36..SR..(ARL,PHL,TH)

BLACK,1E9 ,209 ,3E5 ,3Q2 ,6S3 ,8P4

 1
61783-0K040B0

KUN36..TH

GRAY,040 ,1C0 ,4P9 ,6S0

 1
65501A - PANEL SUB-ASSY, REAR BODY SIDE, RH
65317-0K915

GGN15,25,KUN15,16,2#,36,TGN16,26..XTR..CBU

 1
65503A - POST SUB-ASSY, SIDE PANEL FRONT END, RH
65503-0K030

GGN15,25,KUN15,16,2#,36,TGN16,26..XTR..CBU

 1
65505 - POST SUB-ASSY, SIDE PANEL REAR END, RH
65505-0K040

GGN15..XTR..DLX;TGN26..DCB..DLX..LA;KUN26..(DCB,THDCB,XTR)..5F..SR;GGN15,25,KUN16,25..(DCB,XTR)..SR;KUN26..4FC..SR..(ARL,GEN,LA,PHL,TH);TGN16,26,36..(DCB,THDCB,XTR)..(ANCOM,GEN,PHL,SA,TH);KUN2#,35,TGN36..(DCB,THDCB)..5F..DLX..(ANCOM,GEN,LA,SA);KUN15,36,LAN15,25,35,TGN15..(DCB,XTR)..5F..(GEN,LA,PHL,SA,TH)

 1
65537A - PATCH, SIDE PANEL REINFORCEMENT, RH
65537-0K010

KUN26..THDCB;KUN25..SCB..MA;TGN36..SCB..CBU;KUN26..DCB..5F..SA;KUN36..(DCB,SCB)..5F;KUN36,TGN16..XTR..TH;KUN25..(DCB,XTR)..SR;TGN26,36..DCB..5F..DLX..LA;TGN36..DCB..(ANCOM,PHL,SA);TGN26..(ANCOM,GCC,GEN,SA,TH)..CBU;KUN15,16..(DCB,SCB)..(ARL,SA)..CBU;KUN26..(DCB,XTR)..(ARL,LA,PHL,TH)..CBU;KUN25,35..DLX..(ANCOM,GCC,GEN,LA,SA)..CBU;KUN15,16..(DCB,SCB,XTR)..(GCC,GEN,PHL,PKN,TH)..CBU;GGN15,25,KUN10,LAN15,25,35,TGN1#..(5F,5FC)..(ANCOM,ARL,GCC,GEN,IDN,PKN,SA)..CBU

 2
65537A - PATCH, SIDE PANEL REINFORCEMENT, RH
65537-0K010

KUN26..THDCB;KUN25..SCB..MA;TGN36..SCB..CBU;KUN26..DCB..5F..SA;KUN36..(DCB,SCB)..5F;KUN36,TGN16..XTR..TH;KUN25..(DCB,XTR)..SR;TGN26,36..DCB..5F..DLX..LA;TGN36..DCB..(ANCOM,PHL,SA);TGN26..(ANCOM,GCC,GEN,SA,TH)..CBU;KUN15,16..(DCB,SCB)..(ARL,SA)..CBU;KUN26..(DCB,XTR)..(ARL,LA,PHL,TH)..CBU;KUN25,35..DLX..(ANCOM,GCC,GEN,LA,SA)..CBU;KUN15,16..(DCB,SCB,XTR)..(GCC,GEN,PHL,PKN,TH)..CBU;GGN15,25,KUN10,LAN15,25,35,TGN1#..(5F,5FC)..(ANCOM,ARL,GCC,GEN,IDN,PKN,SA)..CBU

 2
65593A - PLATE, SIDE PANEL REAR END POST INSIDE, RH
65593-0K010

GGN15..XTR..DLX;TGN26..DCB..DLX..LA;KUN26..(DCB,THDCB,XTR)..5F..SR;GGN15,25,KUN16,25..(DCB,XTR)..SR;KUN26..4FC..SR..(ARL,GEN,LA,PHL,TH);TGN16,26,36..(DCB,THDCB,XTR)..(ANCOM,GEN,PHL,SA,TH);KUN2#,35,TGN36..(DCB,THDCB)..5F..DLX..(ANCOM,GEN,LA,SA);KUN15,36,LAN15,25,35,TGN15..(DCB,XTR)..5F..(GEN,LA,PHL,SA,TH)

 1
65631B - PANEL, WHEEL HOUSE, RH
65631-0K903

KUN26..THDCB;KUN25..SCB..MA;TGN16..XTR..TH;KUN25..(DCB,XTR)..SR;KUN26..(DCB,XTR)..(ARL,PHL,TH)..CBU;KUN16,25..(DCB,SCB,THDCB,THSCB)..(ARL,GCC,GEN)..CBU;GGN15,25,KUN10,35,LAN15,TGN1#..(5F,5FC)..(ARL,GCC,GEN,IDN,PKN)..CBU;KUN15,16,36,TGN26,36..(DCB,SCB,THDCB,XTR)..(GCC,GEN,PHL,PKN,TH)..CBU

 1
65637 - LINER, REAR WHEEL HOUSE, RH
65637-0K010

KUN26..THDCB;KUN25..SCB..MA;TGN26..DCB..DLX..LA;KUN25..(DCB,XTR)..SR;TGN16..5F..(ARL,GCC,GEN)..CBU;KUN16,36..(DCB,SCB,XTR)..(LA,TH);KUN26..(DCB,XTR)..(ARL,LA,PHL,TH)..CBU;TGN16,36..(DCB,XTR)..4FC..(ANCOM,PHL,TH);KUN16,25,35,TGN36..(DCB,SCB,THDCB,THSCB)..5F..DLX..(ANCOM,ARL,GCC,GEN,LA)..CBU;GGN15,25,KUN10,15,LAN15,TGN10,11,15,26..(DCB,SCB,THDCB,XTR)..(ANCOM,ARL,GCC,GEN,IDN,PHL,PKN,TH)..CBU

 1
65816A - PANEL, REAR BODY SIDE, RH
65816-0K907

GGN25,KUN2#,36,TGN26..XTR..CBU

 1
65826 - PANEL, REAR BODY SIDE, INNER RH
65826-0K912

KUN15,16,2#,36,TGN16,26..XTR..TH

 1
65863 - PANEL, REAR BODY SIDE, UPPER RH
65863-0K020

KUN15,16,2#,36,TGN16,26..XTR..TH

 1
66301B - HOOK SUB-ASSY, ROPE
66312-0K010

KUN15..XTR..HDCR;KUN15..DCB..(GEN,PHL,TH);GGN15,25,KUN26..SR..(ARL,GEN,PHL,TH);GGN15,KUN15,26..(THDCB,XTR)..DLX..CBU;KUN16,25,3#,TGN15,16,26,36..(DCB,THDCB,XTR)..(GEN,PHL,TH)

 4
76645E - BRACKET, RR BODY MUDGUARD, RH
76645-0K010

KUN26..THDCB;KUN25..SCB..MA;TGN36..SCB..CBU;KUN26..DCB..5F..SA;KUN36..(DCB,SCB)..5F;KUN36,TGN16..XTR..TH;KUN25..(DCB,XTR)..SR;TGN26,36..DCB..5F..DLX..LA;TGN36..DCB..(ANCOM,PHL,SA);TGN26..(ANCOM,GCC,GEN,SA,TH)..CBU;KUN15,16..(DCB,SCB)..(ARL,SA)..CBU;KUN26..(DCB,XTR)..(ARL,LA,PHL,TH)..CBU;KUN25,35..DLX..(ANCOM,GCC,GEN,LA,SA)..CBU;KUN15,16..(DCB,SCB,XTR)..(GCC,GEN,PHL,PKN,TH)..CBU;GGN15,25,KUN10,LAN15,25,35,TGN1#..(5F,5FC)..(ANCOM,ARL,GCC,GEN,IDN,PKN,SA)..CBU

 1
Common parts
90159-60603
90159-80060
90189-T0003
90189-T0020
90467-09166
90467-T0020
90904-67036
90904-67037

(0408- )SMT,XTR..CBU

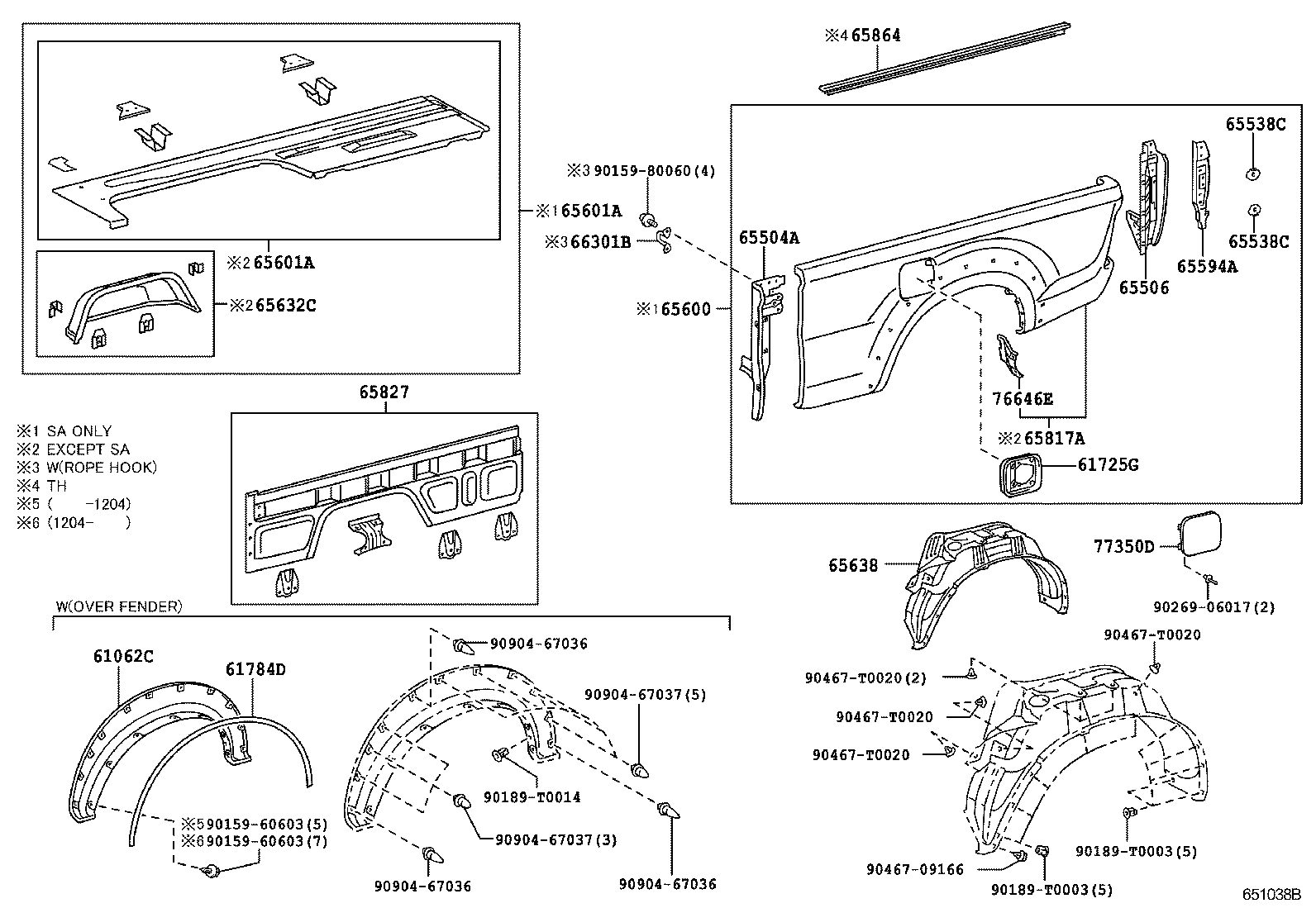

Click highlighted areas on diagram

LH

diagram 61062C 61725G 61784D 65504A 65506 65538C 65538C 65594A 65601A 65632C 65638 65817A 65827 65864 66301B 76646E 77350D 9015960603 9015980060 90189T0003 90189T0003 90189T0020 9026906017 9046709166 90467T0020 90467T0020 90467T0020 90467T0020 9090467036 9090467036 9090467036 9090467037 9090467037
Part # Description Qty Price
61062C - EXTENSION SUB-ASSY, REAR WHEEL OPENING, NO.1 LH
61682-0K904

GGN25,KUN2#,36,TGN26..XTR..CBU

 1
61725G - BOX, FUEL INLET, NO.1
61725-0K010

KUN15,36..SCB..SA;TGN16..LHD..(SCB,XTR)..DLX..CBU;KUN26,TGN16..(SCB,XTR)..SR..(ARL,GCC,TH);TGN26..(SCB,XTR)..(ANCOM,GCC,SA,TH)..CBU;KUN15,16,36..(SCB,XTR)..(GCC,GEN,PKN,TH)..CBU;GGN15,25,KUN10,25,35,LAN15,25,TGN10,11,15,36..(SCB,THSCB,XTR)..CBU

 1
61784D - PAD, REAR WHEEL OPENING EXTENSION, NO.2
61784-0K040B0

GGN25,KUN2#,TGN26,36..SR..(ARL,PHL,TH)

GRAY,040 ,1C0 ,4P9 ,6S0 ,8P1

 1
61784-0K040C0

GGN25,KUN2#,36,TGN26,36..SR..(ARL,PHL,TH)

BLACK,1E9 ,209 ,3Q2 ,6S3 ,8P1 ,8P4

 1
61784-0K040B0

KUN36..TH

GRAY,040 ,1C0 ,4P9 ,6S0

 1
61784-0K041C0

GGN25,KUN2#,36,TGN26,36..SR..(ARL,PHL,TH)

BLACK,1E9 ,209 ,3E5 ,3Q2 ,6S3 ,8P4

 1
61784-0K041B0

GGN25,KUN2#,36,TGN26,36..SR..(ARL,GEN,PHL,TH)

GRAY,040 ,1C0 ,4P9

 1
65504A - POST SUB-ASSY, SIDE PANEL FRONT END, LH
65504-0K030

GGN15,25,KUN15,16,2#,36,TGN16,26..XTR..CBU

 1
65506 - POST SUB-ASSY, SIDE PANEL REAR END, LH
65506-0K040

GGN15..XTR..DLX;TGN26..DCB..DLX..LA;KUN26..(DCB,THDCB,XTR)..5F..SR;GGN15,25,KUN16,25..(DCB,XTR)..SR;KUN26..4FC..SR..(ARL,GEN,LA,PHL,TH);TGN16,26,36..(DCB,THDCB,XTR)..(ANCOM,GEN,PHL,SA,TH);KUN2#,35,TGN36..(DCB,THDCB)..5F..DLX..(ANCOM,GEN,LA,SA);KUN15,36,LAN15,25,35,TGN15..(DCB,XTR)..5F..(GEN,LA,PHL,SA,TH)

 1
65538C - PATCH, SIDE PANEL REINFORCEMENT, LH
65537-0K010

KUN26..THDCB;KUN25..SCB..MA;TGN36..SCB..CBU;KUN26..DCB..5F..SA;KUN36..(DCB,SCB)..5F;KUN36,TGN16..XTR..TH;KUN25..(DCB,XTR)..SR;TGN26,36..DCB..5F..DLX..LA;TGN36..DCB..(ANCOM,PHL,SA);TGN26..(ANCOM,GCC,GEN,SA,TH)..CBU;KUN15,16..(DCB,SCB)..(ARL,SA)..CBU;KUN26..(DCB,XTR)..(ARL,LA,PHL,TH)..CBU;KUN25,35..DLX..(ANCOM,GCC,GEN,LA,SA)..CBU;KUN15,16..(DCB,SCB,XTR)..(GCC,GEN,PHL,PKN,TH)..CBU;GGN15,25,KUN10,LAN15,25,35,TGN1#..(5F,5FC)..(ANCOM,ARL,GCC,GEN,IDN,PKN,SA)..CBU

 2
65538C - PATCH, SIDE PANEL REINFORCEMENT, LH
65537-0K010

KUN26..THDCB;KUN25..SCB..MA;TGN36..SCB..CBU;KUN26..DCB..5F..SA;KUN36..(DCB,SCB)..5F;KUN36,TGN16..XTR..TH;KUN25..(DCB,XTR)..SR;TGN26,36..DCB..5F..DLX..LA;TGN36..DCB..(ANCOM,PHL,SA);TGN26..(ANCOM,GCC,GEN,SA,TH)..CBU;KUN15,16..(DCB,SCB)..(ARL,SA)..CBU;KUN26..(DCB,XTR)..(ARL,LA,PHL,TH)..CBU;KUN25,35..DLX..(ANCOM,GCC,GEN,LA,SA)..CBU;KUN15,16..(DCB,SCB,XTR)..(GCC,GEN,PHL,PKN,TH)..CBU;GGN15,25,KUN10,LAN15,25,35,TGN1#..(5F,5FC)..(ANCOM,ARL,GCC,GEN,IDN,PKN,SA)..CBU

 2
65594A - PLATE, SIDE PANEL REAR END POST INSIDE, LH
65594-0K010

GGN15..XTR..DLX;TGN26..DCB..DLX..LA;KUN26..(DCB,THDCB,XTR)..5F..SR;GGN15,25,KUN16,25..(DCB,XTR)..SR;KUN26..4FC..SR..(ARL,GEN,LA,PHL,TH);TGN16,26,36..(DCB,THDCB,XTR)..(ANCOM,GEN,PHL,SA,TH);KUN2#,35,TGN36..(DCB,THDCB)..5F..DLX..(ANCOM,GEN,LA,SA);KUN15,36,LAN15,25,35,TGN15..(DCB,XTR)..5F..(GEN,LA,PHL,SA,TH)

 1
65601A - PANEL SUB-ASSY, REAR BODY SIDE, LH
65318-0K913

GGN15,25,KUN15,16,2#,36,TGN16,26..XTR..CBU

 1
65632C - PANEL, WHEEL HOUSE, LH
65632-0K901

KUN26..THDCB;KUN25..SCB..MA;TGN16..XTR..TH;KUN25..(DCB,XTR)..SR;KUN26..(DCB,XTR)..(ARL,PHL,TH)..CBU;KUN16,25..(DCB,SCB,THDCB,THSCB)..(ARL,GCC,GEN)..CBU;GGN15,25,KUN10,35,LAN15,TGN1#..(5F,5FC)..(ARL,GCC,GEN,IDN,PKN)..CBU;KUN15,16,36,TGN26,36..(DCB,SCB,THDCB,XTR)..(GCC,GEN,PHL,PKN,TH)..CBU

 1
65638 - LINER, REAR WHEEL HOUSE, LH
65638-0K010

KUN26..THDCB;KUN25..SCB..MA;TGN26..DCB..DLX..LA;KUN25..(DCB,XTR)..SR;TGN16..5F..(ARL,GCC,GEN)..CBU;KUN16,36..(DCB,SCB,XTR)..(LA,TH);KUN26..(DCB,XTR)..(ARL,LA,PHL,TH)..CBU;TGN16,36..(DCB,XTR)..4FC..(ANCOM,PHL,TH);KUN16,25,35,TGN36..(DCB,SCB,THDCB,THSCB)..5F..DLX..(ANCOM,ARL,GCC,GEN,LA)..CBU;GGN15,25,KUN10,15,LAN15,TGN10,11,15,26..(DCB,SCB,THDCB,XTR)..(ANCOM,ARL,GCC,GEN,IDN,PHL,PKN,TH)..CBU

 1
65817A - PANEL, REAR BODY SIDE, LH
65817-0K907

GGN25,KUN2#,36,TGN26..XTR..CBU

 1
65827 - PANEL, REAR BODY SIDE, INNER LH
65827-0K911

KUN15,16,2#,36,TGN16,26..XTR..TH

 1
65864 - PANEL, REAR BODY SIDE, UPPER LH
65863-0K020

KUN15,16,2#,36,TGN16,26..XTR..TH

 1
66301B - HOOK SUB-ASSY, ROPE
66312-0K010

KUN15..XTR..HDCR;KUN15..DCB..(GEN,PHL,TH);GGN15,25,KUN26..SR..(ARL,GEN,PHL,TH);GGN15,KUN15,26..(THDCB,XTR)..DLX..CBU;KUN16,25,3#,TGN15,16,26,36..(DCB,THDCB,XTR)..(GEN,PHL,TH)

 4
76646E - BRACKET, RR BODY MUDGUARD, LH
76646-0K010

KUN26..THDCB;KUN25..SCB..MA;TGN36..SCB..CBU;KUN26..DCB..5F..SA;KUN36..(DCB,SCB)..5F;KUN36,TGN16..XTR..TH;KUN25..(DCB,XTR)..SR;TGN26,36..DCB..5F..DLX..LA;TGN36..DCB..(ANCOM,PHL,SA);TGN26..(ANCOM,GCC,GEN,SA,TH)..CBU;KUN15,16..(DCB,SCB)..(ARL,SA)..CBU;KUN26..(DCB,XTR)..(ARL,LA,PHL,TH)..CBU;KUN25,35..DLX..(ANCOM,GCC,GEN,LA,SA)..CBU;KUN15,16..(DCB,SCB,XTR)..(GCC,GEN,PHL,PKN,TH)..CBU;GGN15,25,KUN10,LAN15,25,35,TGN1#..(5F,5FC)..(ANCOM,ARL,GCC,GEN,IDN,PKN,SA)..CBU

 1
77350D - LID ASSY, FUEL FILLER OPENING
77350-0K050

KUN15,36..SCB..SA;TGN16..LHD..(SCB,XTR)..DLX..CBU;KUN26,TGN16..(SCB,XTR)..SR..(ARL,GCC,TH);TGN26..(SCB,XTR)..(ANCOM,GCC,SA,TH)..CBU;KUN15,16,36..(SCB,XTR)..(GCC,GEN,PKN,TH)..CBU;GGN15,25,KUN10,25,35,LAN15,25,TGN10,11,15,36..(SCB,THSCB,XTR)..CBU

 1
Common parts
90159-60603
90159-80060
90189-T0003
90189-T0020
90269-06017
90467-09166
90467-T0020
90904-67036
90904-67037

ILLUST NO. 1 OF 2(1107- )SMT,XTR..CBU

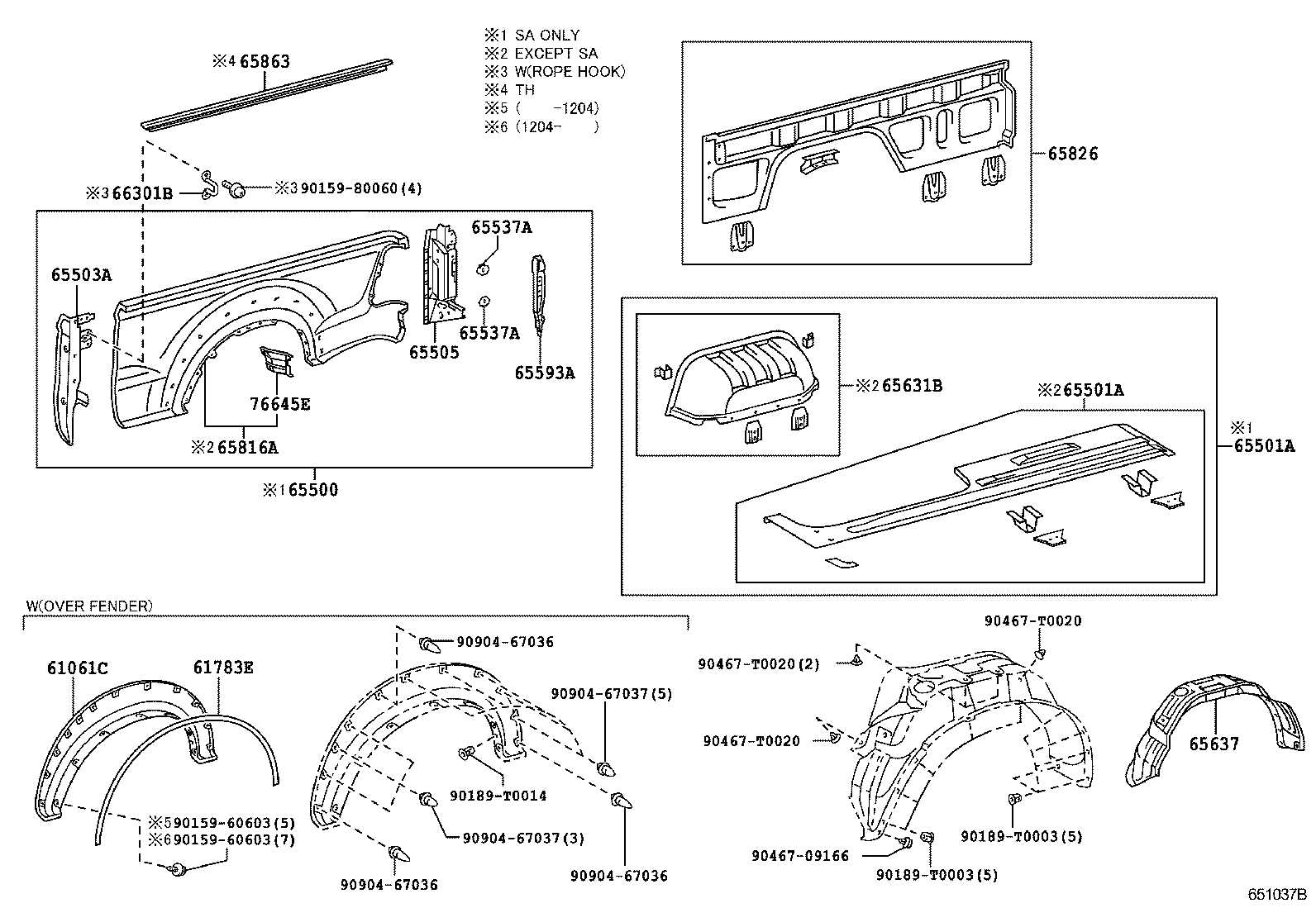

Click highlighted areas on diagram

RH

diagram 61061C 61783E 65500 65501A 65501A 65503A 65505 65537A 65537A 65593A 65631B 65637 65816A 65826 65863 66301B 76645E 9015960603 9015960603 9015980060 90189T0003 90189T0003 90189T0014 9046709166 90467T0020 90467T0020 90467T0020 9090467036 9090467036 9090467036 9090467037 9090467037
Part # Description Qty Price
Common parts
90159-60603
90159-80060
90189-T0003
90189-T0014
90467-09166
90467-T0020
90904-67036
90904-67037

ILLUST NO. 2 OF 2(1107- )SMT,XTR..CBU

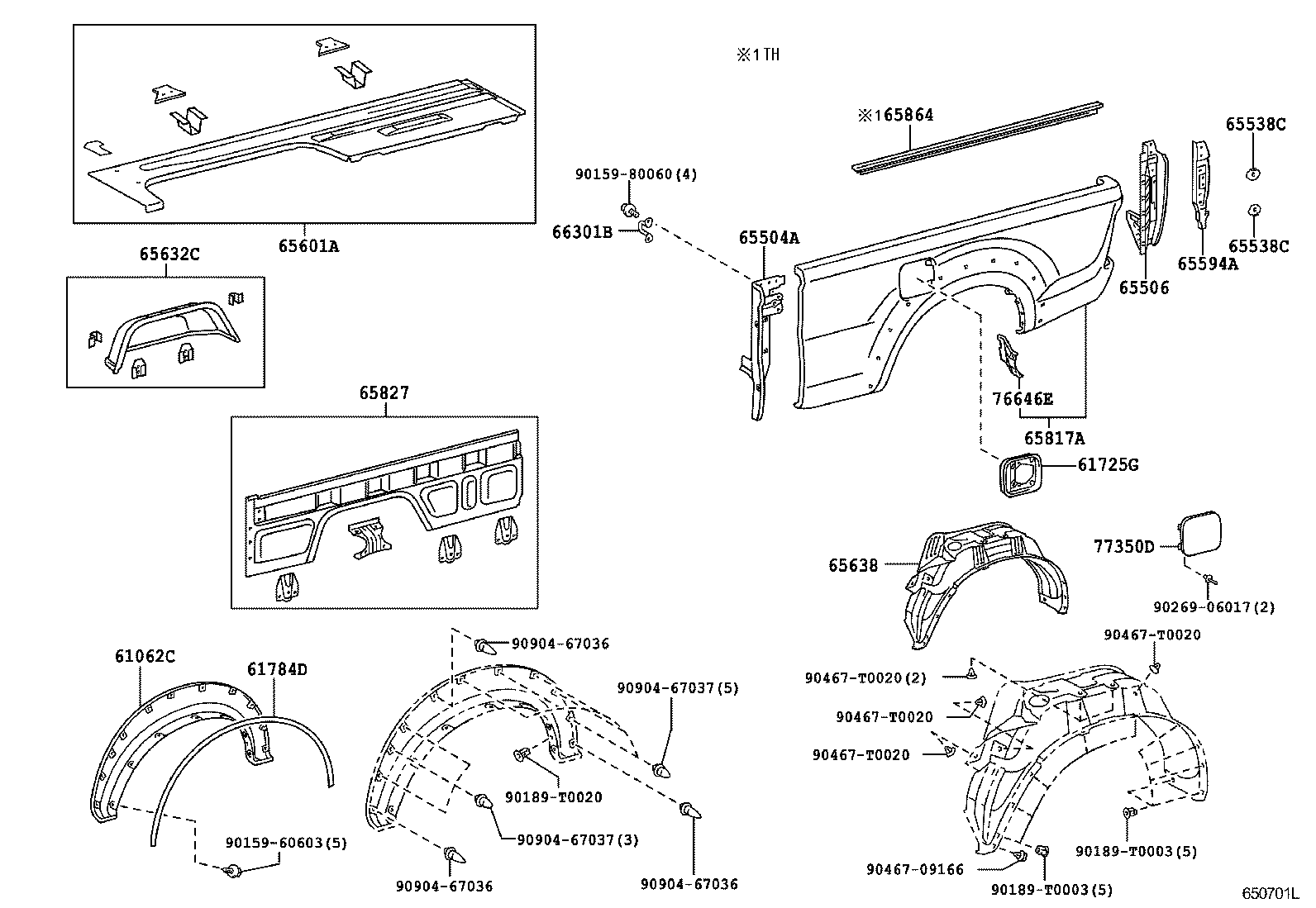

Click highlighted areas on diagram

LH

diagram 61062C 61725G 61784D 65504A 65506 65538C 65538C 65594A 65600 65601A 65601A 65632C 65638 65817A 65827 65864 66301B 76646E 77350D 9015960603 9015960603 9015980060 90189T0003 90189T0003 90189T0014 9026906017 9046709166 90467T0020 90467T0020 90467T0020 90467T0020 9090467036 9090467036 9090467036 9090467037 9090467037
Part # Description Qty Price
Common parts
90159-60603
90159-80060
90189-T0003
90189-T0014
90269-06017
90467-09166
90467-T0020
90904-67036
90904-67037
