KUN36R-CRMSYT (2005)
Toyota Hilux
(0408- )GGN25,35,KUN2#,3#,LAN25,35,TGN26,36

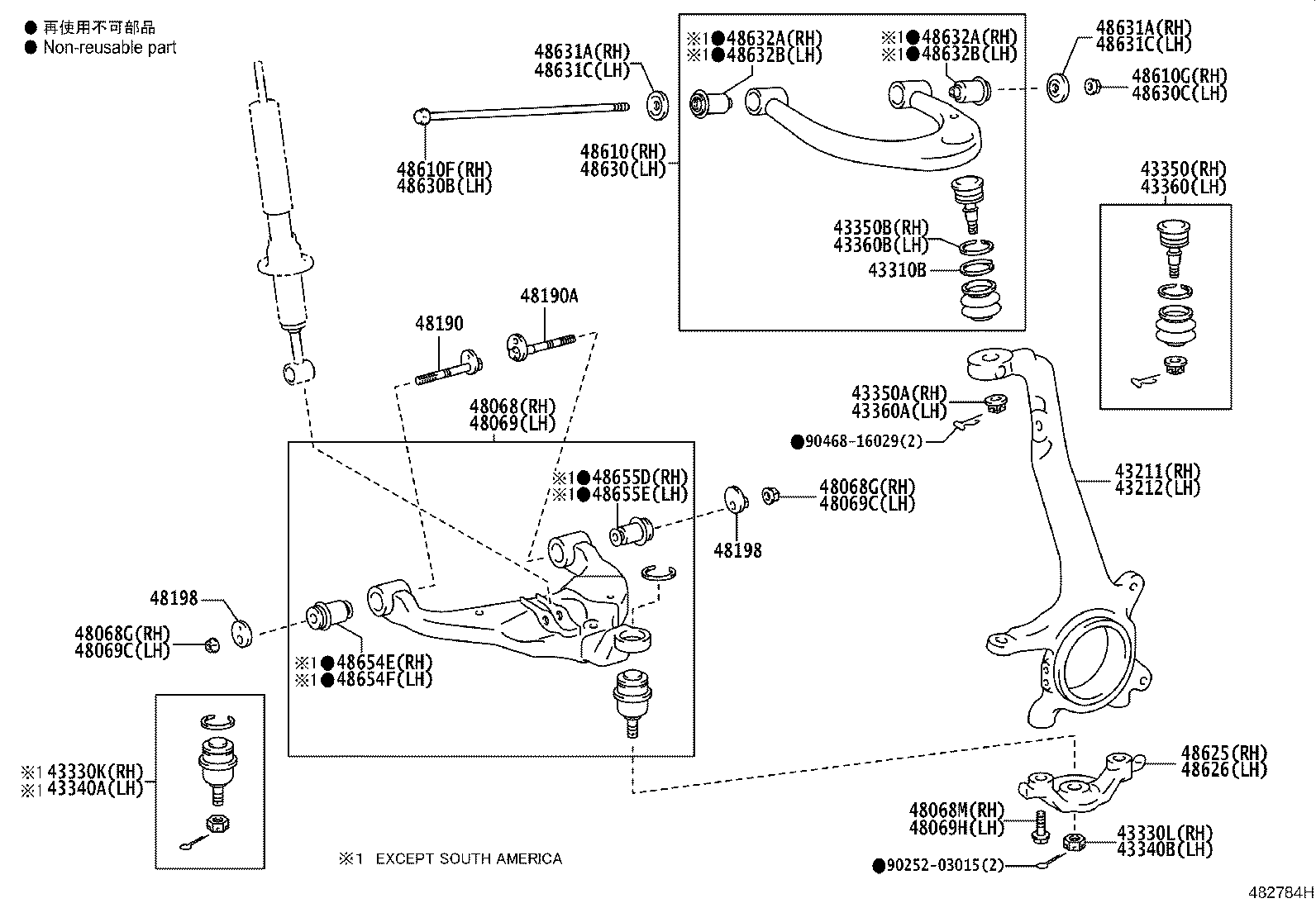

| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 43211 - KNUCKLE, STEERING, RH | ||||
| 43211-0K030 |
KUN25..XTR;KUN25..LHD..SA;KUN35..DCB..SA;KUN26..4FC..ARL;KUN36..DCB..DLX;KUN26,LAN25,35..DLX..(GEN,LA,SA);TGN26..LHD..(DCB,SCB)..(GCC,GEN,SA);KUN26,36..(DCB,SCB,XTR)..5F..(ARL,TH);GGN25,KUN25..(DCB,SCB,THDCB,XTR)..(ARL,GCC,GEN) ABS (ANTI-LOCK BRAKE SYSTEM)-WITH |
1 | ||
| 43211-0K040 |
KUN25..SCB..MA;TGN36..5F..DLX;KUN26..4FC..ARL;KUN35..DCB..ANCOM;KUN36,TGN26..DCB..DLX..LA;KUN26,35..DLX..(GEN,LA,SA);TGN26..DLX..(ANCOM,GCC,GEN,SA);GGN25,KUN26,36..(DCB,SCB,XTR)..(5F,5FC)..(ARL,TH);KUN25,LAN25,35..(DCB,SCB,THDCB,THSCB,XTR)..(ANCOM,GCC,GEN,LA,SA,TH) |
1 | ||
| 43212 - KNUCKLE, STEERING, LH | ||||
| 43212-0K030 |
KUN25..XTR;KUN25..LHD..SA;KUN35..DCB..SA;KUN26..4FC..ARL;KUN36..DCB..DLX;KUN26,LAN25,35..DLX..(GEN,LA,SA);TGN26..LHD..(DCB,SCB)..(GCC,GEN,SA);KUN26,36..(DCB,SCB,XTR)..5F..(ARL,TH);GGN25,KUN25..(DCB,SCB,THDCB,XTR)..(ARL,GCC,GEN) ABS (ANTI-LOCK BRAKE SYSTEM)-WITH |
1 | ||
| 43212-0K040 |
KUN25..SCB..MA;TGN36..5F..DLX;KUN26..4FC..ARL;KUN35..DCB..ANCOM;KUN36,TGN26..DCB..DLX..LA;KUN26,35..DLX..(GEN,LA,SA);TGN26..DLX..(ANCOM,GCC,GEN,SA);GGN25,KUN26,36..(DCB,SCB,XTR)..(5F,5FC)..(ARL,TH);KUN25,LAN25,35..(DCB,SCB,THDCB,THSCB,XTR)..(ANCOM,GCC,GEN,LA,SA,TH) |
1 | ||
| 43310B - RING, SET (FOR DUST COVER) | ||||
| 90580-10001 |
KUN35..DLX;TGN36..SCB;KUN25..SCB..MA;KUN26..DCB..5F..SA;KUN25..(DCB,XTR)..SR;TGN26,36..DCB..DLX..LA;KUN36..(DCB,SCB,XTR)..5F;TGN26..ANCOM,GCC,GEN,SA,TH;TGN36..DCB..(ANCOM,PHL,SA);GGN25,KUN25,LAN25,35..ANCOM,ARL,GCC,GEN,LA,SA;KUN26..(DCB,SCB,THDCB,XTR)..(ARL,GEN,LA,PHL,TH) |
2 | ||
| 43330K - JOINT ASSY, LOWER BALL, FRONT RH | ||||
| 43330-09510 |
KUN26..THDCB;KUN25..SCB..MA;KUN26..DCB..5F..SA;KUN25..(DCB,XTR)..SR;KUN16,36,TGN16..XTR..TH;KUN36..RHD..(DCB,SCB)..5F;KUN25,35..DLX..(GCC,GEN,SA);TGN16..5F..(ARL,GCC,GEN,SA);KUN15..(DCB,SCB)..(PHL,SA)..CBU;KUN16,TGN10..(DCB,SCB)..(DLX,SR);KUN26..(DCB,SCB,XTR)..(ARL,PHL,TH);KUN15..(DCB,SCB,XTR)..(GCC,GEN,PKN,TH);GGN15,25,KUN10,LAN15,25,35,TGN11,15,26,36..ARL,GCC,GEN,PHL,PKN,SA,TH |
1 | ||
| 43330L - NUT, CASTLE (FOR FRONT LOWER BALL JOINT RH) | ||||
| 90171-T0003 |
TGN36..SCB;KUN26..THDCB;KUN25..SCB..MA;KUN35..DCB..ANCOM;KUN26..DCB..5F..SA;KUN36..(DCB,SCB)..5F;KUN25..(DCB,XTR)..SR;KUN35..DLX..(GEN,LA,SA);KUN16,36,TGN16..XTR..TH;TGN26..ANCOM,GCC,GEN,SA,TH;TGN26,36..DCB..5F..DLX..LA;KUN25..ANCOM,GCC,GEN,LA,SA;TGN36..DCB..(ANCOM,PHL,SA);KUN15..(DCB,SCB)..(PHL,SA)..CBU;KUN16,TGN10..(DCB,SCB)..(DLX,SR);KUN26..(DCB,SCB,XTR)..(ARL,LA,PHL,TH);KUN15..(DCB,SCB,XTR)..(GCC,GEN,PKN,TH);GGN15,25,KUN10,LAN15,25,35,TGN11,15,16..(5F,5FC)..(ANCOM,ARL,GCC,GEN,PKN,SA) |
1 | ||
| 43340A - JOINT ASSY, LOWER BALL, FRONT LH | ||||
| 43330-09510 |
KUN26..THDCB;KUN25..SCB..MA;KUN26..DCB..5F..SA;KUN25..(DCB,XTR)..SR;KUN16,36,TGN16..XTR..TH;KUN36..RHD..(DCB,SCB)..5F;KUN25,35..DLX..(GCC,GEN,SA);TGN16..5F..(ARL,GCC,GEN,SA);KUN15..(DCB,SCB)..(PHL,SA)..CBU;KUN16,TGN10..(DCB,SCB)..(DLX,SR);KUN26..(DCB,SCB,XTR)..(ARL,PHL,TH);KUN15..(DCB,SCB,XTR)..(GCC,GEN,PKN,TH);GGN15,25,KUN10,LAN15,25,35,TGN11,15,26,36..ARL,GCC,GEN,PHL,PKN,SA,TH |
1 | ||
| 43340B - NUT, CASTLE (FOR FRONT LOWER BALL JOINT LH) | ||||
| 90171-T0003 |
TGN36..SCB;KUN26..THDCB;KUN25..SCB..MA;KUN35..DCB..ANCOM;KUN26..DCB..5F..SA;KUN36..(DCB,SCB)..5F;KUN25..(DCB,XTR)..SR;KUN35..DLX..(GEN,LA,SA);KUN16,36,TGN16..XTR..TH;TGN26..ANCOM,GCC,GEN,SA,TH;TGN26,36..DCB..5F..DLX..LA;KUN25..ANCOM,GCC,GEN,LA,SA;TGN36..DCB..(ANCOM,PHL,SA);KUN15..(DCB,SCB)..(PHL,SA)..CBU;KUN16,TGN10..(DCB,SCB)..(DLX,SR);KUN26..(DCB,SCB,XTR)..(ARL,LA,PHL,TH);KUN15..(DCB,SCB,XTR)..(GCC,GEN,PKN,TH);GGN15,25,KUN10,LAN15,25,35,TGN11,15,16..(5F,5FC)..(ANCOM,ARL,GCC,GEN,PKN,SA) |
1 | ||
| 43350 - JOINT ASSY, FRONT UPPER BALL, RH | ||||
| 43310-09015 |
KUN26..THDCB;KUN25..SCB..MA;KUN26..DCB..5F..SA;KUN25..(DCB,XTR)..SR;KUN16,36,TGN16..XTR..TH;KUN36..RHD..(DCB,SCB)..5F;KUN25,35..DLX..(GCC,GEN,SA);TGN16..5F..(ARL,GCC,GEN,SA);KUN15..(DCB,SCB)..(PHL,SA)..CBU;KUN16,TGN10..(DCB,SCB)..(DLX,SR);KUN26..(DCB,SCB,XTR)..(ARL,PHL,TH);KUN15..(DCB,SCB,XTR)..(GCC,GEN,PKN,TH);GGN15,25,KUN10,LAN15,25,35,TGN11,15,26,36..ARL,GCC,GEN,PHL,PKN,SA,TH |
1 | ||
| 43350A - NUT (FOR FRONT UPPER BALL JOINT RH) | ||||
| 90171-T0001 |
TGN36..SCB;KUN26..THDCB;KUN25..SCB..MA;KUN35..DCB..ANCOM;KUN26..DCB..5F..SA;KUN36..(DCB,SCB)..5F;KUN25..(DCB,XTR)..SR;KUN35..DLX..(GEN,LA,SA);KUN16,36,TGN16..XTR..TH;TGN26..ANCOM,GCC,GEN,SA,TH;TGN26,36..DCB..5F..DLX..LA;KUN25..ANCOM,GCC,GEN,LA,SA;TGN36..DCB..(ANCOM,PHL,SA);KUN15..(DCB,SCB)..(PHL,SA)..CBU;KUN16,TGN10..(DCB,SCB)..(DLX,SR);KUN26..(DCB,SCB,XTR)..(ARL,LA,PHL,TH);KUN15..(DCB,SCB,XTR)..(GCC,GEN,PKN,TH);GGN15,25,KUN10,LAN15,25,35,TGN11,15,16..(5F,5FC)..(ANCOM,ARL,GCC,GEN,PKN,SA) |
1 | ||
| 43360 - JOINT ASSY, FRONT UPPER BALL, LH | ||||
| 43310-09015 |
KUN26..THDCB;KUN25..SCB..MA;KUN26..DCB..5F..SA;KUN25..(DCB,XTR)..SR;KUN16,36,TGN16..XTR..TH;KUN36..RHD..(DCB,SCB)..5F;KUN25,35..DLX..(GCC,GEN,SA);TGN16..5F..(ARL,GCC,GEN,SA);KUN15..(DCB,SCB)..(PHL,SA)..CBU;KUN16,TGN10..(DCB,SCB)..(DLX,SR);KUN26..(DCB,SCB,XTR)..(ARL,PHL,TH);KUN15..(DCB,SCB,XTR)..(GCC,GEN,PKN,TH);GGN15,25,KUN10,LAN15,25,35,TGN11,15,26,36..ARL,GCC,GEN,PHL,PKN,SA,TH |
1 | ||
| 43360A - NUT (FOR FRONT UPPER BALL JOINT LH) | ||||
| 90171-T0001 |
TGN36..SCB;KUN26..THDCB;KUN25..SCB..MA;KUN35..DCB..ANCOM;KUN26..DCB..5F..SA;KUN36..(DCB,SCB)..5F;KUN25..(DCB,XTR)..SR;KUN35..DLX..(GEN,LA,SA);KUN16,36,TGN16..XTR..TH;TGN26..ANCOM,GCC,GEN,SA,TH;TGN26,36..DCB..5F..DLX..LA;KUN25..ANCOM,GCC,GEN,LA,SA;TGN36..DCB..(ANCOM,PHL,SA);KUN15..(DCB,SCB)..(PHL,SA)..CBU;KUN16,TGN10..(DCB,SCB)..(DLX,SR);KUN26..(DCB,SCB,XTR)..(ARL,LA,PHL,TH);KUN15..(DCB,SCB,XTR)..(GCC,GEN,PKN,TH);GGN15,25,KUN10,LAN15,25,35,TGN11,15,16..(5F,5FC)..(ANCOM,ARL,GCC,GEN,PKN,SA) |
1 | ||
| 48068 - ARM SUB-ASSY, FRONT SUSPENSION, LOWER NO.1 RH | ||||
| 48068-0K040 |
KUN25..SCB..MA;KUN25..GCC,GEN,SA;KUN25,TGN36..(DCB,SCB,XTR)..SR;KUN26..(DCB,SCB,THDCB,XTR)..(ARL,GEN,PHL,SA,TH);GGN25,KUN3#,LAN25,35,TGN26..(DCB,SCB,THDCB,XTR)..(ARL,GCC,GEN,SA,TH) |
1 | ||
| 48068G - NUT(FOR FRONT SUSPENSION LOWER ARM NO.1 RH) | ||||
| 90178-T0081 |
KUN25..SCB..MA;KUN26..DCB..5F..SA;TGN26..DCB..DLX..LA;KUN25..GCC,GEN,LA,SA;KUN25..(DCB,XTR)..SR;KUN35,TGN36..SCB,THDCB;TGN26..ANCOM,GCC,GEN,SA,TH;TGN36..DCB..(ANCOM,PHL,SA);KUN35,TGN36..DCB..DLX..(LA,SA);GGN25,KUN36,LAN25,35..(DCB,SCB,XTR)..(5F,5FC);KUN26..(DCB,SCB,THDCB,XTR)..(ARL,GEN,LA,PHL,TH) |
2 | ||
| 48068G - NUT(FOR FRONT SUSPENSION LOWER ARM NO.1 RH) | ||||
| 90178-T0081 |
KUN25..SCB..MA;KUN26..DCB..5F..SA;TGN26..DCB..DLX..LA;KUN25..GCC,GEN,LA,SA;KUN25..(DCB,XTR)..SR;KUN35,TGN36..SCB,THDCB;TGN26..ANCOM,GCC,GEN,SA,TH;TGN36..DCB..(ANCOM,PHL,SA);KUN35,TGN36..DCB..DLX..(LA,SA);GGN25,KUN36,LAN25,35..(DCB,SCB,XTR)..(5F,5FC);KUN26..(DCB,SCB,THDCB,XTR)..(ARL,GEN,LA,PHL,TH) |
2 | ||
| 48068M - BOLT(FOR FRONT SUSPENSION LOWER ARM NO.2 RH) | ||||
| 90105-16053 |
TGN36..SCB;KUN26..THDCB;KUN25..SCB..MA;KUN35..DCB..ANCOM;KUN26..DCB..5F..SA;KUN36..(DCB,SCB)..5F;KUN25..(DCB,XTR)..SR;KUN35..DLX..(GEN,LA,SA);KUN16,36,TGN16..XTR..TH;TGN26..ANCOM,GCC,GEN,SA,TH;TGN26,36..DCB..5F..DLX..LA;KUN25..ANCOM,GCC,GEN,LA,SA;TGN36..DCB..(ANCOM,PHL,SA);KUN15..(DCB,SCB)..(PHL,SA)..CBU;KUN16,TGN10..(DCB,SCB)..(DLX,SR);KUN26..(DCB,SCB,XTR)..(ARL,LA,PHL,TH);KUN15..(DCB,SCB,XTR)..(GCC,GEN,PKN,TH);GGN15,25,KUN10,LAN15,25,35,TGN11,15,16..(5F,5FC)..(ANCOM,ARL,GCC,GEN,PKN,SA) |
2 | ||
| 48069 - ARM SUB-ASSY, FRONT SUSPENSION, LOWER NO.1 LH | ||||
| 48069-0K040 |
KUN25..SCB..MA;KUN25..GCC,GEN,SA;KUN25,TGN36..(DCB,SCB,XTR)..SR;KUN26..(DCB,SCB,THDCB,XTR)..(ARL,GEN,PHL,SA,TH);GGN25,KUN3#,LAN25,35,TGN26..(DCB,SCB,THDCB,XTR)..(ARL,GCC,GEN,SA,TH) |
1 | ||
| 48069C - NUT(FOR FRONT SUSPENSION LOWER ARM NO.1 LH) | ||||
| 90178-T0081 |
KUN25..SCB..MA;KUN26..DCB..5F..SA;TGN26..DCB..DLX..LA;KUN25..GCC,GEN,LA,SA;KUN25..(DCB,XTR)..SR;KUN35,TGN36..SCB,THDCB;TGN26..ANCOM,GCC,GEN,SA,TH;TGN36..DCB..(ANCOM,PHL,SA);KUN35,TGN36..DCB..DLX..(LA,SA);GGN25,KUN36,LAN25,35..(DCB,SCB,XTR)..(5F,5FC);KUN26..(DCB,SCB,THDCB,XTR)..(ARL,GEN,LA,PHL,TH) |
2 | ||
| 48069C - NUT(FOR FRONT SUSPENSION LOWER ARM NO.1 LH) | ||||
| 90178-T0081 |
KUN25..SCB..MA;KUN26..DCB..5F..SA;TGN26..DCB..DLX..LA;KUN25..GCC,GEN,LA,SA;KUN25..(DCB,XTR)..SR;KUN35,TGN36..SCB,THDCB;TGN26..ANCOM,GCC,GEN,SA,TH;TGN36..DCB..(ANCOM,PHL,SA);KUN35,TGN36..DCB..DLX..(LA,SA);GGN25,KUN36,LAN25,35..(DCB,SCB,XTR)..(5F,5FC);KUN26..(DCB,SCB,THDCB,XTR)..(ARL,GEN,LA,PHL,TH) |
2 | ||
| 48069H - BOLT(FOR FRONT SUSPENSION LOWER ARM NO.2 LH) | ||||
| 90105-16053 |
TGN36..SCB;KUN26..THDCB;KUN25..SCB..MA;KUN35..DCB..ANCOM;KUN26..DCB..5F..SA;KUN36..(DCB,SCB)..5F;KUN25..(DCB,XTR)..SR;KUN35..DLX..(GEN,LA,SA);KUN16,36,TGN16..XTR..TH;TGN26..ANCOM,GCC,GEN,SA,TH;TGN26,36..DCB..5F..DLX..LA;KUN25..ANCOM,GCC,GEN,LA,SA;TGN36..DCB..(ANCOM,PHL,SA);KUN15..(DCB,SCB)..(PHL,SA)..CBU;KUN16,TGN10..(DCB,SCB)..(DLX,SR);KUN26..(DCB,SCB,XTR)..(ARL,LA,PHL,TH);KUN15..(DCB,SCB,XTR)..(GCC,GEN,PKN,TH);GGN15,25,KUN10,LAN15,25,35,TGN11,15,16..(5F,5FC)..(ANCOM,ARL,GCC,GEN,PKN,SA) |
2 | ||
| 48190 - CAM ASSY, CAMBER ADJUST | ||||
| 48190-0K010 |
KUN25..SCB..MA;KUN26..DCB..5F..SA;TGN26..DCB..DLX..LA;KUN25..GCC,GEN,LA,SA;KUN25..(DCB,XTR)..SR;KUN35,TGN36..SCB,THDCB;TGN26..ANCOM,GCC,GEN,SA,TH;TGN36..DCB..(ANCOM,PHL,SA);KUN35,TGN36..DCB..DLX..(LA,SA);GGN25,KUN36,LAN25,35..(DCB,SCB,XTR)..(5F,5FC);KUN26..(DCB,SCB,THDCB,XTR)..(ARL,GEN,LA,PHL,TH) |
2 | ||
| 48190A - CAM ASSY, CAMBER ADJUST, NO.2 | ||||
| 48190-0K030 |
GGN25,KUN2#,3#,TGN26,36..ARL,GCC,GEN,PHL,TH |
2 | ||
| 48198 - CAM, CAMBER ADJUST, NO.2 | ||||
| 48198-0K010 |
KUN25..SCB..MA;KUN26..DCB..5F..SA;TGN26..DCB..DLX..LA;KUN25..GCC,GEN,LA,SA;KUN25..(DCB,XTR)..SR;KUN35,TGN36..SCB,THDCB;TGN26..ANCOM,GCC,GEN,SA,TH;TGN36..DCB..(ANCOM,PHL,SA);KUN35,TGN36..DCB..DLX..(LA,SA);GGN25,KUN36,LAN25,35..(DCB,SCB,XTR)..(5F,5FC);KUN26..(DCB,SCB,THDCB,XTR)..(ARL,GEN,LA,PHL,TH) |
4 | ||
| 48198 - CAM, CAMBER ADJUST, NO.2 | ||||
| 48198-0K010 |
KUN25..SCB..MA;KUN26..DCB..5F..SA;TGN26..DCB..DLX..LA;KUN25..GCC,GEN,LA,SA;KUN25..(DCB,XTR)..SR;KUN35,TGN36..SCB,THDCB;TGN26..ANCOM,GCC,GEN,SA,TH;TGN36..DCB..(ANCOM,PHL,SA);KUN35,TGN36..DCB..DLX..(LA,SA);GGN25,KUN36,LAN25,35..(DCB,SCB,XTR)..(5F,5FC);KUN26..(DCB,SCB,THDCB,XTR)..(ARL,GEN,LA,PHL,TH) |
4 | ||
| 48610 - ARM ASSY, FRONT SUSPENSION UPPER, RH | ||||
| 48610-0K040 |
KUN25..SCB..MA;KUN25..GCC,GEN,SA;KUN25,TGN36..(DCB,SCB,XTR)..SR;KUN26..(DCB,SCB,THDCB,XTR)..(ARL,GEN,PHL,SA,TH);GGN25,KUN3#,LAN25,35,TGN26..(DCB,SCB,THDCB,XTR)..(ARL,GCC,GEN,SA,TH) |
1 | ||
| 48610F - BOLT(FOR FRONT SUSPENSION UPPER ARM RH) | ||||
| 90105-T0114 |
KUN25..SCB..MA;KUN26..DCB..5F..SA;TGN26..DCB..DLX..LA;KUN25..GCC,GEN,LA,SA;KUN25..(DCB,XTR)..SR;KUN35,TGN36..SCB,THDCB;TGN26..ANCOM,GCC,GEN,SA,TH;TGN36..DCB..(ANCOM,PHL,SA);KUN35,TGN36..DCB..DLX..(LA,SA);GGN25,KUN36,LAN25,35..(DCB,SCB,XTR)..(5F,5FC);KUN26..(DCB,SCB,THDCB,XTR)..(ARL,GEN,LA,PHL,TH) |
1 | ||
| 48610G - NUT(FOR FRONT SUSPENSION UPPER ARM RH) | ||||
| 90178-T0027 |
KUN25..SCB..MA;KUN26..DCB..5F..SA;TGN26..DCB..DLX..LA;KUN25..GCC,GEN,LA,SA;KUN25..(DCB,XTR)..SR;KUN35,TGN36..SCB,THDCB;TGN26..ANCOM,GCC,GEN,SA,TH;TGN36..DCB..(ANCOM,PHL,SA);KUN35,TGN36..DCB..DLX..(LA,SA);GGN25,KUN36,LAN25,35..(DCB,SCB,XTR)..(5F,5FC);KUN26..(DCB,SCB,THDCB,XTR)..(ARL,GEN,LA,PHL,TH) |
1 | ||
| 48625 - ATTACHMENT, FRONT LOWER BALL JOINT, RH | ||||
| 48625-0K020 |
TGN36..DLX;KUN35..SCB..LA;KUN25..SCB..MA;TGN26..DCB..DLX..LA;TGN26..ANCOM,GCC,GEN,TH;KUN35..LHD..(DCB,THDCB)..DLX;GGN25,KUN25..ANCOM,ARL,GCC,GEN,LA;KUN25,TGN36..(DCB,XTR)..SR..(MA,PHL,TH);KUN26,36..(DCB,SCB,THDCB,XTR)..(ARL,GEN,LA,PHL,TH) |
1 | ||
| 48626 - ATTACHMENT, FRONT LOWER BALL JOINT, LH | ||||
| 48626-0K020 |
TGN36..DLX;KUN35..SCB..LA;KUN25..SCB..MA;TGN26..DCB..DLX..LA;TGN26..ANCOM,GCC,GEN,TH;KUN35..LHD..(DCB,THDCB)..DLX;GGN25,KUN25..ANCOM,ARL,GCC,GEN,LA;KUN25,TGN36..(DCB,XTR)..SR..(MA,PHL,TH);KUN26,36..(DCB,SCB,THDCB,XTR)..(ARL,GEN,LA,PHL,TH) |
1 | ||
| 48630 - ARM ASSY, FRONT SUSPENSION, UPPER LH | ||||
| 48630-0K040 |
KUN25..SCB..MA;KUN25..GCC,GEN,SA;KUN25,TGN36..(DCB,SCB,XTR)..SR;KUN26..(DCB,SCB,THDCB,XTR)..(ARL,GEN,PHL,SA,TH);GGN25,KUN3#,LAN25,35,TGN26..(DCB,SCB,THDCB,XTR)..(ARL,GCC,GEN,SA,TH) |
1 | ||
| 48630B - BOLT(FOR FRONT SUSPENSION UPPER ARM LH) | ||||
| 90105-T0114 |
KUN25..SCB..MA;KUN26..DCB..5F..SA;TGN26..DCB..DLX..LA;KUN25..GCC,GEN,LA,SA;KUN25..(DCB,XTR)..SR;KUN35,TGN36..SCB,THDCB;TGN26..ANCOM,GCC,GEN,SA,TH;TGN36..DCB..(ANCOM,PHL,SA);KUN35,TGN36..DCB..DLX..(LA,SA);GGN25,KUN36,LAN25,35..(DCB,SCB,XTR)..(5F,5FC);KUN26..(DCB,SCB,THDCB,XTR)..(ARL,GEN,LA,PHL,TH) |
1 | ||
| 48630C - NUT(FOR FRONT SUSPENSION UPPER ARM LH) | ||||
| 90178-T0027 |
KUN25..SCB..MA;KUN26..DCB..5F..SA;TGN26..DCB..DLX..LA;KUN25..GCC,GEN,LA,SA;KUN25..(DCB,XTR)..SR;KUN35,TGN36..SCB,THDCB;TGN26..ANCOM,GCC,GEN,SA,TH;TGN36..DCB..(ANCOM,PHL,SA);KUN35,TGN36..DCB..DLX..(LA,SA);GGN25,KUN36,LAN25,35..(DCB,SCB,XTR)..(5F,5FC);KUN26..(DCB,SCB,THDCB,XTR)..(ARL,GEN,LA,PHL,TH) |
1 | ||
| 48631A - RETAINER, CUSHION(FOR FRONT SUSPENSION UPPER ARM RH) | ||||
| 90948-T2007 |
GGN25,KUN2#,3#,TGN26,36..ARL,GCC,GEN,PHL,TH |
2 | ||
| 48631A - RETAINER, CUSHION(FOR FRONT SUSPENSION UPPER ARM RH) | ||||
| 90948-T2007 |
GGN25,KUN2#,3#,TGN26,36..ARL,GCC,GEN,PHL,TH |
2 | ||
| 48631C - RETAINER, CUSHION(FOR FRONT SUSPENSION UPPER ARM LH) | ||||
| 90948-T2007 |
GGN25,KUN2#,3#,TGN26,36..ARL,GCC,GEN,PHL,TH |
2 | ||
| 48631C - RETAINER, CUSHION(FOR FRONT SUSPENSION UPPER ARM LH) | ||||
| 90948-T2007 |
GGN25,KUN2#,3#,TGN26,36..ARL,GCC,GEN,PHL,TH |
2 | ||
| 48632A - BUSH, FRONT SUSPENSION UPPER ARM, RH | ||||
| 48632-0K040 |
KUN25..SCB..MA;KUN25..GCC,GEN,SA;KUN25,TGN36..(DCB,SCB,XTR)..SR;KUN26..(DCB,SCB,THDCB,XTR)..(ARL,GEN,PHL,SA,TH);GGN25,KUN3#,LAN25,35,TGN26..(DCB,SCB,THDCB,XTR)..(ARL,GCC,GEN,SA,TH) |
2 | ||
| 48632A - BUSH, FRONT SUSPENSION UPPER ARM, RH | ||||
| 48632-0K040 |
KUN25..SCB..MA;KUN25..GCC,GEN,SA;KUN25,TGN36..(DCB,SCB,XTR)..SR;KUN26..(DCB,SCB,THDCB,XTR)..(ARL,GEN,PHL,SA,TH);GGN25,KUN3#,LAN25,35,TGN26..(DCB,SCB,THDCB,XTR)..(ARL,GCC,GEN,SA,TH) |
2 | ||
| 48632B - BUSH, FRONT SUSPENSION UPPER ARM, LH | ||||
| 48632-0K040 |
KUN25..SCB..MA;KUN25..GCC,GEN,SA;KUN25,TGN36..(DCB,SCB,XTR)..SR;KUN26..(DCB,SCB,THDCB,XTR)..(ARL,GEN,PHL,SA,TH);GGN25,KUN3#,LAN25,35,TGN26..(DCB,SCB,THDCB,XTR)..(ARL,GCC,GEN,SA,TH) |
2 | ||
| 48632B - BUSH, FRONT SUSPENSION UPPER ARM, LH | ||||
| 48632-0K040 |
KUN25..SCB..MA;KUN25..GCC,GEN,SA;KUN25,TGN36..(DCB,SCB,XTR)..SR;KUN26..(DCB,SCB,THDCB,XTR)..(ARL,GEN,PHL,SA,TH);GGN25,KUN3#,LAN25,35,TGN26..(DCB,SCB,THDCB,XTR)..(ARL,GCC,GEN,SA,TH) |
2 | ||
| 48654E - BUSH, FRONT LOWER ARM, NO.1 RH | ||||
| 48654-0K040 |
KUN25..SCB..MA;KUN25..GCC,GEN,SA;KUN25,TGN36..(DCB,SCB,XTR)..SR;KUN26..(DCB,SCB,THDCB,XTR)..(ARL,GEN,PHL,SA,TH);GGN25,KUN3#,LAN25,35,TGN26..(DCB,SCB,THDCB,XTR)..(ARL,GCC,GEN,SA,TH) |
1 | ||
| 48654F - BUSH, FRONT LOWER ARM, NO.1 LH | ||||
| 48654-0K040 |
KUN25..SCB..MA;KUN25..GCC,GEN,SA;KUN25,TGN36..(DCB,SCB,XTR)..SR;KUN26..(DCB,SCB,THDCB,XTR)..(ARL,GEN,PHL,SA,TH);GGN25,KUN3#,LAN25,35,TGN26..(DCB,SCB,THDCB,XTR)..(ARL,GCC,GEN,SA,TH) |
1 | ||
| 48655D - BUSH, FRONT LOWER ARM, NO.2 RH | ||||
| 48655-0K040 |
KUN25..SCB..MA;KUN25..GCC,GEN,SA;KUN25,TGN36..(DCB,SCB,XTR)..SR;KUN26..(DCB,SCB,THDCB,XTR)..(ARL,GEN,PHL,SA,TH);GGN25,KUN3#,LAN25,35,TGN26..(DCB,SCB,THDCB,XTR)..(ARL,GCC,GEN,SA,TH) |
1 | ||
| 48655E - BUSH, FRONT LOWER ARM, NO.2 LH | ||||
| 48655-0K040 |
KUN25..SCB..MA;KUN25..GCC,GEN,SA;KUN25,TGN36..(DCB,SCB,XTR)..SR;KUN26..(DCB,SCB,THDCB,XTR)..(ARL,GEN,PHL,SA,TH);GGN25,KUN3#,LAN25,35,TGN26..(DCB,SCB,THDCB,XTR)..(ARL,GCC,GEN,SA,TH) |
1 | ||
| Common parts | ||||
| 90252-03015 | ||||
| 90468-16029 | ||||

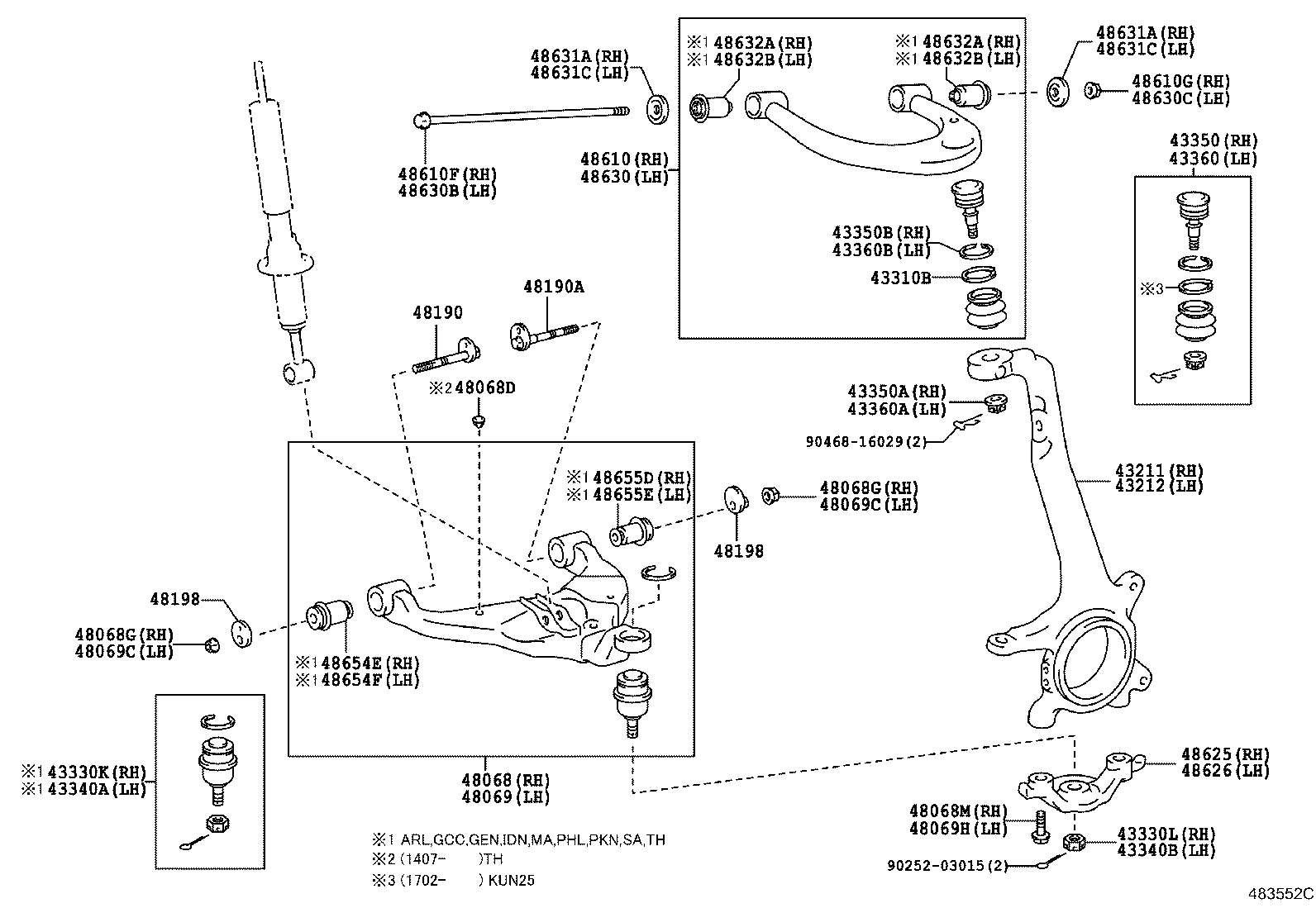

(1107- )GGN25,35,KUN2#,3#,LAN25,35,TGN26,36
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90252-03015 | ||||
| 90468-16029 | ||||
