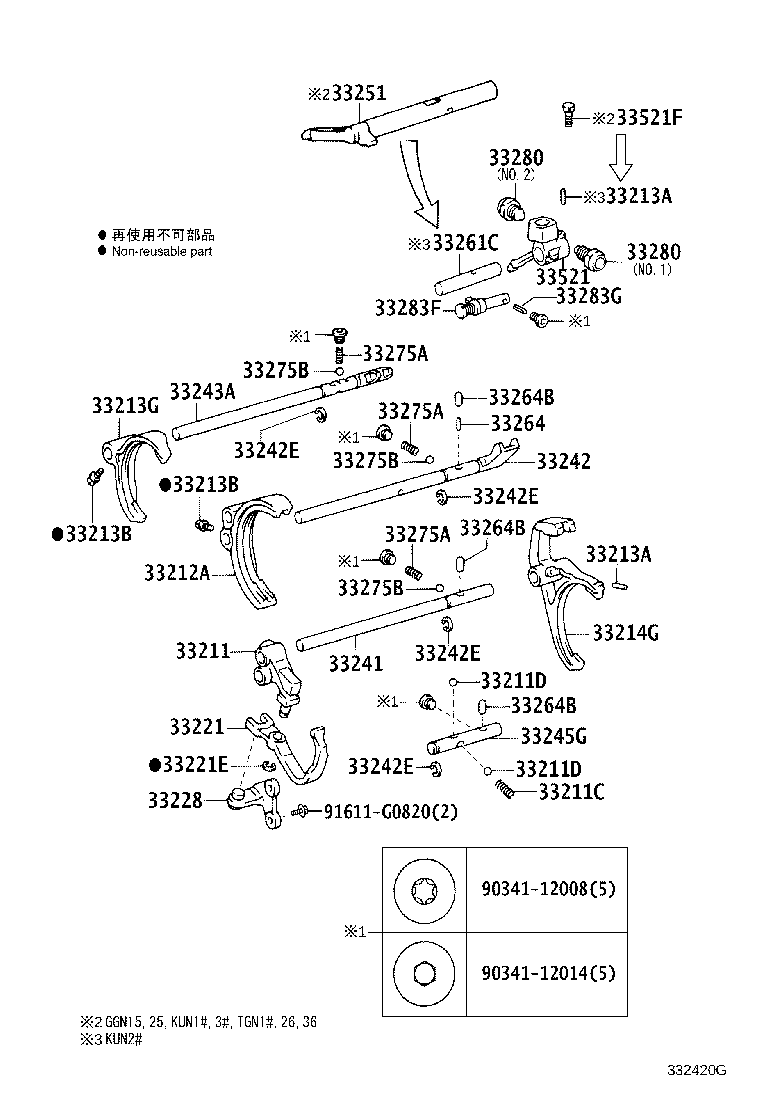

KUN36R-CRMSYT (2005)
Toyota Hilux
(0408- )KUN16,26,36..5F ; (0408- )GGN15,25,KUN15,25,35,TGN11,16,26,36..5F..HD
R150,R150F,R151,R151F
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 33211 - FORK, REVERSE SHIFT | ||||
| 33211-35050 |
KUN15..DCB..HDCR;KUN16,2#,36..5F..TH TYPE A:REFER 33-01 |
1 | ||
| 33211-0K010 |
KUN36;KUN16,2#..(DCB,SCB)..5F..(ANCOM,LA,MA,SA,TH);GGN25,KUN15,35..5F..(HDCR,HTWC)..(ANCOM,LA,SA,TH) TYPE C:REFER 33-01 |
1 | ||
| 33211-0K030 |
KUN15..DCB..HDCR;KUN16,2#,36..5F..TH TYPE B:REFER 33-01 |
1 | ||
| 33211C - SPRING, COMPRESSION(FOR REVERSE SHIFT FORK RETURN) | ||||
| 90501-12166 |
KUN36;KUN16,2#..(DCB,SCB)..5F..(ANCOM,LA,MA,SA,TH);GGN25,KUN15,35..5F..(HDCR,HTWC)..(ANCOM,LA,SA,TH) TYPE C:REFER 33-01 |
1 | ||
| 90501-12166 |
KUN15..DCB..HDCR;KUN16,2#,36..5F..TH TYPE B:REFER 33-01,TYPE A:REFER 33-01 |
1 | ||
| 33211D - BALL(FOR REVERSE SHIFT FORK) | ||||
| 90360-10003 |
KUN36;KUN16,2#..(DCB,SCB)..5F..(ANCOM,LA,MA,SA,TH);GGN25,KUN15,35..5F..(HDCR,HTWC)..(ANCOM,LA,SA,TH) OD=9.52,STEEL,TYPE C:REFER 33-01 |
2 | ||
| 90360-10003 |
KUN15..DCB..HDCR;KUN16,2#,36..5F..TH OD=9.52,STEEL,TYPE B:REFER 33-01,TYPE A:REFER 33-01 |
2 | ||
| 33211D - BALL(FOR REVERSE SHIFT FORK) | ||||
| 90360-10003 |
KUN36;KUN16,2#..(DCB,SCB)..5F..(ANCOM,LA,MA,SA,TH);GGN25,KUN15,35..5F..(HDCR,HTWC)..(ANCOM,LA,SA,TH) OD=9.52,STEEL,TYPE C:REFER 33-01 |
2 | ||
| 90360-10003 |
KUN15..DCB..HDCR;KUN16,2#,36..5F..TH OD=9.52,STEEL,TYPE B:REFER 33-01,TYPE A:REFER 33-01 |
2 | ||
| 33212A - FORK, GEAR SHIFT, NO.1 | ||||
| 33212-35032 |
KUN36;KUN15,35..(DCB,SCB,XTR)..HDCR;KUN16,2#..(DCB,SCB)..5F..(ANCOM,LA,MA,SA,TH) TYPE C:REFER 33-01 |
1 | ||
| 33212-35032 |
KUN26..5F..TH;KUN15..DCB..HDCR;KUN16,25,36..5F..(ARL,TH) TYPE B:REFER 33-01 |
1 | ||
| 33212-35032 |
KUN15..DCB..HDCR;KUN16,2#,36..5F..TH TYPE A:REFER 33-01 |
1 | ||
| 33213A - PIN, SLOTTED SPRING(FOR SHIFT FORK SET) | ||||
| 90254-05016 |
KUN36;KUN16..(DCB,SCB)..5F..TH;GGN25,KUN15,35..5F..(HDCR,HTWC)..(ANCOM,LA,SA,TH) TYPE C:REFER 33-01 |
1 | ||
| 90254-05016 |
KUN16,36..5F..TH;KUN15..DCB..HDCR TYPE B:REFER 33-01,TYPE A:REFER 33-01 |
1 | ||
| 33213A - PIN, SLOTTED SPRING(FOR SHIFT FORK SET) | ||||
| 90254-05016 |
KUN36;KUN16..(DCB,SCB)..5F..TH;GGN25,KUN15,35..5F..(HDCR,HTWC)..(ANCOM,LA,SA,TH) TYPE C:REFER 33-01 |
1 | ||
| 90254-05016 |
KUN16,36..5F..TH;KUN15..DCB..HDCR TYPE B:REFER 33-01,TYPE A:REFER 33-01 |
1 | ||
| 33213B - BOLT(FOR SHIFT FORK SET) | ||||
| 90105-06077 |
KUN36;KUN16,2#..(DCB,SCB)..5F..(ANCOM,LA,MA,SA,TH);GGN25,KUN15,35..5F..(HDCR,HTWC)..(ANCOM,LA,SA,TH) TYPE C:REFER 33-01 |
2 | ||
| 90105-06077 |
KUN15..DCB..HDCR;KUN16,2#,36..5F..TH TYPE B:REFER 33-01,TYPE A:REFER 33-01 |
2 | ||
| 33213B - BOLT(FOR SHIFT FORK SET) | ||||
| 90105-06077 |
KUN36;KUN16,2#..(DCB,SCB)..5F..(ANCOM,LA,MA,SA,TH);GGN25,KUN15,35..5F..(HDCR,HTWC)..(ANCOM,LA,SA,TH) TYPE C:REFER 33-01 |
2 | ||
| 90105-06077 |
KUN15..DCB..HDCR;KUN16,2#,36..5F..TH TYPE B:REFER 33-01,TYPE A:REFER 33-01 |
2 | ||
| 33213G - FORK, GEAR SHIFT, NO.2 | ||||
| 33213-35040 |
KUN36;KUN15,35..(DCB,SCB,XTR)..HDCR;KUN16,2#..(DCB,SCB)..5F..(ANCOM,LA,MA,SA,TH) TYPE C:REFER 33-01 |
1 | ||
| 33213-35040 |
KUN15..DCB..HDCR;KUN16,2#,36..5F..TH TYPE B:REFER 33-01,TYPE A:REFER 33-01 |
1 | ||
| 33214G - FORK, GEAR SHIFT, NO.3 | ||||
| 33230-35011 |
KUN16,36..5F..TH;KUN15..DCB..HDCR TYPE B:REFER 33-01 |
1 | ||
| 33230-35011 |
KUN36;KUN16,2#..(DCB,SCB)..5F..(ANCOM,LA,MA,SA,TH);GGN25,KUN15,35..5F..(HDCR,HTWC)..(ANCOM,LA,SA,TH) TYPE C:REFER 33-01 |
1 | ||
| 33230-35011 |
KUN15..DCB..HDCR;KUN16,2#,36..5F..TH TYPE A:REFER 33-01 |
1 | ||
| 33221 - ARM, REVERSE SHIFT | ||||
| 33221-0K030 |
KUN15..DCB..HDCR;KUN16,2#,36..5F..TH TYPE B:REFER 33-01 |
1 | ||
| 33221-35050 |
KUN15..DCB..HDCR;KUN16,2#,36..5F..TH TYPE A:REFER 33-01 |
1 | ||
| 33221-0K010 |
KUN36;KUN16,2#..(DCB,SCB)..5F..(ANCOM,LA,MA,SA,TH);GGN25,KUN15,35..5F..(HDCR,HTWC)..(ANCOM,LA,SA,TH) TYPE C:REFER 33-01 |
1 | ||
| 33221E - RING(FOR REVERSE SHIFT ARM END SHAFT) | ||||
| 96160-01000 |
KUN15..DCB..HDCR;KUN16,2#,36..5F..TH TYPE A:REFER 33-01 |
1 | ||
| 96160-01000 |
KUN2#,36..5F..TH TYPE B:REFER 33-01 |
1 | ||
| 96160-01000 |
KUN36;KUN16,2#..(DCB,SCB)..5F..(ANCOM,LA,MA,SA,TH);GGN25,KUN15,35..5F..(HDCR,HTWC)..(ANCOM,LA,SA,TH) TYPE C:REFER 33-01 |
1 | ||
| 33228 - BRACKET, REVERSE SHIFT ARM | ||||
| 33228-35030 |
KUN15..DCB..HDCR;KUN16,2#,36..5F..TH TYPE A:REFER 33-01 |
1 | ||
| 33228-0K010 |
KUN36;KUN16,2#..(DCB,SCB)..5F..(ANCOM,LA,MA,SA,TH);GGN25,KUN15,35..5F..(HDCR,HTWC)..(ANCOM,LA,SA,TH) TYPE C:REFER 33-01 |
1 | ||
| 33228-0K030 |
KUN15..DCB..HDCR;KUN16,2#,36..5F..TH TYPE B:REFER 33-01 |
1 | ||
| 33241 - SHAFT, REVERSE SHIFT FORK | ||||
| 33244-0K010 |
KUN36;KUN16,2#..(DCB,SCB)..5F..(ANCOM,LA,MA,SA,TH);GGN25,KUN15,35..5F..(HDCR,HTWC)..(ANCOM,LA,SA,TH) TYPE C:REFER 33-01 |
1 | ||
| 33244-0K030 |
KUN15..DCB..HDCR;KUN16,2#,36..5F..TH TYPE B:REFER 33-01 |
1 | ||
| 33244-35090 |
KUN15..DCB..HDCR;KUN16,2#,36..5F..TH TYPE A:REFER 33-01 |
1 | ||
| 33242 - SHAFT, GEAR SHIFT FORK, NO.1 | ||||
| 33242-0K030 |
KUN15..DCB..HDCR;KUN16,2#,36..5F..TH TYPE B:REFER 33-01 |
1 | ||
| 33242-0K010 |
KUN36;KUN16,2#..(DCB,SCB)..5F..(ANCOM,LA,MA,SA,TH);GGN25,KUN15,35..5F..(HDCR,HTWC)..(ANCOM,LA,SA,TH) TYPE C:REFER 33-01 |
1 | ||
| 33242-35070 |
KUN15..DCB..HDCR;KUN16,2#,36..5F..TH TYPE A:REFER 33-01 |
1 | ||
| 33242E - RING, SHAFT SNAP (FOR SHIFT FORK SHAFT) | ||||
| 90520-12003 |
KUN15..DCB..HDCR;KUN16,2#,36..5F..TH TYPE B:REFER 33-01,TYPE A:REFER 33-01 |
4 | ||
| 90520-12003 |
KUN36;KUN16,2#..(DCB,SCB)..5F..(ANCOM,LA,MA,SA,TH);GGN25,KUN15,35..5F..(HDCR,HTWC)..(ANCOM,LA,SA,TH) TYPE C:REFER 33-01 |
4 | ||
| 33242E - RING, SHAFT SNAP (FOR SHIFT FORK SHAFT) | ||||
| 90520-12003 |
KUN15..DCB..HDCR;KUN16,2#,36..5F..TH TYPE B:REFER 33-01,TYPE A:REFER 33-01 |
4 | ||
| 90520-12003 |
KUN36;KUN16,2#..(DCB,SCB)..5F..(ANCOM,LA,MA,SA,TH);GGN25,KUN15,35..5F..(HDCR,HTWC)..(ANCOM,LA,SA,TH) TYPE C:REFER 33-01 |
4 | ||
| 33242E - RING, SHAFT SNAP (FOR SHIFT FORK SHAFT) | ||||
| 90520-12003 |
KUN15..DCB..HDCR;KUN16,2#,36..5F..TH TYPE B:REFER 33-01,TYPE A:REFER 33-01 |
4 | ||
| 90520-12003 |
KUN36;KUN16,2#..(DCB,SCB)..5F..(ANCOM,LA,MA,SA,TH);GGN25,KUN15,35..5F..(HDCR,HTWC)..(ANCOM,LA,SA,TH) TYPE C:REFER 33-01 |
4 | ||
| 33242E - RING, SHAFT SNAP (FOR SHIFT FORK SHAFT) | ||||
| 90520-12003 |
KUN15..DCB..HDCR;KUN16,2#,36..5F..TH TYPE B:REFER 33-01,TYPE A:REFER 33-01 |
4 | ||
| 90520-12003 |
KUN36;KUN16,2#..(DCB,SCB)..5F..(ANCOM,LA,MA,SA,TH);GGN25,KUN15,35..5F..(HDCR,HTWC)..(ANCOM,LA,SA,TH) TYPE C:REFER 33-01 |
4 | ||
| 33243A - SHAFT, GEAR SHIFT FORK, NO.2 | ||||
| 33243-0K010 |
KUN36;KUN16,2#..(DCB,SCB)..5F..(ANCOM,LA,MA,SA,TH);GGN25,KUN15,35..5F..(HDCR,HTWC)..(ANCOM,LA,SA,TH) TYPE C:REFER 33-01 |
1 | ||
| 33243-35100 |
KUN15..DCB..HDCR;KUN16,2#,36..5F..TH TYPE A:REFER 33-01 |
1 | ||
| 33243-0K030 |
KUN15..DCB..HDCR;KUN16,2#,36..5F..TH TYPE B:REFER 33-01 |
1 | ||
| 33245G - SHAFT, GEAR SHIFT FORK, NO.4 | ||||
| 33245-0K010 |
KUN36;KUN16,2#..(DCB,SCB)..5F..(ANCOM,LA,MA,SA,TH);GGN25,KUN15,35..5F..(HDCR,HTWC)..(ANCOM,LA,SA,TH) TYPE C:REFER 33-01 |
1 | ||
| 33245-35090 |
KUN15..DCB..HDCR;KUN16,2#,36..5F..TH TYPE A:REFER 33-01 |
1 | ||
| 33245-0K030 |
KUN15..DCB..HDCR;KUN16,2#,36..5F..TH TYPE B:REFER 33-01 |
1 | ||
| 33251 - LEVER, SHIFT & SELECT | ||||
| 33251-0K010 |
KUN36;KUN16..(DCB,SCB)..5F..TH;KUN15,35..(DCB,SCB,XTR)..HDCR TYPE C:REFER 33-01 |
1 | ||
| 33251-24012 |
KUN16,36..5F..TH;KUN15..DCB..HDCR TYPE B:REFER 33-01,TYPE A:REFER 33-01 |
1 | ||
| 33264 - PIN, OR BALL, SHIFT INTER LOCK, NO.1 | ||||
| 90250-05029 |
KUN36;KUN16,2#..(DCB,SCB)..5F..(ANCOM,LA,MA,SA,TH);GGN25,KUN15,35..5F..(HDCR,HTWC)..(ANCOM,LA,SA,TH) L=11.5,OD=4.8,TYPE C:REFER 33-01 |
1 | ||
| 90250-05029 |
KUN15..DCB..HDCR;KUN16,2#,36..5F..TH L=11.5,OD=4.8,TYPE B:REFER 33-01,TYPE A:REFER 33-01 |
1 | ||
| 33264B - ROLLER, NO.1 (FOR SHIFT INTER LOCK ) | ||||
| 90361-10003 |
KUN36;KUN16,2#..(DCB,SCB)..5F..(ANCOM,LA,MA,SA,TH);GGN25,KUN15,35..5F..(HDCR,HTWC)..(ANCOM,LA,SA,TH) L=13.6,OD=9.5,TYPE C:REFER 33-01 |
3 | ||
| 90361-10003 |
KUN15..DCB..HDCR;KUN16,2#,36..5F..TH L=13.6,OD=9.5,TYPE B:REFER 33-01,TYPE A:REFER 33-01 |
3 | ||
| 33264B - ROLLER, NO.1 (FOR SHIFT INTER LOCK ) | ||||
| 90361-10003 |
KUN36;KUN16,2#..(DCB,SCB)..5F..(ANCOM,LA,MA,SA,TH);GGN25,KUN15,35..5F..(HDCR,HTWC)..(ANCOM,LA,SA,TH) L=13.6,OD=9.5,TYPE C:REFER 33-01 |
3 | ||
| 90361-10003 |
KUN15..DCB..HDCR;KUN16,2#,36..5F..TH L=13.6,OD=9.5,TYPE B:REFER 33-01,TYPE A:REFER 33-01 |
3 | ||
| 33264B - ROLLER, NO.1 (FOR SHIFT INTER LOCK ) | ||||
| 90361-10003 |
KUN36;KUN16,2#..(DCB,SCB)..5F..(ANCOM,LA,MA,SA,TH);GGN25,KUN15,35..5F..(HDCR,HTWC)..(ANCOM,LA,SA,TH) L=13.6,OD=9.5,TYPE C:REFER 33-01 |
3 | ||
| 90361-10003 |
KUN15..DCB..HDCR;KUN16,2#,36..5F..TH L=13.6,OD=9.5,TYPE B:REFER 33-01,TYPE A:REFER 33-01 |
3 | ||
| 33275A - SPRING, COMPRESSION (FOR SHIFT DETENT BALL LOW SIDE) | ||||
| 90501-16143 |
KUN36;KUN16,2#..(DCB,SCB)..5F..(ANCOM,LA,MA,SA,TH);GGN25,KUN15,35..5F..(HDCR,HTWC)..(ANCOM,LA,SA,TH) L=33.8,TYPE C:REFER 33-01 |
3 | ||
| 90501-16143 |
KUN15..DCB..HDCR;KUN16,2#,36..5F..TH L=33.8,TYPE B:REFER 33-01,TYPE A:REFER 33-01 |
3 | ||
| 33275A - SPRING, COMPRESSION (FOR SHIFT DETENT BALL LOW SIDE) | ||||
| 90501-16143 |
KUN36;KUN16,2#..(DCB,SCB)..5F..(ANCOM,LA,MA,SA,TH);GGN25,KUN15,35..5F..(HDCR,HTWC)..(ANCOM,LA,SA,TH) L=33.8,TYPE C:REFER 33-01 |
3 | ||
| 90501-16143 |
KUN15..DCB..HDCR;KUN16,2#,36..5F..TH L=33.8,TYPE B:REFER 33-01,TYPE A:REFER 33-01 |
3 | ||
| 33275A - SPRING, COMPRESSION (FOR SHIFT DETENT BALL LOW SIDE) | ||||
| 90501-16143 |
KUN36;KUN16,2#..(DCB,SCB)..5F..(ANCOM,LA,MA,SA,TH);GGN25,KUN15,35..5F..(HDCR,HTWC)..(ANCOM,LA,SA,TH) L=33.8,TYPE C:REFER 33-01 |
3 | ||
| 90501-16143 |
KUN15..DCB..HDCR;KUN16,2#,36..5F..TH L=33.8,TYPE B:REFER 33-01,TYPE A:REFER 33-01 |
3 | ||
| 33275B - BALL, SHAFT DETENT | ||||
| 90360-10003 |
KUN15..DCB..HDCR;KUN16,2#,36..5F..TH TYPE B:REFER 33-01,TYPE A:REFER 33-01 |
3 | ||
| 90360-10003 |
KUN36;KUN16,2#..(DCB,SCB)..5F..(ANCOM,LA,MA,SA,TH);GGN25,KUN15,35..5F..(HDCR,HTWC)..(ANCOM,LA,SA,TH) TYPE C:REFER 33-01 |
3 | ||
| 33275B - BALL, SHAFT DETENT | ||||
| 90360-10003 |
KUN15..DCB..HDCR;KUN16,2#,36..5F..TH TYPE B:REFER 33-01,TYPE A:REFER 33-01 |
3 | ||
| 90360-10003 |
KUN36;KUN16,2#..(DCB,SCB)..5F..(ANCOM,LA,MA,SA,TH);GGN25,KUN15,35..5F..(HDCR,HTWC)..(ANCOM,LA,SA,TH) TYPE C:REFER 33-01 |
3 | ||
| 33275B - BALL, SHAFT DETENT | ||||
| 90360-10003 |
KUN15..DCB..HDCR;KUN16,2#,36..5F..TH TYPE B:REFER 33-01,TYPE A:REFER 33-01 |
3 | ||
| 90360-10003 |
KUN36;KUN16,2#..(DCB,SCB)..5F..(ANCOM,LA,MA,SA,TH);GGN25,KUN15,35..5F..(HDCR,HTWC)..(ANCOM,LA,SA,TH) TYPE C:REFER 33-01 |
3 | ||
| 33280 - PIN ASSY, REVERSE RESTRICT | ||||
| 33280-35110 |
KUN36;KUN16..(DCB,SCB)..5F..TH;KUN15,35..(DCB,SCB,XTR)..HDCR T/P C:SEE 33-01,NO.1 |
1 | ||
| 33280-35110 |
KUN16,36..5F..TH;KUN15..DCB..HDCR T/P B:SEE 33-01,NO.1,T/P A:SEE 33-01,NO.1 |
1 | ||
| 33280-35130 |
KUN36;KUN16..(DCB,SCB)..5F..TH;KUN15,35..(DCB,SCB,XTR)..HDCR T/P C:SEE 33-01,NO.2 |
1 | ||
| 33280-35130 |
KUN16,36..5F..TH;KUN15..DCB..HDCR T/P A:SEE 33-01,NO.2,T/P B:SEE 33-01,NO.2 |
1 | ||
| 33280 - PIN ASSY, REVERSE RESTRICT | ||||
| 33280-35110 |
KUN36;KUN16..(DCB,SCB)..5F..TH;KUN15,35..(DCB,SCB,XTR)..HDCR T/P C:SEE 33-01,NO.1 |
1 | ||
| 33280-35110 |
KUN16,36..5F..TH;KUN15..DCB..HDCR T/P B:SEE 33-01,NO.1,T/P A:SEE 33-01,NO.1 |
1 | ||
| 33280-35130 |
KUN36;KUN16..(DCB,SCB)..5F..TH;KUN15,35..(DCB,SCB,XTR)..HDCR T/P C:SEE 33-01,NO.2 |
1 | ||
| 33280-35130 |
KUN16,36..5F..TH;KUN15..DCB..HDCR T/P A:SEE 33-01,NO.2,T/P B:SEE 33-01,NO.2 |
1 | ||
| 33283F - PIN, REVERSE RESTRICT | ||||
| 33280-35100 |
KUN36;KUN16,2#..(DCB,SCB)..5F..(ANCOM,LA,MA,SA,TH);GGN25,KUN15,35..5F..(HDCR,HTWC)..(ANCOM,LA,SA,TH) TYPE C:REFER 33-01 |
1 | ||
| 33280-35100 |
KUN15..DCB..HDCR;KUN16,2#,36..5F..TH TYPE B:REFER 33-01,TYPE A:REFER 33-01 |
1 | ||
| 33283G - PIN, SLOTTED SPRING (FOR REVERSE RESTRICT PIN) | ||||
| 90254-05001 |
KUN36;KUN16,2#..(DCB,SCB)..5F..(ANCOM,LA,MA,SA,TH);GGN25,KUN15,35..5F..(HDCR,HTWC)..(ANCOM,LA,SA,TH) TYPE C:REFER 33-01 |
1 | ||
| 90254-05001 |
KUN15..DCB..HDCR;KUN16,2#,36..5F..TH TYPE B:REFER 33-01,TYPE A:REFER 33-01 |
1 | ||
| 33521 - HOUSING, SHIFT LEVER | ||||
| 33521-0K030 |
KUN36;KUN16..(DCB,SCB)..5F..TH;KUN15,35..(DCB,SCB,XTR)..HDCR TYPE C:REFER 33-01 |
1 | ||
| 33521-0K080 |
KUN16,36..5F..TH;KUN15..DCB..HDCR TYPE B:REFER 33-01 |
1 | ||
| 33521-35250 |
KUN16,36..5F..TH;KUN15..DCB..HDCR TYPE A:REFER 33-01 |
1 | ||
| 33521F - PIN OR BOLT (FOR SHIFT LEVER HOUSING) | ||||
| 90109-08305 |
KUN36;KUN16..(DCB,SCB)..5F..TH;GGN25,KUN15,35..5F..(HDCR,HTWC)..(ANCOM,LA,SA,TH) TYPE C:REFER 33-01 |
1 | ||
| 90109-08305 |
KUN16,36..5F..TH;KUN15..DCB..HDCR TYPE B:REFER 33-01,TYPE A:REFER 33-01 |
1 | ||
| Common parts | ||||
| 90341-12008 | ||||
| 90341-12014 | ||||
| 91611-G0820 | ||||
