KUN36R-CRMSYT (2005)
Toyota Hilux

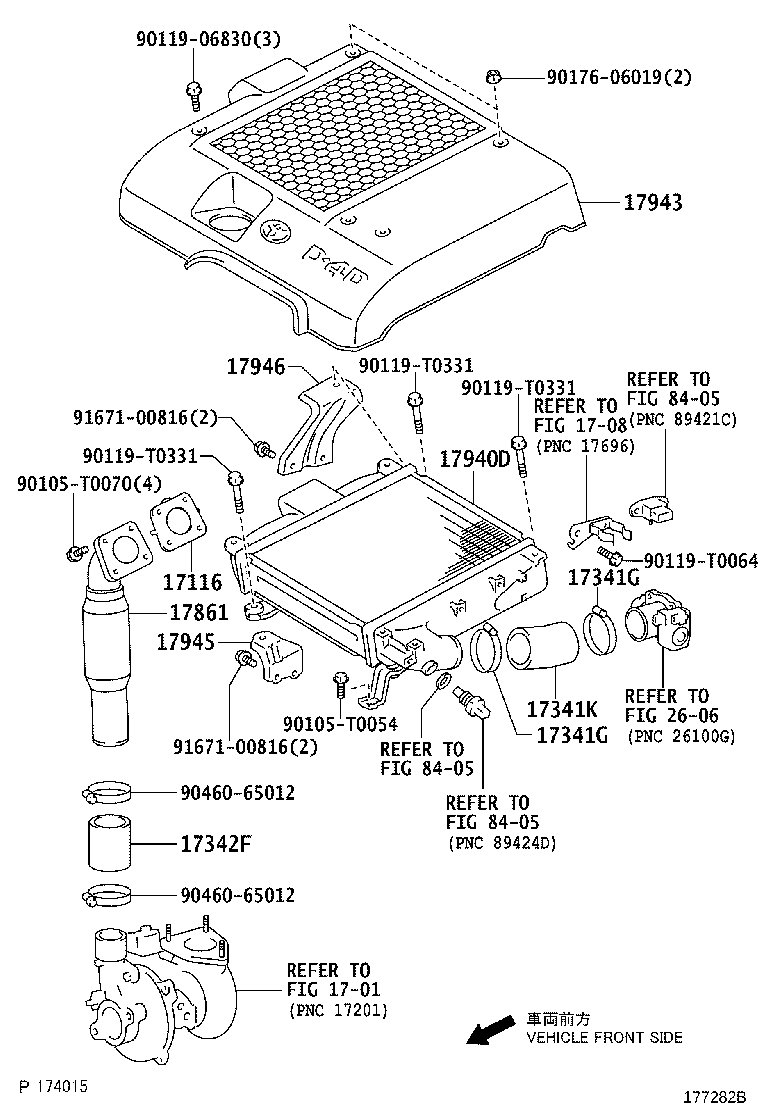

ILLUST NO. 2 OF 2(0408-0608)1KDFTV ; (0608- )1KDFTV..GEN,IDN,LA,PHL,SA,TH
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 17116 - GASKET, INTAKE FLANGE | ||||
| 17116-0L010 |
2KDFTV..KUN15,25..HDCR..TH;1KDFTV..KUN16,26,36..ARL,GEN,PHL,TH |
1 | ||
| 17341G - CLAMP OR CLIP(FOR AIR HOSE, NO.1) | ||||
| 90460-80006 |
1KDFTV..KUN26..THDCB;2KDFTV..KUN25..SCB..MA;1KDFTV..KUN16..DCB,SCB;1KDFTV..KUN16,36..XTR..TH;1KDFTV..KUN26..DCB..5F..SA;2KDFTV..KUN25..(DCB,XTR)..SR;1KDFTV..KUN36..(DCB,SCB)..5F;2KDFTV..KUN15..(DCB,SCB)..(PHL,SA)..CBU;2KDFTV..KUN25,35..DLX..(ANCOM,GCC,GEN,LA,SA);1KDFTV..KUN26..(DCB,SCB,XTR)..(ARL,LA,PHL,TH);2KDFTV..KUN10,15..(DCB,SCB,XTR)..(GCC,GEN,PKN,TH) |
2 | ||
| 17341G - CLAMP OR CLIP(FOR AIR HOSE, NO.1) | ||||
| 90460-80006 |
1KDFTV..KUN26..THDCB;2KDFTV..KUN25..SCB..MA;1KDFTV..KUN16..DCB,SCB;1KDFTV..KUN16,36..XTR..TH;1KDFTV..KUN26..DCB..5F..SA;2KDFTV..KUN25..(DCB,XTR)..SR;1KDFTV..KUN36..(DCB,SCB)..5F;2KDFTV..KUN15..(DCB,SCB)..(PHL,SA)..CBU;2KDFTV..KUN25,35..DLX..(ANCOM,GCC,GEN,LA,SA);1KDFTV..KUN26..(DCB,SCB,XTR)..(ARL,LA,PHL,TH);2KDFTV..KUN10,15..(DCB,SCB,XTR)..(GCC,GEN,PKN,TH) |
2 | ||
| 17341K - HOSE, AIR, NO.1(FOR INTERCOOLER) | ||||
| 17341-30060 |
2KDFTV..KUN15,25..HDCR..TH;1KDFTV..KUN16,26,36..ARL,GEN,PHL,TH |
1 | ||
| 17342F - HOSE, AIR, NO.2(FOR INTERCOOLER) | ||||
| 17342-30010 |
1KDFTV..KUN16,26,36..ARL,GEN,PHL,TH |
1 | ||
| 17861 - CONNECTOR, INTAKE AIR | ||||
| 17860-30030 |
1KDFTV..KUN16,26,36..ARL,GEN,PHL,TH |
1 | ||
| 17940D - INTERCOOLER ASSY | ||||
| 17940-0L010 |
2KDFTV..KUN15,25..HDCR..TH;1KDFTV..KUN16,26,36..GEN,PHL,TH |
1 | ||
| 17943 - PROTECTOR, INTERCOOLER | ||||
| 12601-0L040 |
2KDFTV..KUN15,25..HDCR..TH;1KDFTV..KUN16,26,36..GEN,PHL,TH |
1 | ||
| 17945 - BRACKET, INTERCOOLER SUPPORT | ||||
| 17945-0L010 |
2KDFTV..KUN15..XTR..HDCR;1KDFTV..KUN16,26,36..(DCB,SCB,XTR)..(LA,PHL,TH) *130 |
1 | ||
| 17946 - BRACKET, INTERCOOLER SUPPORT, NO.2 | ||||
| 17946-30030 |
2KDFTV..KUN15,25..HDCR..TH;1KDFTV..KUN16,26,36..GEN,PHL,TH |
1 | ||
| Common parts | ||||
| 90105-T0054 | ||||
| 90105-T0070 | ||||
| 90119-06830 | ||||
| 90119-T0064 | ||||
| 90119-T0331 | ||||
| 90176-06019 | ||||
| 90460-65012 | ||||
| 91671-00816 | ||||
| 91671-B0816 | ||||
| Linked diagrams | ||||
| 1701 | ||||
| 1708 | ||||
| 2606 | ||||
| 8405 | ||||

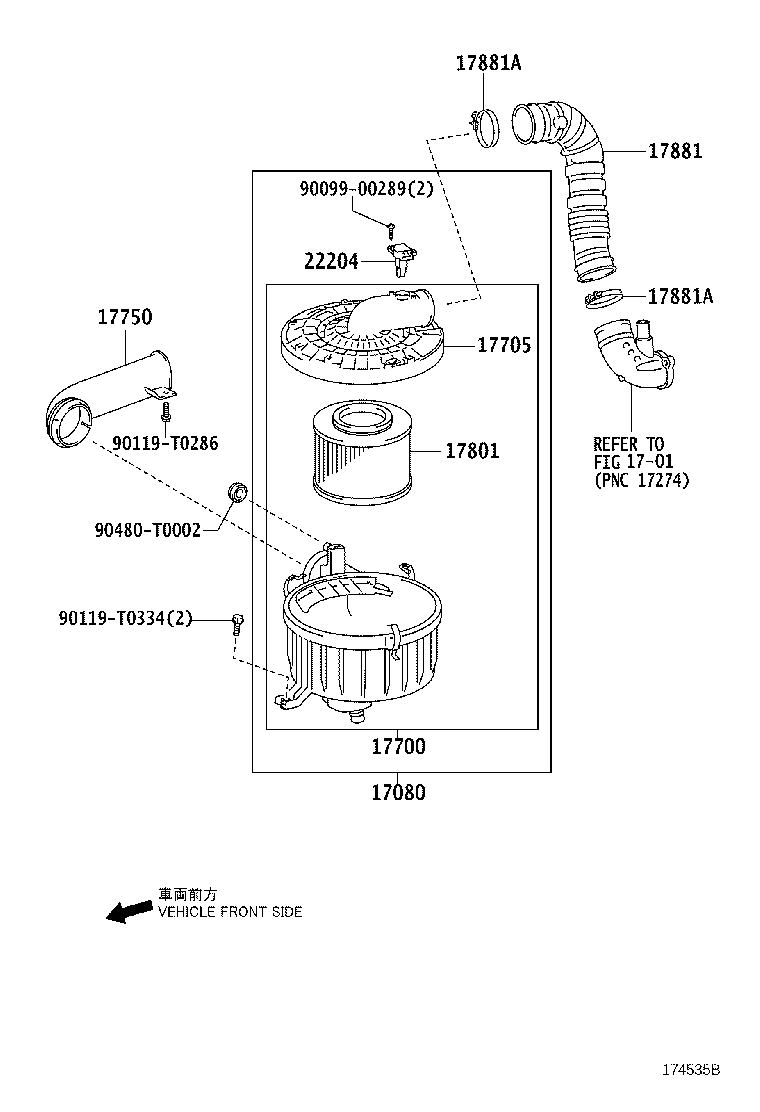

ILLUST NO. 1 OF 2(0408-0808)1KDFTV..ARL,GEN,PHL,TH ; (0808- )1KDFTV..GEN,IDN,PHL,TH ; (0908- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 17080 - CLEANER ASSY, AIR W/AIR FLOW METER | ||||
| 17080-0L050 |
1KDFTV..KUN16,26,36..ARL,PHL,TH |
1 | ||
| 17080-0L051 |
1KDFTV..KUN16,26,36..ARL,GEN,PHL,TH |
1 | ||
| 17700 - CLEANER ASSY, AIR | ||||
| 17700-0L050 |
1KDFTV..KUN16,26,36..ARL,PHL,TH |
1 | ||
| 17700-0L051 |
1KDFTV..KUN16,26,36..ARL,GEN,PHL,TH |
1 | ||
| 17705 - CAP SUB-ASSY, AIR CLEANER | ||||
| 17705-0L020 |
1KDFTV..KUN16,26,36..ARL,GEN,PHL,TH |
1 | ||
| 17750 - COVER ASSY, AIR CLEANER INLET, SEAL | ||||
| 17751-0L010 |
1KDFTV..KUN16..DCB,SCB;1KDFTV..KUN16..XTR..TH;2KDFTV..KUN15..PHL..CBU;1KDFTV,2KDFTV..KUN10,26,35..LHD..(GCC,GEN);1KDFTV..KUN26..(DCB,SCB,XTR)..(ARL,PHL,TH);2KDFTV..KUN25..(DCB,SCB,THDCB,THSCB,XTR)..(GCC,GEN,TH);1KDFTV,2KDFTV..KUN15,36..(DCB,SCB,XTR)..(GCC,GEN,PKN,TH) |
1 | ||
| 17801 - ELEMENT SUB-ASSY, AIR CLEANER FILTER | ||||
| 17801-0C010 |
1KDFTV..KUN26..THDCB;2KDFTV..KUN25..SCB..MA;1KDFTV..KUN16..DCB,SCB;1KDFTV..KUN16,36..XTR..TH;1KDFTV..KUN26..DCB..5F..SA;2KDFTV..KUN25..(DCB,XTR)..SR;1KDFTV..KUN36..(DCB,SCB)..5F;2KDFTV..KUN15..(DCB,SCB)..(PHL,SA)..CBU;2KDFTV..KUN25,35..DLX..(ANCOM,GCC,GEN,LA,SA);1KDFTV..KUN26..(DCB,SCB,XTR)..(ARL,LA,PHL,TH);2KDFTV..KUN10,15..(DCB,SCB,XTR)..(GCC,GEN,PKN,TH) |
1 | ||
| 17881 - HOSE, AIR CLEANER, NO.1 | ||||
| 17881-0L030 |
1KDFTV..KUN16..DCB,SCB;1KDFTV..KUN16..XTR..TH;1KDFTV..KUN26,36..(DCB,SCB,THDCB,XTR)..(ARL,GEN,PHL,SA,TH) |
1 | ||
| 17881A - CLAMP(FOR AIR CLEANER HOSE, NO.1) | ||||
| 90460-T0005 |
1KDFTV..KUN16..DCB,SCB;1KDFTV..KUN16..XTR..TH;1KDFTV..KUN26,36..DCB,SCB,THDCB,XTR;2KDFTV..KUN15,25..(DCB,XTR)..HDCR..TH |
2 | ||
| 17881A - CLAMP(FOR AIR CLEANER HOSE, NO.1) | ||||
| 90460-T0005 |
1KDFTV..KUN16..DCB,SCB;1KDFTV..KUN16..XTR..TH;1KDFTV..KUN26,36..DCB,SCB,THDCB,XTR;2KDFTV..KUN15,25..(DCB,XTR)..HDCR..TH |
2 | ||
| 22204 - METER SUB-ASSY, INTAKE AIR FLOW | ||||
| 22204-0L010 |
1KDFTV..KUN16,26,36..ARL,GEN,PHL,TH |
1 | ||
| Common parts | ||||
| 90099-00289 | ||||
| 90119-T0286 | ||||
| 90119-T0334 | ||||
| 90480-T0002 | ||||
| Linked diagrams | ||||
| 1701 | ||||

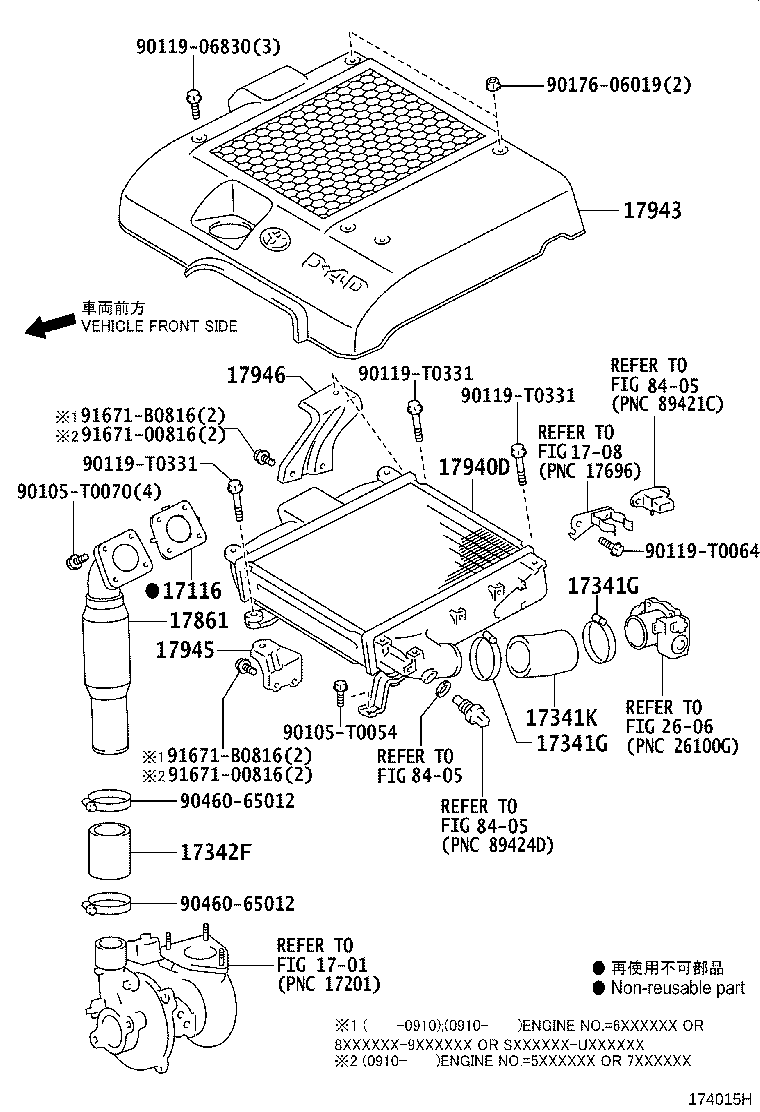

ILLUST NO. 2 OF 2(1107- )1KDFTV..4FC,5F..DCR..CO,GEN,LA,MA,PHL,SA,TH
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90105-T0054 | ||||
| 90105-T0070 | ||||
| 90119-06830 | ||||
| 90119-T0064 | ||||
| 90119-T0331 | ||||
| 90176-06019 | ||||
| 90460-65012 | ||||
| 91671-00816 | ||||
| Linked diagrams | ||||
| 1701 | ||||
| 1708 | ||||
| 2606 | ||||
| 8405 | ||||
