KUN36R-CRMSYT (2005)

Toyota Hilux

Production Dec 2005 - Aug 2008
Engine 1KDFTV
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(0408- )1KDFTV,2KDFTV

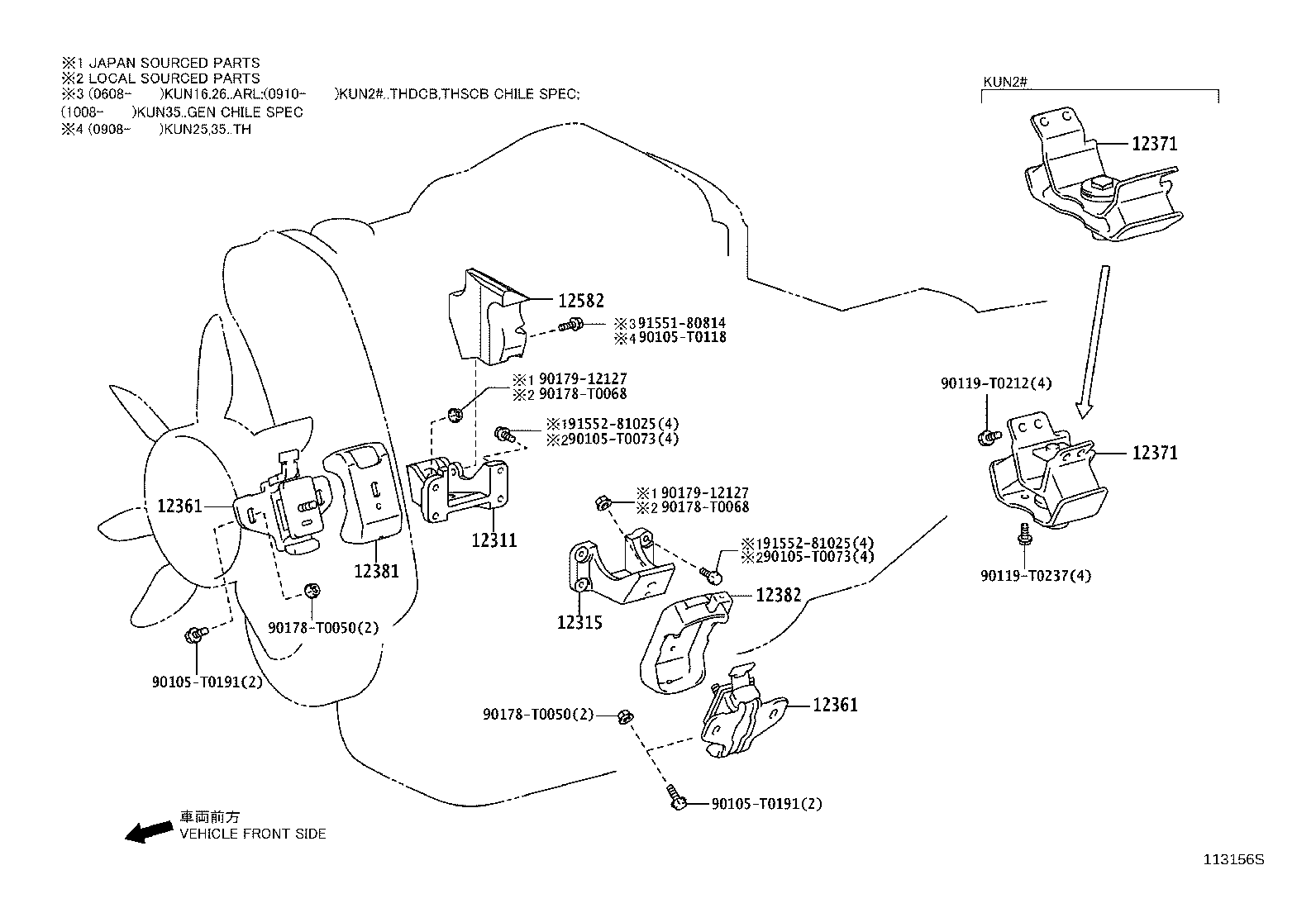

Click highlighted areas on diagram

diagram 12311 12315 12361 12361 12371 12371 12381 12382 12582 90105T0073 90105T0073 90105T0118 90105T0191 90105T0191 90119T0212 90119T0237 90178T0050 90178T0050 90178T0068 90178T0068 9017912127 9017912127 9155180814 9155281025 9155281025
Part # Description Qty Price
12311 - BRACKET, ENGINE MOUNTING, FRONT NO.1 RH
12311-0L020

2KDFTV..KUN25..SCB..MA;2KDFTV..KUN15..PHL..CBU;2KDFTV..KUN10,25,35..(DCB,SCB)..(ANCOM,GCC,GEN);1KDFTV,2KDFTV..KUN2#..(DCB,XTR)..SR..(MA,PHL,TH);1KDFTV,2KDFTV..KUN15,16,36..(DCB,SCB,XTR)..(GCC,GEN,PKN,TH)

*130

 1
12315 - BRACKET, ENGINE MOUNTING, FRONT NO.1 LH
12315-0L020

2KDFTV..KUN25..SCB..MA;2KDFTV..KUN15..PHL..CBU;2KDFTV..KUN10,25,35..(DCB,SCB)..(ANCOM,GCC,GEN);1KDFTV,2KDFTV..KUN2#..(DCB,XTR)..SR..(MA,PHL,TH);1KDFTV,2KDFTV..KUN15,16,36..(DCB,SCB,XTR)..(GCC,GEN,PKN,TH)

*130

 1
12361 - INSULATOR, ENGINE MOUNTING, FRONT
12361-0L030

1KDFTV..KUN26..THDCB;2KDFTV..KUN25..SCB..MA;1KDFTV..KUN16..DCB,SCB;1KDFTV..KUN16,36..XTR..TH;1KDFTV..KUN26..DCB..5F..SA;2KDFTV..KUN25..(DCB,XTR)..SR;1KDFTV..KUN36..RHD..(DCB,SCB)..5F;2KDFTV..KUN15..(DCB,SCB)..(PHL,SA)..CBU;2KDFTV..KUN25,35..DLX..(ANCOM,GCC,GEN,SA);1KDFTV..KUN26..(DCB,SCB,XTR)..(ARL,PHL,TH);2KDFTV..KUN10,15..(DCB,SCB,XTR)..(GCC,GEN,PKN,TH)

(L)

 2
12361 - INSULATOR, ENGINE MOUNTING, FRONT
12361-0L030

1KDFTV..KUN26..THDCB;2KDFTV..KUN25..SCB..MA;1KDFTV..KUN16..DCB,SCB;1KDFTV..KUN16,36..XTR..TH;1KDFTV..KUN26..DCB..5F..SA;2KDFTV..KUN25..(DCB,XTR)..SR;1KDFTV..KUN36..RHD..(DCB,SCB)..5F;2KDFTV..KUN15..(DCB,SCB)..(PHL,SA)..CBU;2KDFTV..KUN25,35..DLX..(ANCOM,GCC,GEN,SA);1KDFTV..KUN26..(DCB,SCB,XTR)..(ARL,PHL,TH);2KDFTV..KUN10,15..(DCB,SCB,XTR)..(GCC,GEN,PKN,TH)

(L)

 2
12371 - INSULATOR, ENGINE MOUNTING, REAR NO.1
12371-0L030

1KDFTV..KUN16..XTR..TH;1KDFTV..KUN16..(DCB,SCB)..5F;1KDFTV..KUN36..RHD..(DCB,SCB,XTR);2KDFTV..KUN15,35..(DCB,SCB,THDCB,XTR)..HDCR..(GEN,SA,TH)

 1
12371 - INSULATOR, ENGINE MOUNTING, REAR NO.1
12371-0L030

1KDFTV..KUN16..XTR..TH;1KDFTV..KUN16..(DCB,SCB)..5F;1KDFTV..KUN36..RHD..(DCB,SCB,XTR);2KDFTV..KUN15,35..(DCB,SCB,THDCB,XTR)..HDCR..(GEN,SA,TH)

 1
12381 - STABILIZER, ENGINE MOUNTING
12381-0L030

1KDFTV,2KDFTV..KUN1#,2#,3#..ARL,GEN,MA,PHL,SA,TH

(L)

 1
12382 - STABILIZER, ENGINE MOUNTING, LH
12382-0L020

1KDFTV,2KDFTV..KUN1#,2#,3#..ARL,GEN,MA,PHL,SA,TH

(L)

 1
Common parts
90105-T0073
90105-T0118
90105-T0191
90119-T0212
90119-T0237
90178-T0050
90178-T0068
90179-12127
91551-80814
91552-81025

(1107- )1KDFTV,2KDFTV

Click highlighted areas on diagram

diagram 12311 12315 12321 12361 12361 12371 12371 12381 12382 12582 90105T0073 90105T0073 90105T0118 90105T0191 90105T0191 90119T0237 90119T0301 90119T0301 90119T0417 90119T0511 90119T0511 90178T0050 90178T0050 90178T0068 90178T0068 9017912127 9017912127 9155180814 9155281025 9155281025 91671K0835
Part # Description Qty Price
Common parts
90105-T0073
90105-T0118
90105-T0191
90119-T0237
90119-T0301
90119-T0417
90119-T0511
90178-T0050
90178-T0068
90179-12127
91551-80814
91552-81025
91671-K0835
