KUN35L-TRMDHL3 (2008)

Toyota Hilux

Production Dec 2008 - Apr 2012
Engine 2KDFTV
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

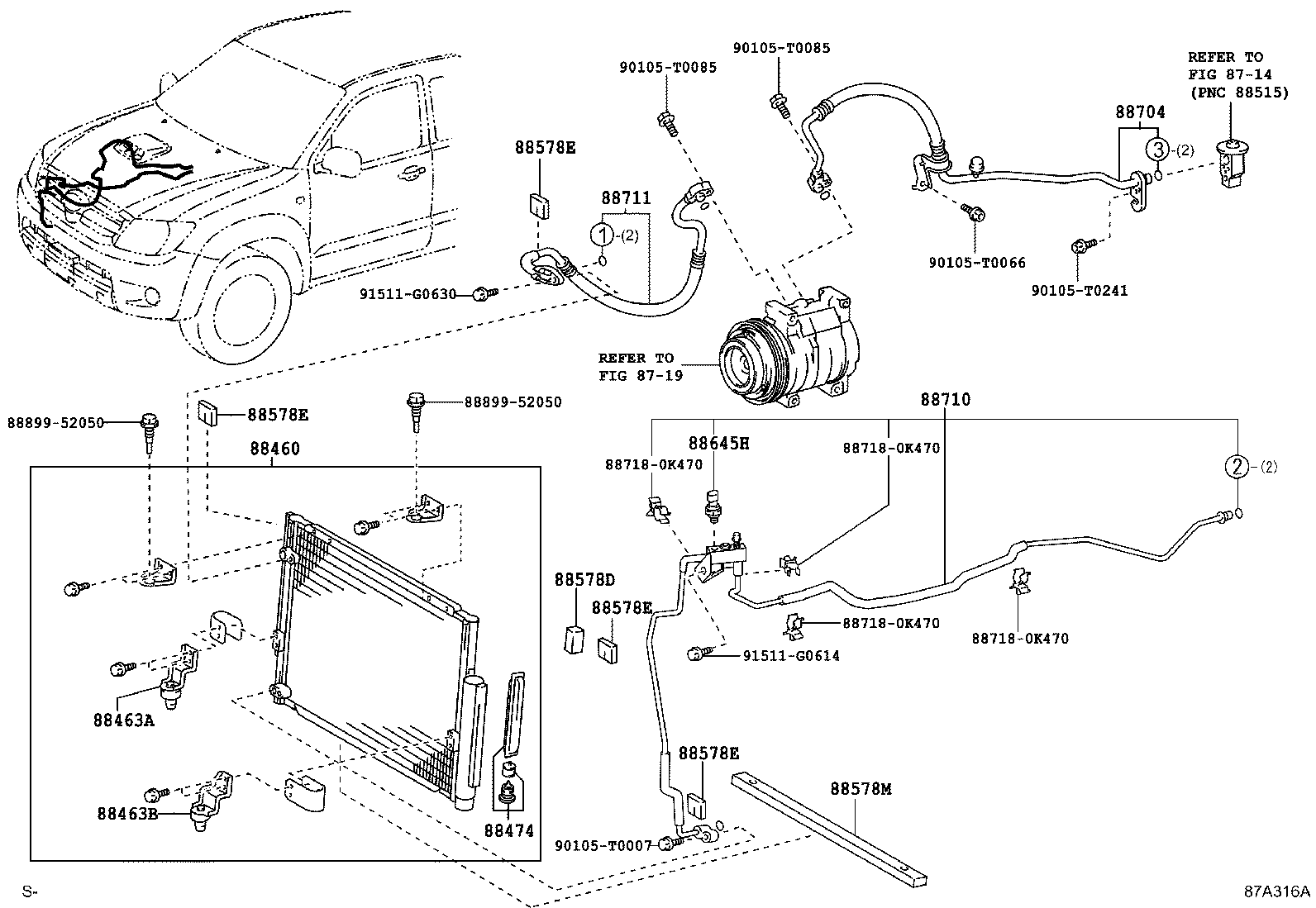

ILLUST NO. 1 OF 2(0812- )KUN25,35..ANCOM

Click highlighted areas on diagram

diagram 8714 8719 88460 88463A 88463B 88474 88578D 88578E 88578E 88578E 88578E 88578M 88645H 88704 88710 88711 887180K470 887180K470 887180K470 887180K470 8889952050 8889952050 90105T0007 90105T0066 90105T0085 90105T0085 90105T0241 91511G0614 91511G0630
Part # Description Qty Price
88460 - CONDENSER ASSY, COOLER
88460-0K280

KUN25,35..ANCOM

AIR CONDITIONER-SINGLE AIR CONDITIONER

 1
88463A - BRACKET, COOLER CONDENSER, NO.2
88463-0K070

KUN25,35,TGN26,36..5F..ANCOM

AIR CONDITIONER-SINGLE AIR CONDITIONER

 1
88463B - BRACKET, COOLER CONDENSER, NO.3
88463-0K100

KUN25,35,TGN26,36..5F..ANCOM

AIR CONDITIONER-SINGLE AIR CONDITIONER

 1
88578D - PACKING, COOLER PIPE, NO.1
88578-0K300

GGN25,KUN25,35,TGN26,36..ANCOM

 1
88578E - PACKING, COOLER PIPE, NO.2
88578-0K290

GGN25,KUN25,35,TGN26,36..ANCOM

 4
88578E - PACKING, COOLER PIPE, NO.2
88578-0K290

GGN25,KUN25,35,TGN26,36..ANCOM

 4
88578E - PACKING, COOLER PIPE, NO.2
88578-0K290

GGN25,KUN25,35,TGN26,36..ANCOM

 4
88578E - PACKING, COOLER PIPE, NO.2
88578-0K290

GGN25,KUN25,35,TGN26,36..ANCOM

 4
88578M - PACKING, COOLING PIPE, NO.3
88578-0K280

GGN25,KUN25,35..ANCOM

 1
88578-0K281

GGN25,KUN25,35..ANCOM

 1
88704 - HOSE SUB-ASSY, SUCTION
88704-0K400

KUN25,35..ANCOM

AIR CONDITIONER-SINGLE AIR CONDITIONER

 1
88710 - TUBE ASSY, AIR CONDITIONER
88710-0K500

KUN25,35,TGN26,36..5F..ANCOM

AIR CONDITIONER-SINGLE AIR CONDITIONER

 1
88711 - HOSE, COOLER REFRIGERANT DISCHARGE, NO.1
88711-0K341

KUN25,35..ANCOM

AIR CONDITIONER-SINGLE AIR CONDITIONER

 1
Common parts
88718-0K470
88899-52050
90105-T0007
90105-T0066
90105-T0085
90105-T0241
91511-G0614
91511-G0630
Linked diagrams
8714
8719

ILLUST NO. 1 OF 2(1107- )DCB..5FC..IV3 ; (1107- )KUN26..SCB,XTR..5F..ARL..IV3 ; (1107- )KUN

Click highlighted areas on diagram

diagram 8714 8719 88374B 88374C 88375B 88375D 88460 88463 88463 88463A 88463B 88467 88467 88467A 88467A 88469D 88469D 88474 88578D 88578E 88578E 88578E 88578E 88578M 88578N 88578Y 88578Y 88578Z 88578Z 88704 88710 88711 887180K060 887180K060 887180K060 887180K060 888990K020 9009120512 9009120512 9009120619 9009120619 90105T0007 90105T0007 90105T0014 90105T0066 90105T0085 90105T0085 90105T0241
Part # Description Qty Price
Common parts
88718-0K060
88899-0K020
90091-20512
90091-20619
90105-T0007
90105-T0014
90105-T0066
90105-T0085
90105-T0241
Linked diagrams
8714
8719

ILLUST NO. 2 OF 2(1107- )KUN25..SCB..GEN,LA,MA,SA ; (1107-)KUN25..DCB,SMT,THDCB,THSCB,XTR ; (

Click highlighted areas on diagram

O-RING

diagram 9006814022 9006814023 9006814024 9006814033 9006814034 9006814035 9009914119 9009914120 9009914121
Part # Description Qty Price
Common parts
90068-14022
90068-14023
90068-14024
90068-14033
90068-14034
90068-14035
90099-14119
90099-14120
90099-14121

ILLUST NO. 1 OF 2(1110- )KUN2#,3#..CO,LA

Click highlighted areas on diagram

diagram 8714 8719 88374B 88375B 88460 88463A 88463B 88467 88469D 88474 88578D 88578E 88578E 88578E 88578E 88578M 88645H 88704 88710 88711 887180K060 887180K060 887180K060 887180K060 8889952050 9009120633 9009120633 90105T0007 90105T0014 90105T0066 90105T0085 90105T0085 90105T0241 91511G0630
Part # Description Qty Price
Common parts
88718-0K060
88899-52050
90091-20633
90105-T0007
90105-T0014
90105-T0066
90105-T0085
90105-T0241
91511-G0630
Linked diagrams
8714
8719

ILLUST NO. 1 OF 2(1107- )KUN16..SCB,XTR..ARL ; (1107- )KUN35..DCB..DLX..GEN ; (1107- )ANCOM

Click highlighted areas on diagram

W/O(AIR CONDITIONER)

diagram 88578D 88578E 88578E 88578M
Part # Description Qty Price
