Toyota Hilux KUN35 HEATING & AIR CONDITIONING - COMPRESSOR

Manufacturers Home
Toyota
US
HILUX
KUN35L-TRMDHG (2008)
8719 - HEATING & AIR CONDITIONING - COMPRESSOR

KUN35L-TRMDHG (2008)

Toyota Hilux

Production Oct 2008 - Oct 2011

Engine 2KDFTV

Transmission

Displacement 2500cc

Power 168 HP (125 kW)

(0810- )TGN26..LA ; (0810- )TGN36..5F..LA; (0810- )TGN36..4FC..SR ; (0812

Click highlighted areas on diagram

Part #	Description	Period	Qty
88320 - COMPRESSOR ASSY, COOLER
88320-0K350	KUN35..ANCOM;KUN35..LA..CBU;KUN2#,36..DLX..(ANCOM,LA)..CBU AIR CONDITIONER-SINGLE AIR CONDITIONER	10/2008 - 03/2009	1
88320-0K350	KUN35..ANCOM;KUN35..LA..CBU;KUN2#,36..DLX..(ANCOM,LA)..CBU AIR CONDITIONER-SINGLE AIR CONDITIONER	10/2008 - 03/2009	1
88320-0K410	KUN35..ANCOM;KUN35..LA..CBU;KUN2#,36..DLX..(ANCOM,LA)..CBU AIR CONDITIONER-SINGLE AIR CONDITIONER	03/2009 - 12/2999	1
88320-0K410	KUN35..ANCOM;KUN35..LA..CBU;KUN2#,36..DLX..(ANCOM,LA)..CBU AIR CONDITIONER-SINGLE AIR CONDITIONER	03/2009 - 12/2999	1
88410 - CLUTCH ASSY, MAGNET
88410-0K310	KUN35..ANCOM;KUN35..LA..CBU;KUN2#,36..DLX..(ANCOM,LA)..CBU AIR CONDITIONER-SINGLE AIR CONDITIONER	10/2008 - 12/2999	1
88410-0K310	KUN35..ANCOM;KUN35..LA..CBU;KUN2#,36..DLX..(ANCOM,LA)..CBU AIR CONDITIONER-SINGLE AIR CONDITIONER	10/2008 - 12/2999	1
88431 - BRACKET, COMPRESSOR MOUNTING, NO.1
88431-0K040	KUN35..ANCOM;KUN35..LA..CBU;KUN2#,36..DLX..(ANCOM,LA)..CBU AIR CONDITIONER-SINGLE AIR CONDITIONER	10/2008 - 12/2999	1
88431-0K040	KUN35..ANCOM;KUN35..LA..CBU;KUN2#,36..DLX..(ANCOM,LA)..CBU AIR CONDITIONER-SINGLE AIR CONDITIONER	10/2008 - 12/2999	1
88440B - PULLEY ASSY, IDLE
88440-0K171	KUN2#,3#..DLX..LA..CBU AIR CONDITIONER-SINGLE AIR CONDITIONER	10/2008 - 10/2011	1
88440-0K171	KUN2#,3#..DLX..LA..CBU AIR CONDITIONER-SINGLE AIR CONDITIONER	10/2008 - 10/2011	1
88688K - BRACKET, COOLER COMPRESSOR
88688-0K120	KUN2#,3#..DLX..LA..CBU AIR CONDITIONER-SINGLE AIR CONDITIONER	10/2008 - 12/2999	1
88688-0K120	KUN2#,3#..DLX..LA..CBU AIR CONDITIONER-SINGLE AIR CONDITIONER	10/2008 - 12/2999	1
Common parts
88569-32110
90091-40612
90099-04349
90099-07065
90099-07114
90105-08403
90105-10361
90105-T0083
90105-T0111
90119-08B42
90119-T0232
91552-81035
93319-15008

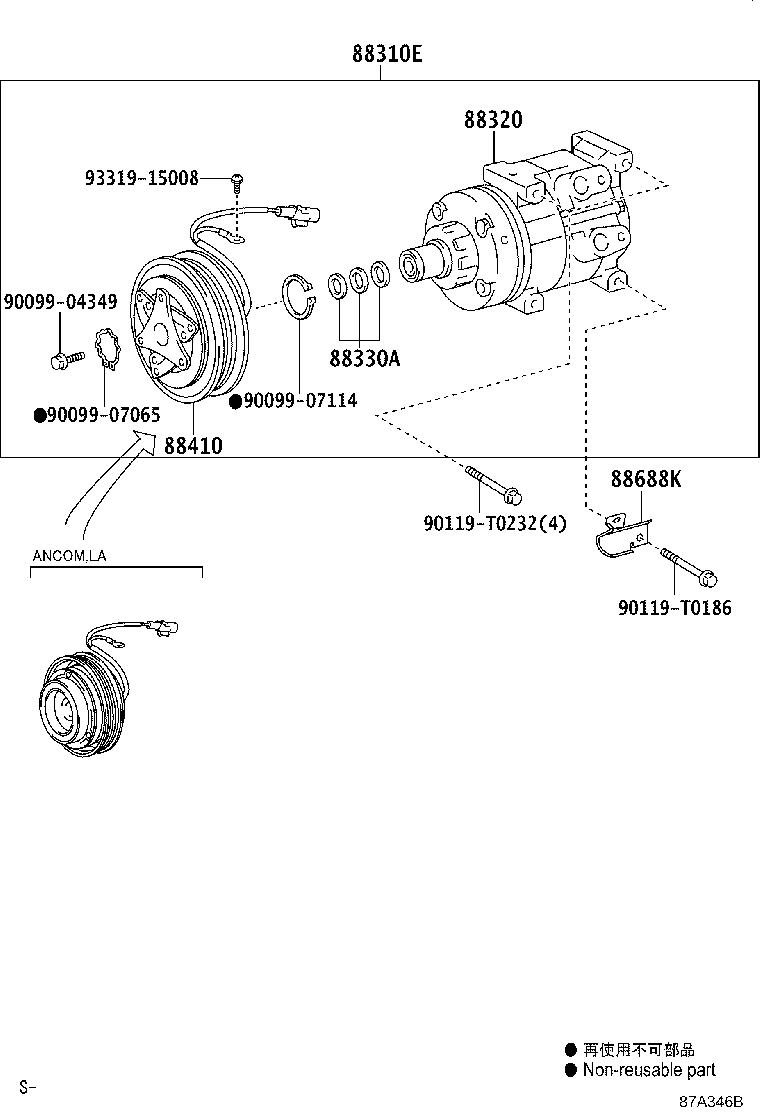

(0810- )GGN25,35..LA,SA ; (0812- )GGN25..ANCOM

Click highlighted areas on diagram

Part #	Description	Period	Qty
88320 - COMPRESSOR ASSY, COOLER
88320-0K350	KUN35..ANCOM;KUN35..LA..CBU;KUN2#,36..DLX..(ANCOM,LA)..CBU AIR CONDITIONER-SINGLE AIR CONDITIONER	10/2008 - 03/2009	1
88320-0K410	KUN35..ANCOM;KUN35..LA..CBU;KUN2#,36..DLX..(ANCOM,LA)..CBU AIR CONDITIONER-SINGLE AIR CONDITIONER	03/2009 - 12/2999	1
88410 - CLUTCH ASSY, MAGNET
88410-0K310	KUN35..ANCOM;KUN35..LA..CBU;KUN2#,36..DLX..(ANCOM,LA)..CBU AIR CONDITIONER-SINGLE AIR CONDITIONER	10/2008 - 12/2999	1
88688K - BRACKET, COOLER COMPRESSOR
88688-0K120	KUN2#,3#..DLX..LA..CBU AIR CONDITIONER-SINGLE AIR CONDITIONER	10/2008 - 12/2999	1
Common parts
90099-04349
90099-07065
90099-07114
90119-T0186
90119-T0232
93319-15008

(1106- )DCB..5FC..IV3 ; (1106- )KUN35..LHD..GEN ; (1106- )KUN35..CO,LA,PHL

Click highlighted areas on diagram

Part #	Description	Period	Qty	Price
Common parts
88569-60070
90099-04349
90099-07065
90099-07114
90105-T0066
90105-T0125
90119-T0232
93319-15008
Linked diagrams
1601

(1108- )LAN15,25,35

Click highlighted areas on diagram

Part #	Description	Period	Qty	Price
Common parts
90105-T0115
90105-T0118
90105-T0168
90119-T0219
90119-T0232

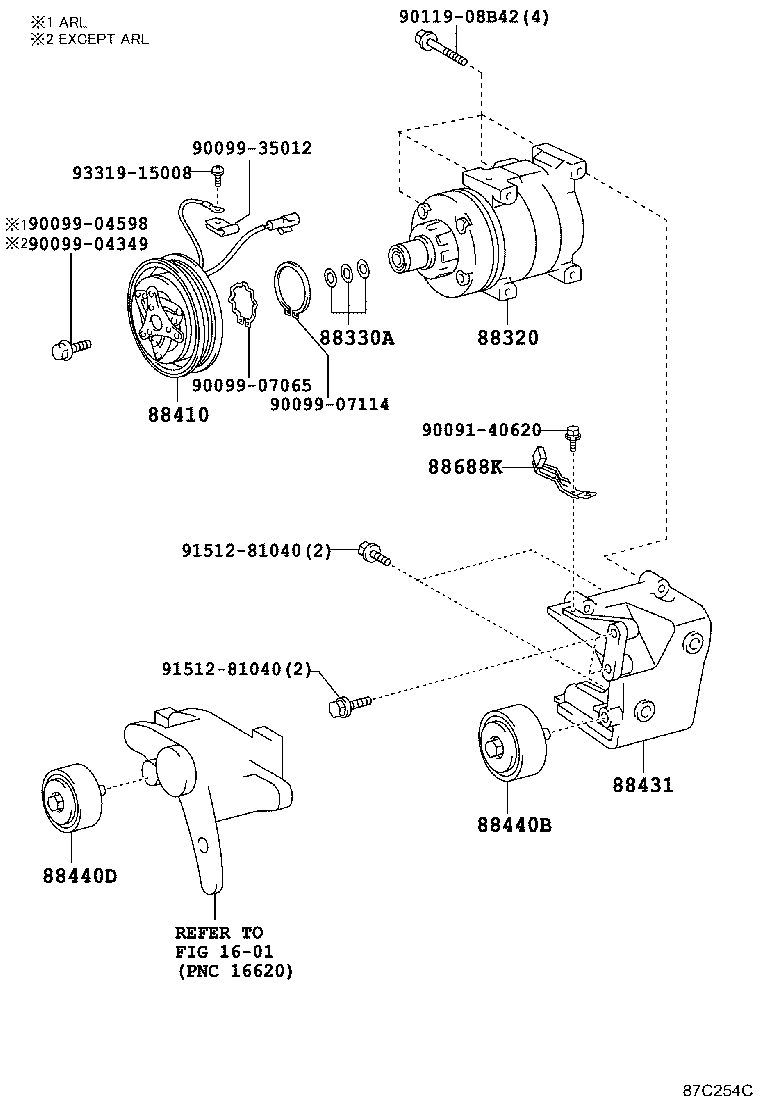

(1106- )KUN26..4FC,5F..SR..DCR..LA ; (1106-)KUN26,35..DLX..DCR,HDCR..GEN,LA

Click highlighted areas on diagram

DEALER OPTION

Part #	Description	Period	Qty	Price
Common parts
90091-40620
90099-04349
90099-04598
90099-07065
90099-07114
90099-35012
90119-08B42
91512-81040
93319-15008
Linked diagrams
1601

(1107- )TGN16..XTR ; (1107- )TGN36..DCB..SA ; (1107- )TGN36..DCB..HTWCF ;

Click highlighted areas on diagram

DEALER OPTION

Part #	Description	Period	Qty	Price
Common parts
88569-32120
90091-40612
90099-04349
90099-07065
90099-07114
90105-08403
90105-10361
90119-08B42
93319-15008

(1107- )TGN36..DCB..DLX..HTWC..LA ; (1107-)TGN36..SCB,THDCB..GEN,LA,SA ; (11

Click highlighted areas on diagram

DEALER OPTION

Part #	Description	Period	Qty	Price
Common parts
88569-32120
90091-40612
90099-04349
90099-07065
90099-07114
90105-08403
90105-10361
90119-08B42
93319-15008

KUN35L-TRMDHG (2008)

(0810- )TGN26..LA ; (0810- )TGN36..5F..LA; (0810- )TGN36..4FC..SR ; (0812

(0810- )GGN25,35..LA,SA ; (0812- )GGN25..ANCOM

(1106- )DCB..5FC..IV3 ; (1106- )KUN35..LHD..GEN ; (1106- )KUN35..CO,LA,PHL

(1108- )LAN15,25,35

(1106- )KUN26..4FC,5F..SR..DCR..LA ; (1106-)KUN26,35..DLX..DCR,HDCR..GEN,LA

(1107- )TGN16..XTR ; (1107- )TGN36..DCB..SA ; (1107- )TGN36..DCB..HTWCF ;

(1107- )TGN36..DCB..DLX..HTWC..LA ; (1107-)TGN36..SCB,THDCB..GEN,LA,SA ; (11
