KUN26R-URMSYT (2008)

Toyota Hilux

Production Sep 2008 - Jul 2011
Engine 1KDFTV
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(0809- )SMT

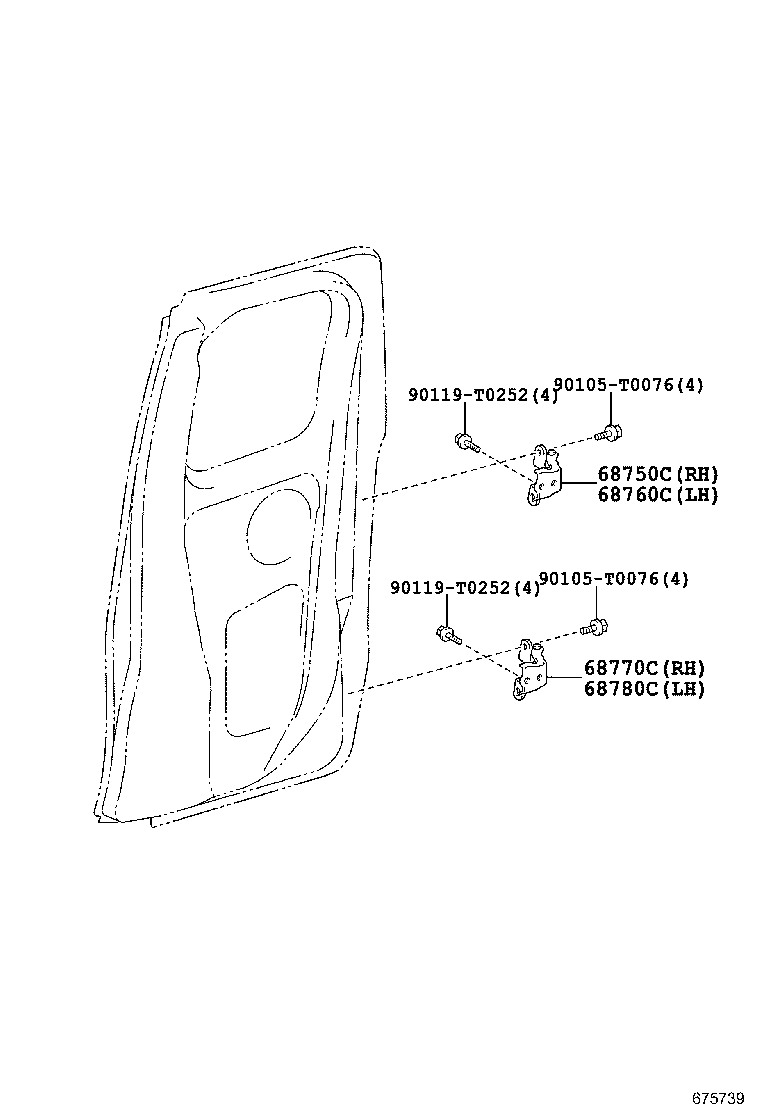

Click highlighted areas on diagram

ACCSESS DOOR

diagram 68750C 68760C 68770C 68780C 90105T0076 90105T0076 90119T0252 90119T0252
Part # Description Qty Price
68750C - HINGE ASSY, ACCESS PANEL, UPPER RH
68750-0K070

KUN15,16,2#,3#,TGN16..SMT

 1
68760C - HINGE ASSY, ACCESS PANEL, UPPER LH
68760-0K070

KUN15,16,2#,3#,TGN16..SMT

 1
68770C - HINGE ASSY, ACCESS PANEL, LOWER RH
68760-0K070

KUN15,16,2#,3#,TGN16..SMT

 1
68780C - HINGE ASSY, ACCESS PANEL, LOWER LH
68750-0K070

KUN15,16,2#,3#,TGN16..SMT

 1
Common parts
90105-T0076
90119-T0252
