KUN26R-URMSYT (2008)

Toyota Hilux

Production Sep 2008 - Jul 2011
Engine 1KDFTV
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(0809- )SMT

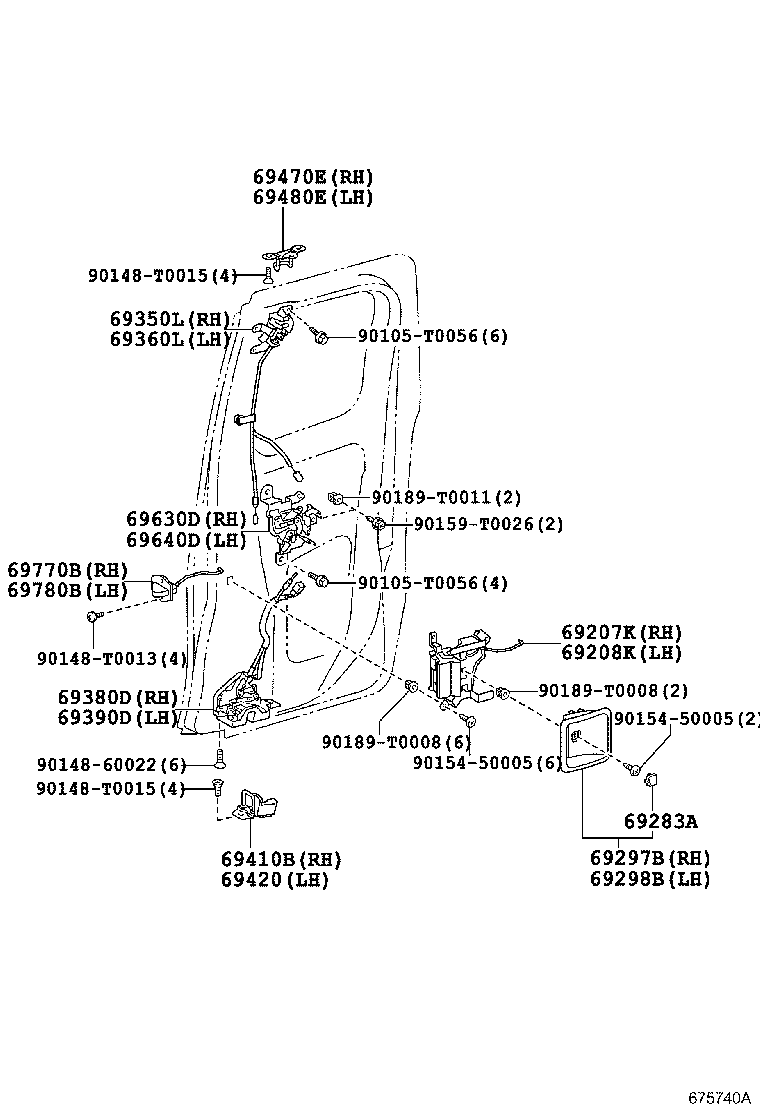

Click highlighted areas on diagram

ACCESS DOOR

diagram 69207K 69208K 69283A 69297B 69298B 69350L 69360L 69380D 69390D 69410B 69420 69470E 69480E 69630D 69640D 69770B 69780B 90105T0056 90105T0056 9014860022 90148T0013 90148T0015 90148T0015 9015450005 9015450005 90159T0026 90189T0008 90189T0008 90189T0011
Part # Description Qty Price
69207K - HANDLE SUB-ASSY, ACCESS PANEL INSIDE, RH
69207-0K010E0

KUN16,2#,3#..SMT;KUN15,TGN16..SMT..SR

SAND BEIGE,TRIM4#

 1
69207-0K010B0

KUN15,16,2#,3#,TGN16..SMT..5F

GRAY,TRIM1#

 1
69208K - HANDLE SUB-ASSY, ACCESS PANEL INSIDE, LH
69208-0K010B0

KUN15,16,2#,3#,TGN16..SMT..5F

GRAY,TRIM1#

 1
69208-0K010E0

KUN16,2#,3#..SMT;KUN15,TGN16..SMT..SR

SAND BEIGE,TRIM4#

 1
69283A - PLUG, REAR DOOR INSIDE HANDLE BEZEL, RH
69283-0K010B0

KUN15,16,2#,3#,TGN16..SMT..5F

GRAY,TRIM1#

 2
69283-0K010E0

KUN16,2#,3#..SMT;KUN15,TGN16..SMT..SR

SAND BEIGE,TRIM4#

 2
69297B - BEZEL, ACCESS PANEL INSIDE HANDLE, RH
69297-0K010B0

KUN15,16,2#,3#,TGN16..SMT..5F

GRAY,TRIM1#

 1
69297-0K010E0

KUN16,2#,3#..SMT;KUN15,TGN16..SMT..SR

SAND BEIGE,TRIM4#

 1
69298B - BEZEL, ACCESS PANEL INSIDE HANDLE, LH
69298-0K010B0

KUN15,16,2#,3#,TGN16..SMT..5F

GRAY,TRIM1#

 1
69298-0K010E0

KUN16,2#,3#..SMT;KUN15,TGN16..SMT..SR

SAND BEIGE,TRIM4#

 1
69350L - LOCK ASSY, ACCESS PANEL, UPPER RH
69350-0K110

KUN15,16,2#,3#,TGN16..SMT

 1
69360L - LOCK ASSY, ACCESS PANEL, UPPER LH
69360-0K010

KUN15,16,2#,3#,TGN16..SMT

 1
69380D - LOCK ASSY, ACCESS PANEL, LOWER RH
69380-0K010

KUN15,16,2#,3#,TGN16..SMT

 1
69390D - LOCK ASSY, ACCESS PANEL, LOWER LH
69390-0K010

KUN15,16,2#,3#,TGN16..SMT

 1
69410B - PLATE ASSY, REAR DOOR LOCK STRIKER
69410-0K060

KUN15,16,2#,3#,TGN16..SMT

 1
69420 - PLATE ASSY, REAR DOOR LOCK STRIKER
69420-0K010

KUN15,16,2#,3#,TGN16..SMT

 1
69470E - STRIKER ASSY, ACCESS PANEL UPPER LOCK, RH
69470-0K010

KUN15,16,2#,3#,TGN16..SMT

 1
69480E - STRIKER ASSY, ACCESS PANEL UPPER LOCK, LH
69480-0K010

KUN15,16,2#,3#,TGN16..SMT

 1
69630D - CONTROL ASSY, ACCESS PANEL LOCK REMOTE, RH
69630-0K010

KUN15,16,2#,3#,TGN16..SMT

 1
69640D - CONTROL ASSY, ACCESS PANEL LOCK REMOTE, LH
69640-0K010

KUN15,16,2#,3#,TGN16..SMT

 1
69770B - CABLE ASSY, REAR DOOR INSIDE LOCKING, RH
69770-0K100

KUN15,16,2#,3#,TGN16..SMT

 1
69780B - CABLE ASSY, REAR DOOR INSIDE LOCKING, LH
69780-0K100

KUN15,16,2#,3#,TGN16..SMT

 1
Common parts
90105-T0056
90148-60022
90148-T0013
90148-T0015
90154-50005
90159-T0026
90189-T0008
90189-T0011
