KUN26R-URMSYT (2008)

Toyota Hilux

Production Sep 2008 - Jul 2011
Engine 1KDFTV
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(0809- )SMT

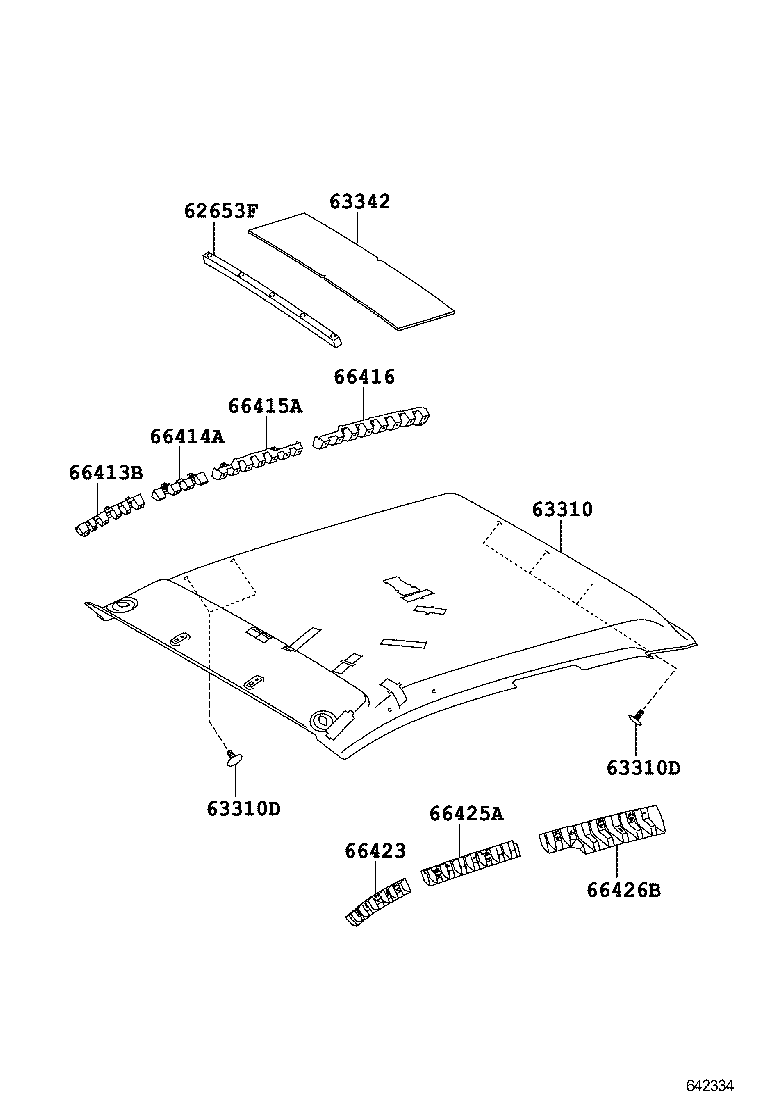

Click highlighted areas on diagram

diagram 62653F 63310 63310D 63310D 63342 66413B 66414A 66415A 66416 66423 66425A 66426B
Part # Description Qty Price
63310 - HEADLINING ASSY, ROOF
63310-0K370E1

KUN16,2#,3#..SMT;KUN15,TGN16..SMT..SR

SAND BEIGE,TRIM4#

 1
63310-0K370B0

KUN16,2#,3#..SMT;KUN15..SMT..HDCR

LT. GRAY,TRIM1#

 1
66415A - SPACER, SIDE RAIL, REAR NO.2 RH
66415-0K090

KUN15,16,2#,3#,TGN16..SMT

 1
66416 - SPACER, SIDE RAIL, REAR NO.3 RH
66416-0K120

KUN15,16,2#,3#,TGN16..SMT

 1
66425A - SPACER, SIDE RAIL, REAR NO.2 LH
66425-0K040

KUN15,16,2#,3#,TGN16..SMT

 1
66426B - SPACER, SIDE RAIL, REAR NO.3 LH
66426-0K120

KUN15,16,2#,3#,TGN16..SMT

 1
