KUN26R-URMSYT (2008)

Toyota Hilux

Production Sep 2008 - Jul 2011
Engine 1KDFTV
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(0809- )SMT

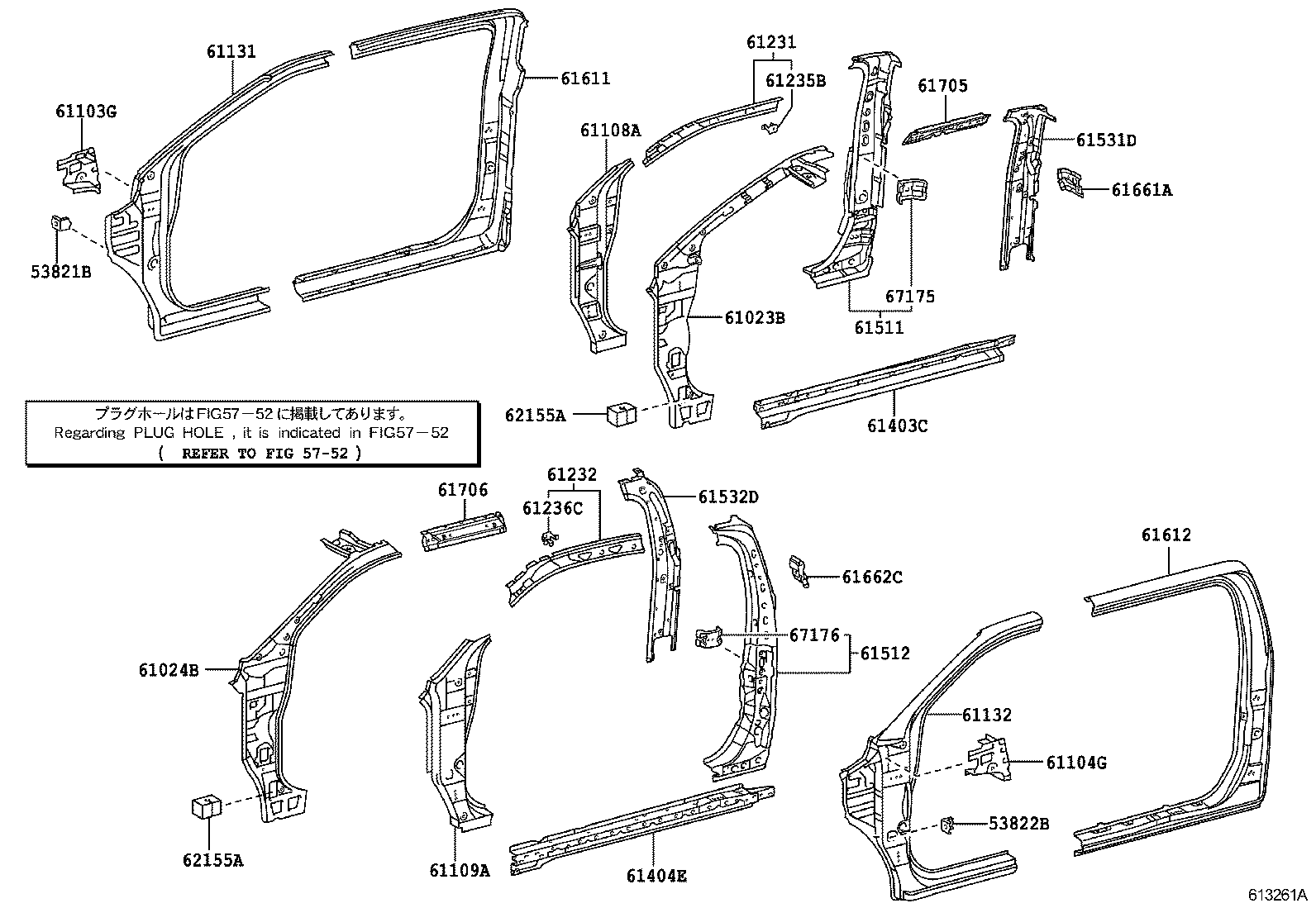

Click highlighted areas on diagram

diagram 53821B 53822B 5752 61023B 61024B 61103G 61104G 61108A 61109A 61131 61132 61231 61232 61235B 61236C 61403C 61404E 61511 61512 61531D 61532D 61611 61612 61661A 61662C 61705 61706 62155A 62155A 67175 67176
Part # Description Qty Price
61023B - PILLAR SUB-ASSY, FRONT BODY, INNER RH
61023-0K020

GGN25,KUN2#,3#,LAN25,35,TGN26,36..ANCOM,ARL,GCC,GEN,MA,PHL,SA,TH

 1
61024B - PILLAR SUB-ASSY, FRONT BODY, INNER LH
61024-0K020

GGN25,KUN2#,3#,LAN25,35,TGN26,36..ANCOM,ARL,GCC,GEN,MA,PHL,SA,TH

 1
61131 - PILLAR, FRONT BODY, UPPER OUTER RH
61131-0K090

KUN15,16,2#,3#,TGN16..SMT

 1
61132 - PILLAR, FRONT BODY, UPPER OUTER LH
61132-0K100

KUN15,16,2#,3#,TGN16..SMT

 1
61403C - REINFORCE SUB-ASSY, ROCKER, OUTER RH
61403-0K050

KUN15,16,2#,3#,TGN16..SMT

 1
61404E - REINFORCE SUB-ASSY, ROCKER, OUTER LH
61404-0K020

KUN15,16,2#,3#,TGN16..SMT

 1
61511 - PILLAR, QUARTER LOCK, RH
61501-0K010

KUN15,16,2#,3#,TGN16..SMT

 1
61512 - PILLAR, QUARTER LOCK, LH
61502-0K010

KUN15,16,2#,3#,TGN16..SMT

 1
61531D - PANEL, CAB REAR PILLAR, INNER RH
61531-0K030

KUN15,16,2#,3#,TGN16..SMT

 1
61532D - PANEL, CAB REAR PILLOR, INSIDE LH
61532-0K030

KUN15,16,2#,3#,TGN16..SMT

 1
61611 - PANEL, QUARTER, RH
61611-0K070

KUN15,16,2#,3#,TGN16..SMT

 1
61612 - PANEL, QUARTER, LH
61612-0K070

KUN15,16,2#,3#,TGN16..SMT

 1
61705 - PANEL SUB-ASSY, ROOF SIDE, INNER RH
61705-0K071

KUN15,16,2#,3#,TGN16..SMT

 1
61705-0K070

KUN15,16,2#,3#,TGN16..SMT

 1
61706 - PANEL SUB-ASSY, ROOF SIDE, INNER LH
61706-0K070

KUN15,16,2#,3#,TGN16..SMT

 1
67175 - REINFORCEMENT, REAR DOOR UPPER HINGE, RH
67175-0K030

KUN15,16,2#,3#,TGN16..SMT

 1
67176 - REINFORCEMENT, REAR DOOR UPPER HINGE, LH
67176-0K030

KUN15,16,2#,3#,TGN16..SMT

 1
Linked diagrams
5752
