KUN26R-CRMSYQ (2011)

Toyota Hilux

Production Jul 2011 - Apr 2015
Engine 1KDFTV
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(0408- )

Click highlighted areas on diagram

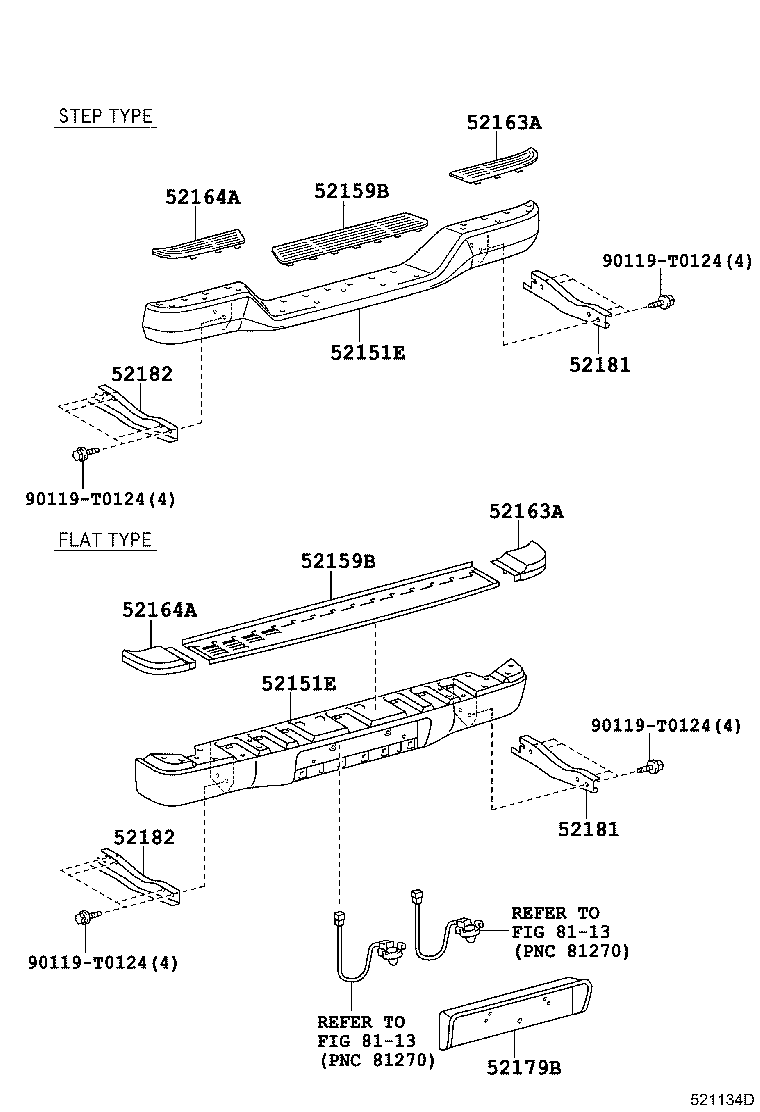

diagram 52151E 52151E 52159B 52159B 52163A 52163A 52164A 52164A 52179B 52181 52181 52182 52182 8113 8113 90119T0124 90119T0124 90119T0124 90119T0124
Part # Description Qty Price
Common parts
90119-T0124
Linked diagrams
8113

(1107- )

Click highlighted areas on diagram

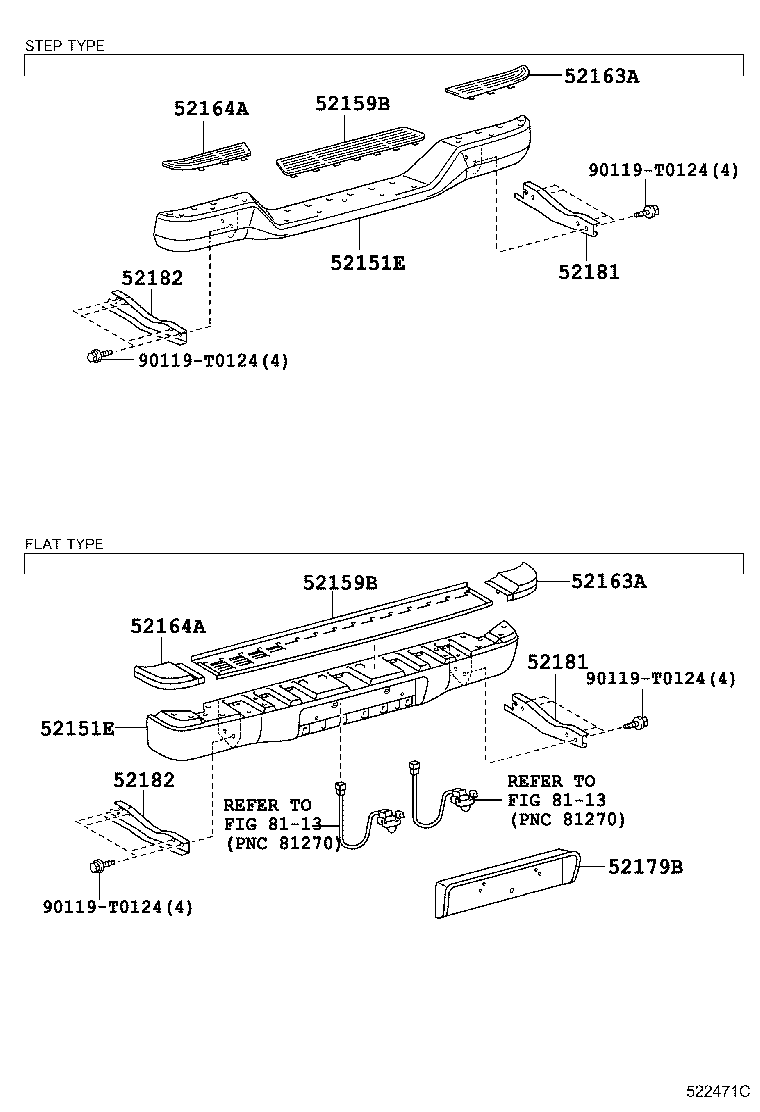

diagram 52151E 52151E 52159B 52159B 52163A 52163A 52164A 52164A 52179B 52181 52181 52182 52182 8113 8113 90119T0124 90119T0124 90119T0124 90119T0124
Part # Description Qty Price
52151E - BAR, REAR BUMPER
52105-04060

TGN16..DCB..GEN;TGN26..4FC..GEN;TGN26..SCB..GEN;KUN26..XTR..SR..ARL;GGN15,KUN26..5FC..SR..ARL;KUN10,15,25,TGN1#,26..GCC..CBU;GGN25,TGN26..5F..SR..(ARL,GEN)

PLATED

 1
52151E - BAR, REAR BUMPER
52105-04060

TGN16..DCB..GEN;TGN26..4FC..GEN;TGN26..SCB..GEN;KUN26..XTR..SR..ARL;GGN15,KUN26..5FC..SR..ARL;KUN10,15,25,TGN1#,26..GCC..CBU;GGN25,TGN26..5F..SR..(ARL,GEN)

PLATED

 1
52159B - PLATE, REAR BUMPER
52159-04010

GGN25..5F..SR;TGN26..4FC..GEN;KUN26..XTR..SR..ARL;KUN15,25,TGN26..GCC..CBU;GGN15,KUN26..5FC..SR..ARL;TGN16..(DCB,SCB)..(GCC,GEN)..CBU;KUN25,TGN26..LHD..(SCB,THDCB,THSCB,XTR)..GEN;KUN10,26,35,TGN10,11,15,36..LHD..DLX..(GCC,GEN)

 1
52159B - PLATE, REAR BUMPER
52159-04010

GGN25..5F..SR;TGN26..4FC..GEN;KUN26..XTR..SR..ARL;KUN15,25,TGN26..GCC..CBU;GGN15,KUN26..5FC..SR..ARL;TGN16..(DCB,SCB)..(GCC,GEN)..CBU;KUN25,TGN26..LHD..(SCB,THDCB,THSCB,XTR)..GEN;KUN10,26,35,TGN10,11,15,36..LHD..DLX..(GCC,GEN)

 1
52163A - PLATE, REAR BUMPER, RH
52163-04010

GGN25..5F..SR;TGN26..4FC..GEN;KUN26..XTR..SR..ARL;KUN15,25,TGN26..GCC..CBU;GGN15,KUN26..5FC..SR..ARL;TGN16..(DCB,SCB)..(GCC,GEN)..CBU;KUN25,TGN26..LHD..(SCB,THDCB,THSCB,XTR)..GEN;KUN10,26,35,TGN10,11,15,36..LHD..DLX..(GCC,GEN)

 1
52163A - PLATE, REAR BUMPER, RH
52163-04010

GGN25..5F..SR;TGN26..4FC..GEN;KUN26..XTR..SR..ARL;KUN15,25,TGN26..GCC..CBU;GGN15,KUN26..5FC..SR..ARL;TGN16..(DCB,SCB)..(GCC,GEN)..CBU;KUN25,TGN26..LHD..(SCB,THDCB,THSCB,XTR)..GEN;KUN10,26,35,TGN10,11,15,36..LHD..DLX..(GCC,GEN)

 1
52164A - PLATE, REAR BUMPER, LH
52164-04010

GGN25..5F..SR;TGN26..4FC..GEN;KUN26..XTR..SR..ARL;KUN15,25,TGN26..GCC..CBU;GGN15,KUN26..5FC..SR..ARL;TGN16..(DCB,SCB)..(GCC,GEN)..CBU;KUN25,TGN26..LHD..(SCB,THDCB,THSCB,XTR)..GEN;KUN10,26,35,TGN10,11,15,36..LHD..DLX..(GCC,GEN)

 1
52164A - PLATE, REAR BUMPER, LH
52164-04010

GGN25..5F..SR;TGN26..4FC..GEN;KUN26..XTR..SR..ARL;KUN15,25,TGN26..GCC..CBU;GGN15,KUN26..5FC..SR..ARL;TGN16..(DCB,SCB)..(GCC,GEN)..CBU;KUN25,TGN26..LHD..(SCB,THDCB,THSCB,XTR)..GEN;KUN10,26,35,TGN10,11,15,36..LHD..DLX..(GCC,GEN)

 1
52181 - ARM, REAR BUMPER, RH
52181-0K020

GGN25..5F..SR;TGN26..4FC..GEN;KUN26..XTR..SR..ARL;KUN15,25,TGN26..GCC..CBU;GGN15,KUN26..5FC..SR..ARL;TGN16..(DCB,SCB)..(GCC,GEN)..CBU;KUN25,TGN26..LHD..(SCB,THDCB,THSCB,XTR)..GEN;KUN10,26,35,TGN10,11,15,36..LHD..DLX..(GCC,GEN)

 1
52181 - ARM, REAR BUMPER, RH
52181-0K020

GGN25..5F..SR;TGN26..4FC..GEN;KUN26..XTR..SR..ARL;KUN15,25,TGN26..GCC..CBU;GGN15,KUN26..5FC..SR..ARL;TGN16..(DCB,SCB)..(GCC,GEN)..CBU;KUN25,TGN26..LHD..(SCB,THDCB,THSCB,XTR)..GEN;KUN10,26,35,TGN10,11,15,36..LHD..DLX..(GCC,GEN)

 1
52182 - ARM, REAR BUMPER, LH
52182-0K020

GGN25..5F..SR;TGN26..4FC..GEN;KUN26..XTR..SR..ARL;KUN15,25,TGN26..GCC..CBU;GGN15,KUN26..5FC..SR..ARL;TGN16..(DCB,SCB)..(GCC,GEN)..CBU;KUN25,TGN26..LHD..(SCB,THDCB,THSCB,XTR)..GEN;KUN10,26,35,TGN10,11,15,36..LHD..DLX..(GCC,GEN)

 1
52182 - ARM, REAR BUMPER, LH
52182-0K020

GGN25..5F..SR;TGN26..4FC..GEN;KUN26..XTR..SR..ARL;KUN15,25,TGN26..GCC..CBU;GGN15,KUN26..5FC..SR..ARL;TGN16..(DCB,SCB)..(GCC,GEN)..CBU;KUN25,TGN26..LHD..(SCB,THDCB,THSCB,XTR)..GEN;KUN10,26,35,TGN10,11,15,36..LHD..DLX..(GCC,GEN)

 1
Common parts
90119-T0124
Linked diagrams
8113
