Toyota Hilux KUN26 HEATING & AIR CONDITIONING - COOLER PIPING

Manufacturers Home
Toyota
US
HILUX
KUN26R-CRMSYQ (2011)
8718 - HEATING & AIR CONDITIONING - COOLER PIPING

KUN26R-CRMSYQ (2011)

Toyota Hilux

Production Jul 2011 - Apr 2015

Engine 1KDFTV

Transmission

Displacement 2500cc

Power 168 HP (125 kW)

ILLUST NO. 2 OF 2(0408- )

Click highlighted areas on diagram

O-RING

Part #	Description	Period	Qty	Price
Common parts
90068-14022
90068-14023
90068-14024
90068-14033
90068-14034
90068-14035
90099-14119
90099-14120
90099-14121

ILLUST NO. 1 OF 2(0408- )KUN26,36..THDCB,XTR..ARL,GEN,TH ; (0408- )KUN26,36..DCB,SCB,SMT..ARL,

Click highlighted areas on diagram

DEALER OPTION

Part #	Description	Period	Qty	Price
Common parts
88688-0K340
88718-0K060
88718-0KB20
88899-52050
90091-40617
90091-40620
90179-06274
91511-60630
91551-80625
Linked diagrams
8714
8719

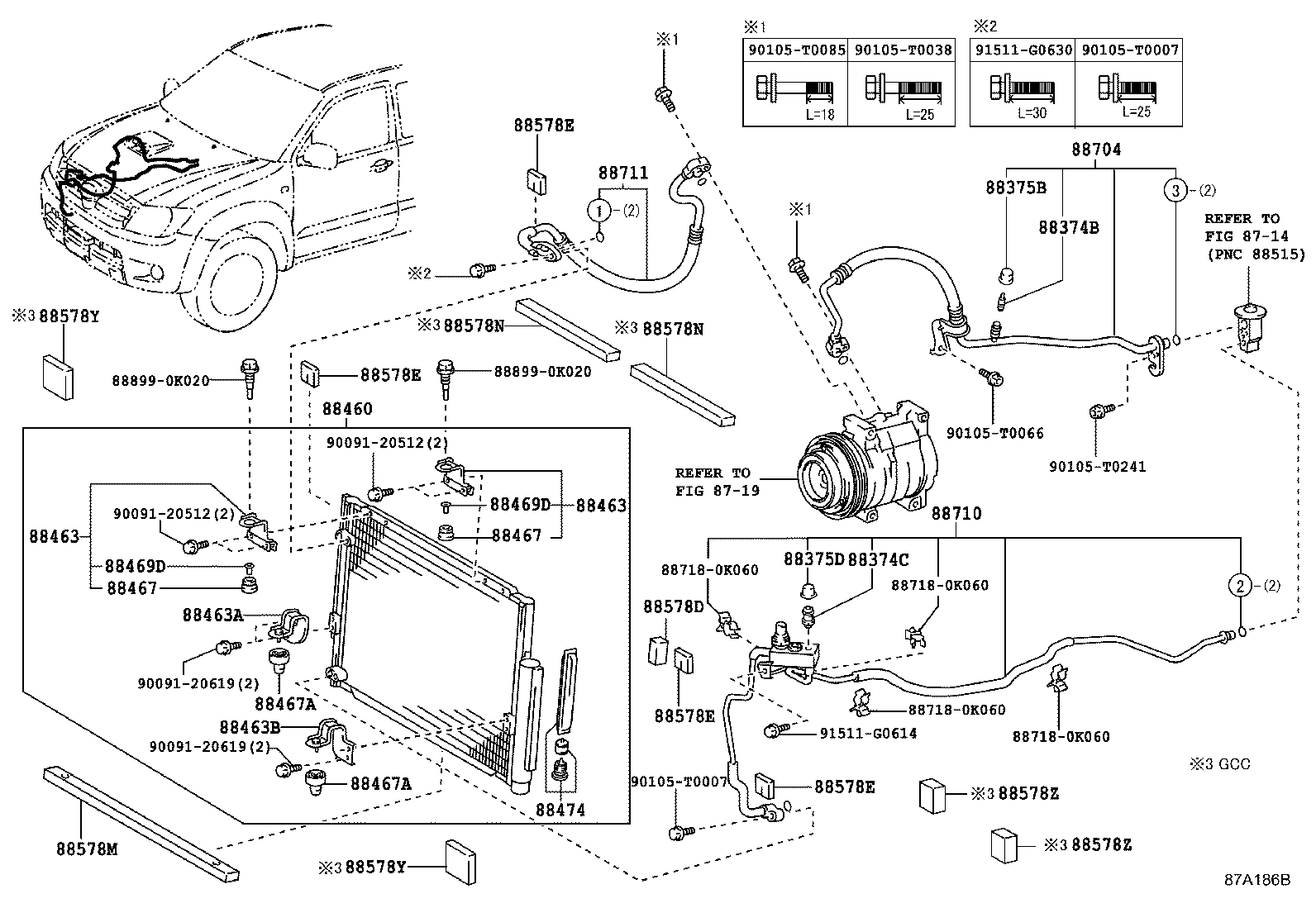

ILLUST NO. 1 OF 2(0408- )KUN26..ARL,IDN,PHL,TH ; (0408- )KUN1#,25,36..DLX,SR..ARL,GCC,GEN,MA,P

Click highlighted areas on diagram

W(COOLER) OR W(AIR CONDITIONER)

Part #	Description	Period	Qty	Price
Common parts
88718-0K060
88899-0K020
90091-20512
90091-20619
90105-T0007
90105-T0038
90105-T0066
90105-T0085
90105-T0241
91511-G0614
91511-G0630
Linked diagrams
8714
8719

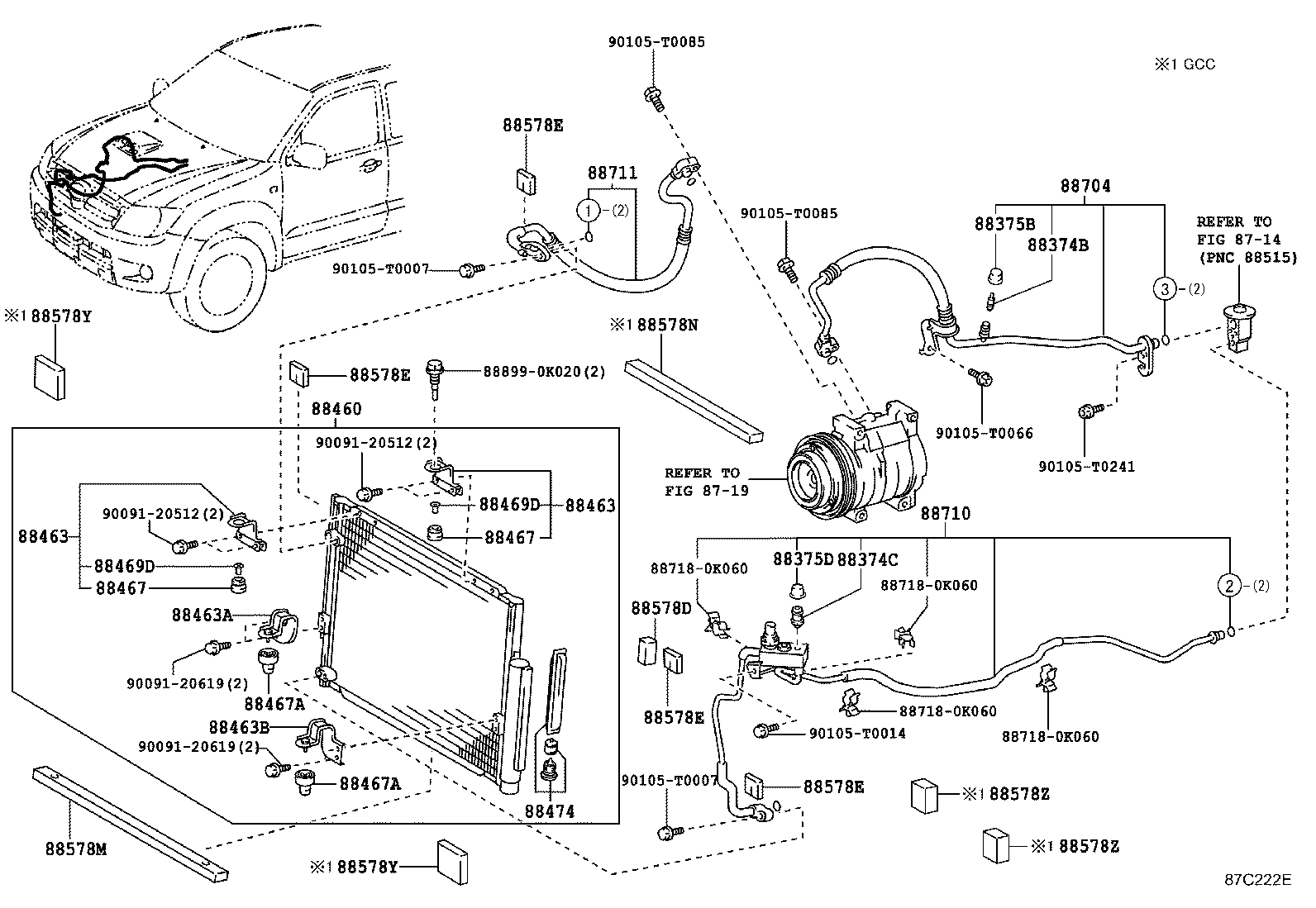

ILLUST NO. 1 OF 2(1107- )KUN2#..DCB,SCB,SMT,THDCB,THSCB,XTR..ARL,GCC,GEN,IDN,PHL,TH..CBU

Click highlighted areas on diagram

Part #	Description	Period	Qty
88374C - VALVE, SERVICE, NO.2
88374-30010	GGN15,25,KUN26..SR..ARL AIR CONDITIONER-AUTO AIR CONDITIONER SINGLE	07/2011 - 04/2015	1
88374-30010	GGN15,25,KUN26..SR..ARL AIR CONDITIONER-AUTO AIR CONDITIONER SINGLE	07/2011 - 04/2015	1
88375D - CAP, SERVICE VALVE, NO.2
88375-30280	GGN15,25,KUN26..SR..ARL AIR CONDITIONER-AUTO AIR CONDITIONER SINGLE	07/2011 - 04/2015	1
88375-30280	GGN15,25,KUN26..SR..ARL AIR CONDITIONER-AUTO AIR CONDITIONER SINGLE	07/2011 - 04/2015	1
88460 - CONDENSER ASSY, COOLER
88460-0K010	KUN26..SR..ARL AIR CONDITIONER-AUTO AIR CONDITIONER SINGLE	07/2011 - 04/2015	1
88460-0K010	KUN26..SR..ARL AIR CONDITIONER-AUTO AIR CONDITIONER SINGLE	07/2011 - 04/2015	1
88463 - BRACKET, COOLER CONDENSER, NO.1
88463-0K020	GGN15,25,KUN26..SR..ARL AIR CONDITIONER-AUTO AIR CONDITIONER SINGLE	07/2011 - 04/2015	2
88463-0K020	GGN15,25,KUN26..SR..ARL AIR CONDITIONER-AUTO AIR CONDITIONER SINGLE	07/2011 - 04/2015	2
88463 - BRACKET, COOLER CONDENSER, NO.1
88463-0K020	GGN15,25,KUN26..SR..ARL AIR CONDITIONER-AUTO AIR CONDITIONER SINGLE	07/2011 - 04/2015	2
88463-0K020	GGN15,25,KUN26..SR..ARL AIR CONDITIONER-AUTO AIR CONDITIONER SINGLE	07/2011 - 04/2015	2
88463A - BRACKET, COOLER CONDENSER, NO.2
88463-0K250	GGN15,25,KUN26..SR..ARL AIR CONDITIONER-AUTO AIR CONDITIONER SINGLE	07/2011 - 04/2015	1
88463-0K250	GGN15,25,KUN26..SR..ARL AIR CONDITIONER-AUTO AIR CONDITIONER SINGLE	07/2011 - 04/2015	1
88463B - BRACKET, COOLER CONDENSER, NO.3
88463-0K260	GGN15,25,KUN26..SR..ARL AIR CONDITIONER-AUTO AIR CONDITIONER SINGLE	07/2011 - 04/2015	1
88463-0K260	GGN15,25,KUN26..SR..ARL AIR CONDITIONER-AUTO AIR CONDITIONER SINGLE	07/2011 - 04/2015	1
88467 - CUSHION, COOLER CONDENSER, NO.1
88467-12180	GGN15,25,KUN26..SR..ARL AIR CONDITIONER-AUTO AIR CONDITIONER SINGLE	07/2011 - 04/2015	4
88467-12180	GGN15,25,KUN26..SR..ARL AIR CONDITIONER-AUTO AIR CONDITIONER SINGLE	07/2011 - 04/2015	4
88467 - CUSHION, COOLER CONDENSER, NO.1
88467-12180	GGN15,25,KUN26..SR..ARL AIR CONDITIONER-AUTO AIR CONDITIONER SINGLE	07/2011 - 04/2015	4
88467-12180	GGN15,25,KUN26..SR..ARL AIR CONDITIONER-AUTO AIR CONDITIONER SINGLE	07/2011 - 04/2015	4
88467A - CUSHION, COOLER CONDENSER, NO.2
88467-28040	GGN15,25,KUN26..SR..ARL AIR CONDITIONER-AUTO AIR CONDITIONER SINGLE	07/2011 - 04/2015	2
88467-28040	GGN15,25,KUN26..SR..ARL AIR CONDITIONER-AUTO AIR CONDITIONER SINGLE	07/2011 - 04/2015	2
88467A - CUSHION, COOLER CONDENSER, NO.2
88467-28040	GGN15,25,KUN26..SR..ARL AIR CONDITIONER-AUTO AIR CONDITIONER SINGLE	07/2011 - 04/2015	2
88467-28040	GGN15,25,KUN26..SR..ARL AIR CONDITIONER-AUTO AIR CONDITIONER SINGLE	07/2011 - 04/2015	2
88469D - COLLAR, CONDENSER BRACKET, NO.1
88469-52010	GGN15,25,KUN26..SR..ARL AIR CONDITIONER-AUTO AIR CONDITIONER SINGLE	07/2011 - 04/2015	4
88469-52010	GGN15,25,KUN26..SR..ARL AIR CONDITIONER-AUTO AIR CONDITIONER SINGLE	07/2011 - 04/2015	4
88469D - COLLAR, CONDENSER BRACKET, NO.1
88469-52010	GGN15,25,KUN26..SR..ARL AIR CONDITIONER-AUTO AIR CONDITIONER SINGLE	07/2011 - 04/2015	4
88469-52010	GGN15,25,KUN26..SR..ARL AIR CONDITIONER-AUTO AIR CONDITIONER SINGLE	07/2011 - 04/2015	4
88474 - DRYER, COOLER
88474-17010	GGN15,25,KUN26..SR..ARL AIR CONDITIONER-AUTO AIR CONDITIONER SINGLE	07/2011 - 04/2015	1
88474-17010	GGN15,25,KUN26..SR..ARL AIR CONDITIONER-AUTO AIR CONDITIONER SINGLE	07/2011 - 04/2015	1
88578D - PACKING, COOLER PIPE, NO.1
88578-0K110	GGN15,25,KUN1#,2#,3#,TGN1#,26,36..(DCB,SCB,SMT,THDCB,THSCB,XTR)..(ARL,GCC,GEN,IDN,PHL,TH)	07/2011 - 04/2015	1
88578-0K110	GGN15,25,KUN1#,2#,3#,TGN1#,26,36..(DCB,SCB,SMT,THDCB,THSCB,XTR)..(ARL,GCC,GEN,IDN,PHL,TH)	07/2011 - 04/2015	1
88578E - PACKING, COOLER PIPE, NO.2
88578-0K100	GGN15,25,KUN1#,2#,3#,TGN1#,26,36..(DCB,SCB,SMT,THDCB,THSCB,XTR)..(ARL,GCC,GEN,IDN,PHL,TH)	07/2011 - 04/2015	4
88578-0K100	GGN15,25,KUN1#,2#,3#,TGN1#,26,36..(DCB,SCB,SMT,THDCB,THSCB,XTR)..(ARL,GCC,GEN,IDN,PHL,TH)	07/2011 - 04/2015	4
88578E - PACKING, COOLER PIPE, NO.2
88578-0K100	GGN15,25,KUN1#,2#,3#,TGN1#,26,36..(DCB,SCB,SMT,THDCB,THSCB,XTR)..(ARL,GCC,GEN,IDN,PHL,TH)	07/2011 - 04/2015	4
88578-0K100	GGN15,25,KUN1#,2#,3#,TGN1#,26,36..(DCB,SCB,SMT,THDCB,THSCB,XTR)..(ARL,GCC,GEN,IDN,PHL,TH)	07/2011 - 04/2015	4
88578E - PACKING, COOLER PIPE, NO.2
88578-0K100	GGN15,25,KUN1#,2#,3#,TGN1#,26,36..(DCB,SCB,SMT,THDCB,THSCB,XTR)..(ARL,GCC,GEN,IDN,PHL,TH)	07/2011 - 04/2015	4
88578-0K100	GGN15,25,KUN1#,2#,3#,TGN1#,26,36..(DCB,SCB,SMT,THDCB,THSCB,XTR)..(ARL,GCC,GEN,IDN,PHL,TH)	07/2011 - 04/2015	4
88578E - PACKING, COOLER PIPE, NO.2
88578-0K100	GGN15,25,KUN1#,2#,3#,TGN1#,26,36..(DCB,SCB,SMT,THDCB,THSCB,XTR)..(ARL,GCC,GEN,IDN,PHL,TH)	07/2011 - 04/2015	4
88578-0K100	GGN15,25,KUN1#,2#,3#,TGN1#,26,36..(DCB,SCB,SMT,THDCB,THSCB,XTR)..(ARL,GCC,GEN,IDN,PHL,TH)	07/2011 - 04/2015	4
88578M - PACKING, COOLING PIPE, NO.3
88578-0K081	TGN1#,26,36..ARL,GCC,GEN,IDN,TH	07/2011 - 04/2015	1
88578-0K081	TGN1#,26,36..ARL,GCC,GEN,IDN,TH	07/2011 - 04/2015	1
88578-0K091	GGN15,25,KUN1#,2#,3#..(DCB,SCB,SMT,THDCB,THSCB,XTR)..(ARL,GCC,GEN,IDN,PHL,TH)	07/2011 - 04/2015	1
88578-0K091	GGN15,25,KUN1#,2#,3#..(DCB,SCB,SMT,THDCB,THSCB,XTR)..(ARL,GCC,GEN,IDN,PHL,TH)	07/2011 - 04/2015	1
88704 - HOSE SUB-ASSY, SUCTION
88704-0K651	KUN26..SR..ARL AIR CONDITIONER-AUTO AIR CONDITIONER SINGLE	07/2011 - 04/2015	1
88704-0K651	KUN26..SR..ARL AIR CONDITIONER-AUTO AIR CONDITIONER SINGLE	07/2011 - 04/2015	1
88710 - TUBE ASSY, AIR CONDITIONER
88710-0K040	GGN15,25,KUN26..SR..ARL AIR CONDITIONER-AUTO AIR CONDITIONER SINGLE	07/2011 - 04/2015	1
88710-0K040	GGN15,25,KUN26..SR..ARL AIR CONDITIONER-AUTO AIR CONDITIONER SINGLE	07/2011 - 04/2015	1
88711 - HOSE, COOLER REFRIGERANT DISCHARGE, NO.1
88711-0K071	KUN26..SR..ARL AIR CONDITIONER-AUTO AIR CONDITIONER SINGLE	07/2011 - 04/2015	1
88711-0K071	KUN26..SR..ARL AIR CONDITIONER-AUTO AIR CONDITIONER SINGLE	07/2011 - 04/2015	1
Common parts
88718-0K060
88899-0K020
90091-20512
90091-20619
90105-T0007
90105-T0014
90105-T0066
90105-T0085
90105-T0241
Linked diagrams
8714
8719

ILLUST NO. 1 OF 2(1107- )GGN15,25,KUN10,26,TGN10,16..ARL,IDN

Click highlighted areas on diagram

W/O(AIR CONDITIONER)

Part #	Description	Period	Qty
88578D - PACKING, COOLER PIPE, NO.1
88578-0K110	GGN15,25,KUN1#,2#,3#,TGN1#,26,36..(DCB,SCB,SMT,THDCB,THSCB,XTR)..(ARL,GCC,GEN,IDN,PHL,TH)	07/2011 - 04/2015	1
88578-0K110	GGN15,25,KUN1#,2#,3#,TGN1#,26,36..(DCB,SCB,SMT,THDCB,THSCB,XTR)..(ARL,GCC,GEN,IDN,PHL,TH)	07/2011 - 04/2015	1
88578E - PACKING, COOLER PIPE, NO.2
88578-0K100	GGN15,25,KUN1#,2#,3#,TGN1#,26,36..(DCB,SCB,SMT,THDCB,THSCB,XTR)..(ARL,GCC,GEN,IDN,PHL,TH)	07/2011 - 04/2015	4
88578-0K100	GGN15,25,KUN1#,2#,3#,TGN1#,26,36..(DCB,SCB,SMT,THDCB,THSCB,XTR)..(ARL,GCC,GEN,IDN,PHL,TH)	07/2011 - 04/2015	4
88578E - PACKING, COOLER PIPE, NO.2
88578-0K100	GGN15,25,KUN1#,2#,3#,TGN1#,26,36..(DCB,SCB,SMT,THDCB,THSCB,XTR)..(ARL,GCC,GEN,IDN,PHL,TH)	07/2011 - 04/2015	4
88578-0K100	GGN15,25,KUN1#,2#,3#,TGN1#,26,36..(DCB,SCB,SMT,THDCB,THSCB,XTR)..(ARL,GCC,GEN,IDN,PHL,TH)	07/2011 - 04/2015	4
88578M - PACKING, COOLING PIPE, NO.3
88578-0K081	TGN1#,26,36..ARL,GCC,GEN,IDN,TH	07/2011 - 04/2015	1
88578-0K081	TGN1#,26,36..ARL,GCC,GEN,IDN,TH	07/2011 - 04/2015	1
88578-0K091	GGN15,25,KUN1#,2#,3#..(DCB,SCB,SMT,THDCB,THSCB,XTR)..(ARL,GCC,GEN,IDN,PHL,TH)	07/2011 - 04/2015	1
88578-0K091	GGN15,25,KUN1#,2#,3#..(DCB,SCB,SMT,THDCB,THSCB,XTR)..(ARL,GCC,GEN,IDN,PHL,TH)	07/2011 - 04/2015	1
