KUN26R-CRMSYQ (2011)
Toyota Hilux
ILLUST NO. 2 OF 2(0408- )
O-RING
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90068-14022 | ||||
| 90068-14023 | ||||
| 90068-14024 | ||||
| 90068-14033 | ||||
| 90068-14034 | ||||
| 90068-14035 | ||||
| 90099-14119 | ||||
| 90099-14120 | ||||
| 90099-14121 | ||||
ILLUST NO. 1 OF 2(0408- )RHD
FRONT---MANUAL AIR CONDITIONER
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90069-32033 | ||||
| 90099-00318 | ||||
| 90099-04597 | ||||
| 90119-T0209 | ||||
| 90119-T0294 | ||||
| 90159-T0005 | ||||
| 90159-T0013 | ||||
| 90178-T0065 | ||||
| 90480-26022 | ||||
| Linked diagrams | ||||
| 5355 | ||||
| 8715 | ||||
ILLUST NO. 1 OF 2(0408- )RHD
FRONT---BOOST VENTILATOR
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90105-T0241 | ||||
| 90119-T0209 | ||||
| 90119-T0294 | ||||
| 90159-T0005 | ||||
| 90178-T0065 | ||||
| 90480-26022 | ||||
| Linked diagrams | ||||
| 5355 | ||||
| 8715 | ||||
ILLUST NO. 1 OF 2(0408- )RHD
FRONT---MANUAL COOLER
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90099-00317 | ||||
| 90099-04542 | ||||
| 90119-T0209 | ||||
| 90119-T0294 | ||||
| 90159-T0005 | ||||
| 90159-T0013 | ||||
| 90178-T0065 | ||||
| 90480-26022 | ||||
| Linked diagrams | ||||
| 5355 | ||||
| 8715 | ||||

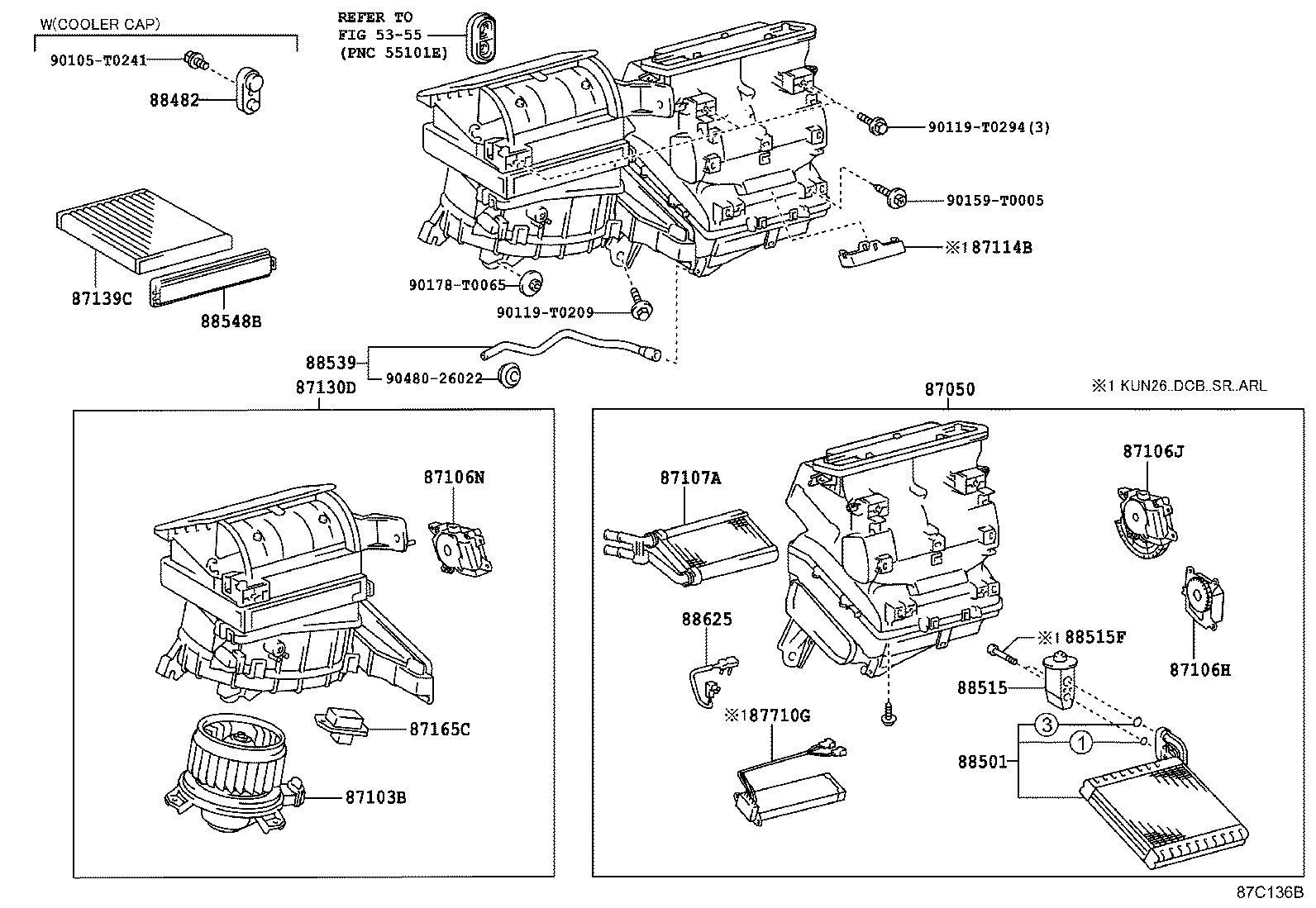

ILLUST NO. 1 OF 2(1107- )SR..ARL ; (1201- )KUN26..RHD..DCB..GEN
AUTO AIR CONDITIONER
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 87050 - RADIATOR ASSY, AIR CONDITIONER | ||||
| 87050-0K700 |
GGN15,25..SR..ARL;KUN26..XTR..SR..ARL |
1 | ||
| 87103B - MOTOR SUB-ASSY, BLOWER W/FAN | ||||
| 87103-0K210 |
GGN15,25,KUN15,16,2#,3#,TGN16,26..RHD..(DCB,SCB,XTR)..(ARL,GEN) |
1 | ||
| 87106H - SERVO SUB-ASSY, DAMPER(FOR AIRMIX) | ||||
| 87106-0K100 |
KUN26..5FC..GEN;GGN15,25,KUN26..SR..ARL |
1 | ||
| 87106J - SERVO SUB-ASSY, DAMPER(FOR MODE) | ||||
| 87106-0K070 |
KUN26..5FC..GEN;GGN15,25,KUN26..SR..ARL |
1 | ||
| 87106N - SERVO SUB-ASSY, DAMPER(FOR RECIRCULATION) | ||||
| 87106-0K040 |
GGN15,25,KUN26..SR..ARL |
1 | ||
| 87107A - UNIT SUB-ASSY, HEATER RADIATOR | ||||
| 87107-0K010 |
KUN26..5FC..GEN;GGN15,25..SR..ARL;KUN16,26..DCB..ARL;KUN26..XTR..SR..ARL |
1 | ||
| 87130D - BLOWER ASSY | ||||
| 87130-0K390 |
GGN15,25..SR..ARL;KUN26..XTR..SR..ARL |
1 | ||
| 87139C - FILTER, CLEAN AIR | ||||
| 87139-50100 |
KUN15..HDCR;KUN26..5F,5FC;KUN36..(5F,5FC)..TH;KUN25,LAN15,25..LHD..SA;GGN15..(DCB,XTR)..5FC..DLX;GGN35,KUN10,35,TGN1#,26,36;GGN15,25,KUN16..DCB..5FC..SR;KUN25..CO,GCC,GEN,IDN,LA,PKN,TH;KUN26..4FC..(CO,GEN,LA,MA,PHL,SA,TH);KUN15,16,36..DCR..(ARL,GCC,GEN,LA,PHL,PKN,SA) *DPF |
1 | ||
| 87139-52020 |
KUN25..GCC,GEN;KUN25..LHD..SA;GGN15,25,35,KUN1#,26,3#,LAN15,25,35,TGN1#,26,36..ANCOM,ARL,GCC,GEN,SA STANDARD |
1 | ||
| 87165C - CONTROL, BLOWER MOTOR | ||||
| 87165-71020 |
KUN26..5FC..GEN;KUN26..XTR..SR..ARL;TGN36..SR..HTWC..LA;GGN15,25,35,KUN15..SR..(DCR,HTWC)..(ANCOM,ARL,SA);KUN2#,36,TGN26..DCB..SR..(DCR,HDCR,HTWC,IART)..(ARL,LA,SA) |
1 | ||
| 88482 - CAP, COOLER | ||||
| 88482-0K010 |
KUN15..PHL..IV3;KUN35..DLX..GEN;KUN2#,TGN26,36..THDCB..DLX;GGN15,25,KUN1#,2#,TGN1#,26..ARL,GCC |
1 | ||
| 88501 - EVAPORATOR SUB-ASSY, COOLER, NO.1 | ||||
| 88501-0K090 |
TGN26..4FC..GEN;KUN15..LHD..DCB..GEN;KUN15,25,TGN26..GCC,IDN,MA,PHL,TH;KUN25,TGN26..LHD..(SCB,THDCB)..GEN;GGN15,25,KUN10,16,26,3#,TGN1#,36..(DCB,SCB,SMT,THDCB,XTR)..(ARL,GCC,GEN,MA,PHL,TH) |
1 | ||
| 88515 - VALVE, COOLER EXPANSION | ||||
| 88515-0K100 |
GGN15,25,KUN16,26,TGN16..RHD..(ARL,GEN) |
1 | ||
| 88515-0K100 |
KUN26..4FC..DLX;GGN15,25,KUN16,TGN16..ARL;KUN26..RHD..DCB..4FC..GEN;KUN26..RHD..(DCB,SCB,XTR)..5F..(ARL,GEN) |
1 | ||
| 88515F - BOLT(FOR COOLER EXPANSION VALVE) | ||||
| 90099-04542 |
TGN26..4FC..GEN;KUN15..LHD..DCB..GEN;KUN15,25,TGN26..GCC,IDN,PHL,TH;KUN25,TGN26..LHD..(SCB,THDCB)..GEN;GGN15,25,KUN10,16,26,3#,TGN1#,36..(DCB,SCB,SMT,THDCB,XTR)..(ARL,GCC,GEN,MA,PHL,TH) |
2 | ||
| 88539 - HOSE, COOLER UNIT DRAIN, NO.1 | ||||
| 88539-0K050 |
TGN16,26..RHD;KUN1#,2#,3#,TGN10..RHD..(DCB,SCB,SMT,XTR)..5F..(ARL,GEN,IDN,PKN,TH) |
1 | ||
| 88548B - CASE, AIR FILTER | ||||
| 88548-0K010 |
KUN25..RHD..(GEN,IDN,PKN,TH);GGN15,25,35,KUN1#,26,3#,LAN15,25,35,TGN10,15,16,26,36..RHD |
1 | ||
| 88625 - THERMISTOR, COOLER, NO.1 | ||||
| 88620-02110 |
TGN26..4FC..GEN;KUN15..LHD..DCB..GEN;KUN15,25,TGN26..GCC,IDN,PHL,TH;KUN25,TGN26..LHD..(SCB,THDCB)..GEN;GGN15,25,KUN10,16,26,3#,TGN1#,36..(DCB,SCB,SMT,THDCB,XTR)..(ARL,GCC,GEN,MA,PHL,TH) |
1 | ||
| Common parts | ||||
| 90105-T0241 | ||||
| 90119-T0209 | ||||
| 90119-T0294 | ||||
| 90159-T0005 | ||||
| 90178-T0065 | ||||
| 90480-26022 | ||||
| Linked diagrams | ||||
| 5355 | ||||
ILLUST NO. 2 OF 2(1107- )
O-RING
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90068-14022 | ||||
| 90068-14023 | ||||
| 90068-14024 | ||||
| 90068-14033 | ||||
| 90068-14034 | ||||
| 90068-14035 | ||||
| 90099-14119 | ||||
| 90099-14120 | ||||
| 90099-14121 | ||||
