KUN26R-CRMSYQ (2011)

Toyota Hilux

Production Jul 2011 - Apr 2015
Engine 1KDFTV
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(0408- )

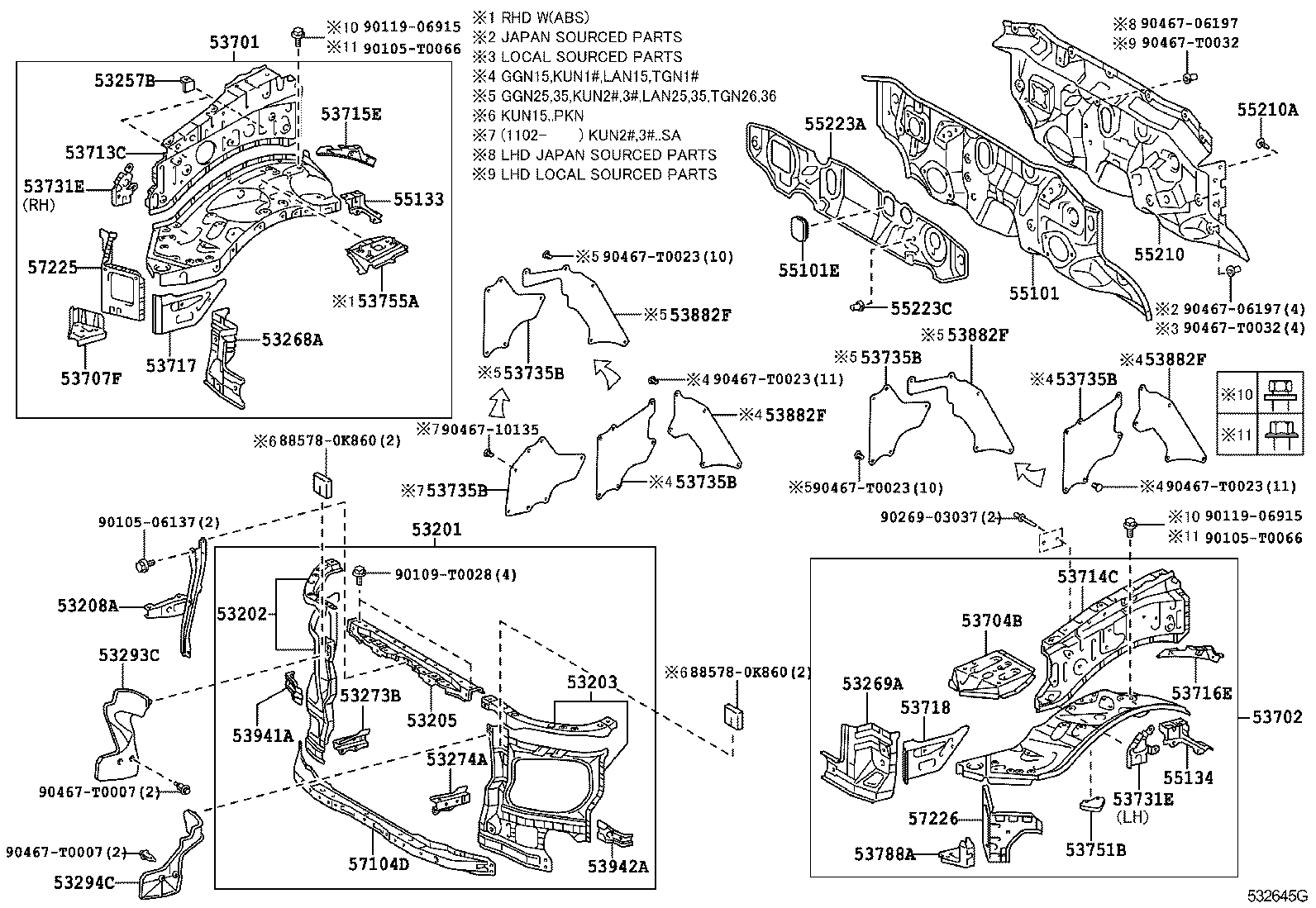

Click highlighted areas on diagram

diagram 53201 53202 53203 53205 53208A 53257B 53268A 53269A 53273B 53274A 53293C 53294C 53701 53702 53704B 53707F 53713C 53714C 53715E 53716E 53717 53718 53731E 53731E 53735B 53735B 53735B 53735B 53735B 53751B 53755A 53788A 53882F 53882F 53882F 53882F 53941A 53942A 55101 55101E 55133 55134 55210 55210A 55223A 55223C 57104D 57225 57226 885780K860 885780K860 9010506137 90105T0066 90105T0066 90109T0028 9011906915 9011906915 9026903037 9046706197 9046706197 9046710135 90467T0007 90467T0007 90467T0023 90467T0023 90467T0023 90467T0023 90467T0032 90467T0032
Part # Description Qty Price
Common parts
88578-0K860
90105-06137
90105-T0066
90109-T0028
90119-06915
90269-03037
90467-06197
90467-10135
90467-T0007
90467-T0023
90467-T0032

(1107- )GGN25,35,KUN2#,3#,LAN25,35,TGN26,36

Click highlighted areas on diagram

diagram 53201 53202 53202D 53203 53205 53208A 53257B 53268A 53269A 53273B 53274A 53293C 53294C 53701 53702 53704B 53707F 53713C 53714C 53715E 53716E 53717 53718 53731H 53732B 53735B 53735B 53735B 53751B 53755A 53771B 53779 53788A 53882F 53882F 53882F 53941A 53942A 55101 55101E 55133 55134 55210 55210A 55210C 55223A 55223C 57104D 57225 57226 9010506137 90105T0066 90105T0066 90109T0028 9011906915 9011906915 9026903037 9046710135 90467T0007 90467T0007 90467T0023 90467T0023 90467T0023 90950T6002
Part # Description Qty Price
53201 - SUPPORT SUB-ASSY, RADIATOR
53201-0K170

KUN25..SCB..MA;GGN15,25,35,KUN1#,2#,3#,LAN15,25,35,TGN1#,26,36..ANCOM,ARL,CO,GCC,GEN,IDN,LA,PHL,SA,TH

 1
53202 - SUPPORT SUB-ASSY, RADIATOR, RH
53202-0K010

KUN25..SCB..MA;GGN15,25,35,KUN1#,2#,3#,LAN15,25,35,TGN1#,26,36..ANCOM,ARL,CO,GCC,GEN,IDN,LA,PHL,SA,TH

 1
53202D - CUSHION, RADIATOR SUPPORT
90541-T0006

GGN15,25,35,KUN1#,2#,3#,LAN15,25,35,TGN1#,26,36..ARL,GCC,GEN,IDN,MA,PHL,PKN,SA,TH

(L)

 2
90541-15019

GGN15,25,35,KUN1#,2#,3#,LAN15,25,35,TGN1#,26,36..ARL,GCC,GEN,IDN,MA,PHL,PKN,SA,TH

(J)

 2
53203 - SUPPORT SUB-ASSY, RADIATOR, LH
53203-0K010

KUN25..SCB..MA;GGN15,25,35,KUN1#,2#,3#,LAN15,25,35,TGN1#,26,36..ANCOM,ARL,CO,GCC,GEN,IDN,LA,PHL,SA,TH

 1
53205 - SUPPORT SUB-ASSY, RADIATOR, UPPER
53205-0K010

KUN25..SCB..MA;GGN15,25,35,KUN1#,2#,3#,LAN15,25,35,TGN1#,26,36..ANCOM,ARL,CO,GCC,GEN,IDN,LA,PHL,SA,TH

 1
53208A - SUPPORT SUB-ASSY, HOOD LOCK
53208-0K010

KUN25..SCB..MA;GGN15,25,35,KUN1#,2#,3#,LAN15,25,35,TGN1#,26,36..ANCOM,ARL,CO,GCC,GEN,IDN,LA,PHL,SA,TH

 1
53257B - BRACKET, RADIATOR SUPPORT TO FRONT FENDER
53257-35030

TGN15,16,26,36;KUN15..XTR..DLX;KUN25..SCB..(MA,SA);KUN25..LHD..DCB..SA;KUN35..SR..(GEN,PHL,TH);KUN35..(DCB,SMT,THDCB)..DLX;KUN26,35..LHD..(SADCB,SCB)..(DCR,HDCR);KUN15..(DCB,SCB,SMT)..(GCC,GEN,PHL,SA,TH);GGN15,25,KUN10,16,2#,36,TGN10,11..(DCB,SCB,SMT,THDCB,THSCB,XTR)..(ANCOM,ARL,CO,GCC,GEN,IDN,LA,PHL,TH)

 1
53268A - REINFORCEMENT, RADIATOR MOUNTING, RH
53268-0K010

KUN25..SCB..MA;GGN15,25,35,KUN1#,2#,3#,LAN15,25,35,TGN1#,26,36..ANCOM,ARL,CO,GCC,GEN,IDN,LA,PHL,SA,TH

 1
53269A - REINFORCEMENT, RADIATOR MOUNTING, LH
53269-0K010

KUN25..SCB..MA;GGN15,25,35,KUN1#,2#,3#,LAN15,25,35,TGN1#,26,36..ANCOM,ARL,CO,GCC,GEN,IDN,LA,PHL,SA,TH

 1
53273B - BRACKET, RADIATOR SUPPORT TO FRONT FENDER, RH
53273-0K010

KUN25..SCB..MA;GGN15,25,35,KUN1#,2#,3#,LAN15,25,35,TGN1#,26,36..ANCOM,ARL,CO,GCC,GEN,IDN,LA,PHL,SA,TH

 1
53274A - REINFORCEMENT, RADIATOR SUPPORT, LH
53274-0K010

KUN25..SCB..MA;GGN15,25,35,KUN1#,2#,3#,LAN15,25,35,TGN1#,26,36..ANCOM,ARL,CO,GCC,GEN,IDN,LA,PHL,SA,TH

 1
53293C - DEFLECTOR, RADIATOR SIDE, RH
53293-0K050

GGN15,25,35,KUN1#,2#,3#,LAN15,25,35,TGN1#,26,36..ANCOM,ARL,CO,GCC,GEN,IDN,LA,MA,PHL,SA,TH

 1
53294C - DEFLECTOR, RADIATOR SIDE, LH
53294-0K050

GGN15,25,35,KUN1#,2#,3#,LAN15,25,35,TGN1#,26,36..ANCOM,ARL,CO,GCC,GEN,IDN,LA,MA,PHL,SA,TH

 1
53701 - APRON SUB-ASSY, FRONT FENDER, RH
53701-0K012

KUN16..SR..TH;KUN35..SMT..5FC;KUN16,35..RHD..(ARL,GEN);GGN15,25,KUN26,36..RHD..(DCB,SCB,SMT,XTR)..(ARL,GEN,TH)

 1
53702 - APRON SUB-ASSY, FRONT FENDER, LH
53702-0K010

TGN36..SCB;TGN16..4FC..SR;TGN36..DCB..SA;TGN16..SCB..GCC;KUN15..PHL..IV3;KUN26,36,TGN16..RHD;TGN16..DCB..DLX..GCC;KUN26,36,TGN26..LHD..DLX;GGN15,25,35,KUN1#,25,35,LAN15,25,35,TGN10,11,15..ARL,CO,GCC,GEN,IDN,LA,MA,PKN,SA,TH

 1
53702-0K011

KUN35..IV3;TGN16..4FC..SR;KUN35..5F..(CO,TH);TGN16..DCB..DLX..GCC;KUN25,TGN16..SCB..(GCC,MA);TGN26..DLX..HTWC..(ANCOM,GCC,GEN,LA);TGN16..(DCB,SCB,SMT)..HTWC..(ARL,GEN,TH);KUN15,26..RHD..(DCB,SCB,SMT,XTR)..(ARL,GEN,TH);KUN15,26,35..LHD..(DCB,THDCB,XTR)..DLX..(GCC,GEN);KUN15,TGN36..LHD..SCB..(DCR,HTWC)..(ANCOM,GCC,GEN,LA);GGN15,25,KUN10,16,25,36,TGN10,11,15..ARL,CO,GCC,GEN,IDN,TH

 1
53704B - SUPPORT SUB-ASSY, BATTERY, LH
53704-0K010

KUN25..SCB..MA;GGN15,25,35,KUN1#,2#,3#,LAN15,25,35,TGN1#,26,36..ANCOM,ARL,CO,GCC,GEN,IDN,LA,PHL,SA,TH

 1
53707F - GUSSET SUB-ASSY, FRONT FENDER APRON, LOWER RH
53707-0K010

KUN25..SCB..MA;GGN15,25,35,KUN1#,2#,3#,LAN15,25,35,TGN1#,26,36..ANCOM,ARL,CO,GCC,GEN,IDN,LA,PHL,SA,TH

 1
53713C - EXTENSION, FRONT FENDER APRON, FRONT RH
53713-0K010

KUN25..SCB..MA;GGN15,25,35,KUN1#,2#,3#,LAN15,25,35,TGN1#,26,36..ARL,GCC,GEN,IDN,PHL,PKN,SA,TH

 1
53714C - EXTENSION, FRONT FENDER APRON, FRONT LH
53714-0K010

KUN25..SCB..MA;GGN15,25,KUN1#,2#,3#,TGN1#,26,36..(DCB,SCB,SMT,THDCB,THSCB,XTR)..(ANCOM,ARL,CO,GCC,GEN,IDN,LA,PHL,TH)

 1
53715E - EXTENSION, FRONT FENDER APRON, REAR RH
53715-0K030

KUN25..SCB..MA;GGN15,25,35,KUN1#,2#,3#,LAN15,25,35,TGN1#,26,36..ANCOM,ARL,CO,GCC,GEN,IDN,LA,PHL,SA,TH

 1
53716E - EXTENSION, FRONT FENDER APRON, REAR LH
53716-0K030

KUN25..SCB..MA;GGN15,25,35,KUN1#,2#,3#,LAN15,25,35,TGN1#,26,36..ANCOM,ARL,CO,GCC,GEN,IDN,LA,PHL,SA,TH

 1
53717 - PLATE, FENDER APRON, RH
53717-0K010

KUN25..SCB..MA;GGN15,25,35,KUN1#,2#,3#,LAN15,25,35,TGN1#,26,36..ANCOM,ARL,CO,GCC,GEN,IDN,LA,PHL,SA,TH

 1
53718 - PLATE, FENDER APRON, LH
53718-0K010

KUN25..SCB..MA;GGN15,25,35,KUN1#,2#,3#,LAN15,25,35,TGN1#,26,36..ANCOM,ARL,CO,GCC,GEN,IDN,LA,PHL,SA,TH

 1
53731H - PATCH, FRONT FENDER APRON, RH
53731-0K010

KUN25..SCB..MA;GGN15,25,35,KUN1#,2#,3#,LAN15,25,35,TGN1#,26,36..ANCOM,ARL,CO,GCC,GEN,IDN,LA,PHL,SA,TH

 1
53732B - PATCH, FRONT FENDER APRON, LH
53732-0K010

KUN25..SCB..MA;GGN15,25,35,KUN1#,2#,3#,LAN15,25,35,TGN1#,26,36..ANCOM,ARL,CO,GCC,GEN,IDN,LA,PHL,SA,TH

 1
53735B - SEAL, FRONT FENDER APRON, UPPER
53735-0K020

KUN26..5FC..IV3;KUN26..5FC..(GEN,TH);GGN25,35,LAN25,35,TGN26,36;KUN25,3#..GCC,GEN,IDN,MA,PHL,TH;KUN26..(4FC,5F)..(ARL,GEN,MA,PHL,TH)

 2
53735B - SEAL, FRONT FENDER APRON, UPPER
53735-0K020

KUN26..5FC..IV3;KUN26..5FC..(GEN,TH);GGN25,35,LAN25,35,TGN26,36;KUN25,3#..GCC,GEN,IDN,MA,PHL,TH;KUN26..(4FC,5F)..(ARL,GEN,MA,PHL,TH)

 2
53735B - SEAL, FRONT FENDER APRON, UPPER
53735-0K020

KUN26..5FC..IV3;KUN26..5FC..(GEN,TH);GGN25,35,LAN25,35,TGN26,36;KUN25,3#..GCC,GEN,IDN,MA,PHL,TH;KUN26..(4FC,5F)..(ARL,GEN,MA,PHL,TH)

 2
53751B - BRACKET, CHARCOAL CANISTER MOUNTING
53751-0K010

KUN25..SCB..MA;GGN15,25,35,KUN1#,2#,3#,LAN15,25,35,TGN1#,26,36..ANCOM,ARL,CO,GCC,GEN,IDN,LA,PHL,SA,TH

 1
53755A - REINFORCEMENT, BRAKE ACTUATOR MOUNTING, NO.1
53755-0K010

KUN16..SR..TH;KUN35..SR..SA;KUN35..SMT..5FC;KUN25..RHD..DCB..SA;KUN35..(SCB,XTR)..SA;KUN16,35..RHD..(ARL,GEN);KUN15,TGN16..RHD..(HDCR,HTWC)..(ARL,SA);GGN15,25,35,KUN26,36,TGN36..RHD..(ARL,GEN,SA,TH)

 1
53788A - GUSSET, FRONT FENDER APRON, LOWER LH
53708-0K010

KUN25..SCB..MA;GGN15,25,35,KUN1#,2#,3#,LAN15,25,35,TGN1#,26,36..ANCOM,ARL,CO,GCC,GEN,IDN,LA,PHL,SA,TH

 1
53882F - SEAL, FRONT FENDER
53885-0K020

KUN26..4FC,5F;KUN26..5FC..IV3;KUN26..5FC..(CO,GEN,LA,TH);GGN25,35,KUN25,3#,LAN25,35,TGN26,36..ANCOM,ARL,CO,GCC,GEN,IDN,LA,MA,PHL,SA,TH

 2
53882F - SEAL, FRONT FENDER
53885-0K020

KUN26..4FC,5F;KUN26..5FC..IV3;KUN26..5FC..(CO,GEN,LA,TH);GGN25,35,KUN25,3#,LAN25,35,TGN26,36..ANCOM,ARL,CO,GCC,GEN,IDN,LA,MA,PHL,SA,TH

 2
53882F - SEAL, FRONT FENDER
53885-0K020

KUN26..4FC,5F;KUN26..5FC..IV3;KUN26..5FC..(CO,GEN,LA,TH);GGN25,35,KUN25,3#,LAN25,35,TGN26,36..ANCOM,ARL,CO,GCC,GEN,IDN,LA,MA,PHL,SA,TH

 2
53941A - BRACKET, FRONT END PANEL, NO.1 RH
53941-0K070

KUN25..SCB..MA;GGN15,25,35,KUN1#,2#,3#,LAN15,25,35,TGN1#,26,36..ANCOM,ARL,CO,GCC,GEN,IDN,LA,PHL,SA,TH

 1
53942A - BRACKET, FRONT END PANEL, NO.1 LH
53942-0K060

KUN25..SCB..MA;GGN15,25,35,KUN1#,2#,3#,LAN15,25,35,TGN1#,26,36..ANCOM,ARL,CO,GCC,GEN,IDN,LA,PHL,SA,TH

 1
55101 - PANEL SUB-ASSY, DASH
55101-0K010

KUN25..SCB..MA;KUN1#,2#,3#,LAN15,25,35,TGN10,15,16,36..RHD..5F..(ARL,GEN,IDN,PKN,SA,TH)

 1
55101E - GROMMET, DASH PANEL, NO.2
87128-0K010

KUN25..4FC..DLX;TGN26..4FC..GEN;KUN25..LHD..DCB..5F..SA;KUN15..LHD..(DCB,XTR)..GEN;KUN25..5F..(CO,GCC,LA,PKN);KUN15,TGN26..ANCOM,CO,GCC,LA,PKN,SA;KUN15,TGN26..(SCB,THDCB)..(HDCR,HTWC)..GEN;KUN25..LHD..(SCB,THDCB,THSCB,XTR)..(GEN,SA);GGN15,25,35,KUN10,16,26,3#,LAN15,25,35,TGN1#,36..ANCOM,ARL,CO,GCC,GEN,LA,SA

 1
55133 - PLATE, FRONT FENDER APRON SET, LOWER RH
55133-0K010

KUN25..SCB..MA;GGN15,25,35,KUN1#,2#,3#,LAN15,25,35,TGN1#,26,36..ANCOM,ARL,CO,GCC,GEN,IDN,LA,PHL,SA,TH

 1
55134 - PLATE, FRONT FENDER APRON SET, LOWER LH
55134-0K010

KUN25..SCB..MA;GGN15,25,35,KUN1#,2#,3#,LAN15,25,35,TGN1#,26,36..ANCOM,ARL,CO,GCC,GEN,IDN,LA,PHL,SA,TH

 1
55210 - INSULATOR ASSY, DASH PANEL
55210-0K080

KUN16,26..ARL;KUN26,3#..5FC..TH;KUN35..DCB..DLX..GEN;KUN15..(SCB,SMT)..DLX..HDCR..TH

 1
55210-0K081

KUN26..5FC..TH;KUN26..5FC..IV3;KUN26..4FC..ARL;KUN26..5F..(ARL,TH);KUN35..RHD..(GEN,TH);KUN15,16,25,36..ARL,TH

 1
55210-0K220

KUN36..TH;KUN26..5FC..TH;KUN26..5FC..IV3;KUN35..RHD..(GEN,TH);KUN15,16,2#..5F..(ARL,TH)

 1
55210-0K011

KUN26,36..4FC..TH;KUN16..(4FC,5F)..(GEN,TH);KUN2#,36..RHD..(DCB,SCB)..(GEN,IDN,MA,PKN);GGN15,25,KUN10,15,TGN10,16,26..RHD..(CNG,DCR,HTWC)..(ARL,GEN,IDN,PKN,TH)

 1
55210A - CLIP
90467-T0004B0

KUN26..5F..SR..LA;KUN15,35..DLX..PHL;GGN25..5FC..SR..ARL;KUN26..DCB..5FC..IV3;KUN25,TGN16..SCB..GEN;GGN15..(DCB,XTR)..5FC;KUN16..(ARL,GEN)..CBU;KUN36..(5F,5FC)..SR..(GEN,LA,TH);KUN26..(4FC,5FC)..SR..(CO,GEN,LA,MA,PHL,TH);KUN15,TGN26,36..(DCB,SCB,THDCB)..(CO,GEN,LA);KUN26..(DCB,SADCB,SMT,THDCB,XTR)..5F..(ARL,CO,GEN,PHL,TH);KUN15,25,35,TGN16..(DCB,SMT,THDCB,THSCB,XTR)..(CNG,HDCR,HTWC)..(ARL,GEN,IDN,MA,TH)

LT.GRAY,TRIM1#,2#

 3
55210C - CLIP
90467-06197

KUN16,26..ARL;KUN16,26,3#..5FC..TH;KUN35..DCB..DLX..GEN;KUN15..(SCB,SMT)..DLX..HDCR..TH

(J)

 4
90467-T0032

KUN16,26..ARL;KUN16,26,3#..5FC..TH;KUN35..DCB..DLX..GEN;KUN15..(SCB,SMT)..DLX..HDCR..TH

(L)

 4
90467-T0032

KUN36..4FC;KUN26..4FC..TH;KUN36..5F..(GEN,SA);KUN26..RHD..(GEN,MA,SA);KUN16..(4FC,5F)..(GEN,TH);KUN15,TGN16,26..RHD..(CNG,DCR,HTWC);KUN15,25..RHD..HDCR..(GEN,IDN,MA,PKN,SA);GGN15,25,35,KUN10,35,LAN15,25,35,TGN10,15,36..RHD..(ARL,IDN,SA)

 4
55223A - INSULATOR, DASH PANEL, OUTER
55223-0K010

KUN26..5FC..TH;KUN26..5FC..IV3;KUN26..RHD..(4FC,5F);KUN15,16,25,3#,LAN15,25,35..RHD

 1
55223C - CLIP
90467-T0032

KUN15,16,2#,3#,LAN15,25,35..RHD

 1
57104D - MEMBER SUB-ASSY, FRONT CROSS
57161-0K010

KUN25..SCB..MA;GGN15,25,35,KUN1#,2#,3#,LAN15,25,35,TGN1#,26,36..ANCOM,ARL,CO,GCC,GEN,IDN,LA,PHL,SA,TH

 1
57225 - BRACE, FRONT MOUNTING BRACKET, RH
57225-0K010

KUN25..SCB..MA;GGN15,25,35,KUN1#,2#,3#,LAN15,25,35,TGN1#,26,36..ANCOM,ARL,CO,GCC,GEN,IDN,LA,PHL,SA,TH

 1
57226 - BRACE, FRONT MOUNTING BRACKET, LH
57226-0K010

KUN25..SCB..MA;GGN15,25,35,KUN1#,2#,3#,LAN15,25,35,TGN1#,26,36..ANCOM,ARL,CO,GCC,GEN,IDN,LA,PHL,SA,TH

 1
