KUN26R-CRMSYQ (2011)
Toyota Hilux
(1107- )TGN1#,26,36..5F

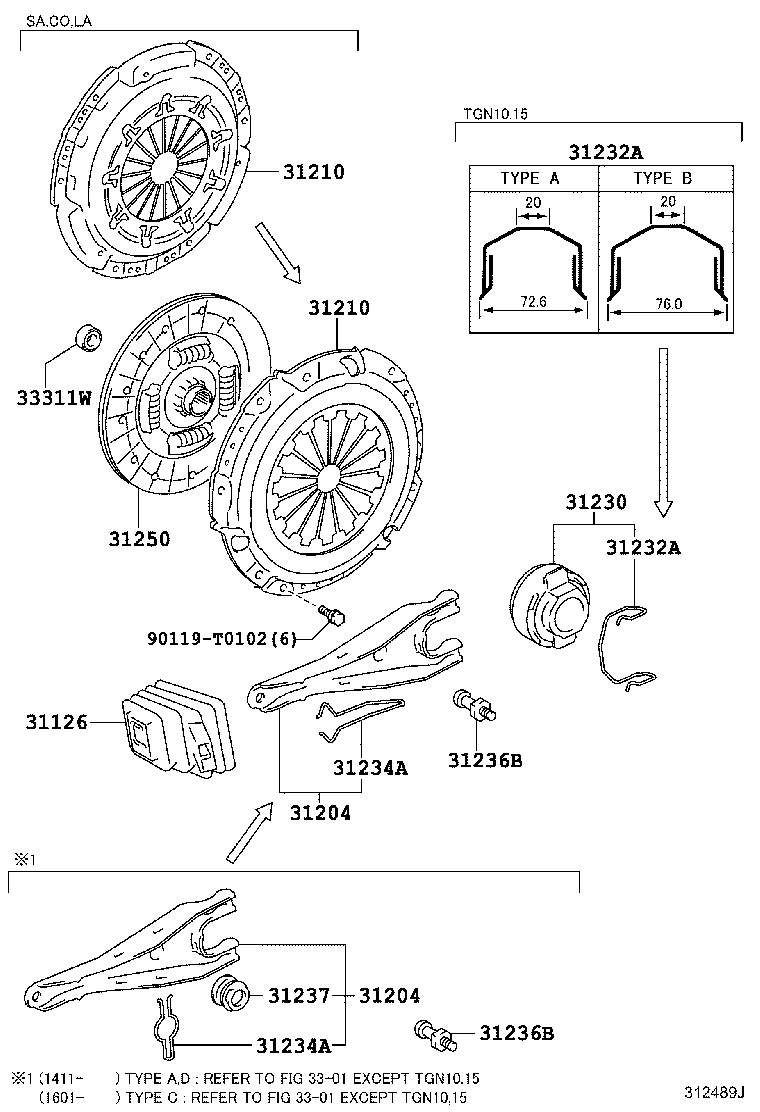

| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 31126 - BOOT, CLUTCH RELEASE FORK | ||||
| 31126-36080 |
TGN11,16,26,36..5F..(ARL,GCC,GEN,TH) TYPE B:REFER 33-01 |
1 | ||
| 31126-60081 |
KUN16,26,36..5F;KUN15,25,35..5F..HDCR..(CO,GCC,GEN,IDN,LA,MA,PHL,SA,TH) TYPE C:REFER 33-01 |
1 | ||
| 31126-60081 |
KUN15..HDCR..(GEN,TH);KUN16,2#,3#..(DCB,SCB,SMT,THDCB,THSCB,XTR)..5F..(ARL,GCC,GEN,IDN,PHL,TH) TYPE B:REFER 33-01 |
1 | ||
| 31126-0K050 |
KUN15..HDCR..SA;KUN10,16,2#,3#..5F;KUN15..GCC,GEN,PHL,TH TYPE D:REFER 33-01 |
1 | ||
| 31126-36080 |
TGN11,16,26,36..5F..(ANCOM,ARL,CO,GCC,GEN,LA,SA) TYPE C:REFER 33-01 |
1 | ||
| 31126-0K070 |
TGN11,16,26..5F;TGN36..5F..HTWC TYPE D:REFER 33-01 |
1 | ||
| 31204 - FORK SUB-ASSY, CLUTCH RELEASE | ||||
| 31204-0K081 |
KUN16,26,36..5F;KUN15,25,35..5F..HDCR..(CO,GCC,GEN,IDN,LA,MA,PHL,SA,TH) TYPE C:REFER 33-01 |
1 | ||
| 31204-35031 |
TGN11,16,26..5F;TGN36..5F..HTWC TYPE D:REFER 33-01 |
1 | ||
| 31204-35031 |
TGN11,16,26,36..5F..(ARL,GCC,GEN,TH) TYPE B:REFER 33-01 |
1 | ||
| 31204-0K071 |
KUN15..HDCR..(GEN,TH);KUN16,2#,3#..(DCB,SCB,SMT,THDCB,THSCB,XTR)..5F..(ARL,GCC,GEN,IDN,PHL,TH) TYPE B:SEE 33-01,(L) |
1 | ||
| 31204-0K071 |
KUN15..HDCR;KUN2#,36..5F;KUN35..SMT..DLX;KUN35..(DCB,SCB,THDCB,XTR)..5F;KUN1#..5F..DCR..(ARL,GCC,GEN,IDN,PHL,PKN) TYPE D:REFER 33-01 |
1 | ||
| 31204-0K020 |
TGN11,16,26,36..5F..(ANCOM,ARL,CO,GCC,GEN,LA,SA) TYPE C:REFER 33-01 |
1 | ||
| 31204-35070 |
KUN15..HDCR..(GEN,TH);KUN16,2#,3#..(DCB,SCB,SMT,THDCB,THSCB,XTR)..5F..(ARL,GCC,GEN,IDN,PHL,TH) TYPE B:SEE 33-01,(J) |
1 | ||
| 31204-71020 |
TGN11,16,26..5F;TGN36..5F..HTWC TYPE D:REFER 33-01 |
1 | ||
| 31204 - FORK SUB-ASSY, CLUTCH RELEASE | ||||
| 31204-0K081 |
KUN16,26,36..5F;KUN15,25,35..5F..HDCR..(CO,GCC,GEN,IDN,LA,MA,PHL,SA,TH) TYPE C:REFER 33-01 |
1 | ||
| 31204-35031 |
TGN11,16,26..5F;TGN36..5F..HTWC TYPE D:REFER 33-01 |
1 | ||
| 31204-35031 |
TGN11,16,26,36..5F..(ARL,GCC,GEN,TH) TYPE B:REFER 33-01 |
1 | ||
| 31204-0K071 |
KUN15..HDCR..(GEN,TH);KUN16,2#,3#..(DCB,SCB,SMT,THDCB,THSCB,XTR)..5F..(ARL,GCC,GEN,IDN,PHL,TH) TYPE B:SEE 33-01,(L) |
1 | ||
| 31204-0K071 |
KUN15..HDCR;KUN2#,36..5F;KUN35..SMT..DLX;KUN35..(DCB,SCB,THDCB,XTR)..5F;KUN1#..5F..DCR..(ARL,GCC,GEN,IDN,PHL,PKN) TYPE D:REFER 33-01 |
1 | ||
| 31204-0K020 |
TGN11,16,26,36..5F..(ANCOM,ARL,CO,GCC,GEN,LA,SA) TYPE C:REFER 33-01 |
1 | ||
| 31204-35070 |
KUN15..HDCR..(GEN,TH);KUN16,2#,3#..(DCB,SCB,SMT,THDCB,THSCB,XTR)..5F..(ARL,GCC,GEN,IDN,PHL,TH) TYPE B:SEE 33-01,(J) |
1 | ||
| 31204-71020 |
TGN11,16,26..5F;TGN36..5F..HTWC TYPE D:REFER 33-01 |
1 | ||
| 31210 - COVER ASSY, CLUTCH | ||||
| 31210-0K190 |
KUN35..RHD..5F..(GEN,TH);KUN15..(DCB,SCB,SMT)..HDCR;KUN16,25..5F..(ARL,IDN,TH);KUN26,36..5F..(ARL,GEN,PHL,SA,TH) *450 |
1 | ||
| 31210-0K131 |
TGN26,36..5F..HTWCF;TGN11,16,26,36..5F..(ANCOM,ARL,GCC,GEN,TH) |
1 | ||
| 31210 - COVER ASSY, CLUTCH | ||||
| 31210-0K190 |
KUN35..RHD..5F..(GEN,TH);KUN15..(DCB,SCB,SMT)..HDCR;KUN16,25..5F..(ARL,IDN,TH);KUN26,36..5F..(ARL,GEN,PHL,SA,TH) *450 |
1 | ||
| 31210-0K131 |
TGN26,36..5F..HTWCF;TGN11,16,26,36..5F..(ANCOM,ARL,GCC,GEN,TH) |
1 | ||
| 31230 - BEARING ASSY, CLUTCH RELEASE | ||||
| 31230-71011 |
KUN15..HDCR..(GEN,TH);KUN16,2#,3#..(DCB,SCB,SMT,THDCB,THSCB,XTR)..5F..(ARL,GCC,GEN,IDN,PHL,TH) TYPE B:REFER 33-01 |
1 | ||
| 31230-71020 |
TGN11,16,26,36..5F..(ARL,GCC,GEN,TH) TYPE B:REFER 33-01 |
1 | ||
| 31230-71020 |
TGN11,16,26..5F;TGN36..5F..HTWC TYPE D:REFER 33-01 |
1 | ||
| 31230-71011 |
KUN16,26,36..5F;KUN15,25,35..5F..HDCR TYPE D:REFER 33-01 |
1 | ||
| 31230-71011 |
KUN16,26,36..5F;KUN15,25,35..5F..HDCR..(CO,GCC,GEN,IDN,LA,MA,PHL,SA,TH) TYPE C:REFER 33-01 |
1 | ||
| 31230-71020 |
TGN11,16,26,36..5F..(ANCOM,ARL,CO,GCC,GEN,LA,SA) TYPE C:REFER 33-01 |
1 | ||
| 31232A - CLIP, RELEASE BEARING HUB | ||||
| 31232-71010 |
KUN15..HDCR..(GEN,TH);KUN16,2#,3#..(DCB,SCB,SMT,THDCB,THSCB,XTR)..5F..(ARL,GCC,GEN,IDN,PHL,TH) TYPE B:REFER 33-01 |
1 | ||
| 31232-71020 |
TGN11,16,26,36..5F..(ARL,GCC,GEN,TH) TYPE B:REFER 33-01 |
1 | ||
| 31232-71020 |
TGN11,16,26,36..5F..(ANCOM,ARL,CO,GCC,GEN,LA,SA) TYPE C:REFER 33-01 |
1 | ||
| 31232-71010 |
KUN16,26,36..5F;KUN15,25,35..5F..HDCR..(CO,GCC,GEN,IDN,LA,MA,PHL,SA,TH) TYPE C:REFER 33-01 |
1 | ||
| 31232-71020 |
TGN11,16,26..5F;TGN36..5F..HTWC TYPE D:REFER 33-01 |
1 | ||
| 31232-71010 |
KUN16,26,36..5F;KUN15,25,35..5F..HDCR TYPE D:REFER 33-01 |
1 | ||
| 31232A - CLIP, RELEASE BEARING HUB | ||||
| 31232-71010 |
KUN15..HDCR..(GEN,TH);KUN16,2#,3#..(DCB,SCB,SMT,THDCB,THSCB,XTR)..5F..(ARL,GCC,GEN,IDN,PHL,TH) TYPE B:REFER 33-01 |
1 | ||
| 31232-71020 |
TGN11,16,26,36..5F..(ARL,GCC,GEN,TH) TYPE B:REFER 33-01 |
1 | ||
| 31232-71020 |
TGN11,16,26,36..5F..(ANCOM,ARL,CO,GCC,GEN,LA,SA) TYPE C:REFER 33-01 |
1 | ||
| 31232-71010 |
KUN16,26,36..5F;KUN15,25,35..5F..HDCR..(CO,GCC,GEN,IDN,LA,MA,PHL,SA,TH) TYPE C:REFER 33-01 |
1 | ||
| 31232-71020 |
TGN11,16,26..5F;TGN36..5F..HTWC TYPE D:REFER 33-01 |
1 | ||
| 31232-71010 |
KUN16,26,36..5F;KUN15,25,35..5F..HDCR TYPE D:REFER 33-01 |
1 | ||
| 31234A - SPRING, RELEASE FORK SUPPORT | ||||
| 31234-35011 |
TGN11,16,26..5F;TGN36..5F..HTWC TYPE D:REFER 33-01 |
1 | ||
| 31234-35011 |
TGN11,16,26,36..5F..(ARL,GCC,GEN,TH) TYPE B:REFER 33-01 |
1 | ||
| 31234-35011 |
TGN11,16,26,36..5F..(ANCOM,ARL,CO,GCC,GEN,LA,SA) TYPE C:REFER 33-01 |
1 | ||
| 31234-71020 |
TGN11,16,26..5F;TGN36..5F..HTWC TYPE D:REFER 33-01 |
1 | ||
| 31234A - SPRING, RELEASE FORK SUPPORT | ||||
| 31234-35011 |
TGN11,16,26..5F;TGN36..5F..HTWC TYPE D:REFER 33-01 |
1 | ||
| 31234-35011 |
TGN11,16,26,36..5F..(ARL,GCC,GEN,TH) TYPE B:REFER 33-01 |
1 | ||
| 31234-35011 |
TGN11,16,26,36..5F..(ANCOM,ARL,CO,GCC,GEN,LA,SA) TYPE C:REFER 33-01 |
1 | ||
| 31234-71020 |
TGN11,16,26..5F;TGN36..5F..HTWC TYPE D:REFER 33-01 |
1 | ||
| 31236B - SUPPORT, RELEASE FORK | ||||
| 31236-71030 |
TGN11,16,26,36..5F..(ARL,GCC,GEN,TH) TYPE B:REFER 33-01 |
1 | ||
| 31236-71030 |
TGN11,16,26..5F;TGN36..5F..HTWC TYPE D:REFER 33-01 |
1 | ||
| 31236-71011 |
KUN16,26,36..5F;KUN15,25,35..5F..HDCR..(CO,GCC,GEN,IDN,LA,MA,PHL,SA,TH) TYPE C:REFER 33-01 |
1 | ||
| 31236-35030 |
TGN11,16,26,36..5F..(ARL,GCC,GEN,TH) TYPE B:REFER 33-01 |
1 | ||
| 31236-71011 |
KUN15..HDCR..SA;KUN15..GCC,GEN,PHL,PKN,TH;GGN15,25,KUN10,16,2#,3#..5F TYPE D:REFER 33-01 |
1 | ||
| 31236-71011 |
KUN15..HDCR..(GEN,TH);GGN15,25,KUN16,2#,3#..(DCB,SCB,SMT,THDCB,THSCB,XTR)..5F..(ARL,GCC,GEN,IDN,PHL,TH) TYPE B:REFER 33-01 |
1 | ||
| 31236-71040 |
TGN11,16,26..5F;TGN36..5F..HTWC TYPE D:REFER 33-01 |
1 | ||
| 31236-71040 |
TGN11,16,26,36..5F..(ANCOM,ARL,CO,GCC,GEN,LA,SA) TYPE C:REFER 33-01 |
1 | ||
| 31236B - SUPPORT, RELEASE FORK | ||||
| 31236-71030 |
TGN11,16,26,36..5F..(ARL,GCC,GEN,TH) TYPE B:REFER 33-01 |
1 | ||
| 31236-71030 |
TGN11,16,26..5F;TGN36..5F..HTWC TYPE D:REFER 33-01 |
1 | ||
| 31236-71011 |
KUN16,26,36..5F;KUN15,25,35..5F..HDCR..(CO,GCC,GEN,IDN,LA,MA,PHL,SA,TH) TYPE C:REFER 33-01 |
1 | ||
| 31236-35030 |
TGN11,16,26,36..5F..(ARL,GCC,GEN,TH) TYPE B:REFER 33-01 |
1 | ||
| 31236-71011 |
KUN15..HDCR..SA;KUN15..GCC,GEN,PHL,PKN,TH;GGN15,25,KUN10,16,2#,3#..5F TYPE D:REFER 33-01 |
1 | ||
| 31236-71011 |
KUN15..HDCR..(GEN,TH);GGN15,25,KUN16,2#,3#..(DCB,SCB,SMT,THDCB,THSCB,XTR)..5F..(ARL,GCC,GEN,IDN,PHL,TH) TYPE B:REFER 33-01 |
1 | ||
| 31236-71040 |
TGN11,16,26..5F;TGN36..5F..HTWC TYPE D:REFER 33-01 |
1 | ||
| 31236-71040 |
TGN11,16,26,36..5F..(ANCOM,ARL,CO,GCC,GEN,LA,SA) TYPE C:REFER 33-01 |
1 | ||
| 31237 - BOOT, CLUTCH RELEASE FORK SUPPORT | ||||
| 31237-0K010 |
KUN15..HDCR..SA;KUN15..GCC,GEN,PHL,PKN,TH;GGN15,25,KUN10,16,2#,3#..5F TYPE D:REFER 33-01 |
1 | ||
| 31237-60010 |
KUN16,26,36..5F;KUN15,25,35..5F..HDCR..(CO,GCC,GEN,IDN,LA,MA,PHL,SA,TH) TYPE C:REFER 33-01 |
1 | ||
| 31237-60010 |
KUN15..HDCR..(GEN,TH);KUN16,2#,3#..(DCB,SCB,SMT,THDCB,THSCB,XTR)..5F..(ARL,GCC,GEN,IDN,PHL,TH) TYPE B:SEE 33-01,(J) |
1 | ||
| 31237-0K020 |
TGN11,16,26..5F;TGN36..5F..HTWC TYPE D:REFER 33-01 |
1 | ||
| 31237-0K010 |
KUN15..HDCR..(GEN,TH);KUN16,2#,3#..(DCB,SCB,SMT,THDCB,THSCB,XTR)..5F..(ARL,GCC,GEN,IDN,PHL,TH) TYPE B:SEE 33-01,(L) |
1 | ||
| 31250 - DISC ASSY, CLUTCH | ||||
| 31250-0K221 |
KUN15..(DCB,SCB,SMT)..HDCR;KUN16,25,35..5F..(ARL,IDN,TH);KUN26,36..5F..(ARL,GEN,PHL,SA,TH) |
1 | ||
| 31250-0K151 |
TGN11,16,26,36..5F..(ANCOM,ARL,GCC,GEN,TH) |
1 | ||
| 33311W - BEARING (FOR INPUT SHAFT) | ||||
| 90363-T0006 |
KUN15,25..DCB..SR..SA;KUN1#..5F..DCR..(ARL,GCC,GEN,IDN,PHL,PKN);KUN15,25,35..5F..HDCR..(GCC,GEN,IDN,MA,PHL,PKN,TH);KUN26,36..(DCB,SCB,SMT,THDCB,XTR)..5F..(ARL,GEN,PHL,TH) (L) |
1 | ||
| 90363-12002 |
KUN35..XTR;KUN15,25..DCB..SR..SA;KUN10,16,TGN1#,26,36..5F;KUN15,2#,3#..(DCB,SCB,SMT,THDCB,THSCB,XTR)..5F..(ARL,GCC,GEN,IDN,MA,PHL,TH) (J) |
1 | ||
| Common parts | ||||
| 90119-T0102 | ||||
